User Manual

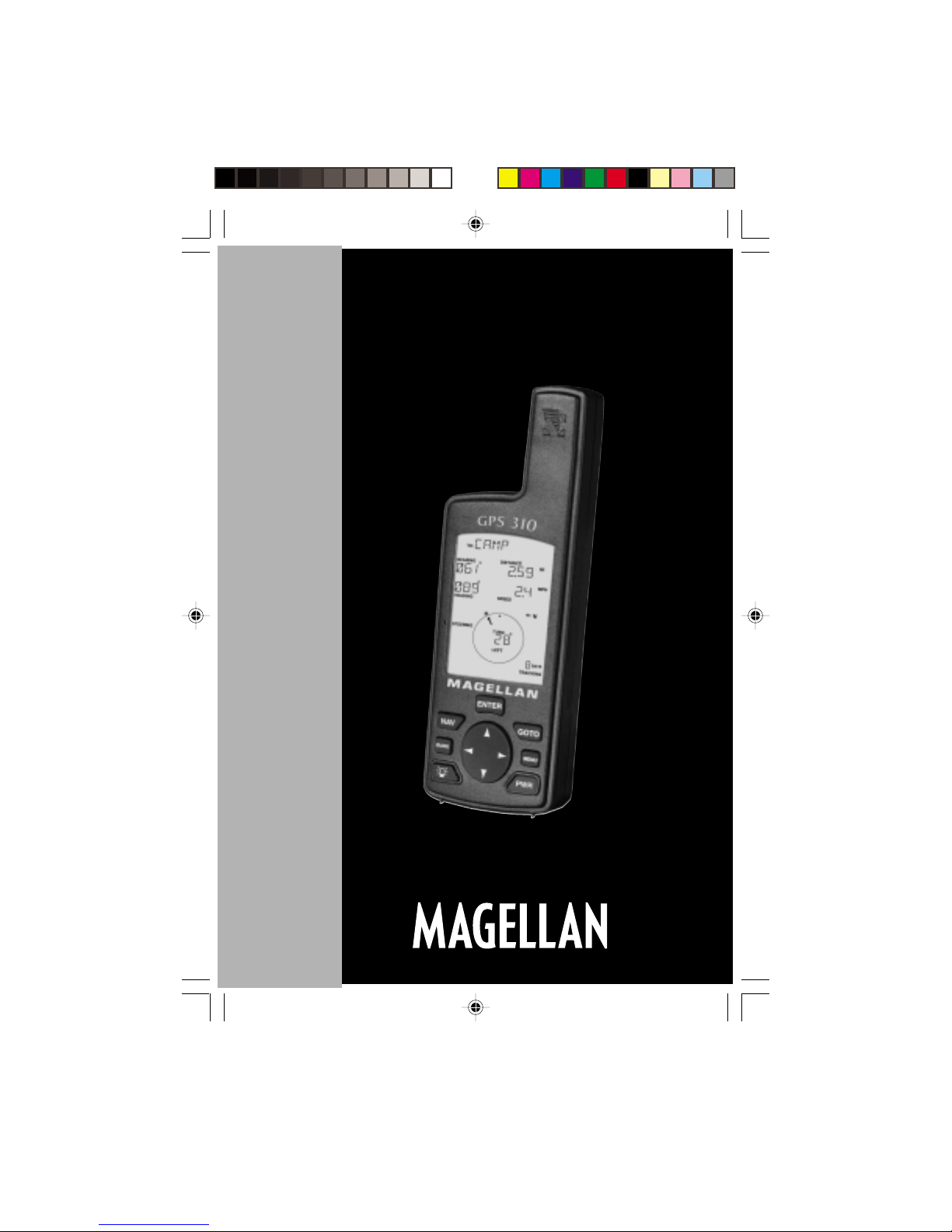

GPS 310 Satellite Navigator

WARNINGS

A measure of knowledge by the user is required for proper and

safe use of the Magellan GPS 310™. READ THE USER MANUAL &

WARRANTY COMPLETELY.

Use Good Judgment

This product is an excellent navigation aid, but it does not replace

the need for careful orientation and good judgment. Never rely

solely on one device for navigating.

Use Care to Avoid Inaccuracies

The Global Positioning System (GPS) is operated by the U.S.

Government, which is solely responsible for the accuracy and the

maintenance of GPS. Certain conditions can make the system less

accurate.

No part of this Manual may be reproduced or transmitted in any

form or by any means, electronic or mechanical, including

photocopying and recording, for any purpose other than the

purchaser’s personal use, without the written permission of

Magellan Corporation.

Magellan™ and GPS 310™ are the trademarks of Magellan

Corporation.

P/N 630786 B

TABLE OF CONTENTS

Introduction .................................................... 1

Welcome to the Magellan GPS 310 ..................................... 1

GPS 310 Description ........................................................... 1

Magellan GPS 310 Key Functions ....................................... 2

Getting Started ................................................ 3

Installing the Batteries ......................................................... 3

Getting Signals from Satellites ............................................. 3

Initializing the Receiver - EZStart ........................................ 4

Computing a Position .......................................................... 5

Basic Operation ............................................... 7

Saving a Position Fix ............................................................ 7

Creating a Landmark ........................................................... 8

Viewing the POSITION Screen ........................................... 9

Viewing the NAVIGATION Screens .................................. 10

Creating a GOTO Route ................................................... 13

Summary ........................................................................... 14

Working with Landmarks.............................. 15

Viewing a Landmark .......................................................... 15

Editing a Landmark ........................................................... 16

Deleting a Landmark ......................................................... 16

GPS 310 TOC 10/18/99, 9:27 AM1

Working with Routes..................................... 17

Creating a Route ................................................................ 17

Viewing a Route ................................................................ 19

Activating/Deactivating a Route ........................................ 20

Deleting a Route ................................................................ 21

Adding Legs to a Route ...................................................... 21

Activating a Leg in a Route ................................................ 22

Editing a Leg in a Route .................................................... 23

Deleting a Leg From a Route ............................................. 24

Reversing a Route .............................................................. 24

Additional Features ....................................... 25

Viewing the Time and Date ............................................... 25

Viewing Elevation .............................................................. 25

Viewing Battery Life .......................................................... 25

Changing Coordinate Systems ........................................... 26

Changing Map Datums ..................................................... 27

Changing Distance Units ................................................... 28

Changing Time Display and Time ..................................... 28

Changing North Reference ................................................ 29

Initializing the Receiver (EZSTART) ................................. 29

Activating the Demo Mode................................................ 30

Setting Display Contrast .................................................... 31

Using the Trip Odometer ................................................... 31

Connecting to External Devices .................... 32

NMEA Data Messages ................................... 34

Troubleshooting ............................................ 41

Frequently Asked Questions .............................................. 42

Icons .................................................................................. 44

Contacting Magellan ......................................................... 45

GPS 310 TOC 10/18/99, 9:27 AM2

iii

Accessories ..................................................... 46

Attaching the Wrist Lanyard.......................... 47

Shipping/Transporting .................................. 48

Glossary ......................................................... 49

Index ............................................................. 52

GPS 310 TOC 10/18/99, 9:27 AM3

GPS 310 TOC 10/18/99, 9:27 AM4

Introduction

Welcome to the Magellan GPS 310

Congratulations on your purchase of the Magellan GPS 310

satellite navigator. The GPS 310 is an easy-to-use GPS

receiver designed to get you out in the “Great Outdoors”

rather than spending hours reading a User’s Manual. There

are, however, a few items that you need to be familiar with so

it is suggested that you follow along at least through the

chapter on Basic Operation.

Before you begin, make sure that your package includes the

items listed on the GPS 310 box. If any items are missing or

damaged, contact your Magellan dealer or retailer.

GPS 310 Description

The GPS 310 is a self-contained hand-held GPS receiver

designed for general purpose position locating and navigation.

It has a built-in antenna located at the top of the receiver, a

backlit display, and keypad. Using two AA batteries, inserted

from the battery door found at the back of the receiver, the

GPS 310 will operate for up to 20 hours.

The ENTER key

confirms data

entries or menu

selections.

The NAV key

accesses the

Position and

Navigation

screens.

The MARK key is

used to create

landmarks and store

the current position.

The LIGHT key turns

the light on and off.

The ARROW pad is used to

enter landmark names, and

scroll through the series of

screens and menu selections.

The MENU key is

used to access the

route, landmark and

setup functions.

The PWR key

turns the receiver

on and off.

The GOTO key is

used to create a

direct route to any

landmark stored in

memory.

GPS Antenna

Magellan GPS 310 Key Functions

PWR

GOTO

ENTER

NAV

MARK

Getting Started

Installing the Batteries

The GPS 310 uses two AA alkaline batteries that are installed

at the back of the receiver. To remove the battery cover, turn

the ring of the battery door screw counterclockwise until the

battery cover can be removed.

Insert the new batteries as

shown, being sure to respect the

polarities, and replace the

battery cover.

Replace the screw and turn the

ring clockwise until the battery

door is held in place securely.

While the battery door does

provide the waterproofing seal

to the batteries, you should avoid overtightening the battery

door screw.

Getting Signals from Satellites

Since the GPS 310 receives information from satellites

orbiting the earth, the antenna needs to have a relatively

unobstructed view of the sky. Large obstructions such as

buildings, cliffs, and overhangs may interfere with signal

reception causing your GPS 310 to take additional time to

compute your location.

The GPS 310 is designed to fit

comfortably in your hand. Hold

the receiver with the antenna

towards the sky.

Initializing the Receiver - EZStart

Before using your GPS 310 for the first time, the receiver

needs to know its approximate location. Using Magellan’s

EZStart procedure, the GPS 310 will prompt you for the

information it requires when you turn it on for the first time.

You do not need to initialize your receiver each time you use

it. Follow these steps to initialize the GPS 310 if this is the

first time you are using it.

Press

PWR

to turn the GPS 310 on.

SELECT REGION. Use the ARROW pad to change the

flashing text to select the appropriate region for your

present location. Press

ENTER

SELECT COUNTRY or STATE. Use the ARROW pad

to change the flashing text to select the country or state for

your present location.

Press

ENTER
