M2 Antenna Systems 6M5XHG Manual de usuario

M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722

Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com

Rev.01

Model .........................................6M5XHG

Frequency Range.......................50.0 To 50.3 MHz

*Gain, (FS) / Over gnd ...............12.0 dBi

Front to back ..............................21 dB Typical

Beamwidth ...............................E=44° H=50°

Feed type ...................................Direct feed

Feed Impedance. .......................50 Ohms Unbalanced

Maximum VSWR........................1.2:1 Typical

Input Connector..........................“N” Female

Power Handling ..........................3 kW, Higher avl.

Boom Length / Dia......................243” / 1”, 1-1/4” & 1-1/2”

Maximum Element Length..........113”

Turning Radius: ..........................139”

**Stacking Distance....................23’ H & 25’ W

Mast Size....................................2” Nom.

Wind area / Survival ...................2.2 Sq. Ft. / 100 MPH

Weight / Ship Wt.........................11 Lbs. / 15 Lbs.

M2 Antenna Systems, Inc.

Model No: 6M5XHG

FEATURES:

The 6M5XHG is the latest computer optimized version of our popular 6M5X. The 6M5XHG has been re-designed

to use a hairpin type direct feed. We just made a good thing better, maintaining a low wind load and great performance

for its size. The 6M5XHG will compliment the rest of your antenna system and not overload your tower. Quick and easy

to assemble, it is also great for mountain topping, grid expeditions and DXpeditions. The 6M5XHG features machined

aluminum “Slip on” element mounting blocks, guarantees this antenna to stay up for years to come. The 6M5XHG is per-

fect for the Ham trying 6 meters for the first time or the seasoned vet who may stack them for lower angle of radiation or

even some EME use.

SPECIFICATIONS:

*Subtract 2.14 from dBi for dBd / FS = Free Space / ** H = High / W = Wide

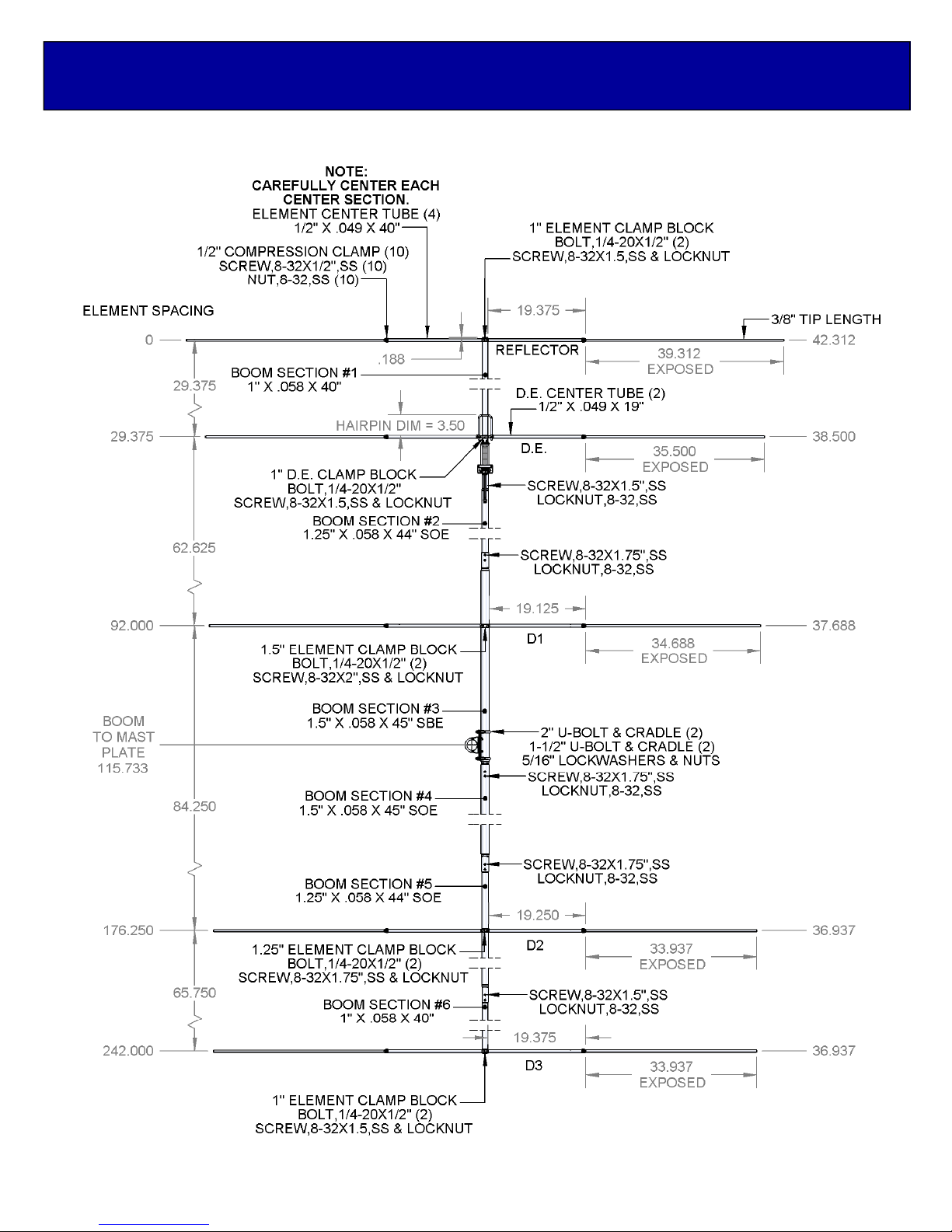

6M5XHG DIMENSION SHEET

TOOLS REQUIRED: Screwdriver, 11/32 wrench, socket or spintite, a 7/16" and 1/2" wrench or socket, tape measure.

**Please be sure to slip Element Clamp Blocks

on to the boom before adding the next boom section**

6M5XHG TRAVEL INSTALLATION TIPS

1. We recommend to pre-assemble the antenna at home and color code using the “Resistor Color Code Scheme”.

Color coding your antenna will help you assemble the antenna quicker and more efficiently without the hassles of

measuring when taken on trips.

2. For travel purpose we have supplied two additional, Screws 8-32 X 1/2” to hold the hairpin inside the D.E. Hairpin

Block if you chose not to use the supplied Set Screw 8-32 X 1/4” on trips.

3. On a trip, this antenna may be pre-assembled in a limited space area or indoors. Each element can be assembled

prior to your complete system installation in the field (see picture below). When elements have been completely

assembled and marked, you may loosen compression clamps and slide element tips as far in as possible for easy

mobility of assembled elements. When ready to install the complete system, slide pre-assembled elements to the

main crossboom & match up with pre-color coded areas on the boom, loosen compression clamps & slide the 3/8”

tips back out to marked areas.

4. For home installations we recommend for all screws and joints to be coated with conductive paste or penetroz / zinc

paste for easy disassembly at a later date if you wish to take on a trip.

6M5XHG BALUN DETAIL

M2ANTENNA SYSTEMS, INC.

4402 N. SELLAND AVE.

FRESNO, CA 93722

(559) 432-8873 FAX: 432-3059

www.m2inc.com Email: [email protected]

GENERIC COMPRESSION CLAMP DETAIL

NOTE:

Generic layout to show

how compression clamps work.

Your antenna may have one or the other

or may even have both compression

clamp sizes.

6M5XHG PARTS & HARDWARE

DESCRIPTION......................................................................................... QTY

BOOM SECTION #1 & #6: 1” X .058 X 40” .............................................. 2

BOOM SECTION #2 & #5: 1.25” X .058 X 44“ SOE ................................ 2

BOOM SECTION #3: 1.5” X .058 X 45“ SBE ........................................... 1

BOOM SECTION #4: 1.5” X .058 X 45“ SOE........................................... 1

ELEMENT CENTER, .50” X .049 X 40” (M2AEP0070) ............................ 4

DE ELEMENT CENTER, .50” X .049 X 19” (M2AEP0071) ...................... 2

ELEMENT TIPS 3/8”, .375” X .049 X SEE CHART .................................. 10

FIBERGLASS DE CENTER, .375” X 10” (M2AFG0015).......................... 1

DE CLAMP BLOCK 1”, 1.25” X .500 X 2.126” (M2ADE0090) .................. 1

ELEMENT CLAMP BLOCK 1”, 1.25” X .625 X 2.126” (M2AEC0101) ...... 2

ELEMENT CLAMP BLOCK 1-1/4”, 1.50” X 2.375” (M2AEC0104) ........... 1

ELEMENT CLAMP BLOCK 1-1/2”, 1.75” X 2.610” (M2AEC0108) ........... 1

DE HAIRPIN BLOCK, .50” X .250 X .625” (M2ADP0620) ........................ 2

HAIRPIN ROD 3/16”................................................................................. 1

BALUN PLATE, .125” X 1.5” X 3” (M2APT0013) ..................................... 1

BOOM TO MAST PLATE, 4” X .1875 X 6” (M2APT0022)........................ 1

(3) FAIRITE 1:1 VHF BALUN ASSEMBLY (FGBL0800) ........................ 1

PENETROX / ZINC PASTE CUP............................................................. 1

ASSEMBLY MANUAL .............................................................................. 1

HARDWARE:

COMPRESSION CLAMP, 1/2”................................................................. 10

U-BOLT AND CRADLE, 2"....................................................................... 2

U-BOLT AND CRADLE, 1-1/2”................................................................. 3

U-BOLT, 1"............................................................................................... 1

LOCKWASHER, 5/16, SS ........................................................................ 10

NUT, 5/16-18, SS ..................................................................................... 10

BOLT, 1/4-20 X 1/2”, SS .......................................................................... 9

LOCKWASHERS, 1/4, SS........................................................................ 2

NUT, 1/4-20, SS....................................................................................... 2

SCREW, 8-32 X 2”, SS ............................................................................ 1

SCREW, 8-32 X 1-3/4”, SS ...................................................................... 7

SCREW, 8-32 X 1-1/2”, SS ...................................................................... 7

SCREW, 8-32 X 1-1/4”, SS ...................................................................... 2

SCREW, 8-32 X 1/2”, SS ......................................................................... 12

SET SCREW, 8-32 X 1/4”, SS ................................................................. 2

NUT, 8-32, SS.......................................................................................... 10

LOCKNUT, 8-32, SS ................................................................................ 17

ALLEN HEAD WRENCH, 5/64”................................................................ 1

M2ANTENNA SYSTEMS, INC.

4402 N. SELLAND AVE.

FRESNO, CA 93722

(559) 432-8873 FAX: 432-3059

www.m2inc.com Email: [email protected]
