M2 Antenna Systems 420-50-11 Manual de usuario
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2018 M2 Antenna Systems Incoporated 5/23/18
REV A
Model .........................................420-50-11
Frequency Range.......................420 To 450 MHz
*Gain ..........................................13.44 dBi
Front to back ..............................20 dB Typical
Beamwidth ...............................E=34° H=43°
Feed type ...................................Folded Dipole
Feed Impedance........................50 Ohms Unbalanced
Maximum VSWR........................1.2:1 Typical
Input Connector..........................“N” Female
Power Handling..........................1 kW
Boom Length / Dia......................60” / 1”
Maximum Element Length..........13-3/4”
Turning Radius:..........................55”
Stacking Distance.......................34” High & 36” Wide
Mast Size....................................2” Nom.
Wind area / Survival...................0.6 Sq. Ft. / 100 MPH
Weight / Ship Wt.........................4 Lbs. / 6 Lbs.
M2 Antenna Systems, Inc.
Model No: 420-50-11
SPECIFICATIONS:
*Subtract 2.14 from dBi for dBd
FEATURES:
The 420-50-11 has been computer designed to cover the entire amateur 70 CM band. It is ideal for repeater link-
ing or any point to point application. Comparing it to a common reference, the KLM 420-450-11, it has the same usable
bandwidth with a full one dB more gain and the pattern is much cleaner. Clean patterns in most applications provide more
reliable communications with less intermod. An optional stacking harness is available when more than one antenna is
required for reduced beamwidth or additional gain. Because the antenna covers the whole band, many users find it a nat-
ural for ATV and general repeater use. Users are surprised by the performance of this compact but potent antenna.
Construction is classic M2for long term electrical and mechanical integrity. Elements are 3/16” 6061-T6 rod,
mounted through the boom on UV stabilized insulators and locked in place with stainless steel shaft retainers. The driven
element module is CNC machined and all connectors O-ring sealed. Internal connections are encapsulated in a space-
age silicone gel with nearly 4 times the dielectric strength of air. Balun connectors are triple-sealed to the coax.
Tools handy for assembly process: screwdriver, 11/32” spin-tite or socket, 7/16” and 1/2” end
wrenches / sockets, measuring tape.
1. This antenna uses a one-piece boom. A factory installed 7/8” x 29” sleeve provides additional
boom strength for rear mounting the antenna. Check that sleeve is in position, flush with rear end
of boom and all holes are aligned with boom.

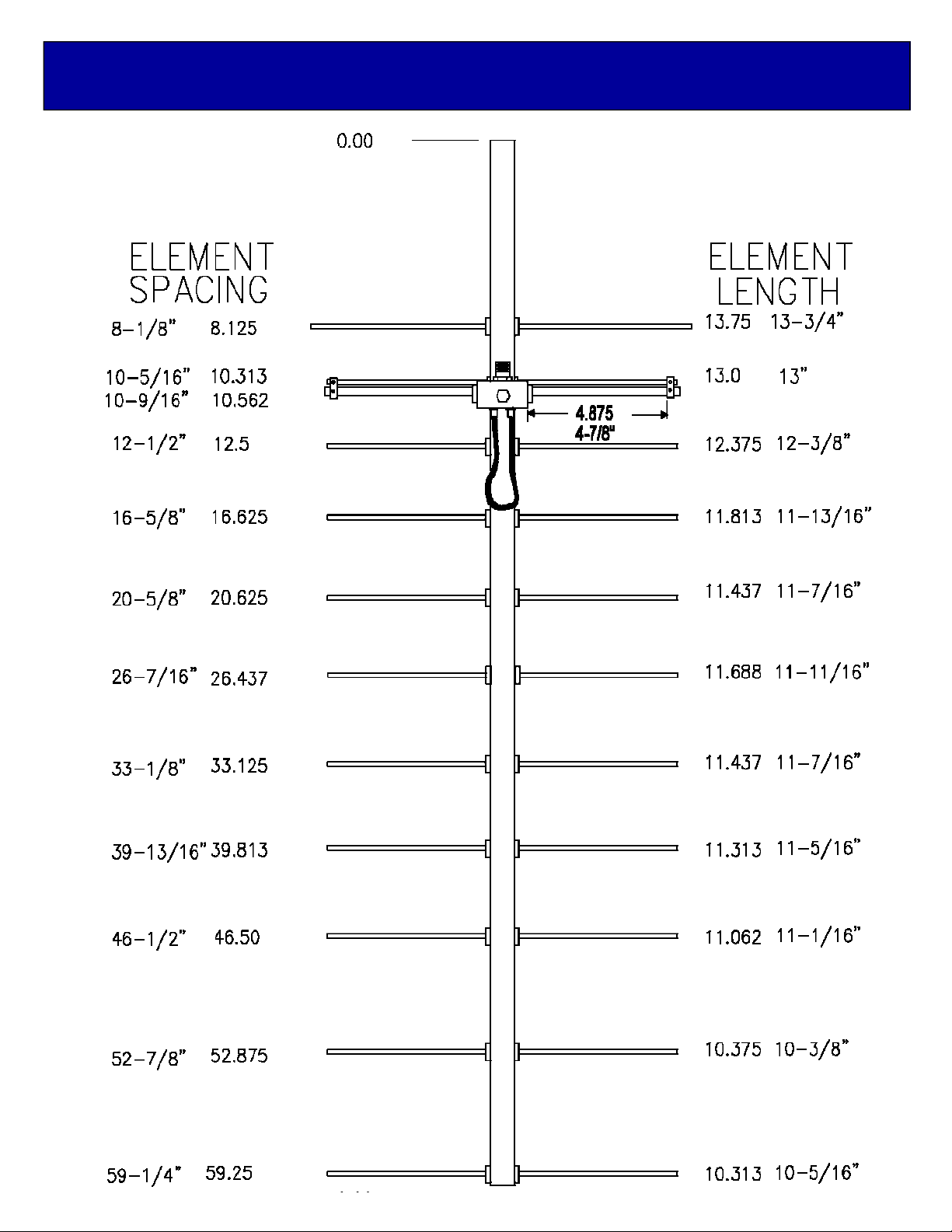

2. Lay out the elements by length and position as shown the DIMENSION sheet. Start with the
reflector (longest) element and push on a black button insulator to about 1/2” from center. Push the
element through the holes 1/2" from the rear of the boom and install the second button, snugging it
up into boom. DO NOT BOTHER WITH ACCURATELY CENTERING the element at this time and
DO NOT INSTALL the stainless steel internal locking “KEEPERS” yet. This is easier to do after all
the elements are installed in the boom.
3. Install the 3/16” rod DRIVEN ELEMENT as you did the reflector. Then continue with the installation
of the DIRECTORS. Note that the Director Elements do not consistently diminish in length
from rear to front, so pay close attention to length and position.
4. Now begin centering the elements. Use a tape measure to EQUALIZE the amount the element
sticking out on each side of the boom. Once you have all the elements centered, sight down the
element tips from the rear comparing each side. Look for any obvious discrepancies and correct if
found.
5. Install the stainless steel SHAFT RETAINERS to secure the elements. NOTE: For portable or
temporary use of the antenna, the retainers may be left off. The button insulators, normally a tight
fit, hold the elements quite securely.
To install, use thumb and forefinger to hold the retainer over the end of the PUSH TUBE ( 3/8" x 3"
420-50-11 ASSEMBLY MANUAL
tube, supplied in the kit), internal fingers on retainer dished into tube. HOLD THE ELEMENT
FIRMLY TO PREVENT IT FROM SLIDING OFF CENTER and press the retainer onto the element
end and continue until retainer butts on insulator button. Locking pliers, lightly clamped up against
opposite button insulator will help maintain center reference. If you push the first retainer too far,
remove element from boom, push retainer completely off the element, and start over. Install
another retainer to the opposite side of the element. Continue installing retainers until all elements
are locked in place.

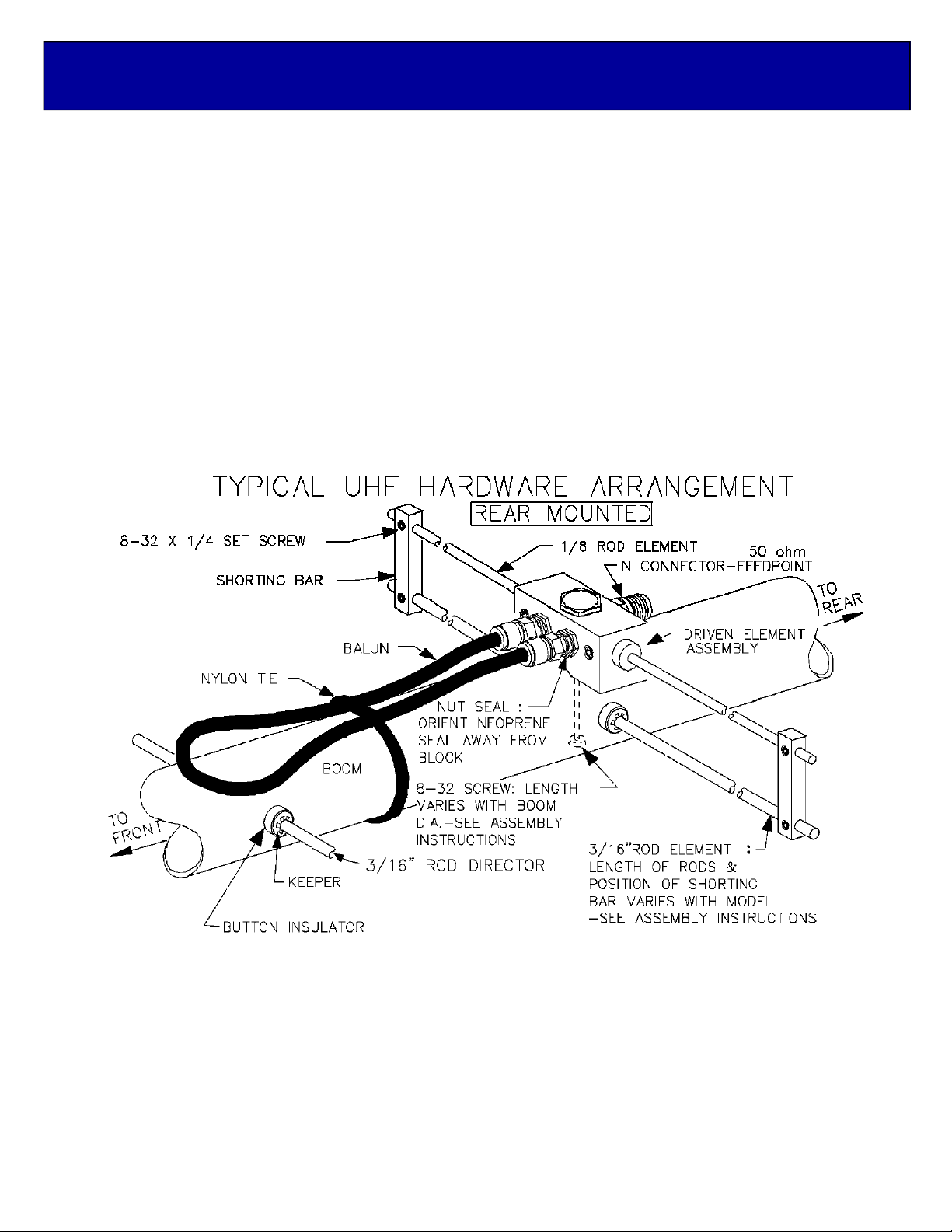

6. Mount the DRIVEN ELEMENT BLOCK to the boom using a single 8-32 X 1-1/4" screw and lock
washer. Orient the block with type “N” feed connector facing to the rear and balun connectors
facing to the front. Block orientation may be reversed if you wish to center mount antenna.
7. Attach balun and tighten the connectors gently using a 7/16" end wrench. A lot of torque is
unnecessary. Form the balun close to the boom and secure to boom with a nylon cable tie. Tie
should be snug but not crushing or kinking the coax.
8. Install the 8-32 x 1/4” set screws (internal Allen head - tool supplied) into the SHORTING BARS.
Slide the bars onto the 3/16” rod driven element tips and 1/8” Driven Element Block Rods. Position
the Shorting Bars as specified on the Dimension Sheet: the distance given is between the outer
edge of the Driven Element Block and the inner edge of the Shorting Bar. Align the bars and rods
with each other and tighten the setscrews.
9. The boom to mast plate is normally mounted at the rear of the boom using 1" U-bolts and the
stainless locknuts provided. DO NOT OVER TIGHTEN. 2” U-bolts, cradles, and stainless hardware
are provided for mounting the antenna to your mast. Secure feed coax to boom and mast with
harness ties.
10. MOUNTING
THIS ANTENNA CAN BE REAR MOUNTED IN ANY POLARITY TO ANY TYPE OF 2” MAST.
IF YOU PLAN TO CENTER-MOUNT THE ANTENNA PLEASE FOLLOW THE GUIDELINES
BELOW:
Maintain good VSWR and pattern: Keep metallic masts, cross booms and the feed coax out of the
element plane.
FOR HORIZONTAL POLARIZATION, the antenna may be center-mounted to a metallic vertical mast
or a horizontal NON-METALLIC cross boom (no conductive material in element plane). If mounted
to a horizontal cross boom, route the feedline forward to the boom-to-mast plate, loop down at
right angles to the element plane, and bring back to cross boom at least 6” beyond element tips.
FOR VERTICAL POLARIZATION, the antenna may be center-mounted to a NON METALLIC
VERTICAL MAST (no conductive material in element plane) or a horizontal metallic cross boom. If
mounted to a vertical mast, route the feed line forward to the boom-to-mast plate, loop out at a
right angle to the boom, and bring down to the mast at least 6 inches BELOW THE ELEMENT
TIPS. The feedline may also exit at the rear of the boom and loop back to the mast.
Stacking? Call M2and let us help you DO IT RIGHT
THIS COMPLETES THE ANTENNA ASSEMBLY.
DESCRIPTION QTY
BOOM SECTION, 1 X .058 X 60” .................... 1
420-50-11 ASSEMBLY MANUAL
420-50-11 DIMENSION SHEET
SLEEVE, 7/8 X .058 X 29” (factory installed).... 1
ELEMENTS, 3/16 ROD x Dimension Sheet...... 11
DRIVEN ELEMENT BLOCK............................. 1
BALUN, RG-6 1/2 WAVE.................................. 1
BOOM-TO-MAST PLATE, .188 X 3” X 4”........ 1
U-BOLT AND CRADLE, 2” ............................... 2
U-BOLT, 1” ....................................................... 2
ASSEMBLY MANUAL....................................... 1
IN HARDWARE BAG:
SHORTING BAR .............................................. 2
BUTTON INSULATORS................................... 22
KEEPER, SS .................................................... 22
NUT, 5/16-18 SS .............................................. 4
LOCK WASHER, 5/16 SS................................. 4
LOCKNUT, 1/4-20 SS....................................... 4
SETSCREW, 8-32 X 1/4, SS............................ 4
SCREW, 8-32 X 1-1/4 SS................................. 1
LOCK WASHER, #8 SS.................................... 1
CABLE TIE, NYLON ........................................ 2
ALLEN HEAD WRENCH, 5/64” ........................ 1
PUSH TUBE, 3/8 X 3”....................................... 1
Carefully manufactured by:
M2ANTENNA SYSTEMS, INC.
4402 N. Selland Ave.
Fresno, CA 93722
(559) 432-8873 Fax: 432-3059
420-50-11 PARTS & HARDWARE
