MFS2

P. 1 / 3EM-1383

SPLIT-RANGE TRANSMITTER

(isolated four outputs) MODEL MFS2

INSTRUCTION MANUAL

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■ PACKAGE INCLUDES:

Signal conditioner (body + base socket + input resistor)

..... (1)

Input resistor is provided only with current input type.

■ MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■ INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

This unit is factory adjusted and calibrated according to the

Ordering Information included in the product package.

The MFS2 is programmable using the PC Conﬁgurator

Software. For detailed information on the PC conﬁguration,

refer to the MFS2CFG users manual. The MFS2CFG PC

Conﬁgurator Software is downloadable at M-System’s web

site: http://www.m-system.co.jp.

POINTS OF CAUTION

■ POWER INPUT RATING & OPERATIONAL RANGE

• Locate the power input rating marked on the product and

conﬁrm its operational range as indicated below:

85 – 264V AC rating: 85 – 264V, 47 – 66 Hz, approx. 3 – 4VA

24V DC rating: Rating ±10%, approx. 2W

110V DC rating: 85 – 150V, approx. 2W

■ UNPLUGGING THE UNIT

• Before you remove the unit from its base socket or mount

it, turn off the power supply and input signal for safety.

■ ENVIRONMENT

• Indoor use

• When heavy dust or metal particles are present in the air,

install the unit inside proper housing with sufﬁcient ven-

tilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within 0 to 50°C

(32 to 122°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■ WIRING

• Do not install cables (power supply, input and output)

close to noise sources (relay drive cable, high frequency

line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■ AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

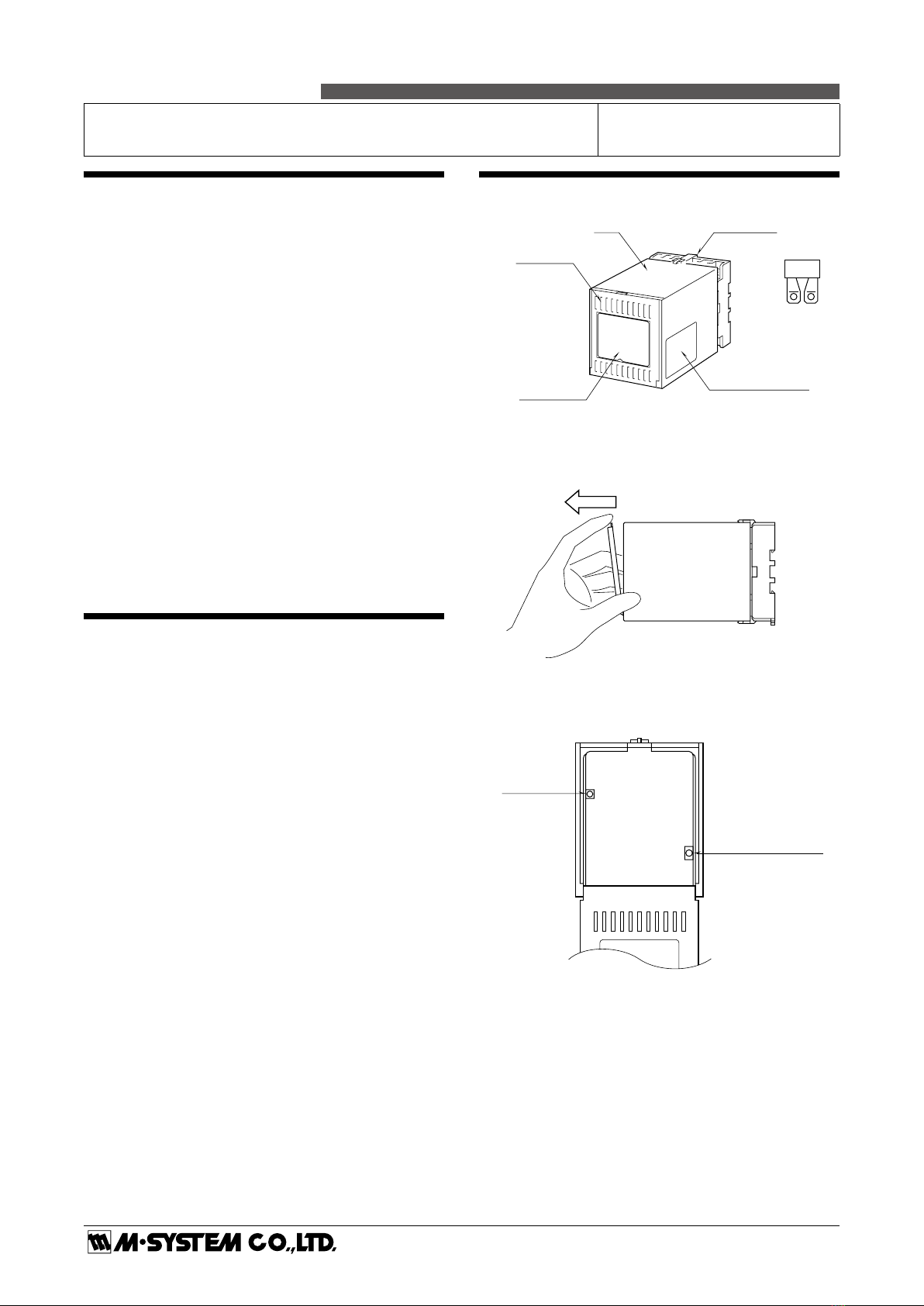

COMPONENT IDENTIFICATION

■ HOW TO OPEN THE FRONT COVER

Position your ﬁnger on the hook at the top of front cover

and pull.

■ FRONT VIEW

Body Base Socket

Connection Diagram

Front Cover

Specifications

The shape of base socket may be different

for some models.

Input Resistor

PC Configurator Jack

Power LED

MFS2

P. 2 / 3EM-1383

INSTALLATION

Detach the yellow clamps located at the top and bottom of

the unit to separate the body from the base socket.

■ DIN RAIL MOUNTING

Set the base socket so that its

DIN rail adaptor is at the bot-

tom. Position the upper hook

at the rear side of base socket

on the DIN rail and push in

the lower. When removing

the socket, push down the

DIN rail adaptor utilizing a

minus screwdriver and pull.

■ WALL MOUNTING

Refer to “EXTERNAL DI-

MENSIONS.”

TERMINAL CONNECTIONS

Connect the unit as in the diagram below or refer to the con-

nection diagram on the side of the module.

When an input resistor is provided with the module, attach

it together with input wiring to the input screw terminals.

Clamp

(top & bottom)

DIN Rail

35mm wide

Spring Loaded

DIN Rail Adaptor

Shape and size of the base socket

are slightly different with various

socket types.

CHECKING

1) Terminal wiring: Check that all cables are correctly con-

nected according to the connection diagram.

2) Power input voltage: Check voltage across the terminal

7 – 14 with a multimeter.

3) Input: Check that the input signal is within 0 – 100% of

the full-scale.

4) Output: Check that the load resistance meets the de-

scribed speciﬁcations.

5) Split-range setting: Conﬁrm that the transmitter out-

puts are provided as intended.

MAINTENANCE

Regular calibration procedure is explained below:

■ CALIBRATION

Warm up the unit for at least 10 minutes. Apply 0%, 25%,

50%, 75% and 100% input signal. Check that the output

signal for the respective input signal remains within accu-

racy described in the data sheet. When the output is out of

tolerance, recalibrate the unit using the PC Conﬁgurator

Software (moodel: MFS2CFG).

*Input shunt resistor attached for current input.

CONFIGURATOR JACK +

–

OUTPUT 3

–

OUTPUT 2

–

OUTPUT 1

–

OUTPUT 4

U(+)

V(–)

POWER

–

ANALOG INPUT

CONTACT INPUT

MFS2

P. 3 / 3EM-1383

M-SYSTEM WARRANTY

M-System warrants such new M-System product which it manufactures to be free from defects in materials and workmanship during the 36-month period following the date that such

product was originally purchased if such product has been used under normal operating conditions and properly maintained, M-System’s sole liability, and purchaser’s exclusive

remedies, under this warranty are, at M-System’s option, the repair, replacement or refund of the purchase price of any M-System product which is defective under the terms of this

warranty. To submit a claim under this warranty, the purchaser must return, at its expense, the defective M-System product to the below address together with a copy of its original

sales invoice.

THIS IS THE ONLY WARRANTY APPLICABLE TO M-SYSTEM PRODUCT AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. M-SYSTEM SHALL HAVE NO LIABILITY FOR CONSEQUENTIAL, INCIDENTAL OR

SPECIAL DAMAGES OF ANY KIND WHATSOEVER.

M-System Co., Ltd., 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN, Phone: (06) 6659-8201, Fax: (06) 6659-8510, E-mail: [email protected]

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

80 (3.15)

72 (2.83) 109 (4.29)

139 (5.47) [3.3 (.13)]

(.79)

35.4 (1.39)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

80 (3.15)

60 (2.36)

72 (2.83)

7.8 (.31)

2–4.5 (.18) dia.

MTG HOLE

25 (.98) deep

14–M3.5

SCREW

• When mounting, no extra space is needed between units.

• Input shunt resistor attached for current input.

1015

12 (.47)

INPUT RESISTOR

(model: REM)
