INSTRUCTION MANUAL

POTENTIOMETER INPUT MODULE, 4 points

(DeviceNet) MODEL R7D-MS4

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Potentiometer input module...............................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

■EDS FILE

EDS ﬁles are downloadable at M-System’s web site: http://

www.m-system.co.jp

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES

• The equipment must be mounted inside the instrument

panel of a metal enclosure.

• The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

■GENERAL PRECAUTIONS

• Before you remove the unit or mount it, turn off the power

supply and input signal for safety.

• DO NOT set the switches on the module while the power

is supplied. The switches are used only for maintenance

without the power.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-MS4

EM-7802-Q Rev.2 P. 2 / 10

COMPONENT IDENTIFICATION

MS X10 X1

NODE ADD. B.RATE

CNFG.

12345678

10 11 12 13

2341

15 16 17 18

7896

23415

(A) Status Indicator LED

(B) Node Address Setting Rotary SW

(D) Operating Mode Setting DIP SW (SW1)

(E) PC Configurator Jack

(F) DeviceNet, Power Supply Terminals

(G) Input Terminals

(A)

(F) (G)

(B) (C) (D) (E)

■STATUS INDICATOR LED

ID S TAT E TO INDICATE

MS Green Operating in a normal condition

Blinking Green Standby (needs commissioning)

Red Critical failure

Blinking Red Minor failure

OFF No power supplied

NS Green Link on-line and connections in the

established state

Blinking Green Link on-line but no connections in

the established state

Red Critical link failure

Blinking Red Minor link failure

OFF No power supplied

■NODE ADDRESS

Node Address is selected between 1 and 63 in decimal. The

left switch determines the tenth place digit, while the right

switch does the ones place digit of the address.

Node Address Setting (x1)

Factory setting : 00

Node Address Setting (x10)

■BAUD RATE

Baud Rate is selected with the rotary switch.

Baud Rate Setting

0 : 125 kbps (factory setting)

1 : 250 kbps

2 : 500 kbps

3 thr. 9 : Auto-tracking

The R7D communicates in the baud rate setting detected at

the startup with the switch set to the positions 0 (125 kbps),

1 (250 kbps) or 2 (500 kbps).

For the settings 3 through 9, it analyzes the PLC’ s network

to determine the baud rate on the network.

■OPERATING MODE

(*) Factory setting

• Extension (SW1-1, 1-2)

SW1-1 SW1-2 EXTENSION

OFF OFF No extension (*)

ON OFF Discrete input, 8 or 16 points

OFF ON Discrete output, 8 or 16 points

• Conversion rate / Accuracy (SW1-3, 1-4)

SW1-3 SW1-4 CONVERSION RATE / ACCURACY

OFF OFF 80 msec. / ±0.1% (*)

ON OFF 40 msec. / ±0.2%

OFF ON 20 msec. / ±0.4%

ON ON 10 msec. / ±0.8%

Note: Be sure to set unused SW1-5 through 1-8 to OFF.

■DeviceNet TERMINAL ASSIGNMENT

23415

NO. ID FUNCTION, NOTES

1 V+ Network power supply +

2 CAN_H Network data High

3 Drain Shield

4 CAN_L Network data Low

5 V– Network power supply –

■INPUT TERMINAL ASSIGNMENT

NO.

ID FUNCTION

NO.

ID FUNCTION

1 NC No connection 10 H0 Pot H0

2 L0 Pot L0 11 S0 Pot S0

3 NC No connection 12 H1 Pot H1

4 L1 Pot L1 13 S1 Pot S1

5 NC No connection 14 NC No connection

6 NC No connection 15 H2 Pot H2

7 L2 Pot L2 16 S2 Pot S2

8 NC No connection 17 H3 Pot H3

9 L3 Pot L3 18 S3 Pot S3

■EXTENSION MODULE

Combinations with all extension modules are selectable.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-MS4

EM-7802-Q Rev.2 P. 3 / 10

PC CONFIGURATOR

With conﬁgurator software, settings shown below are available.

Refer to the software manual of R7CON for detailed operation.

■INTERFACE MODULE SETTING

PARAMETER AVAILABLE RANGE DEFAULT SETTING

Communication Timeout 0.0 – 3276.7 (sec.) 1.0 (sec.)

Status Data ON: Disable

OFF: Enable

Serial ID English one-byte characters within 8 characters

■CHANNEL INDIVIDUAL SETTING

PARAMETER AVAILABLE RANGE DEFAULT SETTING

Zero scale -32000 to +32000 0

Full scale -32000 to +32000 10000

Bias -320.00 to +320.00 0.00

Gain -3.2000 to +3.2000 1.0000

■EXTENSION MODULE SETTING

PARAMETER AVAILABLE RANGE DEFAULT SETTING

Output Hold/Clear Output Hold

Output Clear

Output Hold

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-MS4

EM-7802-Q Rev.2 P. 4 / 10

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■EXTERNAL DIMENSIONS unit: mm (inch)

10 11 12 13

2341

15 16 17 18

789

23415

30 (1.18) [5 (.20)]

3 (.12)

5.5 (.22)

DIN RAIL

35mm wide

54 (2.13)

17 (.66)

50 (1.97) 18.5 (.73)

115 (4.53)

18–M3 SCREW

TERMINALS

for INPUT

6 (.24)

TERMINAL BLOCK for

DeviceNet, POWER

■CONNECTION DIAGRAM

CAN_L

V–

Drain

CAN_H

V+

■

Input Connection Example

INPUT 0

INPUT 1

INPUT 2

INPUT 3

POTENTIOMETER

max.

min.

–

EXTENSION CONNECTOR

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-MS4

EM-7802-Q Rev.2 P. 5 / 10

DATA ALLOCATION

‘Begin’ address is determined by the R7D’s node address and the master setting.

Analog Input Module

R7D-EA16

Status

CH0

CH1

CH2

CH3

Begin +0

Output Data Input Data

None

• Example 3. Analog Input Module + R7D-EA16, with Status

Analog Input Module CH0

CH1

CH2

CH3

Begin +0

Output Data

Analog Input Module

Status

CH0

CH1

CH2

Begin +0 Begin +0

CH3

Output Data

Input Data

None

• Example 1. Analog Input Module, without Status

• Example 2. Analog Input Module + R7D-EC16x, with Status

R7D-EC16x

Input Data

I/O DATA DESCRIPTIONS

16-bit binary data

Negative values represented in 2’s complements

■ ANALOG INPUT

Input 0 (Output 0)

Input 1 (Output 1)

Input 2 (Output 2) 8 points

Input 15 (Output 15)

Input 3 (Output 3)

: : 16 points

Input 7 (Output 7)

Input 8 (Output 8)

: :

0 : OFF

1 : ON

■ DISCRETE I/O

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-MS4

EM-7802-Q Rev.2 P. 6 / 10

■STATUS

Bit 0 to 7: Analog input module can show input status of each channel.

Bit 8 to 10: Shows the power supply status.

Input 0 (Input range error)

Input 1 (Input range error)

Input 2 (Input range error)

Unused

Input 3 (Input range error)

Input 0 (ADC error)

Input 1 (ADC error)

Input 2 (ADC error)

Input 3 (ADC error)

Network power supply

Unused

Extension module external power supply

Input range error (≤ -15%, ≥ 115%)

0 : Normal 1 : Error

ADC error (no response from ADC)

0 : Normal 1 : Error

Power supply

0 : Normal 1 : Error

TRANSMISSION DATA DESCRIPTIONS

■BASIC MODULE

Transmitted data (word) depends upon the modules types.

MODEL OUTPUT DATA*1INPUT DATA*2

(R7D to Master) (Master to R7D)

R7D-MS4 4 0

■EXTENSION MODULE

Transmitted data (word) for the extension module is added.

MODEL OUTPUT DATA*1INPUT DATA*2

(R7D to Master) (Master to R7D)

R7D-EAx 1 0

R7D-ECx 0 1

■STATUS

Status signal can be included in the transmission data

when the setting is enabled using the PC Conﬁgurator soft-

ware (model: R7CON). For details, refer to “STATUS in I/O

DATA DESCRIPTIONS”.

S TAT U S OUTPUT DATA*1INPUT DATA*2

(R7D to Master) (Master to R7D)

Enabled 1 0

Disabled 0 0

*1. Output Data means those sent to the master.

*2. Input Data means those received from the master.

WIRING INSTRUCTIONS

■SCREW TERMINAL (Input)

Torque: 0.5 N·m

• SOLDERLESS TERMINAL

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable.

Applicable wire size: 0.25 to 1.65 mm2(AWG 22 to 16)

Recommended manufacturer: Japan Solderless Terminal

MFG. Co., Ltd, Nichifu Co., Ltd

6 (.24) max

3.3 (.13) max

mm (inch)

■EURO TYPE CONNECTOR TERMINAL (DeviceNet)

Applicable wire size: 0.2 – 2.5 mm2

Stripped length: 7 mm

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-MS4

EM-7802-Q Rev.2 P. 7 / 10

CONFORMITY WITH CE MARKING

■CE MARKING

CE marking requires to integrate safety regulations existed in each country in EU territory and to secure smooth distribution

of products of which safety is guaranteed. It is mandatory by law that products distributed and sold in EU territory to have

CE mark which shows that the product conforms with the requirements of EU Directive. Each EU Directive describes the

scope of apparatuses to which that EU Directive is applied. M-System’s R7D must conform with EMC Directive.

Each Directive states only basic requirements. In order to mark the CE on an assembled machinery equipment, its manufac-

turer needs to check the overall conformity with Directives applicable to it.

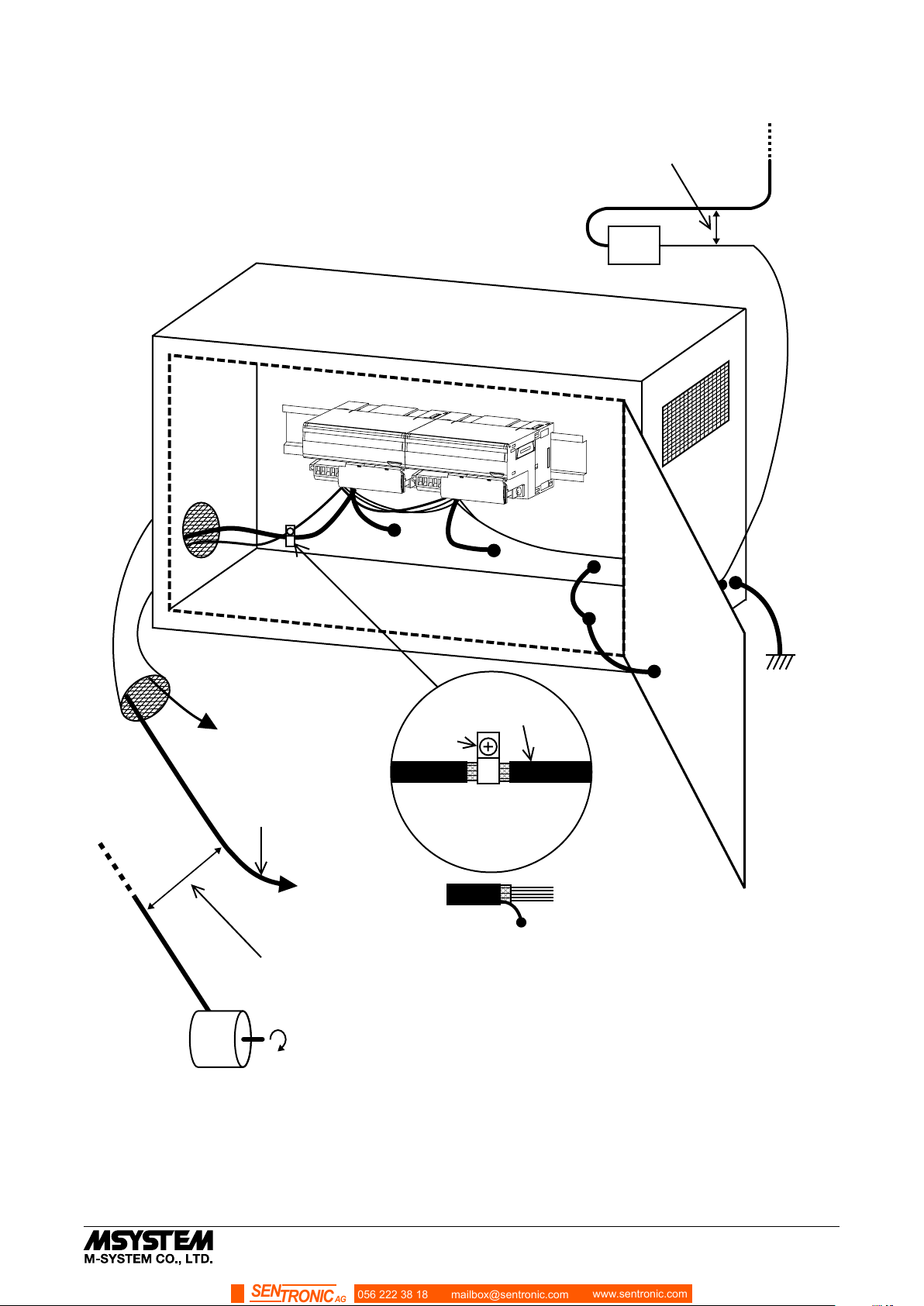

■WARNINGS AND CAUTIONS WHEN INSTALLING THE R7D

The R7D needs to be installed in a control panel. This is effective not only to ensure general safety but also to contain noise

emissions by the R7D inside the control panel. We conduct a series of testing to see that the product conforms to EMC Direc-

tive while it is installed in the control panel.

Warning and cautions when installing R7D are stated below.

• Use control panels with an internal panel plate, both made of metal, when installing the R7D.

• Make sure to adequately ground the control panel and the internal panel plate with a thick cable to maintain low imped-

ance at high frequency.

• Use shielded cables for the signals taken out of the control panel.

• Choose a thick and short cable to ground the FG terminal of the R7D module to the internal panel plate of the control panel.

Note: If electromagnetic radiation disturbance increases by grounding the FG terminal, remove the grounding.

• When painting the internal plate of the control panel, apply masking to expose metal surface to secure conductivity at the

sections where the following parts are attached:

- Bolts attaching the internal panel to the control panel

- Ground for the FG of the R7D module

- Earth clamp on the shielded cable

• Noise emissions inside the control panel might leak through its openings. Design them as small as possible. Recommended

diameter is 10 cm or less.

Supplement:

Additional measures may be taken depending upon actual installation sites. These points of cautions are illustrated in the

next page.

• Prevent noise leakage by wrapping cables using shield covers, shield tubes and ﬂexible conduits etc. if noise leaks through

the cable outlet.

• Use an electromagnetic shield gasket and block up the gap between the control panel cabinet and its cover, if noise leaks

through it.

• Connecting the internal panel plate and the cover of the control panel to the main cabinet using an earth strap may be

effective to strengthen the grounding.

• Electromagnetically shielded control panel cabinet is effective for shielding.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-MS4

EM-7802-Q Rev.2 P. 8 / 10

Use (e.g.) a shield cover

when noise leaks through

the opening.

To external apparatus

Keep the opening

for cabling as small as

possible.

Install an electromagnetically

shielded gasket when

noise leaks through

the opening. Shielding is strengthened

by using an electro-

magnetically shielded

control panel.

By connecting the

internal panel plate

and the panel cover with

an earth strap, grounding

may be strengthened and

EMC may be improved.

Ground the control panel

at low impedance using

(e.g.) braided wires.

Keep the opening for

ventilation as small as

posible.

Attach an electro-

magnetically shielded

filter when noise leaks

through the opening.

Install the R7D Series inside

a control panel.

Attachment part of earth

clamp should be fixed with

screw in conduction with the

internal panel plate.

• Points of cautions applicable when installing the R7D Series

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-MS4

EM-7802-Q Rev.2 P. 9 / 10

■WARNINGS AND CAUTIONS WHEN LAYING CABLES

Signal cables connected to the R7D contain high-frequency components. Since these cables has the same effect as an anten-

na, they emit these high-frequency components to the external space as noise or overlaps noise from the external space on

themselves.

Cables with shielding should be used for the signal line due to the above reason.

EMC conformance test is conducted in the condition that shielded cables and earth clamps are used with the R7D.

Warning and cautions when laying cables are stated below. These points of cautions are illustrated in the next page.

• Use shielded cables for those signal cables installed out of the control panel and for thermocouple and RTD extension wires.

• All the network cables connected to R7D should be shielded.

• Use exclusively designed network cables for the DeviceNet.

• Expose the shield at a part of the cable cover, clip it with an earth clamp, and ground it to the internal panel of the control

panel. A drain wire connected to the panel in a pig-tail form cannot maintain low impedance against high-frequency noise,

thus grounding (noise shielding) in this form will not be effective.

Supplement:

Additional measures may be taken depending upon actual installation sites. These points of cautions are illustrated in the

next page.

• Keep cables as short as possible. It prevents noise emissions from the cables and noise overlapping to the cables.

• Attach a ferrite core to reduce noise impact to the signal cables susceptible to the noise. Ferrite core can be attached close

to the cable outlet of the control panel or close to the I/O terminal or connector, whichever is more effective. Also, the impact

might be reduced by winding the cable around the ferrite core for extra turns or attaching multiple ferrite cores.

• Keep cables which are easily affected by noise away from those which can be a noise source.

Motor Drive

Cable

Power Supply

Cable

DC Signal Cable

Network Cable

Analog Signal

Cable

Often being a noise source Often subject to noise interference.

In the following are examples of effective ways to lay cables separately:

• Keeping physical distance (farther than 20 cm from motor drive cables, farther than 10 cm for other groups).

• Dividing off by a grounded metal plate

• Grouping into separate grounded metal pipes or cable shields.

Wires on each side of a ﬁlter should not be too close to each other. Noise could ride onto the other side of cable.

Extra attention needs to be paid at the following parts.

• Noise ﬁlter that is enclosed in power cables.

• Ferrite core that is attached to signal cables.

• Noise limiting circuit (surge quenching circuit, transient absorber circuit, etc.) that is enclosed in signal cables.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-MS4

EM-7802-Q Rev.2 P. 10 / 10

Noise

Filter

Motor

Drive CableMaintain distance between

cables and noise sources.

Grounding in pig tail form

is not effective.

• Points of cautions applicable when wiring the R7D Series

To external apparatus

Keep the cable as

short as possible.

To external apparatus

Shielded

Cable

Earth

Clamp

Remove a part of the shielded

cable cover and ground it

to the internal panel

plate using an earth

clamp.

Keep the wires away from

each other at both ends of

the filter.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

Tabla de contenidos

Otros manuales de Unidad de control de M-system

M-system

M-system R3-SV8C Manual de usuario

M-system

M-system R7L-RS4 Manual de usuario

M-system

M-system R7F4HD-DC32B Manual de usuario

M-system

M-system R5-NM1 Manual de usuario

M-system

M-system R3-PD16A Manual de usuario

M-system

M-system R3-GD1 Manual de usuario

M-system

M-system R30US2 Manual de usuario

M-system

M-system R7C-TS4 Manual de usuario

M-system

M-system R7F4HML3-D-DAC32A Manual de usuario

M-system

M-system R1D-GH2 Manual de usuario

M-system

M-system R7C-EC8C Manual de usuario

M-system

M-system R7E-DC16B Manual de usuario

M-system

M-system R7C-EA16/UL Manual de usuario

M-system

M-system R7G4HEIP-6-DC16B Manual de usuario

M-system

M-system R6N-RS2 Manual de usuario

M-system

M-system R7M-EC8B Manual de usuario

M-system

M-system R8-DCM16ALK Manual de usuario

M-system

M-system R7HL-DC16A Manual de usuario

M-system

M-system R7M-DAC16D Manual de usuario

M-system

M-system R8-DCM16ALH Manual de usuario

M-system

M-system R7M-EC8A/UL Manual de usuario

M-system

M-system R7C-EC8A Manual de usuario

M-system

M-system R7M-RS4 Manual de usuario

M-system

M-system R7D-EC8B Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
