INSTRUCTION MANUAL

REMOTE CONTROL RELAY CONTROL MODULE

(Do 8 points) MODEL R3-RR8

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Remote control relay control module .................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES

• The equipment must be mounted inside the instrument

panel of a metal enclosure.

• The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

■HOT SWAPPABLE MODULES

• Replacing the module does not affect other modules on

the same base. Thus, the module can be replaced while

the power is ON. However, replacing multiple modules

at once may greatly change live voltage levels. We highly

recommend to replace them one by one.

■GENERAL PRECAUTIONS

• DO NOT set the switches on the module while the power

is supplied. The switches are used only for maintenance

without the power.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

INSTALLATION

Use the Installation Base (model: R3-BSx).

R3-RR8

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8432 Rev.5 P. 2 / 7

COMPONENT IDENTIFICATION

SW3

Status Indicator

LED

RUN LED

ERR LED

Functions

FRONT VIEW SIDE VIEW

Output Data Bit

Input Data Bit

■■

■STATUS INDICATOR LED

RUN indicator: Bi-color (red/green) LED;

Red when the bus A operates normally;

Green when the bus B operates normally;

Amber when both buses operate normally.

ERR indicator: Green LED;

OFF in abnormality;

ON in normal operating conditions.

Input output status indicator: Red LED;

• 1 to 8: Output bit status, turns on with bit set ON.

• 9 to 16: Feedback input status, turns on with the input ON.

■SIDE DIP SW

(*) Factory setting

• Input Data Bit: SW3-3

SW INPUT DATA BIT

8 bit 16 bit

SW3-3 OFF (*) ON

• Output Data Bit: SW3-4

SW OUTPUT DATA BIT

8 bit 16 bit

SW3-4 ON OFF (*)

Note: Be sure to set unused SW3-1 and 3-2 to OFF.

R3-RR8

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8432 Rev.5 P. 3 / 7

INPUT OUTPUT DATA BIT & DATA ALLOCATION

■OUTPUT DATA BIT: 16 BITS (SW3-4: OFF)

When output data bit is 16 bits, set each output with 2 bits.

The table below shows data allocation.

BIT SETTING OPERATION

0, 1

0, 0 No operation

1, 0 Output 1 ON

0, 1 Output 1 OFF

1, 1 Output 1 RESET

2, 3

0, 0 No operation

1, 0 Output 2 ON

0, 1 Output 2 OFF

1, 1 Output 2 RESET

4, 5

0, 0 No operation

1, 0 Output 3 ON

0, 1 Output 3 OFF

1, 1 Output 3 RESET

6, 7

0, 0 No operation

1, 0 Output 4 ON

0, 1 Output 4 OFF

1, 1 Output 4 RESET

8, 9

0, 0 No operation

1, 0 Output 5 ON

0, 1 Output 5 OFF

1, 1 Output 5 RESET

10, 11

0, 0 No operation

1, 0 Output 6 ON

0, 1 Output 6 OFF

1, 1 Output 6 RESET

12, 13

0, 0 No operation

1, 0 Output 7 ON

0, 1 Output 7 OFF

1, 1 Output 7 RESET

14, 15

0, 0 No operation

1, 0 Output 8 ON

0, 1 Output 8 OFF

1, 1 Output 8 RESET

By setting with 2 bits, the module operates as shown above.

ON or OFF can be set consecutively. To output ON twice

successively, set ON (1, 0), RESET (1, 1), and then set ON

(1, 0) again.

■OUTPUT DATA BIT: 8 BITS (SW3-4: ON)

When output data bit is 8 bits, set each output with 1 bit.

The table below shows data allocation.

BIT SETTING OPERATION

00 Output 1 OFF

1 Output 1 ON

10 Output 2 OFF

1 Output 2 ON

20 Output 3 OFF

1 Output 3 ON

30 Output 4 OFF

1 Output 4 ON

40 Output 5 OFF

1 Output 5 ON

50 Output 6 OFF

1 Output 6 ON

60 Output 7 OFF

1 Output 7 ON

70 Output 8 OFF

1 Output 8 ON

8 ---- Unused

9 ---- Unused

10 ---- Unused

11 ---- Unused

12 ---- Unused

13 ---- Unused

14 ---- Unused

15 ----- Unused

ON or OFF cannot be set consecutively, because when each

bit is “1”, ON is set and when each bit is “0”, OFF is set.

R3-RR8

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8432 Rev.5 P. 4 / 7

■INPUT DATA BIT: 16 BITS (SW3-3: ON)

When output data bit is 16 bits, display the status of feed-

back input for each output with 2 bits.

The table below shows data allocation.

BIT DISPLAY OPERATION

00 Feedback input for output 1 OFF

1 Feedback input for output 1 ON

1 ---- Reserved

20 Feedback input for output 2 OFF

1 Feedback input for output 2 ON

3 ---- Reserved

40 Feedback input for output 3 OFF

1 Feedback input for output 3 ON

5 ---- Reserved

60 Feedback input for output 4 OFF

1 Feedback input for output 4 ON

7 ---- Reserved

80 Feedback input for output 5 OFF

1 Feedback input for output 5 ON

9 ---- Reserved

10 0 Feedback input for output 6 OFF

1 Feedback input for output 6 ON

11 ---- Reserved

12 0 Feedback input for output 7 OFF

1 Feedback input for output 7 ON

13 ---- Reserved

14 0 Feedback input for output 8 OFF

1 Feedback input for output 8 ON

15 ---- Reserved

■INPUT DATA BIT: 8 BITS (SW3-3: OFF)

When output data bit is 8 bits, display the status of feed-

back input for each output with 1 bit.

The table below shows data allocation.

BIT DISPLAY OPERATION

00 Feedback input for output 1 OFF

1 Feedback input for output 1 ON

10 Feedback input for output 2 OFF

1 Feedback input for output 2 ON

20 Feedback input for output 3 OFF

1 Feedback input for output 3 ON

30 Feedback input for output 4 OFF

1 Feedback input for output 4 ON

40 Feedback input for output 5 OFF

1 Feedback input for output 5 ON

50 Feedback input for output 6 OFF

1 Feedback input for output 6 ON

60 Feedback input for output 7 OFF

1 Feedback input for output 7 ON

70 Feedback input for output 8 OFF

1 Feedback input for output 8 ON

8 ---- Unused

9 ---- Unused

10 ---- Unused

11 ---- Unused

12 ---- Unused

13 ---- Unused

14 ---- Unused

15 ---- Unused

R3-RR8

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8432 Rev.5 P. 5 / 7

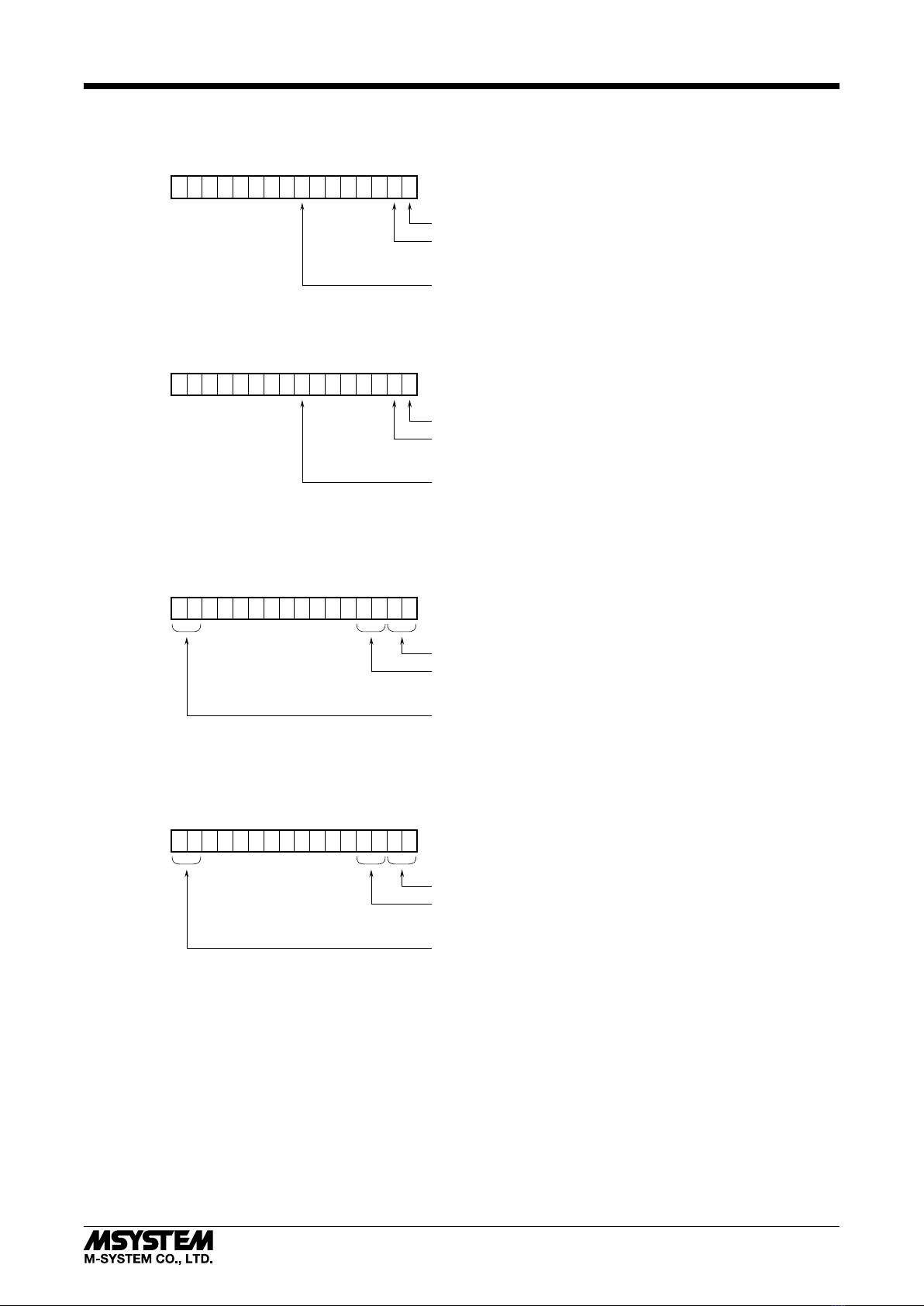

DATA ASSIGNMENT

Input 1 (Output 1)

Input 2 (Output 2)

Input 8 (Output 8)

• I/O data length is 8 bit. (Word access)

•

Input 1 (Output 1)

Input 2 (Output 2)

Input 8 (Output 8)

•

Input 1 (Output 1)

Input 2 (Output 2)

Input 8 (Output 8)

•

• I/O data length is 16 bit. (Bit access)

2 bits corresponds one I/O.

Each bit in the 1 word corresponds I/O.

2 bits corresponds one I/O.

Each bit in the 1 word corresponds I/O.

0123

15 14

• I/O data length is 16 bit. (Word access)

0123

15 14

• I/O data length is 8 bit. (Bit access)

Input 1 (Output 1)

Input 2 (Output 2)

Input 8 (Output 8)

•

R3-RR8

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8432 Rev.5 P. 6 / 7

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■EXTERNAL DIMENSIONS unit: mm (inch)

130 (5.12)

27.5 (1.08) 109 (4.29)

POSITIONING

GUIDE

TERMINAL

COVER

20–M3

SCREW

6.2

(.24)

■CONNECTION DIAGRAM

COM

INTERNAL BUS A

INTERNAL POWER

*INTERNAL BUS B

BUS CONNECTOR

Remote Control

Relay

red

blue

Remote Control

Relay

red

blue

Remote Control

Relay

red

blue

Remote Control

Relay

red

blue

Remote Control

Relay

red

blue

Remote Control

Relay

red

blue

Remote Control

Relay

red

blue

Remote Control

Relay

red

blue

Remote Control

Transformer

blue

white

OUTPUT 1

OUTPUT 2

OUTPUT 3

OUTPUT 4

OUTPUT 5

OUTPUT 6

OUTPUT 7

OUTPUT 8

Remote Control

Transformer

blue

white

*For dual redundant communication.

R3-RR8

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8432 Rev.5 P. 7 / 7

WIRING INSTRUCTIONS

■SCREW TERMINAL

Torque: 0.5 N·m

■SOLDERLESS TERMINAL

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable. Solder-

less terminals with insulation sleeve do not ﬁt.

Applicable wire size: 0.3 – 0.5 mm2

Recommended manufacturer: Japan Solderless Terminal

MFG. Co., Ltd., Nichifu Co., Ltd.

12max

6max

3max 4min

3.2 dia.

(mm)

Tabla de contenidos

Otros manuales de Unidad de control de M-system

M-system

M-system R7M-DAC16D Manual de usuario

M-system

M-system R7C-EC8A Manual de usuario

M-system

M-system R7M-MS4 Manual de usuario

M-system

M-system R3-NM3 Manual de usuario

M-system

M-system M8YC Manual de usuario

M-system

M-system R6N-RS2 Manual de usuario

M-system

M-system R3-RS8 Manual de usuario

M-system

M-system R3-NM1 Manual de usuario

M-system

M-system F2DL Manual de usuario

M-system

M-system R30YS4 Manual de usuario

M-system

M-system R7G4HH-A-YVF4 Manual de usuario

M-system

M-system R8-DC4C Manual de usuario

M-system

M-system Devicenet R7F4HD-DAC32D Manual de usuario

M-system

M-system R30TS4 Manual de usuario

M-system

M-system R7 Series Manual de usuario

M-system

M-system Devicenet R7F4HD-DAC32C Manual de usuario

M-system

M-system R7L-YS2 Manual de usuario

M-system

M-system R7L-YV2 Manual de usuario

M-system

M-system R8-NC3 Manual de usuario

M-system

M-system R3-SV8B Manual de usuario

M-system

M-system R7M-SV4 Manual de usuario

M-system

M-system R3S-DC8 Manual de usuario

M-system

M-system R7L-EC16B Manual de usuario

M-system

M-system R7M-EC8B/UL Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
