Lux Products P722Ub Manual de usuario
CAUTIO S A D WAR I GS . . . . . . . . . . 2
SYSTEM COMPATIBILITY . . . . . . . . . . . . 3
FEATURES . . . . . . . . . . . . . . . . . . . . . . . 4
TOOLS YOU MAY EED . . . . . . . . . . . . . . 4
MOU TI G LOCATIO . . . . . . . . . . . . . . 5
REMOVE OLD THERMOSTAT . . . . . . . . . . 5
I STALL THERMOSTAT BASE . . . . . . . . . 6
WIRI G I FORMATIO . . . . . . . . . . . . . . 6
WIRI G DIAGRAMS . . . . . . . . . . . . . . . . 8
COMPLETE THE I STALL . . . . . . . . . . . 17
FRO T PA EL ITEMS . . . . . . . . . . . . . . 17
SYSTEM CO FIGURATIO A D
SETUP OPTIO S. . . . . . . . . . . . . . . . . . 18
OPERATI G I STRUCTIO S . . . . . . . . . 21
TEMPERATURE PROGRAMS . . . . . . . . . 23
ADVA CED FEATURES . . . . . . . . . . . . . 24
BATTERY REPLACEME T . . . . . . . . . . . 32
TECH ICAL ASSISTA CE . . . . . . . . . . . 33
LIMITED WARRA TY . . . . . . . . . . . . . . 33
MERCURY OTICE . . . . . . . . . . . . . . . . 34
WARNING: Use Energizer®or DURACELL® Alkaline Batteries Only.
Energizer®is a registered trademark of Eveready Battery Company, Inc.
DURACELL®is a registered trademark of The Procter & Gamble Company
2014 LUX PRODUCTS CORPORATION. ALL RIGHTS RESERVED
P722Ub
SMART TEMP®UNIVERSAL
7-DAY PROGRAMMABLE THERMOSTAT
(FOR BOTH CONVENTIONAL AND HEAT PUMP SYSTEMS)
INSTALLATION AND OPERATING INSTRUCTIONS
IMPORTA T!
• Please read all of these instructions carefully before beginning
installation.
• Label every wire terminal designation on your existing thermostat wiring
before removing your old thermostat.
• Ignore the color of the wires since they may not comply with any
standard. Please connect wires using the terminal letter designations.
Thank you for your confidence in our product. To obtain the best results from
your investment, please read and follow the installation procedures carefully, and
one step at a time. This will save you time and minimize the chance of damaging
either the thermostat or possibly your heating and cooling system. These
instructions may contain information beyond that which may be required for your
particular installation.
52141
• This thermostat requires batteries to operate and failure or sub-standard
performance of the batteries may impair or prevent the correct operation of
the thermostat. Use Duracell®or Energizer®alkaline batteries ONLY for all
LUXPRO thermostats requiring batteries. BE SURE TO CHANGE THE BATTERIES
AT LEAST ONCE A YEAR, or whenever you see the LO BATT indication on the
screen. Failure to follow these battery instructions could result in property
damage and/or personal injury.
• The electrical rating for this thermostat is 1.5 Amps per terminal, with a
maximum total load of 3.0A for all terminals combined.
• The thermostat contains parts that may wear out through use and are
susceptible to failure if over-loaded or used in a manner other than as
indicated in the documentation.
• Check unoccupied residences regularly to ensure that all systems are
operating properly.
• Check any heating/air-conditioning system including this product before
operation and at regular intervals.
• Electrical interference, static electricity, failure or substandard performance of
batteries, wiring defects in the installation and/or characteristics of the
connected HVAC devices may prevent the system from regulating heating and
cooling as anticipated.
• The thermostat is a sensitive device and dropping the product can cause
damage to critical components. If the product is dropped or shaken violently
during transport or installation then it should be replaced immediately.
• Persons with physical or mental limitations may not be able to promptly
respond to a malfunction of the heating/air-conditioning system.
• All residents should be made aware of the potential in any system for
malfunctions that could cause continuous heating or cooling and should be
familiar with the operation and location of the heating/cooling appliance on/off
switch.
• Read the instruction manual completely before installing the thermostat. You
should consult a qualified HVAC technician or an electrician if you do not fully
understand the installation instructions.
2
CAUTIO S A D WAR I GS:
SETBACK HOLD
SET
R U N
DAY/ T I M E
TEMP P ROG
SPEC P ROG
FILT / EN RGY
TEMP E R AT U R E
HEAT
OFF
COOL
FAN
AUTO
ON
COPY /
EME R
NEX T

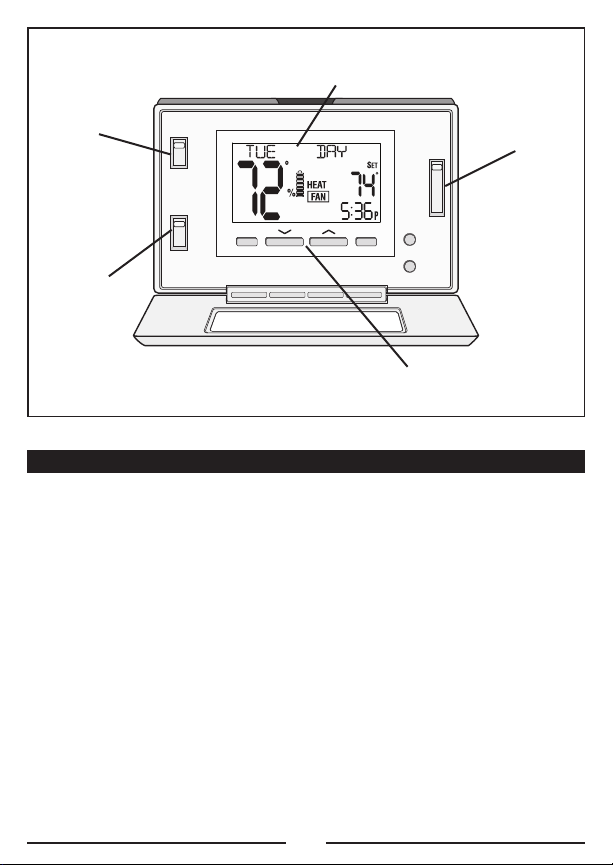

LCD Display Screen
P722Ub
UP / DOW Buttons
Set Slide
Switch
Fan Mode
Switch
System Mode
Switch
The electrical rating for this thermostat is 1.5 Amps per terminal, with a
maximum total combined load of 3.0A for all terminals combined.
COMPATIBLE WITH:
• Most 24-volt heating and cooling systems
• 1 or 2 stage Heat / 1 or 2 stage Cool: Gas, Oil or Electric systems
• 1 or 2 stage Heat / 1 stage Cool: Heat Pump systems
• 3-wire hydronic (hot water) zone valves
• Gas Millivolt heaters
OT COMPATIBLE WITH:
• 120/240 VAC line-voltage systems (without a transformer), or on heat pumps
that have two compressor stages (Y2). Ask your dealer for other LUXPRO
thermostats to control those systems.
SYSTEM COMPATIBILITY:
3
• 1 or 2-Heat / 1 or 2-Cool, 7-day programming
• Universal Compatibility for all system types
• Each day of the week can be programmed separately
• Exclusive LUX®Speed SlideT M for easy programming
• User-selectable periods per day (2 or 4)
• User-selectable programmable or non-programmable operation
• LuxLight®EL (Electro-Luminescent) lighted display
• Energy usage monitor
• Special program feature
• Programmable air filter life timer
• Programmable keypad lockout for unauthorized users
• Manual temperature hold
• Adjustable vacation hold (1 to 30 days)
• Temporary temperature override
• Adjustable temperature differential / cycle-rate
• Adjustable 2nd heat stage Offset setting
• User temperature calibration
• Adjustable heat/cool set temperature limit stops
• Smart recovery
• Dual-powered (battery and/or 24-volt system powered)
• Battery-free memory storage
• F/C temperature display
• 12/24-hour clock display
• 5/2-minute selectable time delay for equipment protection
• Screwdrivers
• Wire Stripper
• Wire Cutter
• Drill with assorted drill bits (new installations only)
TOOLS YOU MAY EED:
FEATURES:
4
On replacement installations, mount the new thermostat in place of the old one
unless the conditions listed below suggest otherwise. On new installations,
please follow these general guidelines:
1. Mount the thermostat on an inside wall, about 5 ft. (1.5m) above the floor.
2. Do not locate the thermostat where air circulation is poor such as in a corner,
alcove, or behind a door that is normally left open.
3. Do not locate the thermostat where unusual heating or cooling conditions may
be present, such as: direct sunlight, above a lamp, television, or radiator, or on
a wall next to an exterior door or window.
4. Do not locate in a damp environment, as this can lead to corrosion that may
shorten thermostat life.
5. If painting or construction work is still ongoing, cover the thermostat
completely or wait until this work is complete before installation.
WARNING:
All wiring must conform to the local codes and ordinances that are in your
particular location.
1. Turn OFF the electricity to all heating and cooling
components. Do not turn the electricity back on until
all work is completed.
2. Remove the front portion of your old thermostat to
expose the wiring connections.
3. Write down the letters printed near each wire terminal
that is used, and also the color of each wire that is
connected to it. Self-adhesive wire labels are also
enclosed.
4. Carefully remove the wires one at a time, and bend them in a manner so that
they do not fall back inside the wall. Do not allow bare wire ends to touch
each other.
5. Loosen the mounting screws for the old thermostat and carefully remove it
from the wall.
REMOVE OLD THERMOSTAT:
MOU TI G LOCATIO :
OFF
5
1. Strip wire insulation leaving only 3/8 in. (9.5mm) bare wire ends, and clean off
any corrosion present.
2. Fill the wall opening with non-combustible insulation to prevent drafts from
affecting the thermostat’s normal operation.
3. Separate new thermostat housing using your thumb and index finger. Provide
pressure in opposite directions to the release tabs on the top of the housing,
in the directions shown in the diagram shown above.
4. Route the wires through the opening in the new thermostat base plate, and
hold the base against the wall. Try to line up the screw holes from the prior
thermostat, and install the mounting screws.
5. If the previous holes cannot be used, hold the thermostat base against the
wall so that it appears straight and level (position the base for best
appearance) and mark for the new screw holes. Attach the base to the wall
using the screws provided (use the supplied plastic anchors if needed when
mounting to a soft material such as drywall).
CO ECTI G THE WIRES:
When attaching the wires to the thermostat, please ensure that the bare wire
ends are held ALL the way into the terminal block while the screw is being
tightened.
WIRI G I FORMATIO :
6
I STALL THERMOSTAT BASE:
THERMOSTAT TOP VIEW
WIRI G DIAGRAM OTES:
(Important, please read all notes before connecting wires)

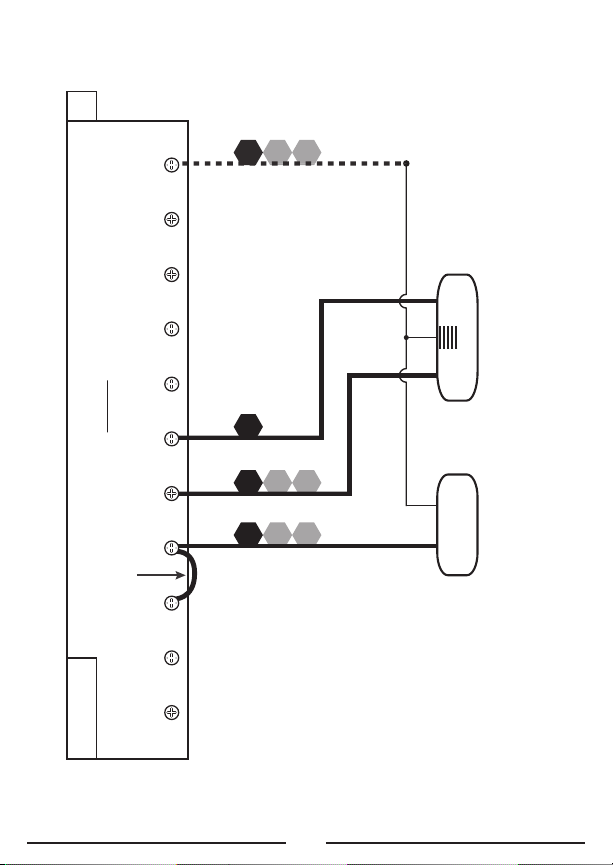

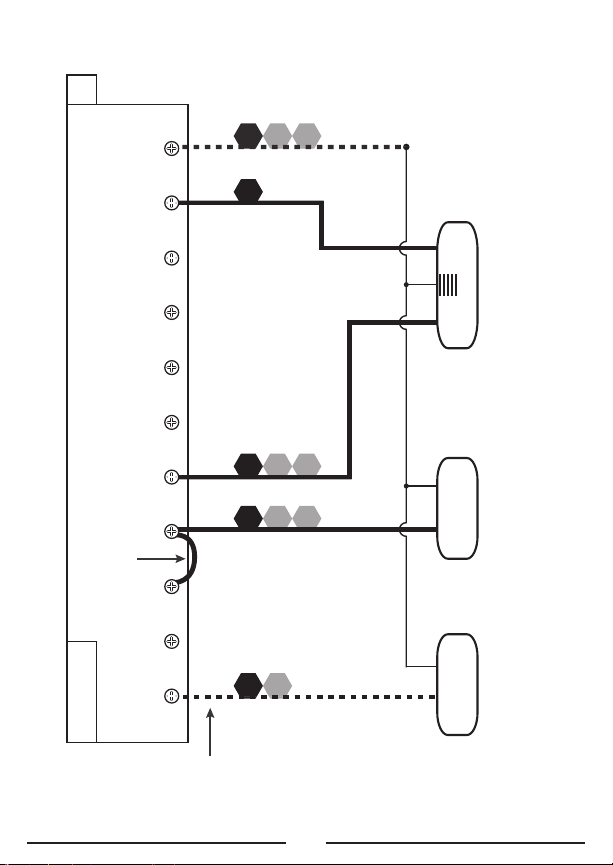

• If the information provided in the following wiring diagrams does not clearly
represent or match your system, please refer to the “TECHNICAL ASSISTANCE”
section of this manual, and contact us before removing any of your existing
thermostat wiring.
• All of the dashed wires shown in the wiring diagrams are either optional, or
their usage depends upon your specific system type or brand. For example:
Diagram #1 shows the fan wire as optional. If your system does not have a
fan, than this terminal will not be used.
• Terminal letters shown in black represent typical wiring applications.
Depending upon the brand of your specific system or thermostat, your terminal
letters may not match exactly. Terminal letters shown in gray represent other
possible wiring designations that you might see on your existing thermostat
terminals.
• The optional “C” terminal is used for powering the thermostat by the 24-volt
system, using the System Common wire. This can be used alone, or in
addition to installing batteries as a backup. NOTE: connecting the System
Common wire to the thermostat is not necessary for heating and cooling to
function properly.
• If your old thermostat has both a “Y” and “C” wire both present, then “C” is
most likely a System Common wire.
• For Heat Pump systems, you will use either the “O” terminal or the “B”
terminal on this thermostat, but not both. If your old thermostat has both an
“O” and a “B” wire present, then “B” is likely a System Common wire and may
be connected to the “C” terminal. Connecting a System Common wire to this
thermostat’s “B” terminal may damage the thermostat, and also your heating
and cooling system.
• Some Heat Pump systems have a wire for AUX electric heat (usually W2), and
also a separate wire for Emergency electric heat (usually E). This thermostat
uses the W2 terminal for both AUX and Emergency Heat. Tape off your “E”
wire, and confirm that all components function without it.
• If replacing an old thermostat that has a mechanical clock, there may be two
wires labeled as “C” for the clock power. Tape off these wires and do not
connect them to the “C” terminal of this thermostat.
7
8
#1 CO VE TIO AL: HEATI G ............................................................9
1-STAGE OR 2-STAGE
2, 3, 4, 5 WIRES
#2 CO VE TIO AL: HEATI G ..........................................................10
3-WIRE ZO E VALVE
3, 4 WIRES
#3 CO VE TIO AL: COOLI G ..........................................................11
1-STAGE OR 2-STAGE
3, 4, 5 WIRES
#4 CO VE TIO AL: HEATI G A D COOLI G .....................................12
1-STAGE
4, 5 WIRES
#5 CO VE TIO AL: HEATI G A D COOLI G .....................................13
1-STAGE OR 2-STAGE
4, 5, 6, 7 WIRES
#6 CO VE TIO AL: HEATI G A D COOLI G .....................................14
TWO-TRA SFORMERS
5, 6 WIRES
#7 HEAT PUMP: HEATI G A D COOLI G .....................................15
SI GLE-STAGE O LY
4, 5 WIRES
#8 HEAT PUMP: HEATI G A D COOLI G .....................................16
WITH AUX / EMERGE CY HEAT
5, 6 WIRES
DIAGRAM SYSTEM TYPE / DESCRIPTIO PAGE #
WIRI G DIAGRAMS:
NOTE: THE BLACK TERMINAL LETTERS ARE TYPICAL, GRAY TERMINAL LETTERS ARE BRAND SPECIFIC
XF
G
W1
4
W
B*
W2
RH
V
R
W1 A Y2 O B W2 CG Y1 RC RH
1-STAGE OR 2-STAGE, HEATING ONLY
(INCLUDING MILLIVOLT) (2-WIRE HEAT USE “RH” & “W1”)
Factory RH-RC Jumper Wire Installed
#12, 3, 4, 5 WIRES
C
HEATER
STAGE
1
STAGE
2
FAN SYSTEM 24V
TRANSFORMER
SYSTEM COMMON
FAN WIRE
MAY NOT BE
PRESENT IN
ALL SYSTEMS
O
P
T
I
O
N
A
L
9
NOTE: THE BLACK TERMINAL LETTERS ARE TYPICAL, GRAY TERMINAL LETTERS ARE BRAND SPECIFIC
XW1
4
W
B*
A
RH
V
R
W1 A Y2 O B W2 CG Y1 RC RH
HOT WATER HEATING ONLY
(WITH A 3-WIRE ZONE VALVE)
Factory RH-RC Jumper Wire Installed
#2
C
SYSTEM 24V
TRANSFORMER
SYSTEM COMMON
OPEN = Heat On
CLOSE = Heat Off
3-WIRE ZONE VALVE
OPEN CLOSE
3, 4 WIRES
O
P
T
I
O
N
A
L
10
Tabla de contenidos
Otros manuales de Termostato de Lux Products
Lux Products
Lux Products LUXPRO EcoStat PSM011 Manual de usuario
Lux Products
Lux Products ELV4d Manual de usuario
Lux Products
Lux Products T10-1143SA Manual de usuario
Lux Products
Lux Products PSP511Ca Manual de usuario
Lux Products
Lux Products DMH110b Manual de usuario
Lux Products
Lux Products Smart Temp TX9100U Manual de usuario
Lux Products
Lux Products LUXPRO PSD011Wa Manual de usuario
Lux Products
Lux Products PSP711RF Series Manual de usuario
Lux Products
Lux Products SMART TEMP TX1500U Manual de usuario
Lux Products
Lux Products LUXPRO PSDH021Ba Manual de usuario
Lux Products
Lux Products WIN100 series Manual de usuario
Lux Products
Lux Products LuxPro Smart Temp P621U Manual de usuario
Lux Products
Lux Products LUXPRO PSM30SA Manual de usuario
Lux Products
Lux Products PurePro DP722Uc Manual de usuario
Lux Products
Lux Products P0511 Manual de usuario
Lux Products
Lux Products ELV1/PSPLV510 Manual de usuario
Lux Products
Lux Products LuxPro PSP300 Series Manual de usuario
Lux Products
Lux Products DHP2120 Manual de usuario
Lux Products
Lux Products CAG111 Series Manual de usuario
Lux Products
Lux Products PSD010BFC Manual de usuario
Manuales populares de Termostato de otras marcas
EWELLY
EWELLY EW-181 Manual de usuario
Prolon
Prolon T1100 Instrucciones de instalación
Computherm
Computherm Q20 Manual de usuario
Heatmiser
Heatmiser neoStat Manual de usuario
Aube Technologies
Aube Technologies TH111GFCI-NP 240 VCA Manual de usuario
Mars
Mars HEAT CONTROLLER IR Wireless Thermostat Manual de usuario
