Lutron Electronics DO-5512SD Manual de usuario
SD card real time data logger
DISSOLVED OXYGEN
METER
Model : DO-5512SD
Your purchase of this
DISSOLVED OXYGEN
METER with SD CARD
DATA LOGGER marks a
step forward for you
into the field of
precision measurement.
Although this meter a
complex and delicate
instrument, its durable
structure will allow
many years of use if
proper operating
techniques are
developed. Please read
the following
instructions carefully
and always keep this
manual within easy
reach.
OPERATION MANUAL
TABLE OF CONTENTS
1. FEATURES..................................................................1
2. SPECIFICATIONS........................................................
.
2
3. FRONT PANEL DESCRIPTION.......................................5
4. DO ( Dissolved Oxygen ) MEASURING
and CALIBRATION PROCEDURE...................................7
4-1 Dissolved Oxygen measurement.............................7
4-2 Calibration............................................................
.
10
4-3 Probe maintenance................................................11
5. OTHER FUNCTION......................................................13
5-1 Data Hold.............................................................
.
13
5-2 Record ( Max./ Min. reading ).................................13
5-3 LCD Backlight ON/OFF...........................................
.
14
6. DATALOGGER.............................................................14
6-1 Preparation before execute datalo
gg
er function....................14
6-2 Auto Datalo
gg
er ( Set samplin
g
time 1 second )..............≧15
6-3 Manual Datalo
gg
er ( Set samplin
g
time = 0 second )...........
.
16
6-4 Check time information.......................................................17
6-5 Check samplin
g
time information.........................................17
6-6 SD Card Data structure.......................................................17
7. Saving data from the SD card to the computer..............19
8. ADVANCED SETTING...................................................21
9. POWER SUPPLY from DC ADAPTER..............................28
10. BATTERY REPLACEMENT...........................................28
11. SYSTEM RESET.........................................................28
12. RS232 PC SERIAL INTERFACE....................................29
13. OPTIONAL ACCESSORIES..........................................30
14. PATENT....................................................................31
1. FEATURES
* Precision Dissolved Oxygen measurement
* Dissolved oxygen : 0 to 20.0 mg/L.
* Dissolved oxygen meter use the polar graphic type
oxygen probe with temperature sensor, high precision
measurement for Dissolved Oxygen ( DO ) and
temperature measurement.
* Heavy duty dissolved oxygen probe, probe head can
connect with BOD bottle.
* DO use the automatic Temp. compensation.
* DO meter build in " % SALT " & " Mountain Height "
compensation value adjustment.
* Separate probe, easy for operation of different
measurement environment.
* Real time SD memory card Datalogger, it Built-in Clock
and Calendar, real time data recorder , sampling time set
from 1 sec to 8 hour 59 min. 59 sec.
* Manual datalogger is available ( set the sampling
time to 0 ), during execute the manual datalogger
function, it can set the different position ( location ) No.
( position 1 to position 99 ).
* Innovation and easy operation, computer is not need to
setup extra software, after execute datalogger, just take
away the SD card from the meter and plug in the SD card
into the computer, it can down load the all the measured
value with the time information ( year/month/date/
hour/minute/second ) to the Excel directly, then user can
make the further data or graphic analysis by themselves.
* SD card capacity : 1 GB to 16 GB.
* LCD with green light backlight, easy reading.
* Can default auto power off or manual power off.
* Data hold, record max. and min. reading.
* Microcomputer circuit, high accuracy.
* Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
* RS232/USB PC COMPUTER interface.
1
* Wide applications: water conditioning, aquariums,
beverage, fish hatcheries, food processing, photography,
laboratory, paper industry, plating industry, quality
control, school & college, water conditioning.
2. SPECIFICATIONS
Circuit Custom one-chip of microprocessor LSI
circuit.
Display LCD size : 52 mm x 38 mm
LCD with green backlight ( ON/OFF ).
Measurement Dissolved Oxygen
Air oxygen ( for reference only )
Measurement Dissolved Oxygen 0 to 20.0 mg/L ( liter ).
& Range Oxygen in Air 0 to 100.0 %.
Temperature 0 to 50 .℃
Resolution Dissolved Oxygen 0.1 mg/L.
Oxygen in Air 0.1 % O2 .
Temperature 0.1 .℃
Accuracy Dissolved Oxygen ± 0.4 mg/L.
(23± 5 )℃Oxygen in Air ± 0.7% O2.
Temperature ± 0.8 /1.5 .℃℉
Probe Temperature 0 to 50 ,℃
Compensation Automatic
& Adj. Salt 0 to 50 % Salt
Height ( M. T.) 0 to 8900 meter
Datalogger Auto 1 sec to 8 hour 59 min. 59 sec.
Sampling Time
@ Sampling time can set to 1 second,
Setting range
but memory data may loss.
Manual Push the data logger button
once will save data one time.
@ Set the sampling time to
0 second.
@ Manual mode, can also select the
1 to 99 position ( Location ) no.
2
Oxygen The polarographic type oxygen probe with
Probe temp. sensor.
Memory Card SD memory card. 1 GB to 16 GB.
Advanced * SD memory card Format
setting * Set clock time ( Year/Month/Date,
Hour/Minute/ Second )
* Set sampling time
* Auto power OFF management
* Set beep Sound ON/OFF
* Decimal point of SD card setting
* Set temperature unit to or℃℉
* Set DO salt% compensation value
* Set DO height ( meter ) compensation value
* Set DO height ( feet ) compensation value
Data Hold Freeze the display reading.
Memory Recall Maximum & Minimum value.
Sampling Time Approx. 1 second.
of Display
Data Output RS 232/USB PC computer interface.
* Connect the optional RS232 cable
UPCB-02 will get the RS232 plug.
* Connect the optional USB cable
USB-01 will get the USB plug.
Operating 0 to 50 .℃
Temperature
Operating Less than 85% R.H.
Humidity
Power Supply
*
A
Alkaline or heavy duty DC 1.5 V battery
( UM3, AA ) x 6 PCs, or equivalent.
*
A
DC 9V adapter input. ( AC/DC power
adapter is optional ).
3
Power Current Normal operation ( w/o SD card save
data and LCD Backlight is OFF) :
Approx. DC 14 mA.
When SD card save the data and LCD
Backlight is OFF) :
Approx. DC 37 mA.
*
A
If LCD backlight on, the power
consumption will increase approx.
12 mA.
Weight Meter 489 g/1.08 LB.
Probe 335 g/0.74 LB
Dimension Meter 177 x 68 x 45 mm
(7.0 x 2.7x 1.9 inch)
Probe 190 mm x 28 mm Dia.
( 7.5" x 1.1" Dia. )
Accessories * Oxygen probe ( OXPB-11 )............1 PC.
Included * Hard carrying case ( CA-06 ).........1 PC.
* Operation manual.........................1 PC.
* Spare Probe head with Diaphragm
OXHD-04.....................................
.
2 set
* Probe-filling Electrolyte
OXEL-03......................................
.
1 set
Optional *Oxygen probe.................... OXPB-11
probe and *Spare Probe head with
accessories Diaphragm set...................
.
OXHD-04
*Probe-filling Electrolyte.......OXEL-03
*RS232 cable.......................UPCB-02
*USB cable..........................USB-01
*Data Acquisition software
..................................SW-U801-WIN
*AC to DC 9V adapter
@ Above specification tests under the environment RF Field Strength
less than 3 V/M & frequency less than 30 MHz only.
4

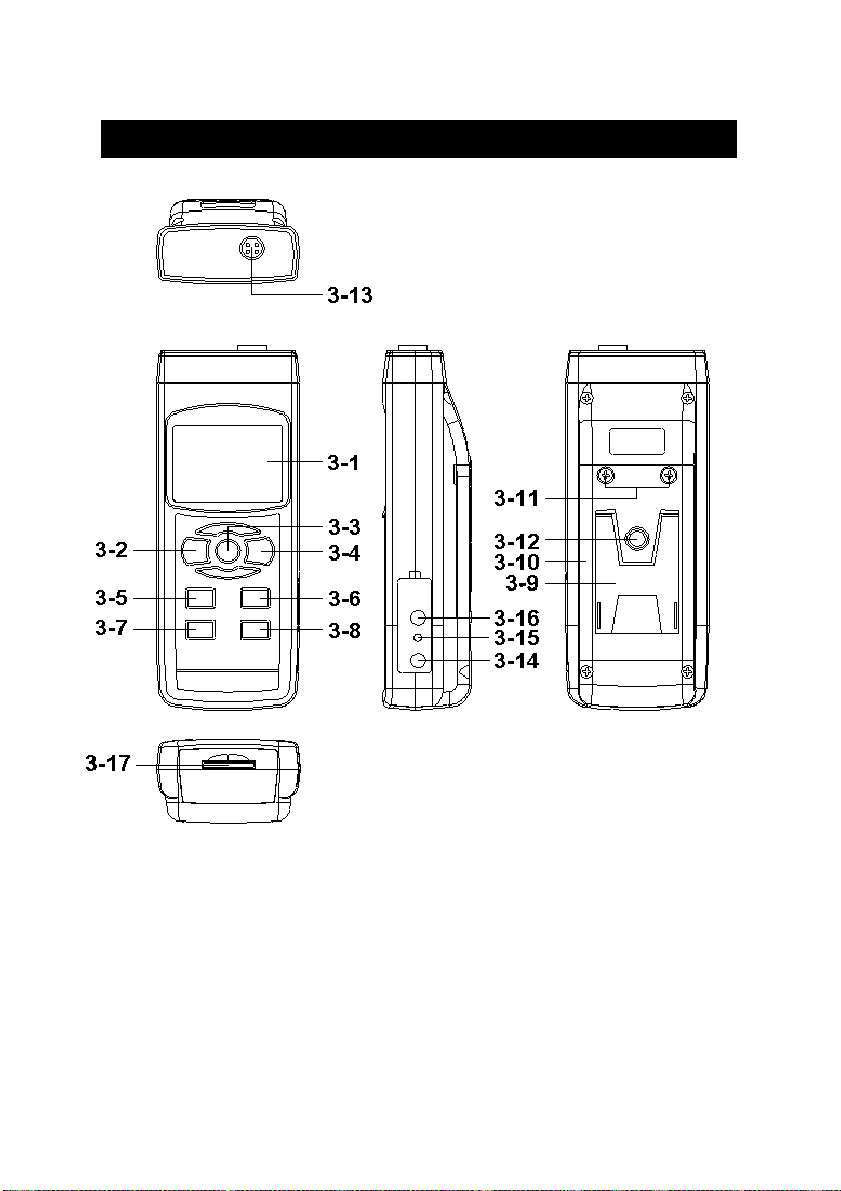

3. FRONT PANEL DESCRIPTION
5
3-1 Display
3-2 Power Button ( Backlight Button )
3-3 Hold Button ( ESC Button )
3-4 REC Button ( Enter Button )
3-5 Button▲
3-6 Button ( Function Button )▼
3-7 Time Button
3-8 Logger Button ( SET Button, Sampling check )
3-9 Stand
3-10 Battery Compartment/Cover
3-11 Battery Cover Screw
3-12 Tripod Fix Nut
3-13 DO Probe Socket
3-14 DC 9V Power Adapter Input Socket
3-15 Reset Button
3-16 RS-232 Output Terminal
3-17 SD card socket
6
4. DO ( Dissolved Oxygen )
MEASURING and CALIBRATION
PROCEDURE
4-1 Dissolved Oxygen measurement
Fig. 2
1)Prepare the Oxygen Probe ( standard probe, DOPB-11 ),
install the " Probe Plug " ( 4-1, Fig. 2 ) into the
" DO Socket " ( 3-13, Fig. 1 ).
2)Power on the meter by pressing " Power Button "
( 3-2, Fig. 1 ) once.
7
Calibration at first
!
If it is the first time to use the Dissolved
Oxygen meter or after a certain period to
use the meter again, then it should to
execute the calibration procedures at the
first. For the measurement precisely
consideration, it recommend to make the
calibration before each measurement.
Calibration procedure, refer to chapter 4-2,
page 10.
4)a.Immersed the probe to a depth at least 10 cm of
the measured liquid in order for the probe to be
influenced by the temperature & automatic
temperature compensation to take place.
b.As for the thermal equilibrium to occur between the
probe & the measurement sample must be allowed
to pass, which usually amounts to a few minutes if
the Temp. difference between the two is only
several Celsius degrees.
5)a.In order to measure the dissolved oxygen content in
any given liquid, it is sufficient to immerse the tip of
the probe in the solution, making sure that velocity
of the liquid coming into contact with the probe is at
least 0.2 - 0.3 m/s or to shake the probe.
b.During laboratory measurements, the use of a
magnetic agitator to ensure a certain velocity in the
fluid is recommended. In this way, errors due to the
diffusion of the oxygen present in the air in the
solution are reduced to a minimum.
8
Tabla de contenidos
Otros manuales de Instrumento de medición de Lutron Electronics
Lutron Electronics
Lutron Electronics SPM-1116SD Manual de usuario
Lutron Electronics
Lutron Electronics DS-9200 Manual de usuario
Lutron Electronics
Lutron Electronics CD-4318SD Manual de usuario
Lutron Electronics
Lutron Electronics AM-4215SD Manual de usuario
Lutron Electronics
Lutron Electronics GCH-2018 Manual de usuario
Lutron Electronics
Lutron Electronics CD-4322 Manual de usuario
Lutron Electronics
Lutron Electronics HT-305 Manual de usuario
Lutron Electronics
Lutron Electronics SL-4013 Manual de usuario
Lutron Electronics
Lutron Electronics YK-2005LX Manual de usuario
Lutron Electronics
Lutron Electronics LM-81LX Manual de instalación
Lutron Electronics
Lutron Electronics LM-8010 Manual de usuario
Lutron Electronics
Lutron Electronics DW-6064 Manual de usuario
Lutron Electronics
Lutron Electronics CM-9942G Manual de usuario
Lutron Electronics
Lutron Electronics DW-6063 Manual de usuario
Lutron Electronics
Lutron Electronics EMF-819 Manual de instalación
Lutron Electronics
Lutron Electronics SL-4033SD Manual de usuario
Lutron Electronics
Lutron Electronics YK-37UVSD Manual de usuario
Lutron Electronics
Lutron Electronics LM-8000A Manual de usuario
Lutron Electronics
Lutron Electronics SL-4033SD Manual de usuario
Lutron Electronics
Lutron Electronics SL-4112 Manual de usuario
Manuales populares de Instrumento de medición de otras marcas
Endress+Hauser
Endress+Hauser Proline Promag 50 Especificaciones técnicas
Siemens
Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas
KLINGER
KLINGER CMF V Series Manual de usuario
EXFO
EXFO FTB-2 Manual de operación y mantenimiento
Keysight
Keysight M8290A Manual de usuario
ADTEK
ADTEK MW-5 Manual de usuario
