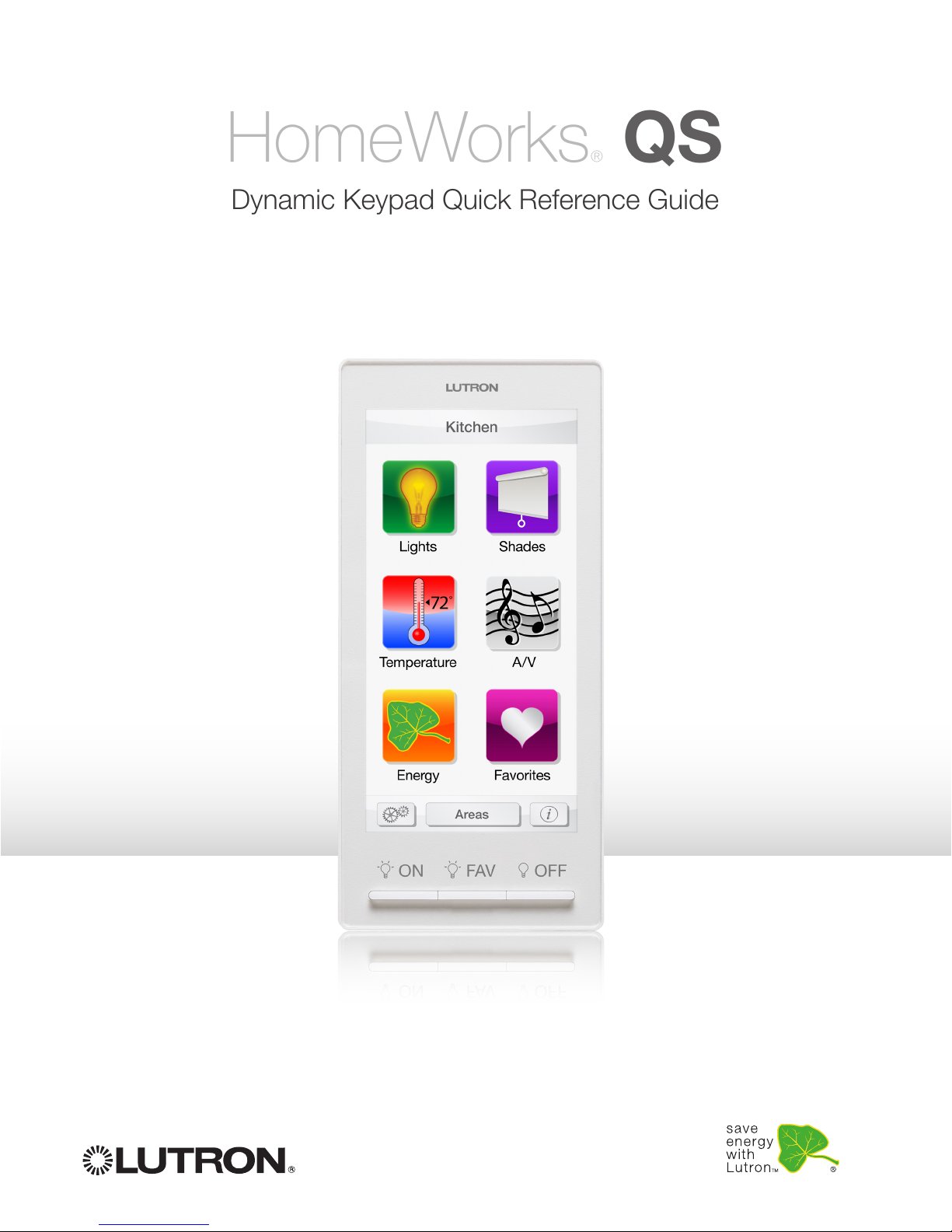

Dynamic Keypad Quick Reference Guide

HomeWorks®QS

Installer Notes

Device Information.....................................................................2

Activation ..................................................................................3

A/V Integration...........................................................................3

Firmware Upgrading ..................................................................4

Information ................................................................................4

Troubleshooting.........................................................................5

Restoring Factory Default Settings.............................................6

Table of Contents

Dynamic Keypad Quick Reference Guide

HomeWorks®QS

Installer Notes

9D10

MUX

COM

+24 V

12 34

HQ-J-DK420

24 V 113 mA

Model | Modelo | Modèle :

PELV/Class 2

The Dynamic Keypad is capable of either wired (QS) and wireless operation

(Clear ConnectTM RF) for ease of installation. A custom mounting frame or bracket,

which you’ll need for installation, is included.

Rear

Mounting Frame

Front

For complete installation instructions, please review the instructions (Lutron P/N 043-376)

included with the Dynamic Keypad.

Lights Shades

A/VTemperature

Energy Favorites

Kitchen

Areas

USB 2.0 mini-B for

ﬁrmware upgrades

Power and

communications

Device Information

Activation

After the Dynamic Keypad is powered, it will auto-detect the type of link—either wireless

(Clear Connect™RF) or wired (QS).

When an RF system is in addressing mode, the Dynamic Keypad will show the addressing screen.

When instructed by the PC programming tool, press the Add to System button.

A/V Integration

A/V components are controlled via third-party integration.

Kitchen A/V

MP3

FM Radio

Mute

Volume

Menu Areas

9D10

MUX

COM

+24 V

12 34

HQ-J-DK420

24 V 113 mA

Model | Modelo | Modèle :

PELV/Class 2

Firmware Upgrading

You can use the HomeWorks®QS Designer

software to upgrade the ﬁrmware in the

Dynamic Keypad.

Make sure the device running the

HomeWorks QS Designer software is

plugged into the mini-B USB port on the

Dynamic Keypad that you’re upgrading.

The Dynamic Keypad can’t be powered

from the USB port. Power must be

supplied through the 4-pin power and

communications connector.

USB 2.0 mini-B for

ﬁrmware upgrades

Power and

communications

Information

The information button will open the information page,

which shows the current ﬁrmware revision and link type.

The maintenance screen is for advanced users only. It was created for gathering detailed device

information, logs, and advanced conﬁguration settings. Do not modify any of the maintenance

settings unless you have been properly trained.

Troubleshooting

The product software version listed on the Device Info screen (accessed from the maintenance

screen) is the same version reported and tracked on the Information screen accessed from the

main menu.

Device Info contains detailed software

versions and resource usage details.

Error logs contain diagnostic information

for troubleshooting.

Link Type allows the auto detected link

type to be overridden.

Reset Factory Default performs the same

function as a triple-tap, hold, triple-tap

(see page 6).

To access the

Maintenance screen, hold

the ON and OFF buttons

down simultaneously for

10 seconds, then release.

Lights Shades

A/VTemperature

Energy Favorites

Kitchen

Areas

Restoring Factory Default Settings

Restoring the Dynamic Keypad to factory settings will remove it from

the system and will clear its programming. Here’s how to reset it:

1. Triple tap and hold any of the hard buttons on the device.

Do not release after the third tap.

2. Keep the button pressed on the third tap until the LED starts to

rapid-flash (approximately 3 seconds).

3. Release the button and immediately (with ½ second) triple tap it

again. All LEDs will rapid-flash again.

After you return the Dynamic Keypad to factory settings you’ll need

to reactivate and transfer in the HomeWorks QS system.

Lights Shades

A/VTemperature

Energy Favorites

Kitchen

Areas

www.lutron.com

Lutron Electronics Co., Inc.

7200 Suter Road

Coopersburg, PA 18036-1299

World Headquarters 1.610.282.3800

24/7 Technical Support Center 1.800.523.9466

Customer Service 1.888.588.7661

Lutron Electronics Co., Inc.

P/N 368-2371 REV A
