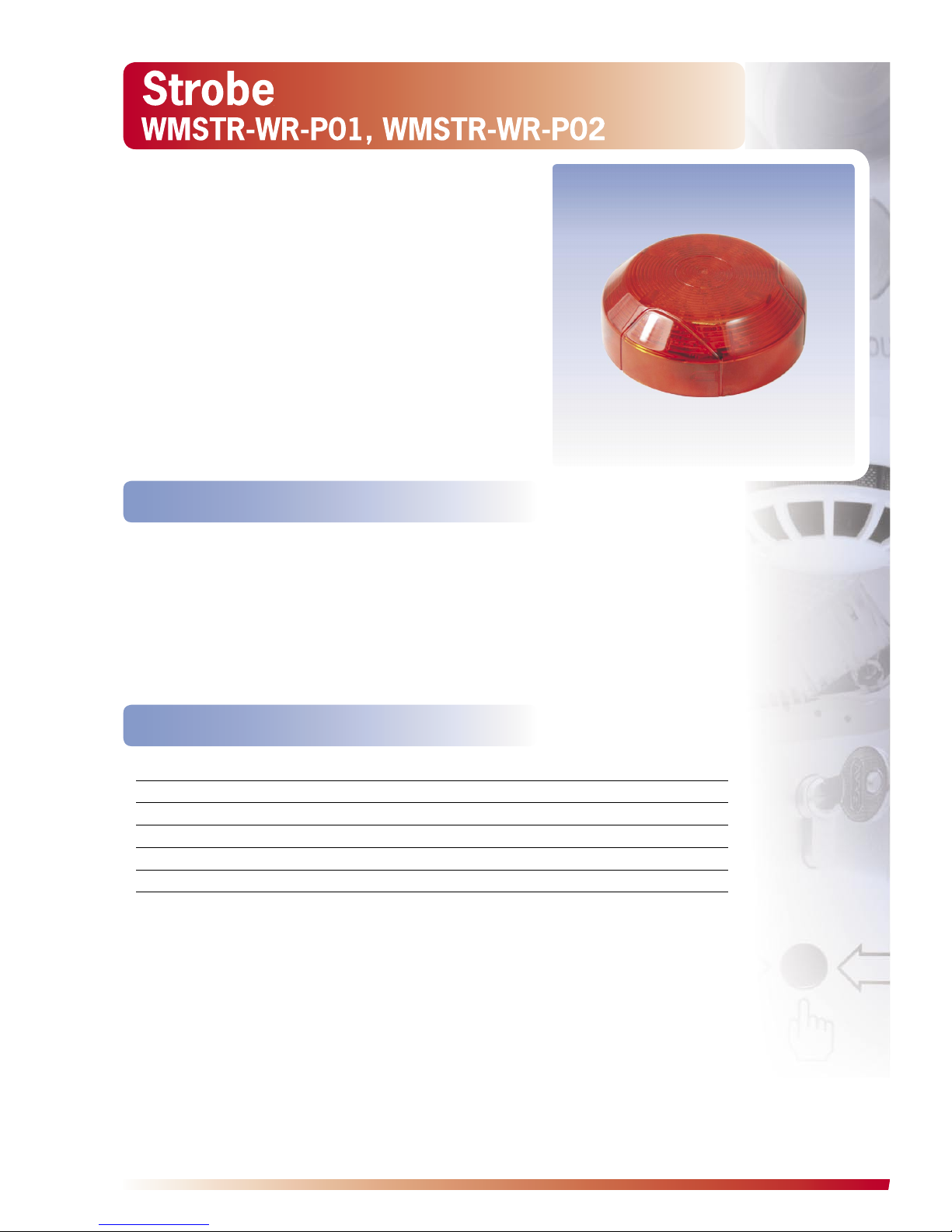

Strobe

WMSTR-WR-P01, WMSTR-WR-P02

Description

• ADM loop technology with

System Sensor/200 protocol

• Long lifetime of strobe due to the use

of LEDs

• Low power consumption

• Versions with or without integrated

dual-isolator available

• Various base types available –

IP24, IP44, IP65

Speciﬁ cations

Operating voltage Supply through loop voltage

Flash frequency 1Hz

Ambient temperature -25°C to +70°C

Dimensions ø × H 112 × 37 (mm) (incl. base LPBW)

Weight 80g

Colour red

The loop powered strobe is ﬁ tted into a round, red plas-

tic case. It is powered and actuated as a module via the

ADM loop with System Sensor/200 protocol.

The address of the strobe is selected with two decadic

rotary switches located at the bottom of the device.

The strobe is designed for indoor or outdoor wall moun-

ting. For this purpose a special base is needed. Various

base types for protection classes IP24, IP44 or IP65

are available, depending on the application. An optional

mounting plate can be supplied for surface mounted

cabling.

The strobe is available in two different versions: With or

without integrated dual-isolator module.

© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27

[email protected] • WWW.LST.AT • ALL RIGHTS RESERVED

WMSTR-WR-P0x_DBL_LST_EN_0804.PDF • PAGE 2

ABuilding Safety. Building Security.

Loop strobe without isolator

Current consumption from loop max. 450µA (strobe off)

max. 3.8mA (strobe active)

Order number 356140

Order name Strobe/WM/200/Red WMSTR-WR-P01

Loop strobe with isolator

Current consumption from loop max. 450µA (strobe off)

max. 4.0mA (strobe active)

Order number 356141

Order name Strobe/WM/200ISM/Red WMSTR-WR-P02

Base IP24

Order number 359040

Order name Base Sounder & Strobe/IP24/White LPBW

Base IP44

Order number 359041

Order name Base Sounder & Strobe/IP44/Red SDBR

Base IP65 (not illustrated)

Order number 359042

Order name Base Sounder & Strobe/IP65/Red WDBR

Mounting plate for surface mounted cabling with base LPBW, 5 Pieces

Order number 359049

Order name Mounting Plate for Sounder/200/5 pcs. DBSPD/5

Base and accessories

For wall mounting of the strobe, various base

types with protection classes IP24, IP44 or IP65

are available.

For surface mounted cabling with base LPBW,

an optional mounting plate can be supplied.

Speciﬁ cations
