LSI LASTEM Heat Shield Manual de instrucciones

Quick user's guide

Heat Shie d

LCD display 4x20 chr.

Keyboard

Base mounting

Tripod mounting (BVA325)

Reset

Power supply / battery charger

Anemometer input

RS232 port

Wet bulb temperature sensor

Air tempetaure sensor

Radiant temperature sensor

Working status leds

Protective shell

(1 ) -

(2) -

(3) -

(4) -

(5) -

(6) -

(7) -

(8) -

(9) -

(1 0) -

(11 ) -

(1 2) -

(1 3) -

Base

Unit

1 0

1 2

INSTRUMENT DESCRIPTION

Sate ite

Unit Hot wire

Anemometer

1 3

1 0

1 2

Reference manual: INSTUM_01515_en upd. 11/12/2014

Measurement disp ay

Heat Shield shows measurements and indexes from its sensors and, when

connected, from satellite units.

moves to different group of measurements/indexes.

*The proper way to select a combination of buttons is to keep pressure over the first “Ctrl”

button, than push&release the second one, then release the first one.

During

first switch-on

Heat

Shield asks to select the program

language.

Select the language using and

confirm using .

t is possible to switch-off Heat

Shield only from measurement list.

Change day/time

Move the cursor ^^ below the date to change using , change the date

and/or time using . Press to confirm. Press to exit.

and to scroll the group to the next/previous one. and scroll

vertically each group.

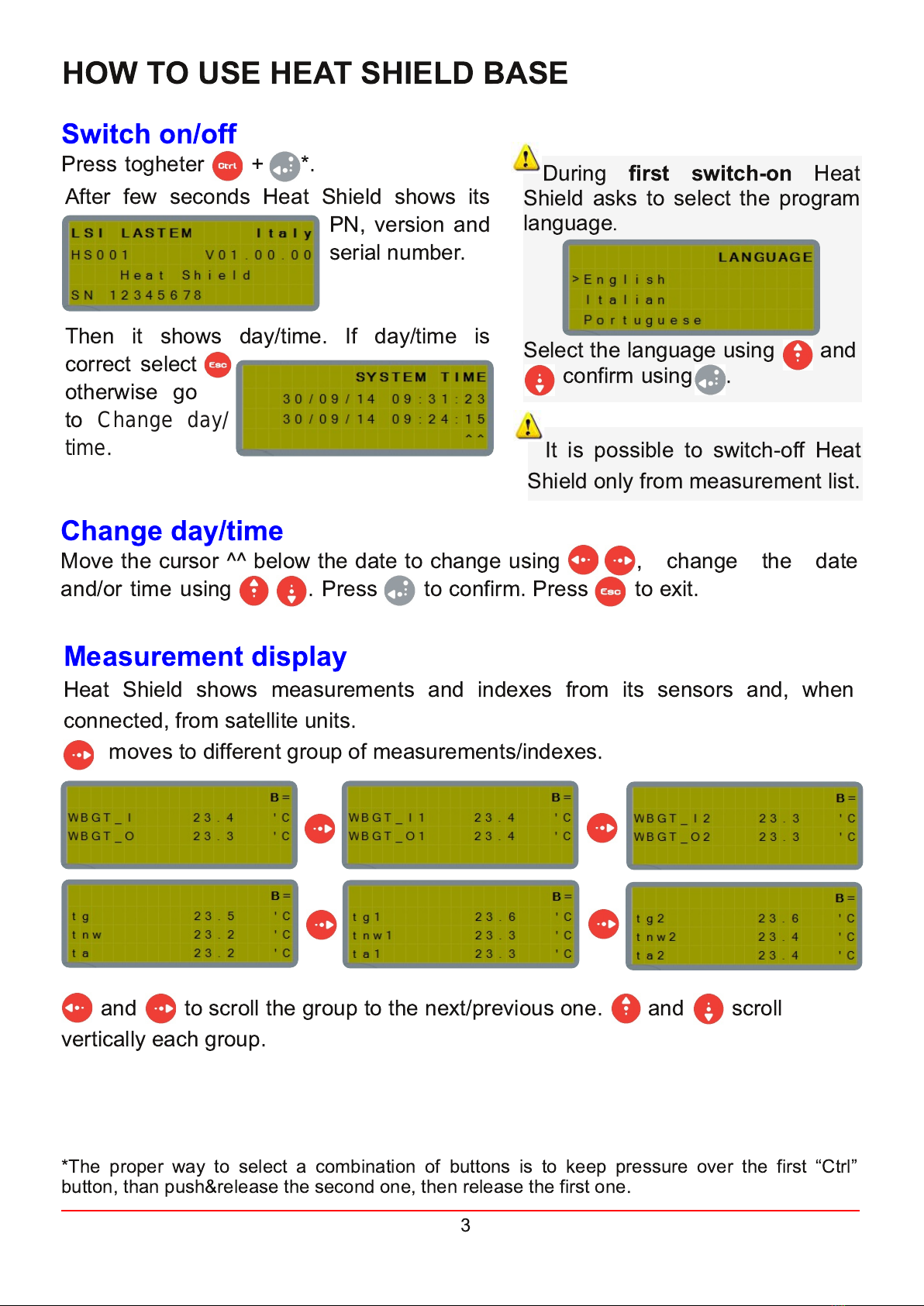

HOW TO USE HEAT SHIELD BASE

Switch on/off

Press togheter + *.

After few seconds Heat Shield shows its

PN, version and

serial number.

Then it shows day/time. f day/time is

correct select

otherwise go

Change day/

time

Go to SURVEY for more infor-

mation.

Status bar

t contains some Heat Shield working information:

Browsing

Push to go on the Main menu.

Use to scroll each information, and to enter; to return to previous

selection, it goes to Measurements when pushed from Main menu.

Change parameters

Depending by the situation it is possible to change the parameters from a

selectable list (example: language) or using the arrows (example: day/time).

Data storing

Go to measurements screen and press

+ . Press + to stop data

storing.

nn:

shh:mm:

Eee:

ru:

Ll:

where:

storing in progress.

survey number.

can have the following meanings:

- f programmed, it is the time to reach the starting time of the survey

(s=”-“).

- f programmed, during survey, it is time to reach the end of the survey

(s=”-“).

- During survey, it is the time from the beginning of the survey.

t is available only if survey end is not been programmed (s=”+“).

number of errors.

radio signal with battery level. “-“ radio on, “1 ”/ “2” Receiving data from

satellites 1 / 2.

shows alternatively the battery level (B) and Memory status (M).

SETUP

t is possible to change some factory setup parameters.

Check battery status.

Check memory status.

Mount each unit. See examples at the end of this document.

First switch-on the base unit and later the satellite units.

Check measurements from base unit and satellite units.

Attention: radiant temperature sensor would need 20 minutes to acclimatize.

Survey setup

Go to Survey setup.

Survey start / stop

Each survey starts and stops using the programmed mode. f starting mode is

manually, push + to start. Push + to stop survey, this stops survey

anyway even if automatic stop mode is programmed.

SURVEY

t is possible to change some factory setup parameters.

1 -

2 -

3 -

4 -

5 -

6 -

Nr survey. Heat Shield assign one number to each survey. t is possible to

change (1 J.99) the assigned number during measurement.

Mode: Heat Shield can performs measurement from the base unit only

(WBGT1 amb), from base unit plus one satellite (WBGT 2 amb), from base

units plus two satellite units (WBGT 3 amb). Or perform one measurement

which show average value of the measurement coming from base unit and

two satellite unit (WBGT subject) as in the SO7243-1 989 requirements.

Anemometer: select “not used” or select type: Hot wire or Cups anemometer

Units: select Celsius or Fahrenheit

Survey Start/stop mode: select the way to start survey (manually/ selected

day-time) and stop survey (manually/selected day-time/ after a period time).

During survey all measurements are stored.

1 -

2 -

3 -

4 -

5 -

HS Manager is a PC program used to download the stored data and perform data

analysis.

Insta ation

Run Setup and follow its instructions.

During the first run, the program asks to install a new Heat Shield unit.

To recognize the PC port where

the USB adapter is connected. Go

to (Windows) Control Panel-

Device

Manager-

Universal

Serial bus

controller

and look for the COM number of

the USB serial port.

Data down oad

While Heat Shield is connected to PC:

- Select "Communications" from nstrument list.

- Select the instrument serial number and press .

- Select the data limits and select “Download”.

- When finish select “Close”.

Data disp ay

- From the browser, expand “Database”,

select instrument serial number.

- Left key on the mouse to select “Show Data”

- Select data limits and press .

HS MANAGER

Connect Heat Shield base unit to PC

using it cable and USB adapter.

Go to “Communication” and select the

PC port where the USB adapter is

connected.

Select “Go” until the instrument is

found. Select “end” to terminate this

procedure.

1 -

2 -

3 -

Before to start, install the USB

adapter driver in your PC.

EXAMPLES

Fig. 1 - WBGT 1 environment measurement and index from Base unit only.

Fig. 2 - WBGT environments: separate measurements and indexes from base unit

and one satellite unit.

Fig. 4 - WBGT subject:

measurements and indexes

averages from one base unit

and two satellites.

Fig. 5 - Usage of WBGT 1 env.

with cup anemometer.

Fig. 3 - nstallation of the units in the case of WBGT Subject .

Fig. 7 - Usage of WBGT 1 env.

with hot wire anemometer.

1 70 cm

11 0 cm

1 0 cm

Fig.8- Use without datastoring.

Fig. 6 - Exploded diagram.

11 0 cm

1 0 cm

60 cm

www.lsi-lastem.com
