Lowrance Elite 5X DSI Manual de usuario

Installation & Operation

manual

Elite 5X DSI, Mark 5X DSI, Elite 4X DSI & Mark 4X DSI

Operation manual

Lowrance® and Navico® are registered trademarks of Navico.

Navico may nd it necessary to change or end our policies, regulations and special oers at any time. We reserve

the right to do so without notice. All features and specications subject to change without notice.

Visit our website:

www.lowrance.com

Contenidos

Introducción..................................... 2

Funcionamiento básico .................. 3

Asistente de conguración ......................3

Paginas....................................................3

Acceso al Menú de ajustes......................3

Funcionamiento de los menús.................4

Standby mode .........................................5

Restablecer ajustes de fábrica ................5

Página de DSI .........................................6

Páginas............................................. 6

Frecuencia dividida..................................6

Zoom dividido ..........................................7

Datos superpuestos.................................7

Funcionamiento de la DSI............... 9

Uso de DSI ..............................................9

Trackback ............................................... 9

Menú DSI.................................................9

Ajustar ...................................................10

Escala....................................................10

DSI interpretación.......................... 13

Ajustes............................................ 15

Menú de ajustes ....................................15

Sistema..................................................15

Sonda ..................................................16

Alarmas ................................................18

Specications ................................ 25

Introduction

Getting Started

Turn unit on/off

To turn on/off the unit,

press and hold the LIGHT/

POWER key for three

seconds.

Adjusting

the backlight

This unit has 10 backlight

levels. Press the LIGHT/

POWER key to switch

backlight levels.

Muting Audio

Select Mute Audio from

the System menu and

press ENTER.

Unit Controls

LIGHT/POWER: controls backlight

level and turns unit on/off

KEYPAD: controls cursor & selects

items on menus

PAGES:allows you to select a page to

view

MENU: opens settings, context and

page menus

ENTER: nalizes menu selections;

save waypoint at cursor position

ZOOM Keys: used to zoom in/zoom

out

Introduction

Basic Operation

Setup wizard

The Setup wizard will appear when the unit is

turned on for the rst time. To choose your own

settings, do not run the setup wizard.

To restart the Setup wizard, restore defaults.

DSI menu

Accessing the Settings menu

DSI page DSI menu

Pages

This unit has three pages: DSI, Split frequency and

Split zoom.

Settings menu

Basic Operation

Accessing menu items

The keypad and ENTER key are used to select

menu items and open submenus. Use the keypad

to highlight the desired item and press ENTER.

Working with menus

There are several menu types used to make

adjustments to options and settings, including

scrollbars, on/o features and dropdown menus.

Scrollbars

Select the scrollbar and press the

keypad left (decrease) or right (in-

crease).

On/Off features

Select an on/o menu item

and press ENTER to turn

it on/o.

Dropdown menus

After accessing the dropdown menu, press the

keypad up/down to select

the desired item and press

Enter.

NOTE: Press the MENU key to Exit

menus.

Basic Operation

To input text:

1. Use the keypad to select the desired

character and press ENTER.

2. Repeat Step 1 for each character.

3. When entry is completed, highlight OK

and press ENTER.

Cursor

The cursor is used to select review sonar history.

Press MENU and select Exit cursor mode to clear

the cursor.

Dialogs

Dialogs are used for user input or for presenting in-

formation to the user.

Depending on the type of infor-

mation or entry, dierent meth-

ods are used to conrm, cancel

or close the dialog.

Entering text

Switches

keyboard between

Alpha and

QWERTY layout

Switches letters

to uppercase/

lowercase

Basic Operation

Standby mode

Lowers power consumption by turning o sonar

and the display.

Press the PWR/Light key to ac-

cess the Backlight dialog. Select

Standby and press Enter.

Press any key to resume normal

operation.

Restore defaults

Resets unit options and settings

to defaults.

NOTE: Leaving your unit in Standby

mode when your boat is not is use will run

down your battery.

Adjusting the display

You can make adjustments to the display using

Contrast and Color settings. Both are covered in

the DSI section.

Pages

DSI Page

Displays the water column moving from right to

left on your unit’s screen.

DSI Split Frequency page

Split Frequency

Displays both transducer frequencies at the same

time. 800 kHz provides the best resolution, while

455 kHz has greater depth coverage.

DSI Page

Pages

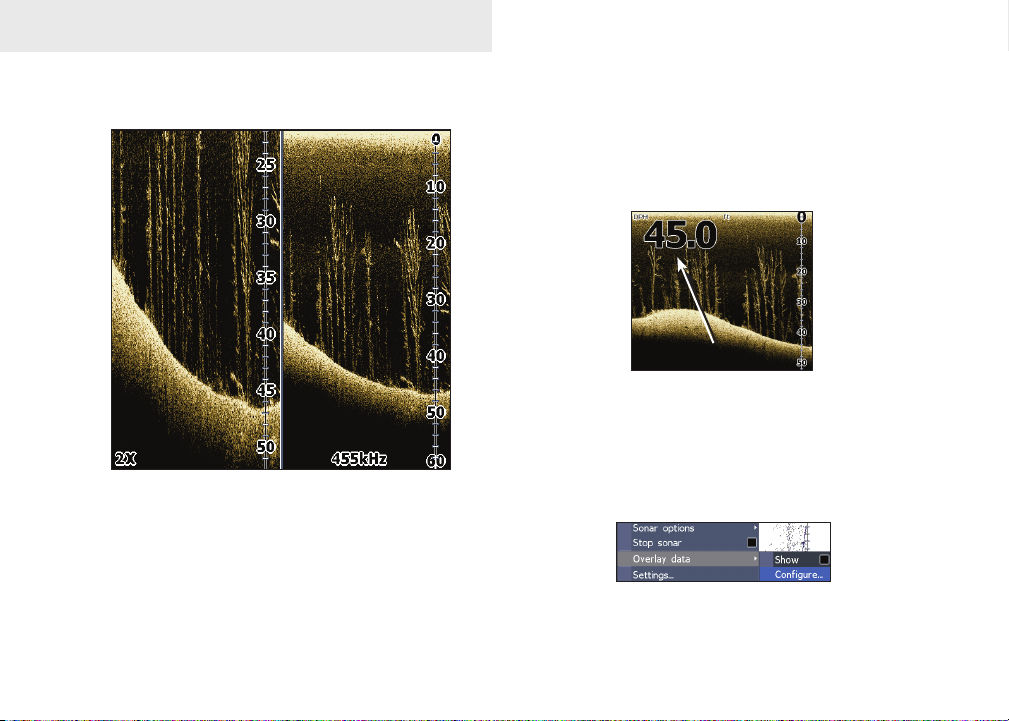

Overlay Data

Allows you to select data (water temperature,

depth, etc) to be displayed on top of the DSI screen.

You can also turn on/o the display of congured

overlay data using the Show setting.

Show

Enables/disables the display of overlay data, allow-

ing you to remove overlay data from the screen

without deleting the selected overlay data con-

guration.

DSI Split Zoom

Split Zoom

Allows you to zoom in for a closer look without los-

ing your view of the water column.

Overlay data
