2.4 GHZ WIRELESS COLOR

CAMERA/RECEIVER SYSTEM

SG6350

FOR MORE INFORMATION

WWW.STRATEGICVISTA.COM

Before operating the system, please read this manual

thoroughly and retain it for future reference.

This product broadcasts over public airwaves and its

video and audio signals may be intercepted without

your consent.

Explanation of two Symbols

The lightning flash with arrowheadsymbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated "dangerous voltage“within the

product's enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in

the literature accompanying the appliance.

THE GRAPHIC SYMBOLS WITH SUPPLEMENTAL MARKING ARE ON

THE BOTTOM OF THE SYSTEM.

WARNING: To prevent fire or shock hazard, do not expose this unit to

rain, water, or wet locations. Do not insert any metallic object

through the ventilation grills.

FCC CLASS B NOTICE

Note:

This equipment has been tested and found to comply with the limits For a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, (which can be determined by turning the equipment off

and on), the user is encouraged to try to correct the interference by one or more

of the following measures:

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

•Reorient or relocate the receiving antenna

•Connect the equipment into an outlet on a circuit different from that to which

other devices may be connected.

•Consult the dealer or an experienced radio or television technician for help.

SAFETY INSTRUCTIONS

IMPORTANT SAFEGUARDS

All the safety and operating instructions should be read before the

system is operated, and retained for future reference.

1. HEED WARNINGS -All warnings on the appliance and in the operating

instructions should be adhered to.

2. FOLLOW INSTRUCTIONS -All operating instructions should be

followed.

3. WATER AND MOISTURE -Do not use this video product near water –

for example, a bath tub, wash bowl, kitchen sink, laundry tub or

swimming pool, or in a wet basement.

4. POWER SOURCES -This product should be operated only from the type

of power source indicated on the marking label.

5. OVERLOADING -Do not overload outlets and extension cords, which

can result in a risk of fire or electric shock.

6. SERVICING -Do not attempt to service this product yourself. Opening or

removing covers may expose you to dangerous voltage or other hazards.

Refer all servicing or repairs to qualified service personnel.

7. DAMAGE REQUIRING SERVICE -Unplug this product from the wall

outlet and refer servicing or repairs to qualified service personnel under

the following conditions:

a. When the power supply cord or plug is damaged.

b. If liquid has been spilled or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the

operating instructions.

e. If the product has been dropped or the cabinet has been damaged.

f. When the product exhibits a distinct change in performance.

8. REPLACEMENT PARTS -When replacement parts are required, be

sure the service technician has used replacement parts that are

specified by the manufacturer or have the same characteristics as the

original part. Unauthorized substitutions may result in fire, electric

shock, or other hazards.

9. SAFETY CHECK -Upon completion of any service or repairs to this

video product, ask the service technician to perform safety checks to

determine if the video product is in proper operating condition.

10. An appliance and cart combination should be moved with care.

Do not place this equipment on an unstable cart, stand, or table.The

equipment may fall, causing serious injury to a child or adult, and

serious damage to the equipment. Wall or shelf mounting should

follow the manufacturer's instructions and should be done with

a mounting kit approved by the manufacturer.

TABLE OF CONTENTS PAGE

iii

INTRODUCTION & FEATURES………………………………………

SYSTEM INCLUDES…………………………………………………..

CONTROLS AND FUNCTIONS

Wireless Camera….......…….......….……………………..……...

Wireless Receiver...……..............................……….……...……

INSTALLATION OF WIRELESS CAMERA………………………….

INSTALLATION OF WIRELESS RECEIVER

Operation with TV (Using RCA Cables)......……………….…....

Operation with TV (Using Coaxial Cable) ..............…..……......

SYSTEM OPERATION

Multiple Cameras / Auto Scanning…………………………………

Auto/Manual Options / Selectable Settings………………………

TROUBLE SHOOTING ..............................................………..…...

TECHNICAL SPECIFICATIONS ....................................................

CARE & MAINTENANCE……………………………..……………….

INTRODUCTION:

Thank you for purchasing the 2.4 GHz Wireless Color Camera &

Receiver System. This system turns your TV into a Video Security

System, providing instant protection in your home or office. Avoiding the

hassle of running wires, this system is easy to install and operate for

immediate applications.

The system is capable of connecting up to 4 cameras (additional

cameras sold separately) with the option to automatically scan between

locations.

To learn more about this 2.4GHz Wireless Camera & Receiver System

and our complete range of CCTV products, please visit our website at:

www.strategicvista.com

FEATURES:

•Turns your TV into a Video Security System

•Flexible –move camera from room to room

•Listen-in audio

•Camera has AC or battery option

•300 ft Wireless Transmission (open space)

•2.4 GHz Wireless Transmission

•Crystal clear Video and Stereo audio

•4 Channel Wireless System

•Record picture to any standard VCR

SYSTEM INCLUDES:

1 -2.4 GHz Color Wireless Camera

Owner’s Manual

Also includes:

2 –9V DC 500mA Adapters

2 –RCA Audio/Video Cables

1 –Coaxial Cable

1 -2.4 GHz Wireless Receiver

REAR VIEW

WIRELESS CAMERA

FRONT/ SIDE VIEW

CONTROLS & FUNCTIONS

1. Microphone –Built-in condenser microphone provides listen-in audio

capability from camera to TV

2. Lens –Color CMOS Image Sensor

3. Channel Selector Switch –Slide switch for channels 1-4

4. ON/OFF Power Switch –Controls power to the camera. Note: Please

ensure that you set the switch to the OFF position before plugging the

AC adapter into the unit

5. Battery Compartment –Optional 4 “AA” batteries (not included) can

be used to power the camera

6. Bracket –Metal bracket connects to camera for mounting to walls,

ceilings or table

7. DC IN Jack –Connects to the 9V DC (500mA) adapter.

8. 2.4GHz Antenna –High gain dipole antenna sends audio and video

signals to the receiver

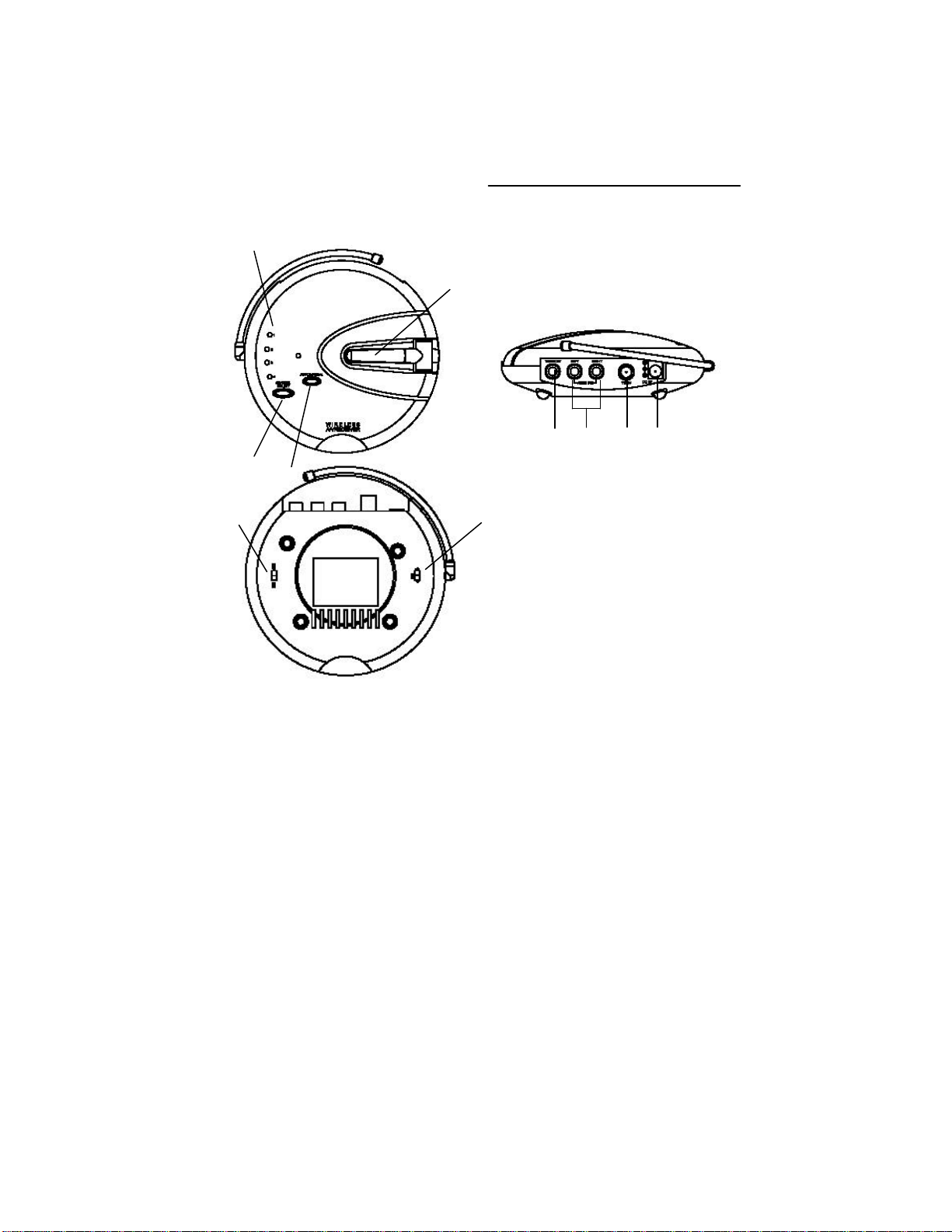

WIRELESS RECEIVER

REAR VIEW

BOTTOMVIEW

9 10

5 6 7 8

1. Auto/Manual Button –Used to activate/deactivate auto sequencing

2. Channel Selector Button –Used to manually switch channels from 1-4

3. LED Channel Indicators –Indicator light shows selected channel

4. 2.4 GHz Antenna –High gain dipole antenna receives audio and video

signal from the wireless camera

5. Video Output Jack (Yellow) –RCA jack for video output connector

(when using RCA connector)

6. Audio Output Jacks L (White) & R (Red) –RCA jacks for audio

output connector (when using RCA connector)

7. RF Out Jack (To TV) –Connects the receiver to a TV using the supplied

coaxial cable. (alternative to RCA cable connection)

8. DC IN Jack –Connects to the power source of the receiver

9. ON/OFF Power Switch –Ensure this switch is set to OFF before

plugging the system into an electrical outlet

10.Channel 3/4 Selector Switch –Used to view picture on television when

using coaxial cable (preset to channel 3)

CONTROLS & FUNCTIONS

TOPVIEW

CONNECTING CAMERA TO AN AC OUTLET/ BATTERY POWER

INSTALLATION OF CAMERA

Ensure the Power Switch on the camera is turned OFF prior to

proceeding with the following steps.

NOTE

Electrical

Outlet

STEP 1:

To 9V Power

adapter

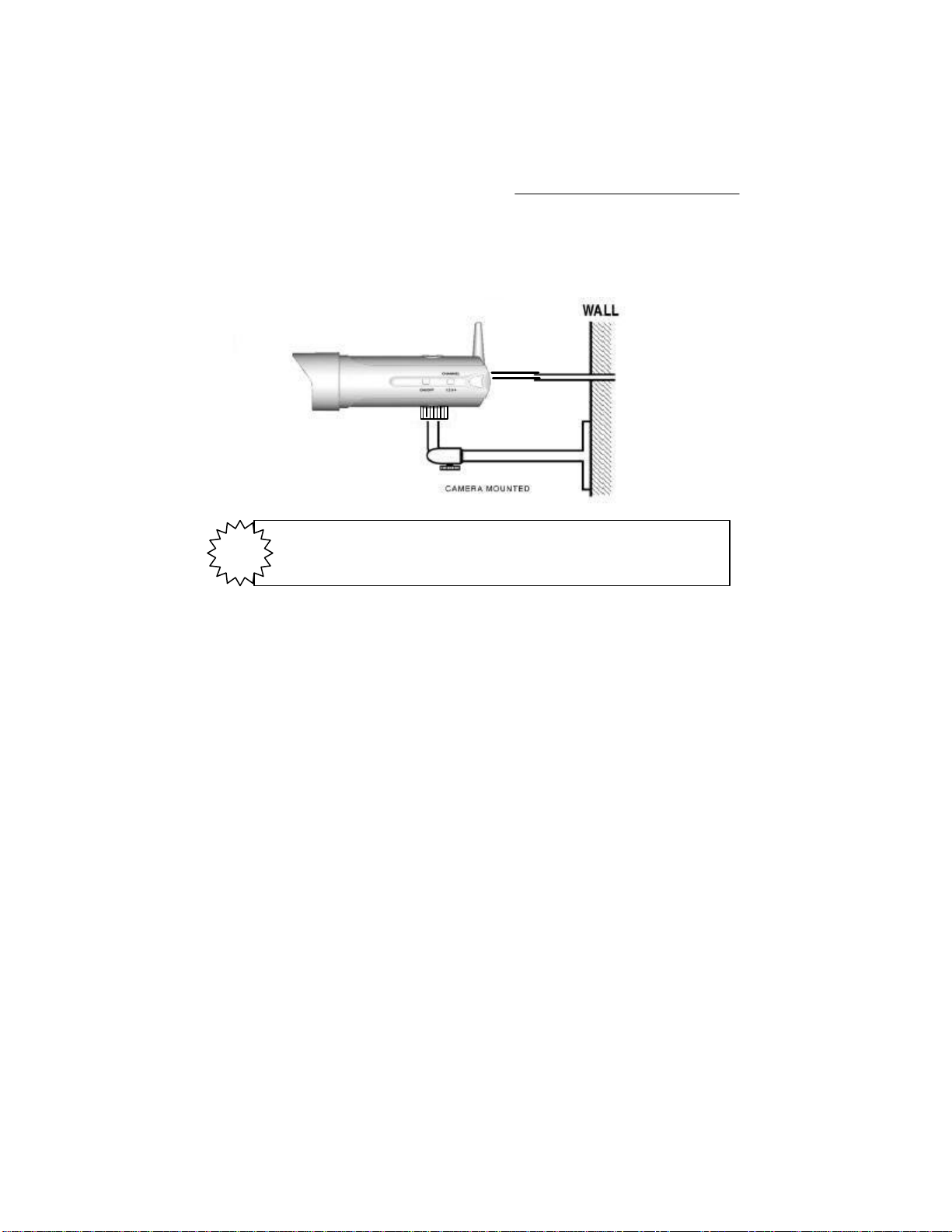

1. Attach the stand base to the wall or ceiling where you want to install the

camera. Locate a wall stud or ceiling, and secure the bracket using the

four supplied screws.

2. Attach the camera to the stand and firmly tighten the swivel.

3. Attach the camera with the stand to the stand base, and firmly tighten the

joint knob on the stand base.

4. Connect the supplied 9V 500mA DC adapter to the DC IN jack at the rear

of the camera, and plug it into an electrical outlet.

If you are using batteries to power the camera follow these steps:

1. Make sure that the power switch on the camera is turned “OFF”

2. Carefully slide open the battery compartment (bottom of camera)

3. Insert 4 “AA”batteries (not included) into the compartment noting the

polarity

Warning: to prevent damage to the unit, ensure the batteries are

aligned properly and battery types are not mixed.

4. Close the compartment and turn camera “ON”

CONNECTING THE RECEIVER TO A TV

INSTALLATION OF RECEIVER

STEP 2:

Ensure the Power Switch on the Receiver is turned OFF before

proceeding with the following steps.

NOTE

1. Place the wireless receiver near your television (or monitor).

2. Connect one end of the RCA cables to the Audio/Video output jacks at the

back of the Receiver. Plug the other end of RCA cables into the

Audio/Video In jacks on your television. Be sure the yellow, red and white

plugs match the yellow, red and white jacks on both the receiver and TV.

3. Connect one end of the supplied 9V 500 mA AC adapter into the DC IN

jack at the rear of the receiver; the other end into an electrical outlet. Turn

the receiver ON. The system is defaulted to channel 1.

4. Turn your T.V. to AX (Aux. Mode or TV/Video) to view the picture on your

second T.V.

5. Adjust the antenna on both the camera and receiver as necessary for

optimum viewing.

For optimum viewing reception you may need to change the

channels of both your camera and receiver to the same

channels between CH 1 –CH 4

NOTE

You have two options to connect the Receiver: A) Using RCA Cables

(see below), or B) Coaxial Cables, please refer to page 7 of this manual.

Back of Receiver Television

Electrical Outlet

Tabla de contenidos

Otros manuales de Sistema de seguridad de Lorex

Lorex

Lorex WA-410 Manual de usuario

Lorex

Lorex LHB926 Series Manual de usuario

Lorex

Lorex SG19LD80 Series Instrucciones de funcionamiento

Lorex

Lorex LHB800 Series Manual de usuario

Lorex

Lorex SHS-4QM Series Manual de usuario

Lorex

Lorex 12 B&W 4 Channel Observation system Manual de usuario

Lorex

Lorex SG21FD3044-161 Manual de usuario

Lorex

Lorex SHS-2S Manual de usuario

Lorex

Lorex LW2311 Manual de usuario

Lorex

Lorex L154-81C4 Manual de usuario

Lorex

Lorex LW2310 Series Manual de usuario

Lorex

Lorex L15LD420 SERIES Manual de usuario

Lorex

Lorex L15LD400 series Manual de usuario

Lorex

Lorex SG21281UQ-A Manual de usuario

Lorex

Lorex LW1001 Series Manual de usuario

Lorex

Lorex LW1012 Series Manual de usuario

Lorex

Lorex SG6333 Manual de usuario

Lorex

Lorex LH316501C8 Manual de usuario

Lorex

Lorex LWB3800 Series Manual de instrucciones

Lorex

Lorex SC21CD5444UQ-A80 Manual de instrucciones

Lorex

Lorex L15LD400 series Manual de usuario

Lorex

Lorex WA-410 Manual de instrucciones

Lorex

Lorex LHB926 Series Manual de instrucciones

Lorex

Lorex H32A Series Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
