Lorell LLR44312 Manual de usuario

Printer Stand

Piédestal d’imprimante

Mesa para impresora

LLR44312

3446D_F V4.indd 13446D_F V4.indd 1 3/4/11 1:14 PM3/4/11 1:14 PM

Page 1 of 18

Instructions:

If you are missing parts or have other concerns, please email Lorell@sprich.com or fax: 404-472-9063.

Please provide the following information:

1. Full Name

2. Physical Address – do not include P.O. Box as our carriers cannot deliver to a P.O. Boxes

3. Phone Number

4. Model Number

5. Part Number

6. Invoice #

7. Date of Purchase

Note: Our policy is to send all parts requests normal ground transportation, if your requirements are to have these parts via

overnight/next day, please provide your designated carrier and account number. Replacement panels are not available. If damaged

has occurred during shipment, please return the entire unit to place of purchase for credit and replacement. Original Invoice may be

required.

Before you begin:

Open, identify and count all parts prior to assembly. Lay out the parts on a non-abrasive surface such

as carpet or blanket. You will need the tools identified below:

1. Phillips Head Screw Driver

2. Flat Head Screw Driver

3. Rubber Mallet (recommended)

3446D_F V4.indd 13446D_F V4.indd 1 3/4/11 1:14 PM3/4/11 1:14 PM

Page 2 of 18

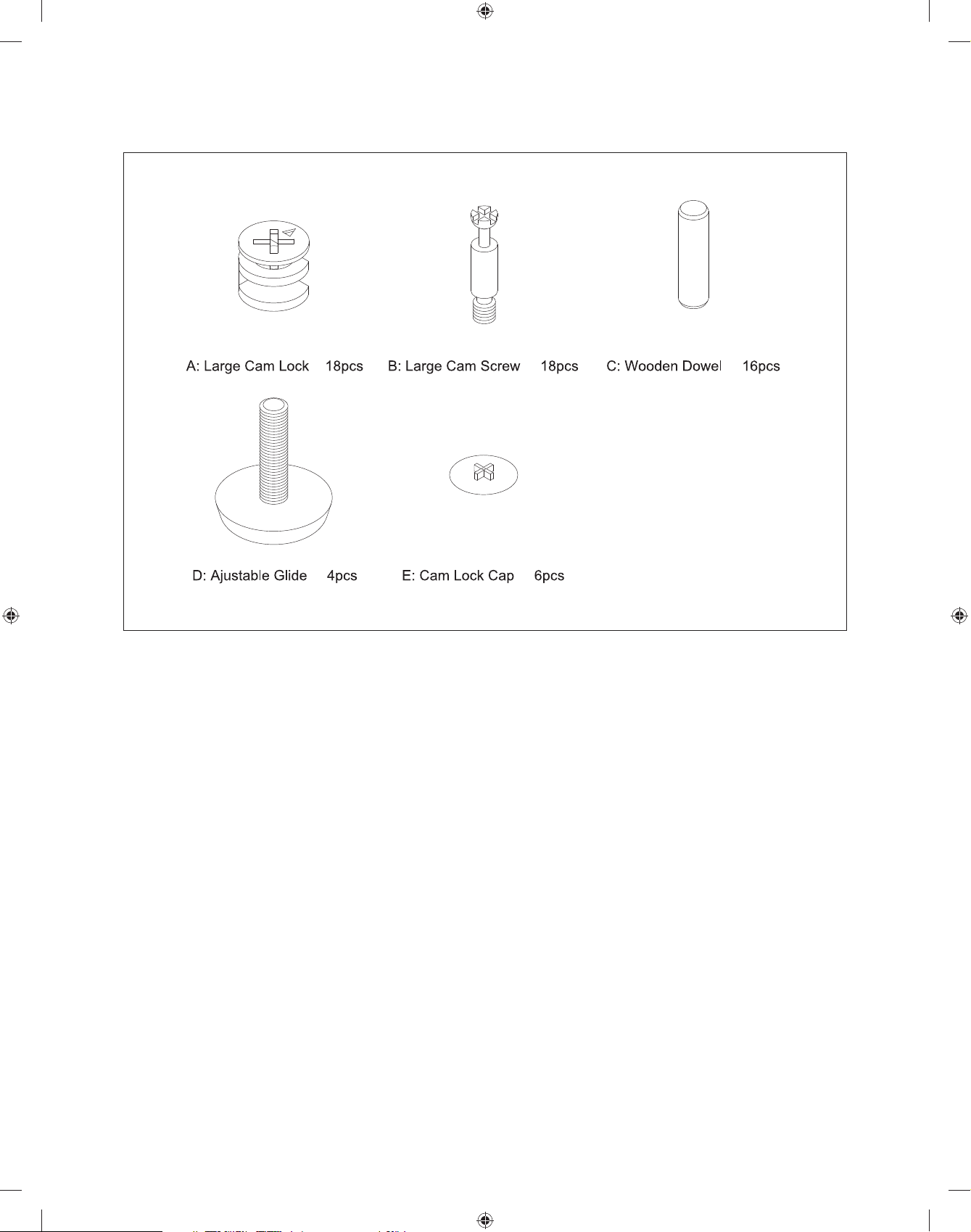

HARDWARE IDENTIFICATION

3446D_F V4.indd 23446D_F V4.indd 2 3/4/11 1:14 PM3/4/11 1:14 PM

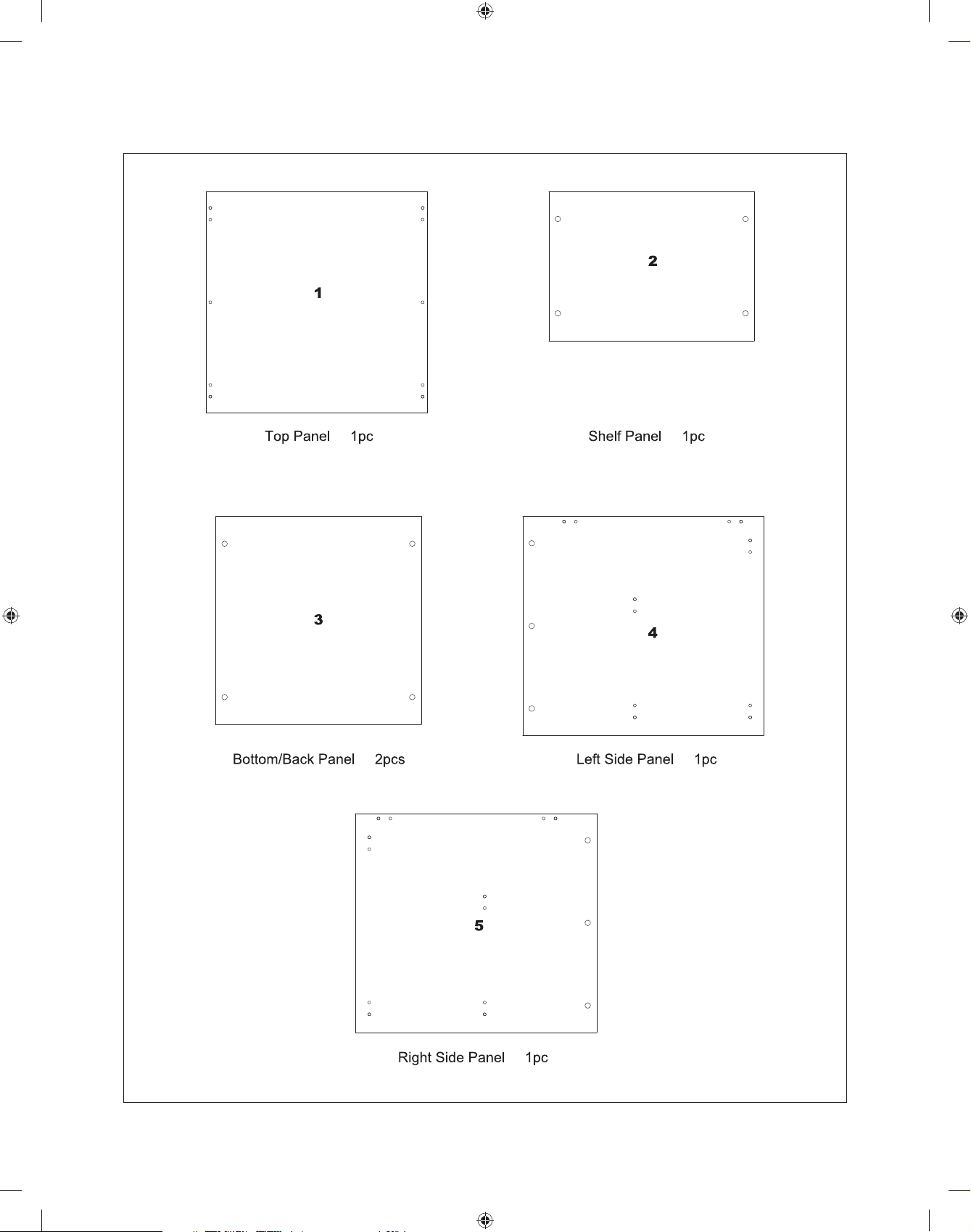

PANEL IDENTIFICATION

Page 3 of 18

3446D_F V4.indd 33446D_F V4.indd 3 3/4/11 1:14 PM3/4/11 1:14 PM

Page 4 of 18

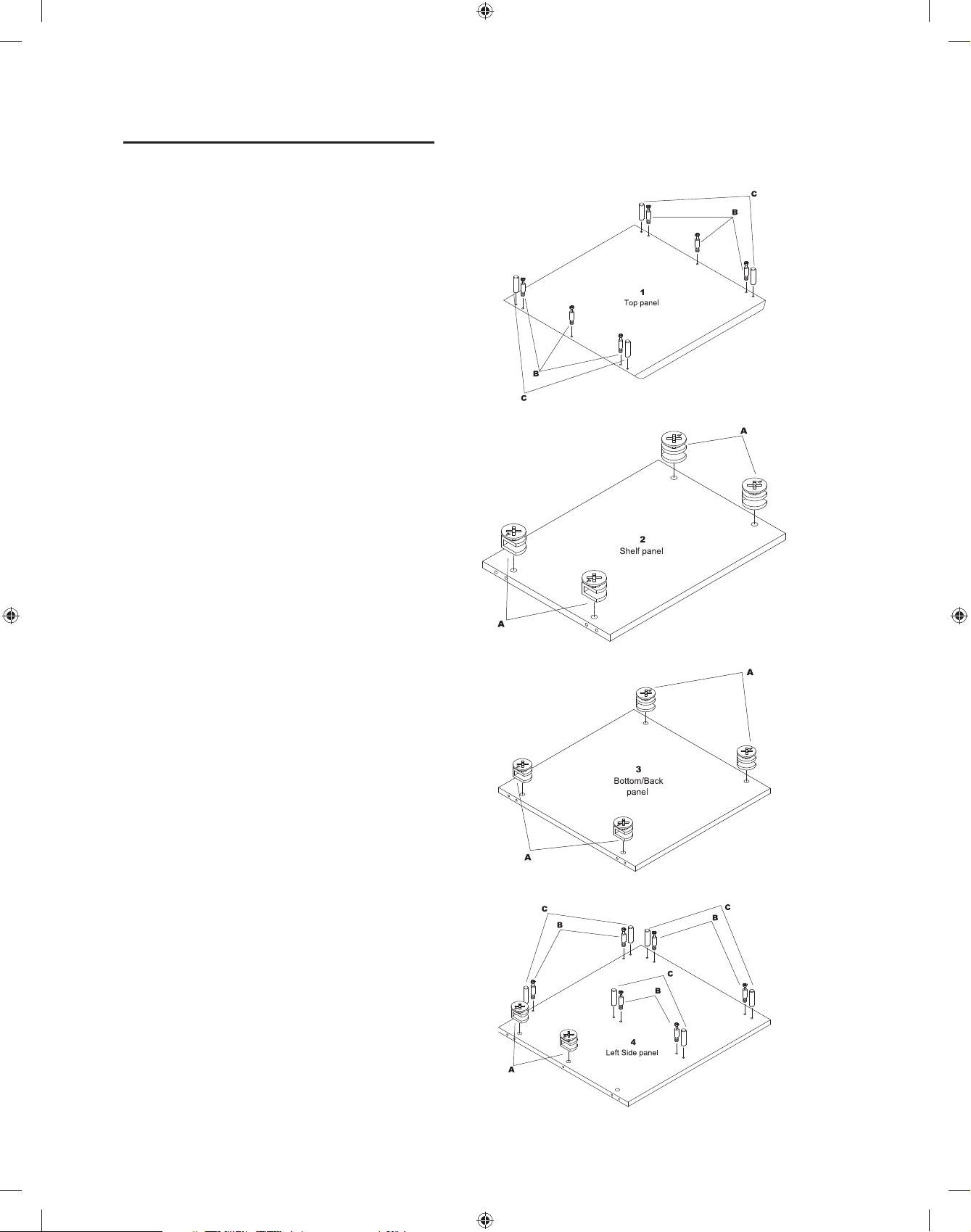

Step 1

Lay Top Panel (1) on its top with the

pre-drilled holes facing up. Insert the 4

Wooden Dowels (C) in the outside hole

positions as shown are drawing. Tap into

place with Rubber Mallet.

Insert the 6 Large Cam Screws (B) into

the specified positions shown utilizing a

Phillips Head Screwdriver.

Step 2

Lay the Shelf Panel (2) with holes facing

up. Insert the 4 Large Cam Locks in the

holes specified. When inserting the cam

lock, make sure that the arrow is facing

the cam screw entry.

Step 3

Lay the Bottom and Back Panels (3), 1

each, with the holes facing up. Insert 4

Large Cam Locks (A) into each of panels

in the holes specified.

Step 4

With the holes facing up, insert 2 Large

Cam Locks (A) into the Left Side Panel (4).

Next, insert 6 Large Cam Screws (B) in the

holes specified.

Next insert 6 Wooden Dowels (C) in

the holes specified. Tap into place with

Rubber Mallet.

ASSEMBLY INSTRUCTIONS

3446D_F V4.indd 43446D_F V4.indd 4 3/4/11 1:14 PM3/4/11 1:14 PM

Page 5 of 18

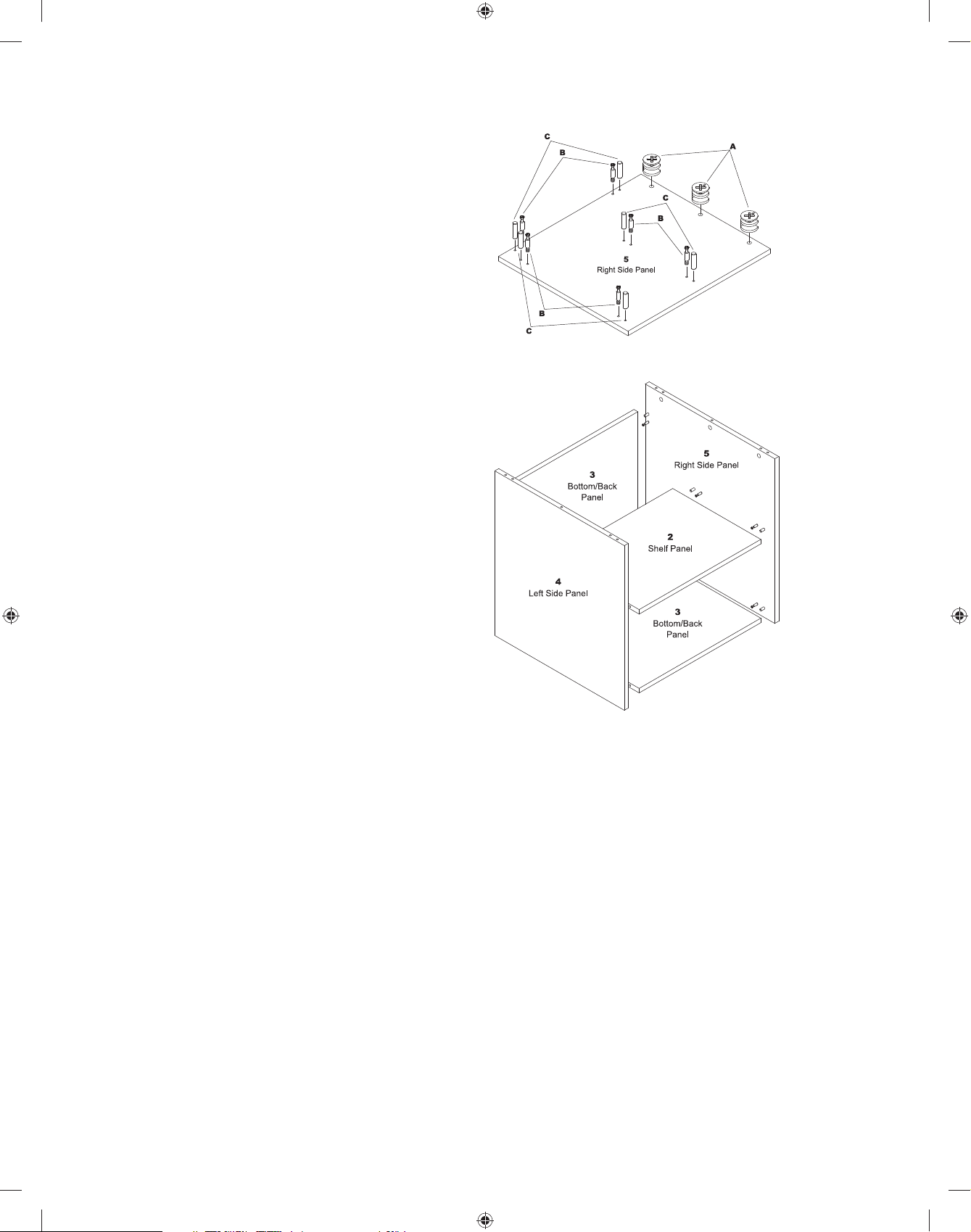

Step 5

Repeat Step 4 only utilizing the Right

Side Panel (5).

Step 6

With the Left Side Panel (4) laid with

the screws and posts facing up, insert the

Bottom Panel (3) in the position specified.

Using a Phillips Screw Driver rotate the 2

Cam Locks 1/2 turn clockwise until snug.

(DO NOT OVER TIGHTEN)

Next insert the Back Panel (3) in the

position specified. Using a Phillips Screw

Driver rotate the 2 Cam Locks 1/2 turn

clockwise until snug. (DO NOT OVER

TIGHTEN).

Next insert the Shelf Panel (2) in the

position specified. Using a Phillips Screw

Driver rotate the 2 Cam Locks 1/2 turn

clockwise until snug. (DO NOT OVER

TIGHTEN).

Next attach the Right Side Panel (5) in

the position specified. Make sure that all

Large Cam Screws and Wooden Dowels

fit firmly into position on the Bottom

Panel (3), Back Panel (3) and Shelf Panel

(2). Using a Phillips Screw Driver rotate

the 2 Cam Locks 1/2 turn clockwise until

snug. (DO NOT OVER TIGHTEN).

3446D_F V4.indd 53446D_F V4.indd 5 3/4/11 1:14 PM3/4/11 1:14 PM

Page 6 of 18

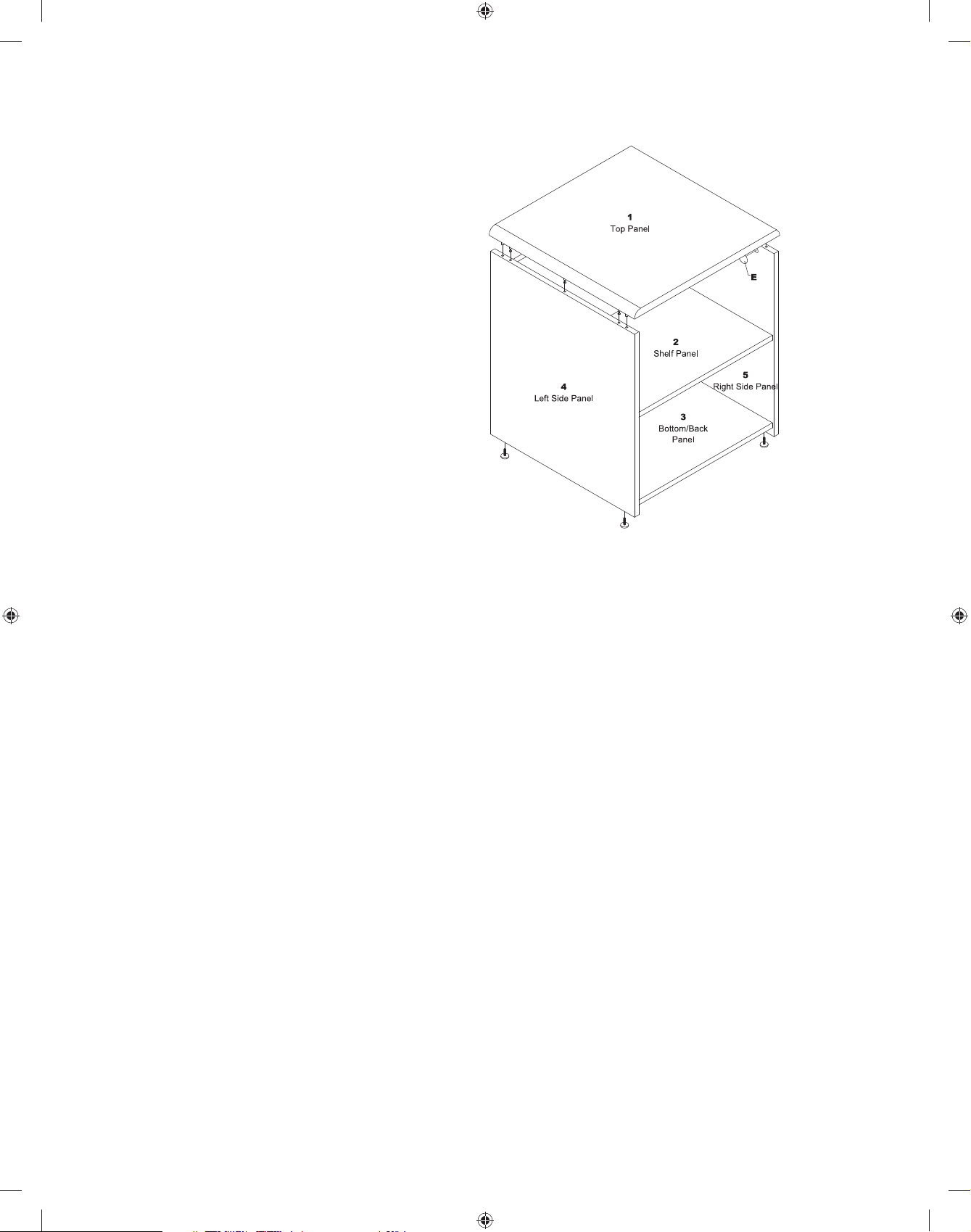

Step 7

Stand unit in upright position and attach

the Top Panel (1) into the holes specified.

Using a Phillips Screw Driver rotate the 2

Cam Locks 1/2 turn clockwise until snug.

(DO NOT OVER TIGHTEN).

Attach 6 Cam Lock Caps (E) to the Large

Cam Locks that secure the top to the unit.

Push or tap into place.

Turn unit over on the top and attach

the Adjustable Glides (D) in the holes

specified.

Turn unit back onto the Adjustable Glides

and you are now ready to utilize the

completed unit.

3446D_F V4.indd 63446D_F V4.indd 6 3/4/11 1:14 PM3/4/11 1:14 PM

Page 7 of 18

Instructions:

Veuillez nous faire parvenir un courriel à lorell@sprich.com ou un fax à : 404-472-9063, s’il vous manque

des pièces ou que vous éprouvez d’autres inquiétudes.

Veuillez fournir l’information suivante :

1. Nom complet

2. Adresse physique – ne donnez pas votre boîte postale car nos livreurs ne peuvent pas livrer à une boîte

postale

3. Numéro de téléphone

4. Numéro de modèle

5. Numéro de pièce

6. # de facture

7. Date de l’achat

Note: Notre politique est de livrer toutes les demandes de pièces par la voie terrestre; prière de fournir le nom de votre transporteur

ainsi que votre numéro de compte si vos exigences sont d’avoir ces pièces livrées pendant la nuit/le lendemain. Des panneaux de

remplacement ne sont pas disponibles. Si des dommages sont survenus durant le transport, prière de retourner l’unité entière à

l’endroit de l’achat pour un crédit et un remplacement. La facture originale peut être exigée.

Avant de commencer:

Ouvrez, identifiez et comptez toutes les pièces avant de procéder à l’assemblage. Disposez les pièces sur une

surface non-abrasive telle un tapis ou une couverture. Vous aurez besoin des outils identifiés ci-après :

1. Tournevis à tête Phillips

2. Tournevis à tête plate

3. Maillet de caoutchouc (recommandé)

3446D_F V4.indd 73446D_F V4.indd 7 3/4/11 1:14 PM3/4/11 1:14 PM

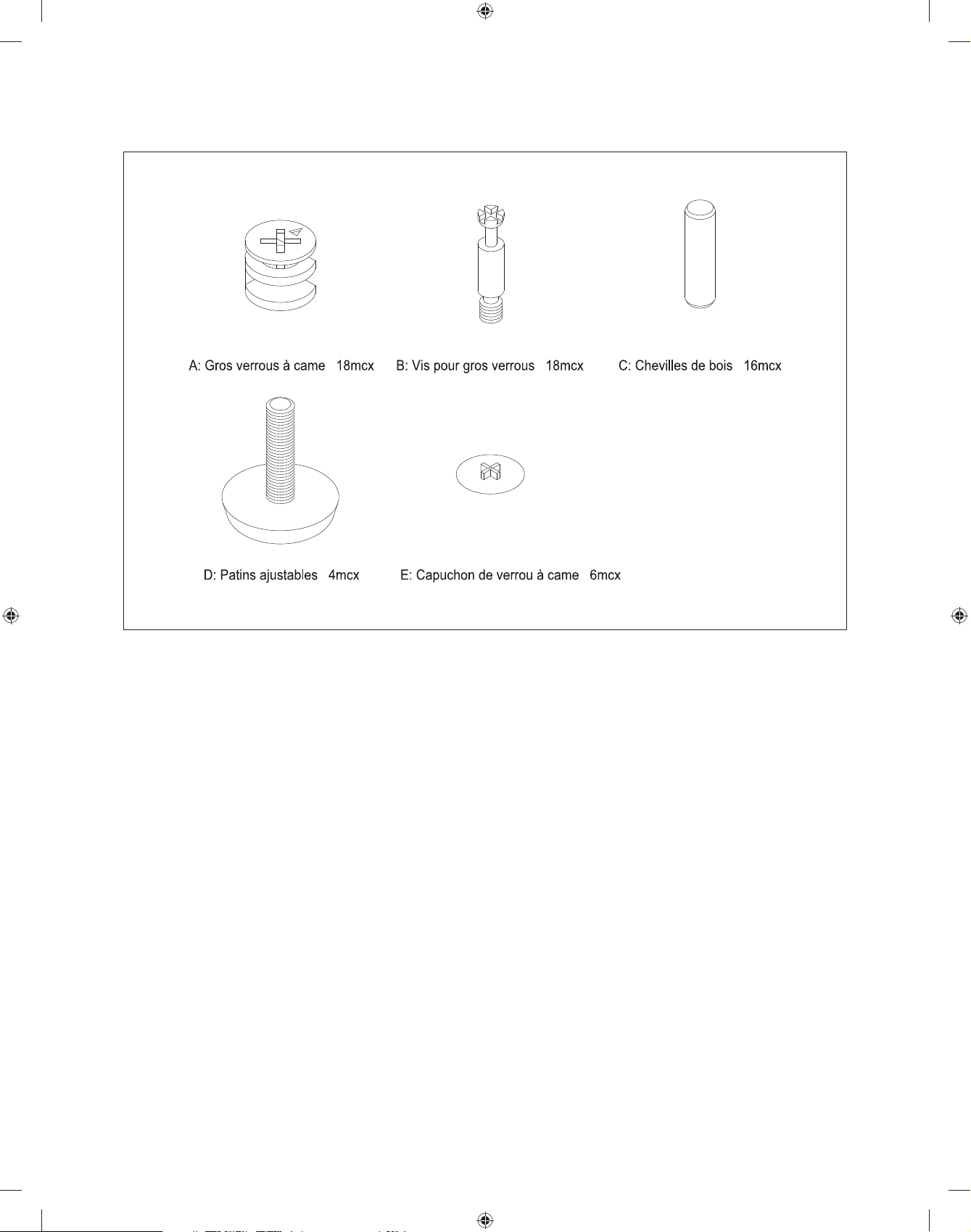

IDENTIFICATION DE LA QUINCAILLERIE

Page 8 of 18

3446D_F V4.indd 83446D_F V4.indd 8 3/4/11 1:14 PM3/4/11 1:14 PM

Page 9 of 18

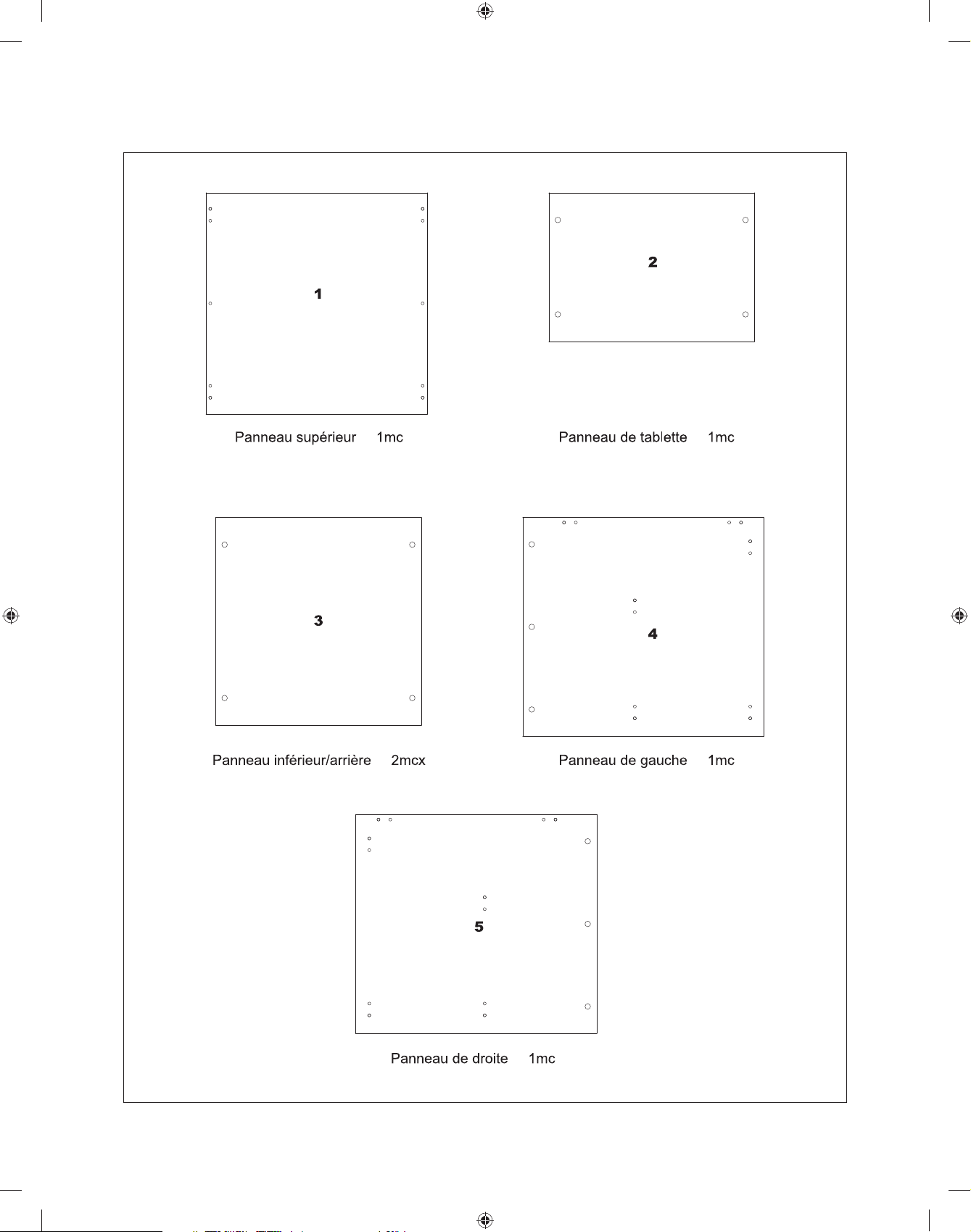

IDENTIFICATION DES PANNEAUX

3446D_F V4.indd 93446D_F V4.indd 9 3/4/11 1:14 PM3/4/11 1:14 PM
