Lorell LLR99843 Manual de usuario
IMPORTANT INSTRUCTIONS
PLEASE
READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS
When
using electrical appliances, basic precautions should always be
follo
wed to reduce the risk of fire, electric shock, and injury to persons,
including
the following:
1.
Read all instructions before using this heater.
2.
This heater is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. If provided, use handles when moving this heater. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes, and curtains at
least 3 feet (0.9m) from the front of the heater and keep them away from the
sides and rear.
3.
Extreme caution is necessary when any heater is used by or near children or
invalids and whenever the heater is left operating and unattended.
4.
Always unplug heater when not in use.
5. Do not operate any heater with a damaged cord or plug or after the heater
malfunctions, has been dropped or damaged in any manner. Discard heater or
return heater to authorized service facility for examination, electrical or
mechanical adjustment, or repair.
6.
Do not use outdoors.
7.
This heater is not intended for use in bathrooms, laundry areas and similar
indoor locations. Never locate heater where it may fall into bathtub or other
water container.
8. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Do not route cord under furniture or appliances. Arrange cord
away from traffic area and where it will not be tripped over.
9.
To disconnect heater, first turn controls to off, then remove plug from outlet.
10.
Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, or damage the heater.
11.
To prevent a possible fire, do not block air intakes or exhaust in any manner.
Do not use on soft surfaces, like a bed, where openings may become blocked.
12.
A heater has hot and arcing or sparking parts inside. Do not use it in the areas
where gasoline, paint, or flammable liquids are used or stored.
13.
Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or injury to
persons.
14. CAUTION: Always plug heaters directly into a wall outlet/receptacle. Never use
with an extension cord or relocatable power tap (outlet/power strip).
15.
This heater draws 12.5 amps during operation. To prevent overloading a circuit,
do not plug the heater into a circuit that already has other appliances working.
16.
It is normal for the plug to feel warm to the touch; however, a loose fit between
the AC outlet (receptacle) and plug may cause overheating and distortion of the
plug. Contact a qualified electrician to replace loose or worn outlet.
17.
The output of this heater may vary and its temperature may become intense
enough to burn exposed skin. Use of this heater is not recommended for
persons with reduced sensitivity to heat or an inability to react to avoid burns.
18
“SAVE THESE INSTRUCTIONS”
ASSEMBLY
This heater is pre-assembled in factory.
ELECTRICAL RATINGS
This product is rated 12.5 amps (1500W) at 120V, 60 Hz.
FEATURES
POWER
Setting Button
TIMER
Setting Button OSCILLATING
Setting Button
OPERATING INSTRUCTIONS
IMPORTANT
Your heater is equipped with a polarized alternating current line plug (a plug having one
blade wider than the other). This plug will fit into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug.
If the plug should still fail to fit, contact your electrician to replace your outlet. DO NOT
defeat the safety purpose of the polarized plug.
Place the heater on a firm level surface free from obstructions, and at least 3 ft. away from
any wall and any other objects such as furniture, curtains, plants or combustible material.
• Plug the heater into a grounded 120V outlet. The buzzer sounds, the Digital Screen
indicates current temperature.
• Press the Power button repeatedly to the desired setting. The cycle is as follows:
• High: Heater operates at a higher wattage, around 1500 Watts.
• Low: Heater operates at a lower wattage, around 900 Watts.
• Fan: The fan circulates room air only. The heating elements are “OFF”
Turning the Unit Off
Press the POWER button to cycle through the functions until none of them are lit (High, Low,
Fan).
After the unit is turned off, the fan will continue to run for 15 seconds to cool down, the
digital screen will display the process from 15 backward to 1. After the display turns off,
unplug the heater from the electrical outlet.
Set the desired temperature
• In order to set the thermostat the unit has to be on High or Low.
• When the unit is on, press the ▲or ▼button, the buzzer sounds and the setting
temperature flash on the digital screen.
• At this time you can press the ▲or ▼key to the temperature desired. (40F-95F).
• Wait for around 5 seconds until the digital screen displays the current temperature
again.
Note: If the current temperature is higher than the set temperature (95F is original set
temperature), the unit will stop heating.
Setting timer
• Press TIMER button repeatedly to set the auto-on time within 12 hours.
Setting the heater to turn off automatically
• In order to set the unit to turn off, the unit must be on (High or Low).
• Press the Timer button, the timer setting pilot will illuminate.
• You can see “0” flashes on the digital screen.
Press TIMER button repeatedly to set the auto-off time within 12 hours.
Setting the heater to turn on automatically
• In order to set the unit to turn on, the unit must be off.
• Press the Timer button, the timer setting pilot will illuminate, and you can see “0”
flashes on the digital screen.
•
The timer indicator will appear on the digital screen after the timer is set. You can check the
remaining time of timer by pressing the TIMER button.
When the timer indicator is lit, pressing the POWER button will cancel the timer setting.
Oscillation function
In order to set the heater to oscillate, the heater must be on (High, Low or Fan). Press the OSC
button once to activate the oscillating function and press the OSC button one more time to
disable oscillating function.
RESET INSTRUCTIONS
zThis heater is equipped with an internal High Limit Switch which causes the unit to stop
operating in the event the internal temperature exceeds normal operating temperatures.
IF THE UNIT SHUTS DOWN
1) TURN THE UNIT OFF
2) UNPLUG UNIT WAIT 10 MINUTES
3) PLUG IN AND TURN ON
IF YOUR HEATER FAILS TO OPERATE
zBe sure it is plugged in and that the electrical outlet is working.
zCheck for any obstruction. If you find an obstruction turn the heater OFF. Unplug the heater
and wait at least ten minutes for it to cool. Carefully remove the obstruction. Plug the heater
back in and restart it as described under OPERATION.
zIf you still notice the same defect above mentioned, remove the plug from the socket and
have the appliance serviced by authorized service personnel only.
zCheck that the setting temperature is not set lower than the current room temperature. Set
the desired temperature higher than the current temperature to restart the heater.
TROUBLESHOOTING
If your heater fails to operate, please follow these instructions:
• Ensure that your circuit breaker or fuse is working properly.
• Be sure the heater is plugged in and that the electrical outlet is working properly.
• Check for any obstruction. If you find any obstruction, turn the heater off. Unplug
the heater and wait a few minutes for it to cool down. Carefully remove the
obstruction. Plug the heater in and turn it on again by referring to the OPERATING
INSTRUCTIONS.
NOTE: IF YOU EXPERIENCE A PROBLEM WITH YOUR HEATER, PLEASE SEE THE
WARRANTY INFORMATION FOR INSTRUCTIONS. PLEASE DO NOT ATTEMPT TO
OPEN OR REPAIR THE HEATER YOURSELF. DOING SO MAY VOID THE WARRANTY
AND COULD CAUSE DAMAGE OR PERSONAL INJURY. IF THE PROBLEM STILL
PERSISTS, PLEASE CONTACT US BY REFERRING TO THE SERVICE & SUPPORT
INFORMATION ON THE FOLLOWING PAGE.
Cancelling the timer setting
CLEANING AND STORAGE
We recommend that the heater be cleaned at least once a month and before off-season
storage.
Turn the heater OFF and unplug it. Allow it to cool.
Use a dry cloth to clean the external surfaces of the heater.
DO NOT USE WATER, WAX, POLISH OR ANY CHEMICAL SOLUTION.
Clean your heater using the above-mentioned steps, then pack the heater in its original
container and store it in a cool dry place.
This heater does not disassemble.
The motor is factory lubricated for life, and will require no further lubrication.
SPECIFICATIONS
Model NO. LL99843
Voltage 120V
Frequency 60Hz
Output Power (W) 1500W
Electric Current (A) 12.5A
SERVICE & SUPPORT
DATE OF PURCHASE:
_____________________________________________________________
PLACE OF PURCHASE:
____________________________________________________________
SERIAL NUMBER:
________________________________________________________________
(STAPLE SALES RECEIPT HERE)
NOTE: PROOF OF PURCHASE IS REQUIRED FOR
ALL WARRANTY CLAIMS
In the event of a warranty claim or if service is required for this heater, please contact us at the
following:
Tel: 866 646 4332
For questions or comments, please write to:
Midea America Corporation
Customer Care Center
11800 NW100th Rd. Suite 4
Medley, FL 33178
For your records, staple your sales receipt to this manual and record the following:

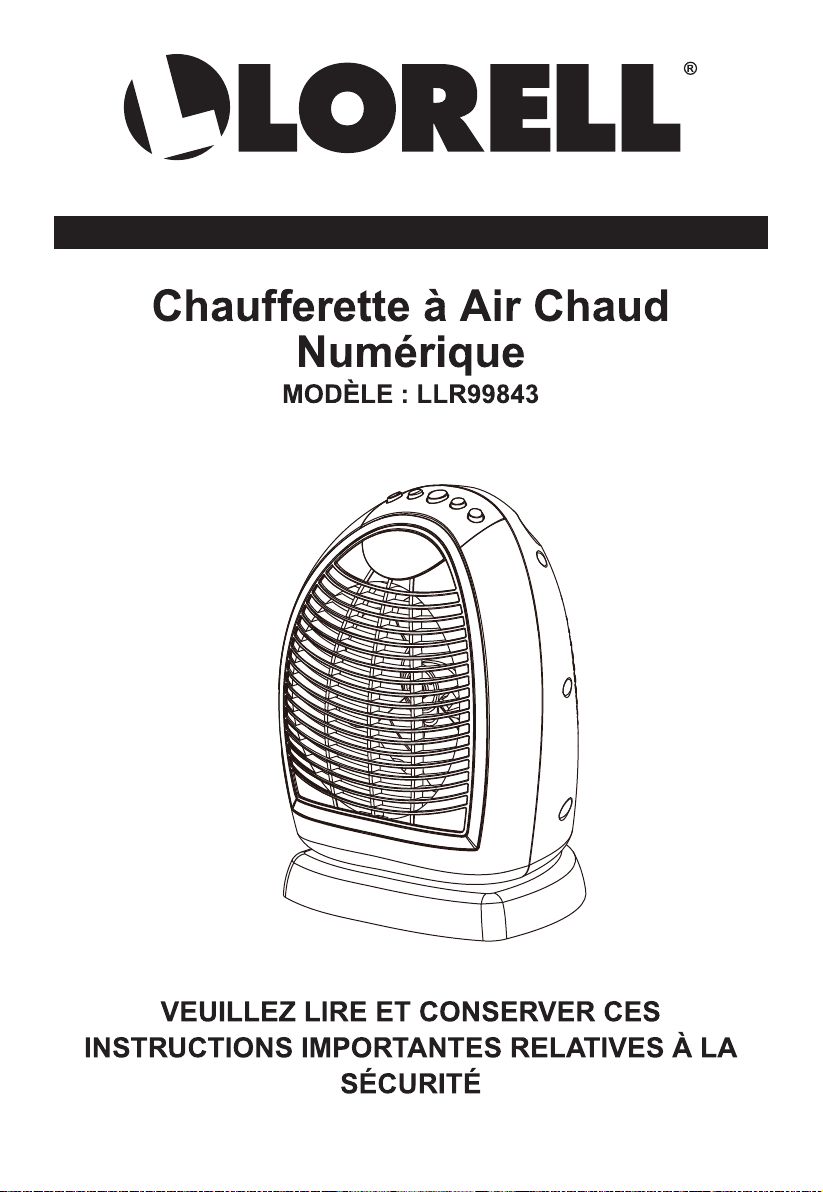

MANUEL DE L’UTILISATEUR
