USRID-16W

Single-use USB PDF Electronic

Shipping Indicator

LogTag North America

Product User Guide

Document Release Version: 1.0

Published 7. April 2022

USRID-16W User Guide 2

Contents

Introduction 6

Required Equipment 6

Features 6

Case 7

Buttons 7

Display 7

PDF 7

Software Requirements 8

Configuring the USRID-16W for logging 9

Standard Configuration Options 10

Configuring Multiple Alarms 11

Advanced Configuration Settings 13

File Settings 14

Finalizing the configuration 15

USRID-16W Start Options 16

Push button start 16

Date/Time start 16

Display Overview 17

Operating the Indicator 19

After the Indicator is configured 19

Starting the Indicator 20

During Recording 21

Stopping the USRID-16W 24

Plugging the USRID-16W into a USB port 27

Accessing the files 29

Interpreting the Data 30

Data Evaluation - Report 30

Data Evaluation - Data List 33

USRID-16W User Guide 3

Technical Specifications 35

Appendix 1 - Glossary 37

Appendix 2 - Accuracy and Resolution 41

Temperature Accuracy 41

Temperature Resolution 41

USRID-16W User Guide 4

Safety Information

The USRID-16W USB temperature indicator contains a non-

replaceable Lithium Battery. When the battery indicates “LOW”,

the indicator should be replaced, and the battery recycled or

disposed of according to your local regulations.

Do not expose the indicator to extreme temperatures as it may

lead to the destruction of the battery and may cause injuries.

Keep out of the reach of children.

Liability

LogTag North America’s standard warranty terms apply. A copy can be requested by

emailing [email protected]. In addition, LogTag North America shall not be

held liable

lif the device was used beyond LogTag North America’s stated limitations;

lfor any claims due to the improper storage and use of the device;

lfor any problems with refrigeration units;

lfor the bad quality of the monitored goods, if any;

lfor incorrect readings if the device was used with a low battery; or

lfor consequential loss.

Battery Life

The battery in the USRID-16W is designed to power the device for up to 3 months,

provided

lthe device was not stored for more than 24 months prior to activation;

lthe recording interval is not shorter than 5 minutes; and

lthe device is stored and operated according to LogTag North America’s

recommendations.

The USRID-16Wis unable to record readings when connected to USB. You cannot

use a USB power supply to power the device!

Disclaimer

The USRID-16W monitors temperature exposure and not the quality of the goods it

accompanies. Its purpose is to signal if product quality evaluation/testing is required.

USRID-16W User Guide 5

Typographical Conventions

Text in this font refers to buttons on the USRID-16W.

Text in this font refers to option settings, dialogue boxes or actions to be taken in

LogTag® Analyzer.

Text in this font describes features of the product.

This text describes certain aspects of the product, where incorrect use of a

feature may lead to inadvertent loss of data.

This text contains important information for the correct operation of

your USRID-16W.

This text contains information that explains some aspects of a feature in more

detail.

This text contains tips that help you get the best out of your USRID-16W

indicator

Introduction USRID-16W User Guide 6

Introduction

LogTag’s USRID-16W is a fully configurable, single-use USB PDF temperature indicator

with a built-in display, that can create temperature reports without the need to install

proprietary software or hardware at the destination. Minimum and maximum trip

temperatures as well as alarm trigger times can be reviewed directly on the display

without the need for a PC. The indicator can be configured using LogTag® Analyzer, and

is then placed with the goods to be monitored. At the destination the USRID-16W can be

plugged straight into a computer’s USB port and generates a PDF file, which can be

accessed using PDF software such as Acrobat Reader.

Required Equipment

Aside from the LogTag® USRID-16W Single-use USB PDF Electronic Shipping Indicator

you will need the following items:

la PC running Windows 7 SP1 or later and LogTag® Analyzer installed if you wish to

configure or download the indicator

la PC with PDF reader software installed for viewing the generated PDF files

Features

The USRID-16W Single-use USB PDF temperature indicator features the familiar LogTag

case layout with an additional USB plug at the bottom.

Features USRID-16W User Guide 7

Case

lMounting lug for secure fastening of indicator to fixtures

lUSB plug with protective cap - shields USB connector from moisture and dirt

lTemperature sensor located inside case

lDurable polycarbonate case, IP65

Buttons

lSTART/Mark button ( )

This is used to start the unit, place an inspection mark in the data, and clear active

alarms. It is also used to exit the statistics review.

lSTOP/Review button ( )

This is used to review recorded data at the end of the trip directly on the display

and to stop the unit.

Display

lShows the last recorded temperature and information about alerts

lAllows reviewing statistical data about the current trip



PDF

The USRID-16W will generate a detailed PDFreport when plugged into a USB port of a

PC. The PDF report shows a summary of the trip, presents the data in chart and list

format. A CSV file of the data list is also available.

The PDF can be shown in several different languages:

lEnglish

lFrench

lGerman

lRussian

lSpanish

The default ex-factory language is English. You can select which language to use during

configuration in the File Settings tab.

You can only change the language during configuration, but not when viewing

the PDF.

Features USRID-16W User Guide 8

Software Requirements

Software requirements vary depending on the type of file you want the USRID-16W to

generate when plugged into a USB port.

If you wish to configure USRID-16W products you will need to download the LogTag®

Analyzer software from the LogTag® web site at

https://logtagrecorders.com/software/lta3/download/. Follow the instructions to install

and start the software.

If you only plan to view a report, plug the USRID-16W into a computer’s USB port.

Depending on the settings made during configuration, a number of on-board files will

be generated1 and made available to you in a new drive:

la PDF file

you can open the file directly from the indicator‘s USB memory storage with

Acrobat Reader 4.0 or later, or any other compatible PDF reader software of your

choice2

la CSV file

this file can be imported into a spreadsheet program such as Microsoft Excel

lan LTD file

LTD files are LogTag® Analyzer's native, encrypted data files. You can open this file

in LogTag® Analyzer, where you can analyze data in detail, generate report files or

combine data from multiple recorders for comparison

You can also download data directly into LogTag® Analyzer without accessing the

indicator‘s on-board files.

1 Depending on the configuration, the USRID-16W may produce all, some or none of the files.

2 PDF files generated by any USB indicator can be opened directly in LogTag® Analyzer.

Configuring the USRID-16W

for logging USRID-16W User Guide 9

Configuring the USRID-16W for logging

Before a USRID-16W indicator can be deployed, it must be configured with the

parameters required for starting and recording temperature values.

Indicators can be purchased unconfigured, or pre-configured, ready to be started, using

one of a number of different profiles that are available.

You can check if your indicator is already configured or not by briefly pressing the

STOP/Review button.

The indicator is already configured to start

If your indicator is configured to start it will show either

if the indicator was pre-configured for a push-button start, or

if the indicator was pre-configured for a Date/Time start.

If your indicator shows one of these screens you may skip the configuration process,

although you can still re-configure the unit to change its recording parameters.

The indicator is unconfigured

An unconfigured USRID-16W indicator is delivered to you hibernated (i.e. in a state of

low power consumption), and pressing the STOP/Review button shows:

followed by and then



If your indicator is unconfigured you must set it up with the parameters required for

lstarting and recording temperature values;

lprinting the PDF; and

Configuring the USRID-16W

for logging USRID-16W User Guide 10

ltriggering alarms.

This is done using LogTag® Analyzer software, which can also be used for downloading

and analyzing data:

lStart the LogTag® Analyzer software.

lRemove the protective cap from the indicator's USB connector, plug it into a USB

socket on your computer and wait for the drivers to be installed3.

lFrom the menu click LogTag - Configure; LogTag® Analyzer will display the

configuration options for connected indicators.

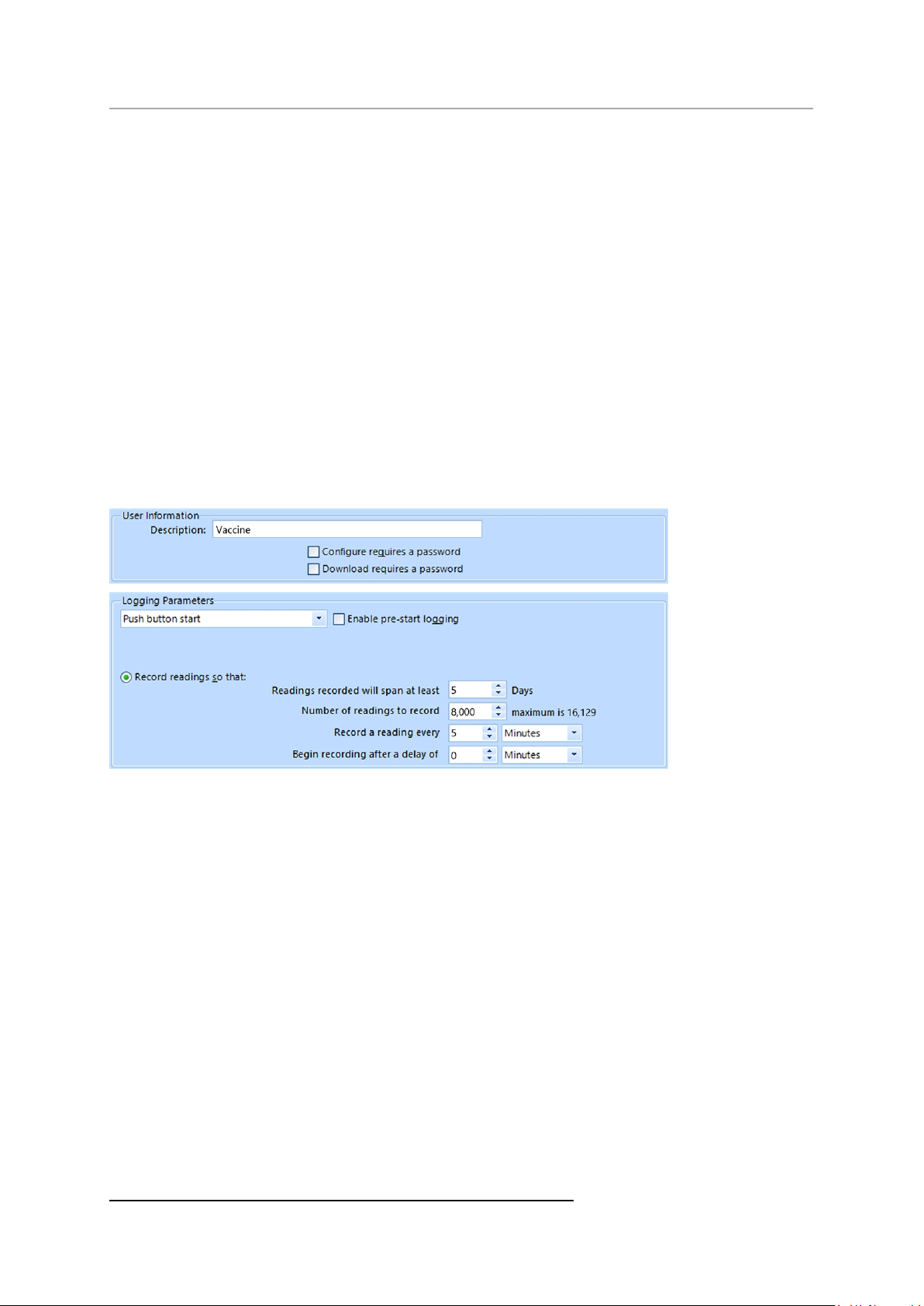

Standard Configuration Options

The standard configuration options include settings such as User ID, start method, pre-

start recording, logging interval and duration, start delay, and password.

For detailed information about each parameter please read the section about

Configuring a LogTag® for logging in LogTag® Analyzer’s User Guide or press F1 for

help.

3 You can configure more than one USRID-16W at the same time, however it is practical to limit the number of units to about 6,

using a powered USB hub.
