Logitech Keyboard Folio Mini Manual de usuario

Setup Guide

Keyboard Folio Mini

Logitech Keyboard Folio Mini

Contents

English. . . . . . . . . . . . . . . . . . 3

Français . . . . . . . . . . . . . . . . 12

Nederlands . . . . . . . . . . . . . . 21

Ελληνικά . . . . . . . . . . . . . . . . . 30

По-русски . . . . . . . . . . . . . . . . 39

Magyar . . . . . . . . . . . . . . . . 48

Česká verze . . . . . . . . . . . . . . 57

Po polsku . . . . . . . . . . . . . . . 66

Eesti . . . . . . . . . . . . . . . . . . 75

Latviski . . . . . . . . . . . . . . . . 84

Lietuvių . . . . . . . . . . . . . . . . 93

Hrvatski . . . . . . . . . . . . . . . .102

Srpski . . . . . . . . . . . . . . . . . 111

Slovenščina . . . . . . . . . . . . . 120

Slovenčina. . . . . . . . . . . . . . .129

Română . . . . . . . . . . . . . . . .138

Български . . . . . . . . . . . . . . . .147

Українська . . . . . . . . . . . . . . .156

Türkçe . . . . . . . . . . . . . . . . .165

174 . . . . . . . . . . . . . . . . . . 

www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Logitech Keyboard Folio Mini

English 3

Know your product

1. iPad mini holder

2. Protective folio

3. Function keys

4. Keyboard

5. Bluetooth light

6. Battery status light

7. Bluetooth

connect button

8. On/o switch

9. Micro-USB

charging port

10. Micro-USB

charging cable

11. Product documentation

Setup Guide

Keyboard Folio Mini

5 6

Logitech Keyboard Folio Mini

4 English

Setting up the keyboard folio mini

Getting started

1. Open the keyboard folio mini and insert

your iPad mini in the iPad mini holder:

2. Move the iPad mini holder into the

typing position (see “Using the keyboard

folio mini”).

Establishing connection with

your iPad mini

The keyboard folio mini links to

your iPad mini via a Bluetooth connection.

The ﬁrst time you use the keyboard folio

mini, you must pair it with your iPad mini:

1. Turn on the keyboard:

The Bluetooth light blinks to indicate

that the keyboard is discoverable,

ready for pairing with your iPad mini.

The ﬁrst time you turn on the keyboard

it remains discoverable for 15 minutes.

If the status light turns red, charge

the battery. For more information,

see “Charging the keyboard battery.”

Logitech Keyboard Folio Mini

English 5

2. On your iPad mini:

•Make sure your iPad mini’s Bluetooth

feature is on. Select Settings >

Bluetooth > On.

•Select “Logitech Keyboard Folio Mini”

from the Devices menu.

3. If your iPad mini requests a PIN,

enter it using the folio keyboard

(not on your iPad mini).

When successful connection is made,

the Bluetooth light turns on for

a short time, and then turns o.

Connecting to another iPad mini

1. Make sure the keyboard is turned on.

2. Make sure your iPad mini’s Bluetooth

feature is on. Select Settings >

Bluetooth > On.

3. Press the Bluetooth Connect button:

The keyboard is discoverable for

3 minutes.

4. Select “Logitech Keyboard Folio Mini”

on your iPad mini’s Devices menu.

5. If your iPad mini requests a PIN,

enter it using the folio keyboard

(not on your iPad mini).

When successful connection is made,

the Bluetooth light turns on for a short

time, and then turns o.

Logitech Keyboard Folio Mini

6 English

Storing your iPad mini for travel

1. Insert your iPad mini in the

iPad mini holder.

2. Close the keyboard folio mini:

Using the keyboard folio mini

Two viewing positions

The keyboard folio mini provides

two viewing positions—one for typing

and another for browsing.

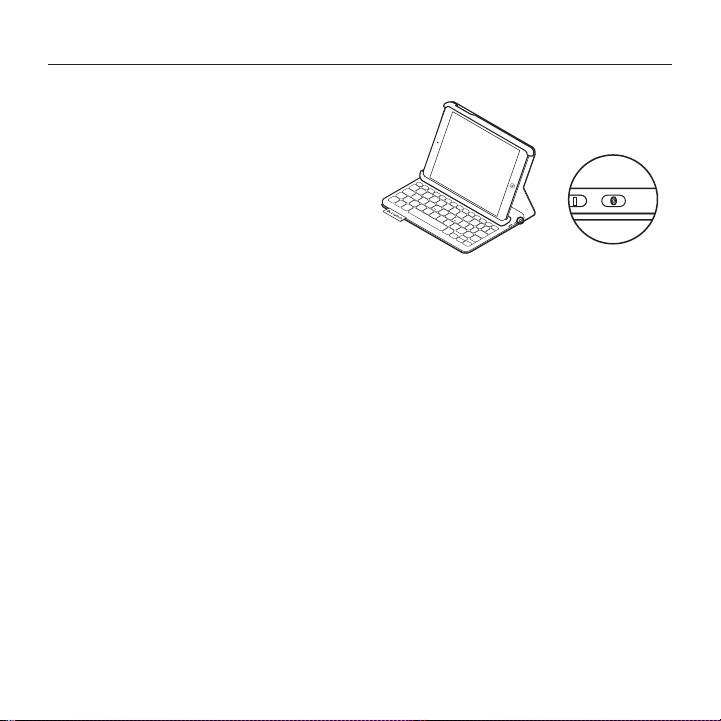

To type, move the iPad mini holder into the

typing position, aligning it with the built-in

magnet to secure it. Turn on the keyboard:

To browse, place the iPad mini holder

in the browsing position remembering

to switch o the keyboard to conserve

battery power:

If you don’t use the keyboard for a while

in the typing position, it enters sleep mode

automatically. Pressing any key wakes it.

Typing position

Browsing position

Logitech Keyboard Folio Mini

English 7

Light indicators

Status light

Blinking green The battery is charging.

Green The battery is charged (more than 20%).

Red Battery power is low (less than 20%). Recharge the battery.

Bluetooth light

Blinking blue Fast: The keyboard is in discovery mode, ready for pairing.

Slow: The keyboard is trying to reconnect to your iPad mini.

Solid blue Bluetooth pairing or reconnection is successful.

Logitech Keyboard Folio Mini

8 English

Function keys

Home = iPad mini Home screen

Fn + 1 = Lock screen

Locks or unlocks the

iPad mini screen

Fn + 2 = Siri

Use your voice to send messages,

make calls, schedule meetings,

and more

Fn + 3 = Search

Launches the iPad mini

search function

Fn + 4 = Switch language

Switches the keyboard language

Fn + 5 = Virtual keyboard

Shows/hides the virtual keyboard

Fn + 6 = Slide show

Fn + 7 = Previous track

Fn + 8 = Play/Pause

Fn + 9 = Next track

Fn + 0 = Mute

Fn + dash = Volume down

Fn + plus = Volume up

Fn + X = Cut

Fn + C = Copy

Fn + V = Paste

Fn + Left cursor = Select left

Selects text on the left,

word by word

Fn + Right cursor = Select right

Selects text on the right,

word by word

Fn + Spacebar = Switch

applications

Note: To select a function key, press and hold the Fn key, and then press the key indicated above.

Logitech Keyboard Folio Mini

English 9

Charging the keyboard battery

If the status light is red the keyboard folio

mini battery needs to be charged.

1. Plug one end of the micro-USB cable

into the charging port, and the other end

into a USB port on your computer.

The status light blinks green as

the battery charges.

Note: Please note the power input max

is 5V, 200mA, if you use an alternative

charging solution.

2. Charge the battery until the status light

turns solid green.

Battery information

•A fully charged battery provides about

three months of use when the keyboard

is used about two hours a day.

•Charge the battery if the status light

turns red brieﬂy after the keyboard

turns on.

•When not in use, turn o the keyboard

to conserve battery power.

•The keyboard enters sleep mode

automatically if not used for a while

in the typing position. Press any key

to wake it.

USB

Logitech Keyboard Folio Mini

10 English

Battery disposal at product

end of life

1. Pry o top cover of keyboard

with screwdriver.

2. Detach battery from circuit board

and remove battery.

3. Dispose of your product and its battery

according to local laws.

Visit Product Central

There’s more information and support

online for your product. Take a moment

to visit Product Central to learn more about

your new keyboard folio mini.

www.logitech.com/support/

keyboardfoliomini

Browse online articles for setup help,

usage tips, and information about

additional features.

Connect with other users in our Community

Forums to get advice, ask questions,

and share solutions.

Find a wide selection of content including:

•Tutorials

•Troubleshooting

•Support community

•Online documentation

•Warranty information

•Spare parts (when available)
