Logitech M535 Manual de usuario

Connect your Logitech Bluetooth device
The following steps show you how to prepare your Logitech device for Bluetooth pairing and
then how to pair it to computers or devices running:
Windows
Mac OS X
Chrome OS
Android
iOS
Prepare your Logitech device for Bluetooth pairing
Most Logitech products are equipped with a Connect button and will have a Bluetooth Status
LED. Usually the pairing sequence is started by holding down the Connect button until the LED
starts blinking rapidly. This indicates that the device is ready for pairing.
NOTE: If you're having trouble starting the pairing process, please refer to the user
documentation that came with your device, or visit the support page for your product at
support.logitech.com.

Windows
Select the version of Windows you’re running and then follow the steps to pair your device.
Windows 7
Windows 8
Windows 10
Windows 7
1. Open the Control Panel.
2. Select Hardware and Sound.
3. Select Devices and Printers.
4. Select Bluetooth Devices.
5. Select Add a device.
6. In the list of Bluetooth devices, select the Logitech device you want to connect to and
click Next.
7. Follow the onscreen instructions to finish pairing.
Windows 8
1. Go to Apps, then find and select Control Panel.
2. Select Devices and Printers.
3. Select Add a device.
4. In the list of Bluetooth devices, select the Logitech device you want to connect to and
select Next.
5. Follow the onscreen instructions to finish pairing.

Windows 10

1. Select the Windows icon, then select Settings.

2. Select Devices, then Bluetooth in the left pane.

3. In the list of Bluetooth devices, select the Logitech device you want to connect to and

select Pair.

4. Follow the onscreen instructions to finish pairing.

NOTE: It may take up to five minutes for Windows to download and enable all drivers,

depending on your computer's specifications and your internet speed. If you have not been able

to connect your device, repeat the pairing steps and wait a while before you test the connection.

Mac OS X

1. Open System Preferences and click Bluetooth.

2. Select the Logitech device you want to connect to from the Devices list and click Pair.

3. Follow the onscreen instructions to finish pairing.

Upon pairing, the LED light on your Logitech device stops blinking and glows steady for 5

seconds. The light then turns off to save energy.

Chrome OS

1. Click the status area in the lower right corner of your desktop.

2. Click Bluetooth enabled or Bluetooth disabled in the pop-up menu.

NOTE: If you had to click on Bluetooth disabled, that means the Bluetooth connection

on your Chrome device needs to first be enabled.

3. Select Manage devices... and click Add Bluetooth device.

4. Select the name of the Logitech device you want to connect to from the list of available

devices and click Connect.

5. Follow the onscreen instructions to finish pairing.

Upon pairing, the LED light on your Logitech device stops blinking and glows steady for 5

seconds. The light then turns off to save energy.

Android

1. Go to Settings and Networks and select Bluetooth.

2. Select name of the Logitech device you want to connect from the list of available devices

and click Pair.

3. Follow the onscreen instructions to finish pairing.

Upon pairing, the LED light on the Logitech device stops blinking and glows steady for 5

seconds. The light then turns off to save energy.

iOS

1. Open Settings and click Bluetooth.

2. Tap on the Logitech device you want to connect to from the Other Devices list.

3. The Logitech device will be listed under My Devices when paired successfully.

Upon pairing, the LED light on the Logitech device stops blinking and glows steady for 5

seconds. The light then turns off to save energy.

Bluetooth device doesn’t work after computer wakes from sleep mode

To begin troubleshooting, please select your operating system:

Windows

Mac

Windows

1. In the Device Manager, change the Bluetooth wireless adapter power settings:

oGo to Control Panel > System and Security > System > Device Manager

2. In Device Manager, expand Bluetooth Radios, right-click on the Bluetooth wireless

adapter (ex. Dell Wireless 370 adapter), and then click Properties.

3. In the Properties window, click the Power Management tab and uncheck Allow the

computer to turn off this device to save power.

4. Click OK.

5. Restart your computer to apply the change.

Macintosh

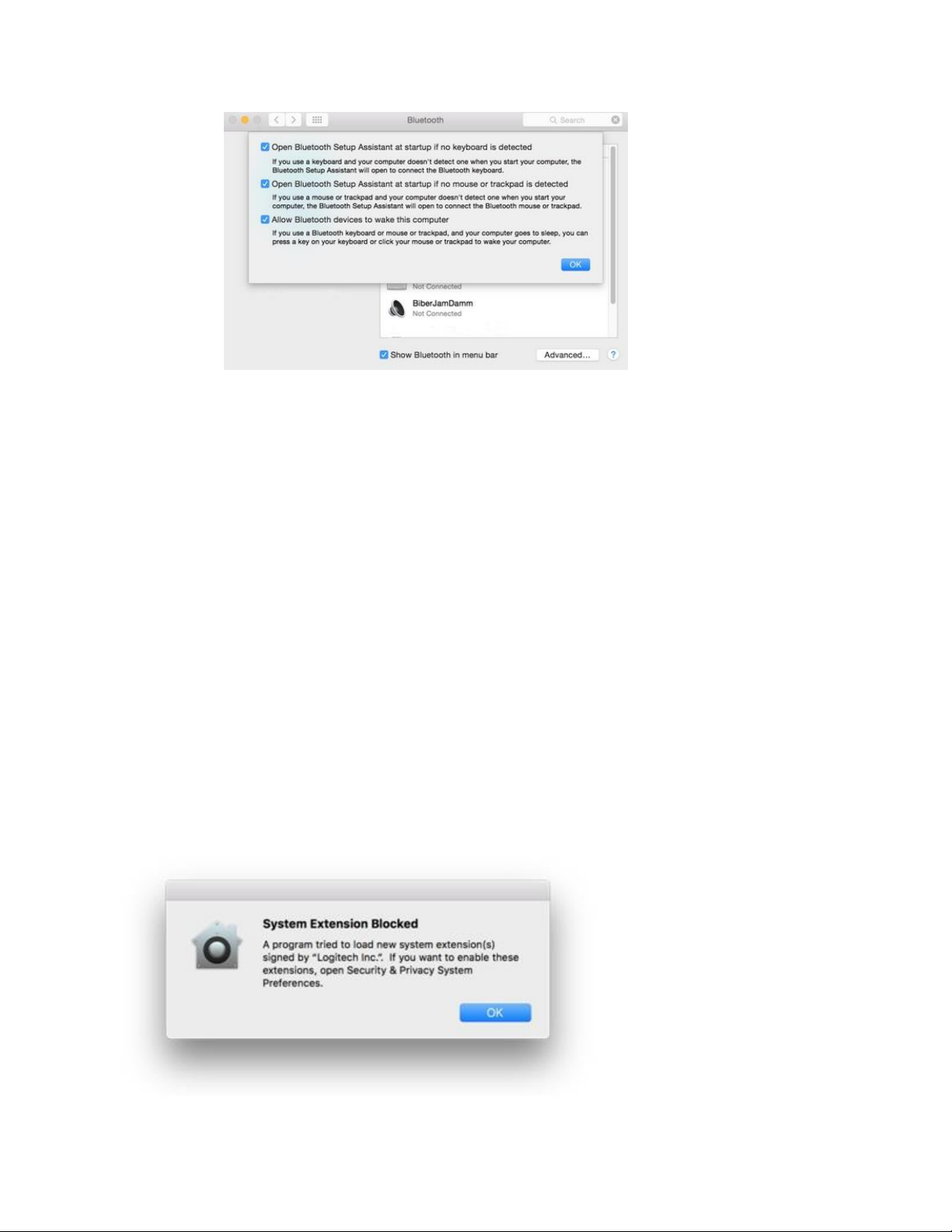

1. Navigate to the Bluetooth preference pane in System Preferences:

oGo to Apple Menu > System Preferences > Bluetooth

2. In the bottom-right corner of the Bluetooth preference window, click Advanced.

3. Make sure all three options are checked:

oOpen Bluetooth Setup Assistant at startup if no keyboard is detected

oOpen Bluetooth Setup Assistant at startup if no mouse or trackpad is detected

oAllow Bluetooth devices to wake this computer

NOTE: These options ensure that Bluetooth-enabled devices can wake your Mac,

and that the OS X Bluetooth Setup Assistant will launch if a Bluetooth

keyboard, mouse or trackpad is not detected as connected to your Mac.

4. Click OK.

Unifying devices not detected after macOS 10.12.1 Sierra update

We are aware that after updating from macOS 10.12 Sierra to macOS Sierra 10.12.1, Logitech

Options software does not detect supported Unifying devices on some systems.

To fix this issue, unplug the Unifying receiver and then plug it back into the USB port. If

Logitech Options still doesn’t detect the device, you may also need to reboot your system.

System Extension Blocked message when installing Logitech Options or LCC

Starting with macOS High Sierra (10.13), Apple has a new policy that requires user approval for

all KEXT (driver) loading. You may see a "System Extension Blocked" prompt (shown below)

during the installation of Logitech Options or Logitech Control Center (LCC).

If you see this message, you'll need to approve the loading of the KEXT manually so that your

device drivers can be loaded and you can continue to use its functionality with our software. To

allow KEXT loading, please open System Preferences and navigate to the Security & Privacy

section. On the General tab, you should see a message and an Allow button, as shown below. In

order to load the drivers, click Allow. You may need to reboot your system so the drivers are

properly loaded and the functionality of your mouse is restored.

NOTE: As set by the system, the Allow button is only available for 30 minutes. If it has been

longer than that since you installed LCC or Logitech Options, please restart your system to see

the Allow button under the Security & Privacy section of System Preferences.

NOTE: If you don’t allow KEXT loading, all devices supported by LCC will not be detected by

software. For Logitech Options, you need to perform this operation if you're using following

devices:

T651 Rechargeable trackpad

Solar Keyboard K760

K811 Bluetooth keyboard

T630/T631 Touch mouse

Bluetooth Mouse M557/M558

Customize M535 / M336 / M337 mouse gestures with Logitech Options

You can use Logitech Options to customize the action that is triggered when you perform one of

the four gestures available on your mouse.

See Use gestures on the M535 / M336 / M337 mouse for more information on how to use

gestures.

To associate an action with a gesture:

1. Start Logitech Options:

Start > All Programs > Logitech > Logitech Options

2. Select the Mouse tab in the top left corner left of the Logitech Options window.

3. Select one of the buttons on the mouse by clicking on the blue circle next to the button.

The options list for the button appears.

4. Select Gesture button.

NOTE: By default, the Windows management set of gestures is selected.

If you’d like to associate a different set of gestures with the button, select one of the following

options from the list:

Media Controls

Pan

Zoom/Rotate

Navigate windows

Arrange windows

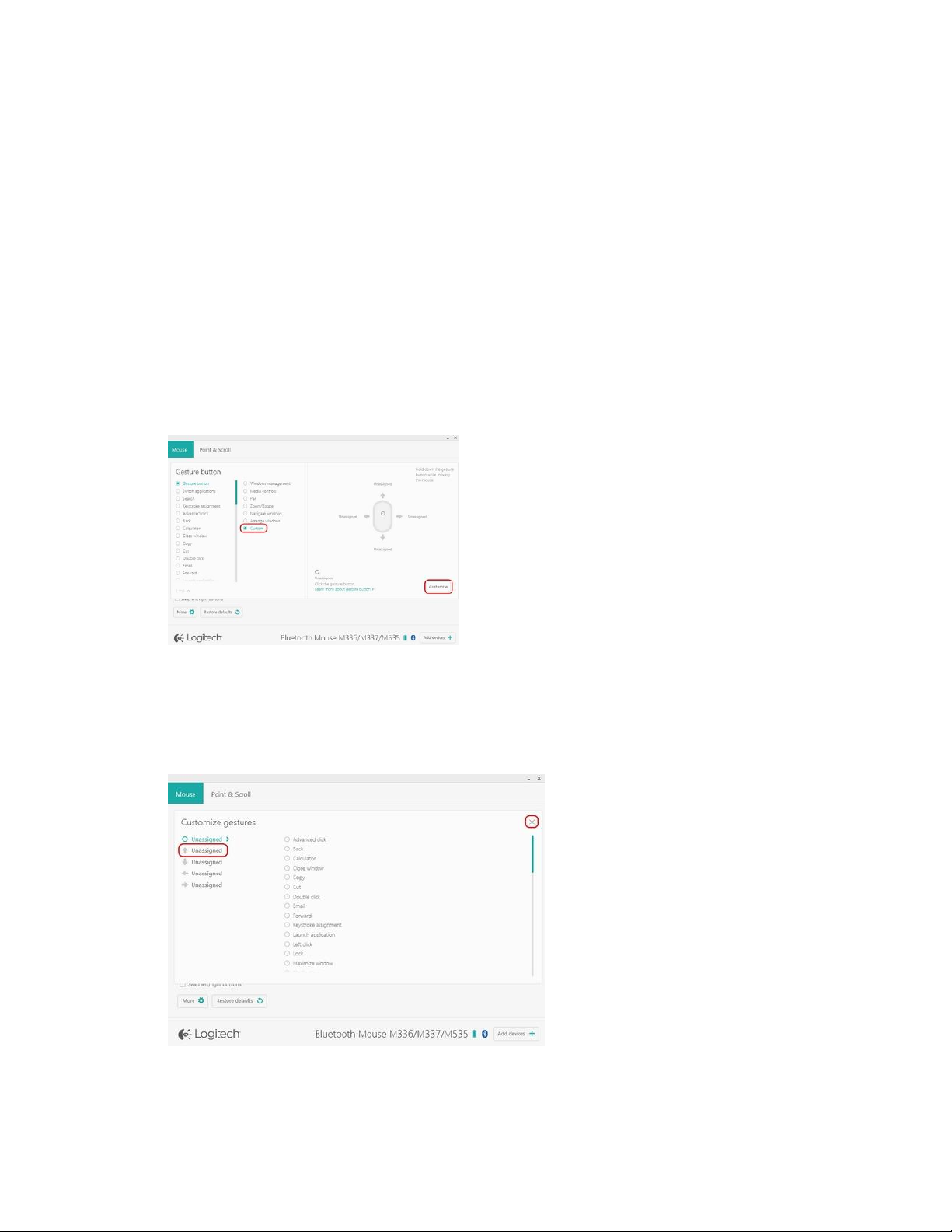

You can also assign individual actions to each of the four gestures. Here’s how:

1. In the Gesture button list, select Custom.

2. In the lower right pane, click on Customize.

3. Click on one of the four gesture arrows and then select an option from the list to assign to

it. As soon as you make your selection, it is saved.

4. Click on the “X” in the corner to close the window.

You can also associate an application or a keystroke to a gesture button.

To launch an application:

1. Select Launch Application from the list.

2. In the File name box, enter the full path to the application, or locate it using the Browse

button.

To assign a custom keystroke:

1. Select Keystroke assignment.

2. In the File name box, click in the white box and then enter a keystroke combination.

Customize M535 / M336 / M337 mouse buttons with Logitech Options

You can use Logitech Options software for Mac or Windows to customize the actions that are

performed when you use the buttons on your mouse.

NOTE: You can download Logitech Options from the Downloads page.

To customize the mouse buttons:

1. Start the Logitech Options Software:

Start > All Programs > Logitech > Logitech Options

2. Make sure you’ve selected the Mouse tab in the upper left corner of the window.

3. Click on the circle next to the button that you want to configure. A list of options appears.

4. Select the action you want the button to perform. Your selection is automatically saved.

You can also assign one of two different actions to a button:

Launch an application

Perform a keystroke combination

To launch an application:

Select Launch Application from the list.

Click on Browse to locate the executable application on your computer or enter the

computer path and filename for the application in the box.

To assign a custom keystroke:

1. Select Keystroke assignment from the list.

2. Click inside the box on the right and type the key combination. It will be automatically

saved.

Connect the M535 / M336 / M337 mouse to a Bluetooth device

Your mouse uses a Bluetooth 3.0 connection and can be connected to other Bluetooth-enabled

devices. Here’s how:

1. Turn on the mouse.

2. Press the Bluetooth connect button.

3. The status LED will start blinking rapidly to indicate your mouse is ready to be paired.

For more information on pairing your mouse, see Connect your Logitech Bluetooth device.

Navigation mode on the M535 / M336 / M337 mouse does not work on Chromebook

If Navigation mode on your mouse doesn’t work properly on your Chromebook device, check to

see which version of Chrome OS you’re using. Full functionality of Navigation mode for the

mouse is only supported on Chrome OS version 44 and later.
