Logitech G502 X PLUS Dimensiones

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 1

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse

INDEX

GETTING STARTED

●User guide

○Package contents

○Setup instructions

○Mouse features

○Onboard profiles by default

○Profile, DPI selection and DPI shift

○Battery life

SPECIFICATIONS

●Product information

●Product dimensions

●Mouse specifications

●Receiver specifications

FAQs

●Scrolling on my G502 X is erratic

●My mouse does not hold a charge

●My G502 X Plus and LIGHTSPEED mouse shows incorrect LED status while the system is

in sleep mode

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 2

●I have paired my G502 X Plus/LIGHTSPEED mouse to my keyboard but it reconnects to

the original receiver while charging

●My G502 X does not show up on G HUB automatically when connected via USB

●G HUB indicates my G502 X Plus or LIGHTSPEED is fully charged, but the LED is breathing

green

●How do I know when to charge my G502 X Plus and LIGHTSPEED?

●What does the G502 X wheel mode toggle button do?

●Why are the button clicks loud on my G502 X?

●Onboard Memory Mode DPI profiles on G502 X

●Change the DPI button position on G502 X

●G-Keys in Logitech G HUB

●Using the Device Pairing Tool in G HUB

●G HUB freezes while loading and logo animation loops

●G502 - Troubleshooting - Connection Issue: Intermittently working

●G502 - Troubleshooting - Connection Issue: Mouse not detected/recognized by

computer

●G502 - Troubleshooting - Connection Issue: Mouse auto disconnects from computer

●Logitech G HUB - FAQs

○About Logitech G Hub

WARRANTY

●Hardware warranty

●Logitech Support

DOWNLOAD

●G Hub

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 3

GETTING STARTED

USER GUIDE

Package contents

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 4

Setup instructions

1. Orientate the DPI Shift to fit your

preference or replace it by the

button cover to extend the grip

surface.

2. The receiver can be stored in

the mouse behind the door

when on the go.

3. The LIGHTSPEED Wireless USB-A

receiver is below the mouse in

the product tray.

Plug the USB-A cable connector

into your PC and the USB-C

connector into the receiver

extension adapter. Plug the

USB-A receiver into the adapter.

●The LIGHTSPEED Wireless receiver can also be plugged directly into your PC, but

using the cable and extension adapter will ensure a better connection and

easy access to the cable when you need to charge your mouse.

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 5

4. Slide the power button up to turn on your

mouse.

5. Download Logitech G HUB gaming software

to personalize your G502 X mouse. Fine tune

to suit your playstyle, personality and each of

your games, assign commands to any of the

13 controls, and more.

6. To charge your mouse,

disconnect the cable from the

adapter and plug it into the

USB-C port located at the front of

the mouse. Your mouse will

operate in data‑over-cable

mode whenever it is plugged in

directly to a PC. Charging from

0% to 100% takes around 2 hours

when plugged into a USB port.

Compatible with Powerplay

wireless charging system.

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 6

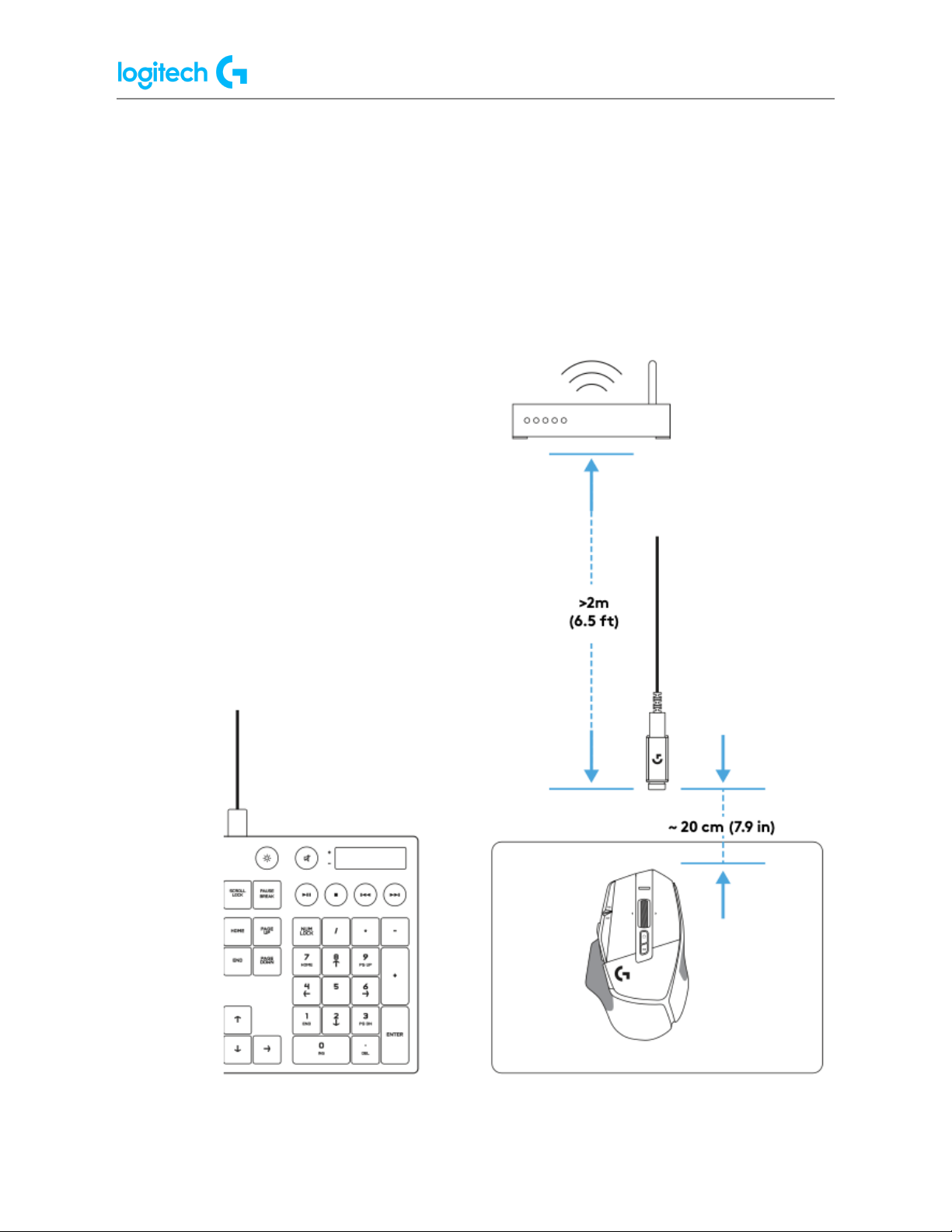

Tips:

●Keep the mouse and receiver at least 2 meters away from wireless routers or other 2.4

GHz wireless devices to minimize environmental noise.

●G502 X PLUS and G502 X LIGHTSPEED have a wireless range of up to 10 meters. To

ensure optimal performance in noisy wireless environments, and to keep the charging

cable easily accessible, it is recommended to keep the receiver within 20 cm of the

mouse.

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 7

Mouse features

1. Left click (Button G1)

2. Right click (Button G2)

3. DPI up (Button G8)

4. Scroll up

5. Scroll left (Wheel tilt left)

6. Scroll right (Wheel tilt

right)

7. Middle click (Button G3)

8. Scroll down

9. DPI Shift (Button G6)

10. Wheel mode toggle

button

(not programmable)

11. DPI down (Button G7)

12. Profile cycling (Button G9)

13. Forward (Button G5)

14. Back (Button G4)

15. On / Off switch

(bottom of mouse, not

programmable)

16. POWERPLAY™ Aperture

door

wireless receiver storage

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 8

Onboard profiles by default

Up to 5 Onboard memory profiles can be unlocked and customized in G HUB.

SETTINGS

MAIN PROFILE

GAMING

SECONDARY PROFILE

PRODUCTIVITY

SECONDARY PROFILE

G-SHIFTED

(G-SHIFT on DPI Shift

button)

Report Rate

1 ms

2 ms

No changes

DPI

800, 1200, 1600, 2400,

3200

800, 1200, 1600, 2400,

3200

No changes

DPI steps colors

1: White 2: Orange 3:

Teal 4: Yellow 5:

Magenta

1: White 2: Orange 3:

Teal 4: Yellow 5:

Magenta

Default DPI

1600

No changes

G6 button

DPI Shift to 800

G-Shift

(see right column)

No changes

PROGRAMMABLE CONTROLS

Left Main Button

Left click -

system/application

Left click -

system/application

No changes

Right Main Button

Right click -

system/application

Right click -

system/application

No changes

Middle Wheel Button

Wheel click/press -

system/application

Wheel click/press -

system/application

Ctrl-T - opening a

new tab in browser

G4 Button

Side button -

system/application

(commonly used

backwards)

Side button -

system/application

(commonly used

backwards)

No changes

G5 Button

Side button -

system/application

(commonly used

backwards)

Side button -

system/application

(commonly used

backwards)

No changes

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 9

PROGRAMMABLE BUTTONS

G7 Button

DPI Down

Ctrl-X

G8 Button

DPI Up

Ctrl-Z

G9 Button

Profile cycle

Ctrl-0

Scroll right (wheel tilt

right)

Tilt Right -

system/application

Tilt Right -

system/application

Ctrl-Tab

Scroll left (wheel tilt

left)

Tilt Left -

system/application

Tilt Left -

system/application

Ctrl-Shift-Tab

Wheel Scroll Up

Scroll Up -

system/application

Scroll Up -

system/application

Volume Up

Wheel Scroll Down

Scroll Down -

system/application

Scroll Down -

system/application

Volume Down

Profile, DPI selection and DPI shift

When the DPI Shift button is pressed: the mouse displays the color associated with the DPI

shift speed, when released the mouse displays the DPI setting color that was used prior to this

action.

DPI and profile selection are communicated using lighting on the top and the rear of the

mouse. DPI change is expressed by different steady colors, while profile change is displayed

by different blinking colors.

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 10

Battery life

G502 X PLUS and G502 X LIGHTSPEED have a rechargeable 500 mAh LiPol battery which

provides up to 140 h of continuous motion for G502 X and up to 120 h for G502 X PLUS.1

Charging Status:

When the charging cable is plugged in the device:

●Steady green = charge completed (100%) when device is ON or OFF

●Breathing green = charging (0 - 99%)

Battery level:

When turning the device ON:

●Steady green = good (31% - 100%)

●Steady red = low (16 – 30%)

●Slow blink red = critical (< 16%)

Tips:

●Charge level, power draw, and estimated remaining battery life can be checked in

Logitech G HUB.

1Battery life and capacity may vary with age and use.

Rechargeable batteries have a limited number of charge cycles.
