1 / 25

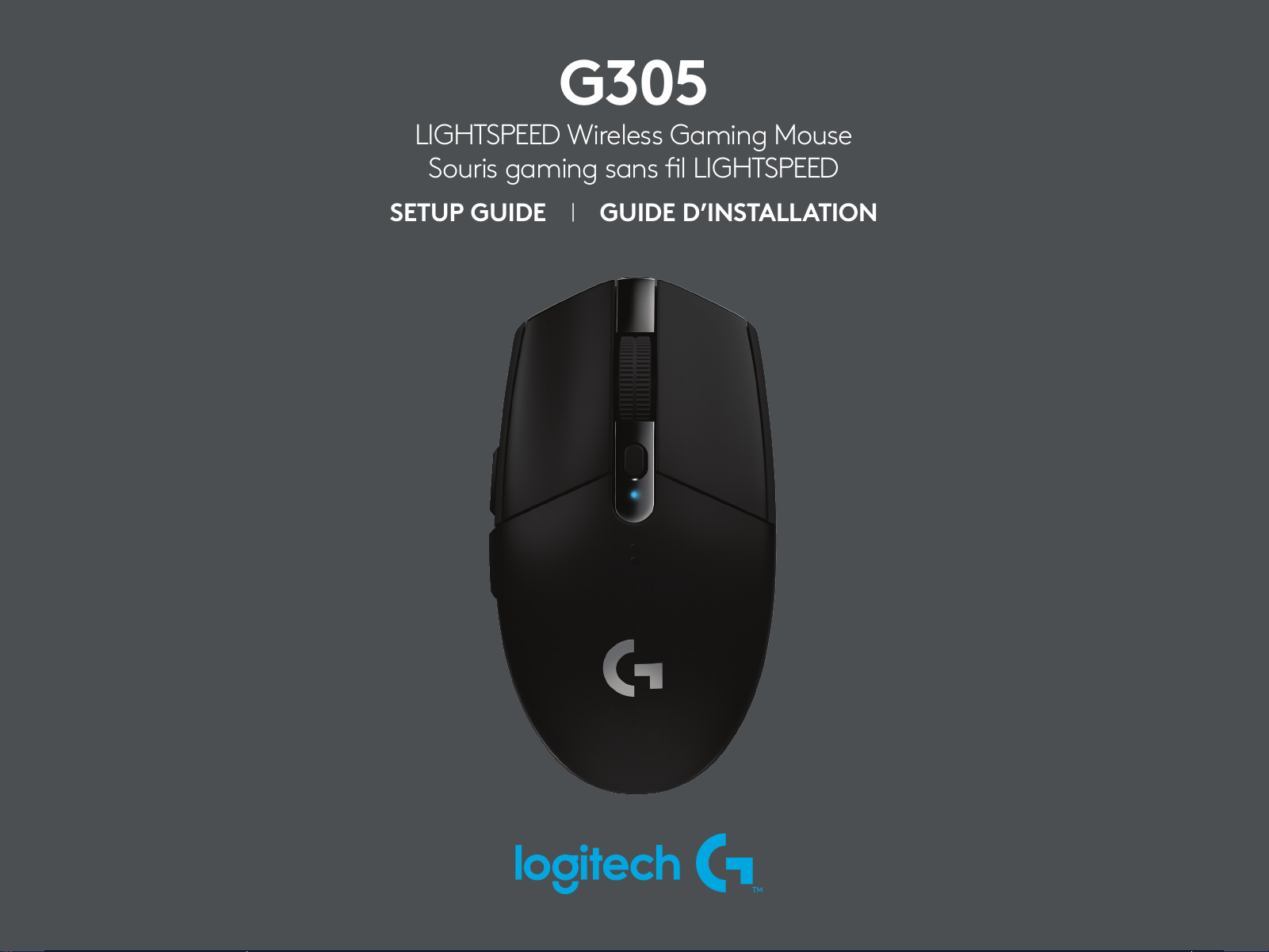

G305

LIGHTSPEED Wireless Gaming Mouse

Souris gaming sans l LIGHTSPEED

SETUP GUIDE |GUIDE D’INSTALLATION

2 / 25

Important Safety, Compliance and

Warranty Information

Informations importantes

concernant la sécurité,

la mise en conformité et la garantie

ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . 3

FRANÇAIS . . . . . . . . . . . . . . . . . . . . . . . 8

ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . 13

PORTUGUÊS . . . . . . . . . . . . . . . . . . . . . . 18

3 / 25

3ENGLISH

SETUP INSTRUCTIONS

1 Remove the battery cover by pressing the top

ofthecover andpulling it downwards

2 Remove the receiver

3 Insert the battery

4 Close the battery cover

5 Make sure the mouse is turned on via the switch

onthe bottom of the mouse

4 / 25

4ENGLISH

6 Recommended: Insert receiver into the receiver

extensioncable. Insert extension cable into your USB port.

Alternatively,insert receiver directly into your USB port

7 Download the G HUB software

logitechG.com/support

logitechG.com/GHUB

5 / 25

5ENGLISH

Tips:

–To make your mouse lighter, a lithium AA battery

(notincluded) can be used.

–Keep the mouse and receiver 2 m+ away from wireless

routersor other 2.4GHz wireless devices to minimize

environmental noise.

–G304 /G305 has a wireless range of up to 10 meters.

Toensureoptimal performance in noisy wireless environments,

itisrecommended to keep the receiver within 20 cm

ofthemouse.

2m+

–20 cm

6 / 25

6ENGLISH

6 FULLY PROGRAMMABLE BUTTONS

1 Left (Button 1)

2 Right (Button 2)

3 Wheel click (Button 3)

4 Forward (Button 4)

5 Back (Button 5)

6 DPI cycle (Button 6)

7 On/O switch (bottom of mouse, not programmable)

7 / 25

7ENGLISH

LED INDICATOR

Battery life

Flashing red: battery <15%

DPI

Yellow: step 1 - 400 DPI

White: step 2 - 800 DPI (default)

Orange: step 3 - 1600 DPI

Magenta: step 4 - 3200 DPI

Blue: step 5 - 6400 DPI (Step 5 can be activated viasoftwareonly)

Mode

Cyan: performance mode (default)

Green: endurance mode (can be activated viasoftwareonly).

Tips:

–Activating endurance mode will degrade tracking performance

but improve battery life.

G HUB SOFTWARE

You can customize the onboard prole settings using theGHUB.

These settings include button programming, report rate,

performance/endurance modes andtracking behavior.

G304 /G305 allows up to 5 DPI settings.

By default, G304 / G305 has the following settings:

–DPI: 400/800/1600/3200

–Report rate: 1ms

–Performance mode

of Logitech Europe S.A. and/or its aliates in the U.S. and other countries. All other trademarks are the property

of their respective owners. Logitechassumesno responsibility for any errors that may appear in this manual.

Information contained herein is subject tochange without notice.

8 / 25

8FRANÇAIS

INSTRUCTIONS D'INSTALLATION

1 Retirer le couvercle du compartiment à piles en

appuyant sur le dessus du couvercle et en le tirant

vers le bas

2 Retirer le récepteur

3 Insérer la batterie

4 Refermer le compartiment à piles

5 Vérier que la souris soit sous tension à l'aide

ducommutateur situé sous la souris

9 / 25

9FRANÇAIS

6 Recommandé: Insérez le récepteur dans la rallonge

durécepteur. Connectez la rallonge à votre port USB.

Sinon,connecter le récepteur directement à votre port USB

7 Télécharger le logiciel G HUB

logitechG.com/support

logitechG.com/GHUB
