Logitech CC5000E Manual de usuario

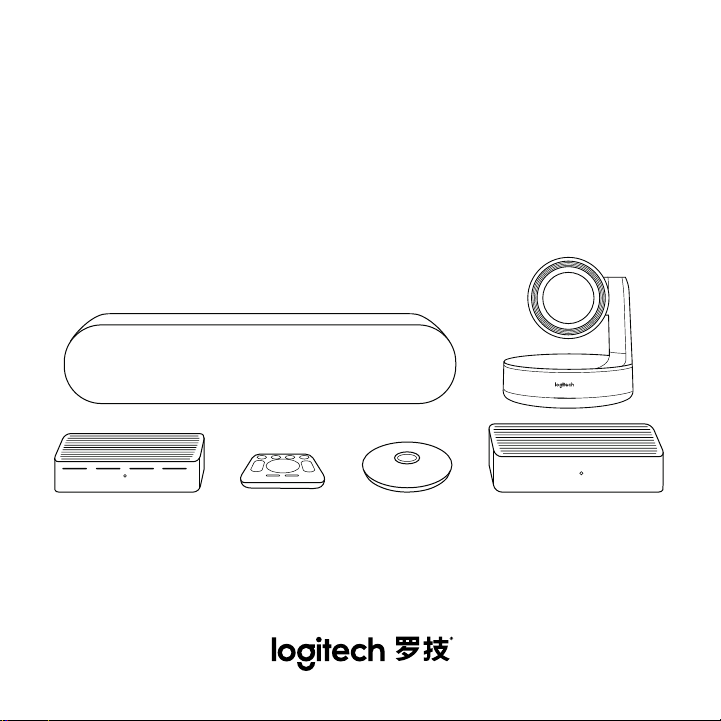

CC5000E

Setup Guide | 设置指南

English . . . . . . . . . . . . . 3

简体中文 . . . . . . . . . . . . 10

English 3

1. Power

2. Mic Pod

3. Future Expansion

4. Connection To Display Hub

5. HDMI 1 In

6. HDMI 2 In

7. Meeting Room Computer USB

8. Future Expansion

9. Security Slot

10. Power LED

WHAT’S WHAT

TABLE HUB

12345

4English

1. Speaker

2. Power

3. Connection To Table Hub

4. HDMI 1 Out

5. HDMI 2 Out

6. Meeting Room Computer USB

7. Camera

8. Security Slot

9. Remote Control Pairing

10. Power LED

DISPLAY HUB

1234

567

English 5

CAMERA

1. Remote control pairing button

2. USB

3. Status LED

4. Security slot

5. MIPI

6. Tripod Thread

7. Expansion Slot

6English

REMOTE

2 3

1 4

1. Bluetooth pairing

2. Call answer

3. Call end

4. Microphone mute

5. Zoom in/out

6. Volume up/down

7. Home

8. Camera pan/tilt

9. Camera presets

After completing the installation, the system can be checked by running

the diagnostic application available at Logitech.com/support/Rally.

English 7

MAKE RALLY THEDEFAULT

DEVICE

Ensure that R A LLY is chosen as

the camera, speaker and microphone

in your video conferencing applications.

Please consult the application

documentation for further instructions

on how to do this.

STARTING A VIDEO CALL

After installing R ALLY and ensuring

it is the default device in your video

conferencing application, simply start

the application in the normal manner

and enjoy the benets of improved audio

and video.

PAIRING RALLY

TO A BLUETOOTH DEVICE

You can use R A LLY for audio calls when

paired to a Bluetooth device. To pair your

Bluetooth device to R ALLY, follow these

simple step:

1. Press and hold the Bluetooth button

on the remote control until you see

a ashing blue light on the camera

and microphones.

2. Place your mobile device

in Bluetooth pairing mode and

select “Logitech Rally”.

3. You are now ready to use R A LLY for

audio calls.

8English

PAIRING A REMOTE CONTROL

T O R A L LY

RALLY and the remote control are

paired at the factory. You can pair up

to 5 remote controls to RALLY to make

it easier to control the system in larger

rooms. Or, if you need to pair a remote to

the camera, such as when replacing a lost

remote, do the following:

1. Press and hold the button on

the camera until the LED ashes.

2. Press and hold the button on

the Display Hub until the LED ashes.

3. Press and hold the Bluetooth button

on the remote control until the LEDs

on both the camera and Display Hub

stop ashing.

4. If the pairing fails, repeat from step 1.

CAMERA SETTINGS

APPLICATION

Use this program to control the camera

pan, tilt, zoom, focus, and image quality

(like brightness and contrast) from

your computer. The software can be

downloaded from www.logitech.com/

support/Rally.

English 9

ENHANCING RALLY

There are several optional accessories that

ease installation and allow RALLY to be

used in larger rooms:

1. Rally Mounting Kit: Mounting brackets

for the Table Hub, Display Hub,

Camera and Speakers.

2. Extra Mic Pods: R ALLY can support up

to 7 Mic Pods allowing great exibility

in room size and conguration.

3. Mic Pod Hub: Used to branch

microphone routing and run most of

the Mic Pod cabling is below the table.

The Mic Pod Hub has 3 jacks that can

be connected to a combination of Mic

Pods or other Mic Pod Hubs.

4. TV mount: Works with one of either

the Camera or Speaker mounting

brackets. The TV Mount can be used

in pairs to mount the Camera and

Speaker above and below the TV.

FOR MORE INFORMATION

You can nd additional information

on RALLY including:

-FAQs

-Software to enable functions

in various application

-How to order replacement parts

and more at

www.logitech.com/support/Rally

10 简体中文

1. 电源

2. 麦克风

3. 未来扩展

4. 连接到显示器集线器

5. HDMI 1 输入

6. HDMI 2 输入

7. 会议室电脑 USB

8. 未来扩展

9. 防盗锁插孔

10. LED 电量指示灯

硬件说明

桌面集线器

12345

Otros manuales de Sistema de conferencias de Logitech

Logitech

Logitech RALLY CAMERA Manual de usuario

Logitech

Logitech CC3000e Manual de usuario

Logitech

Logitech RALLY CAMERA Manual de usuario

Logitech

Logitech RALLY BAR MINI + TAP IP Manual de usuario

Logitech

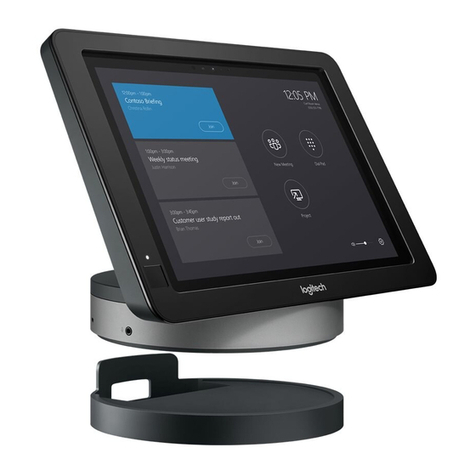

Logitech SMARTDOCK FLEX Manual de usuario

Logitech

Logitech CC3000e Manual de usuario

Logitech

Logitech MeetUp Manual de usuario

Logitech

Logitech SMARTDOCK Manual de usuario

Logitech

Logitech ROOMMATE Manual de usuario

Logitech

Logitech Conference Connect Manual de usuario

Logitech

Logitech LifeSize Unity 500 Guía de referencia

Logitech

Logitech GROUP Manual de usuario

Logitech

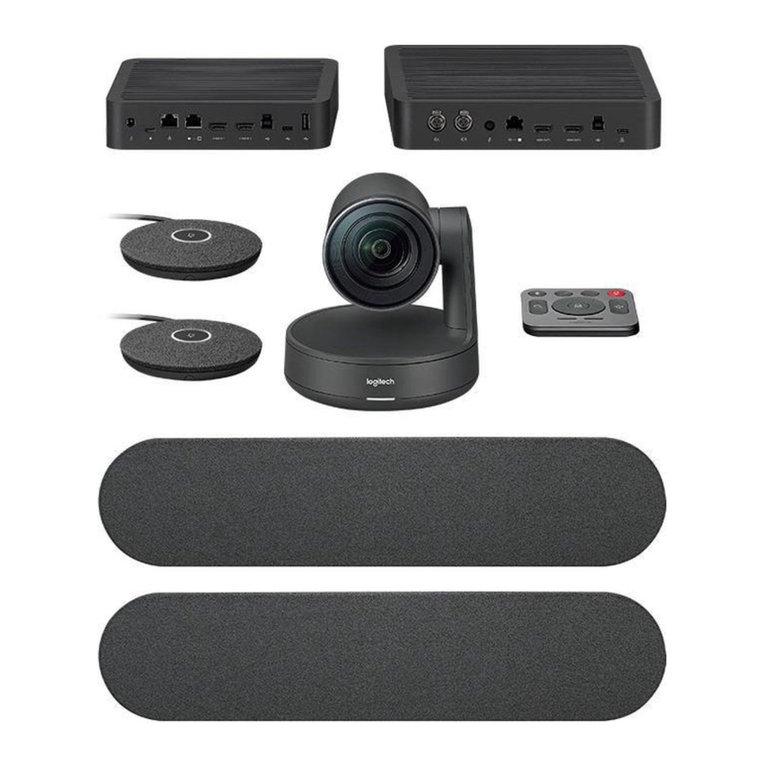

Logitech RALLY PLUS Manual de usuario
