Logic LGCM-65-5 Manual de usuario

INSTALLATION MANUAL

CEILING MOUNT

www.logicav.in

MODEL SERIES VESA DISPLAY SIZE MAX LOAD

LGCM-65-5 Ceiling Mount 200x200 to 42” to 65” 110 lbs (50 kg)

600x400

www.logicav.in

Checklist

IMPORTANT : Ensure that you have received all parts according to the

checklist prior to installation.

M-D:

Allen key x 1

M-B: M8 X 25 x 4 M-B: Metal

and plastic

washer x 4

M-C: M6 X 20 X 4 M-C: Metal

and plastic

washer x 4

W-A: Anchor bolt x 4Interface bracket x 2Horizontal bracket x 1Connecting

rod x 1

M-A: M8 x 2M-A: M8 X 65 x 2 M-A: Metal

washer x 4

M-A: Plastic

washer x 4

www.logicav.in

2. Installation

Choose below method for fixing projector mount.

ATTENTION: Drilling the ceiling for the projector mount should be

executed by a craftsperson only Exercise care to prevent

any scar or damage to the wall.

CAUTION : Wear safety glasses while operating power equipment.

Failure to comply may result in eye injury

Dimension in mm

1. Product Dimension

-769.06

1721

35.00

600

680

400

435

CEILING

1. Place the ceiling mount on the ceiling mark on it and than drill,

place the ceiling mount and insert the anchor bolt (Refer W-A in the checklist-kit)

CEILING

2. Place the id rod and then

insert the bolt nut. (Refer

M-A in the check list)

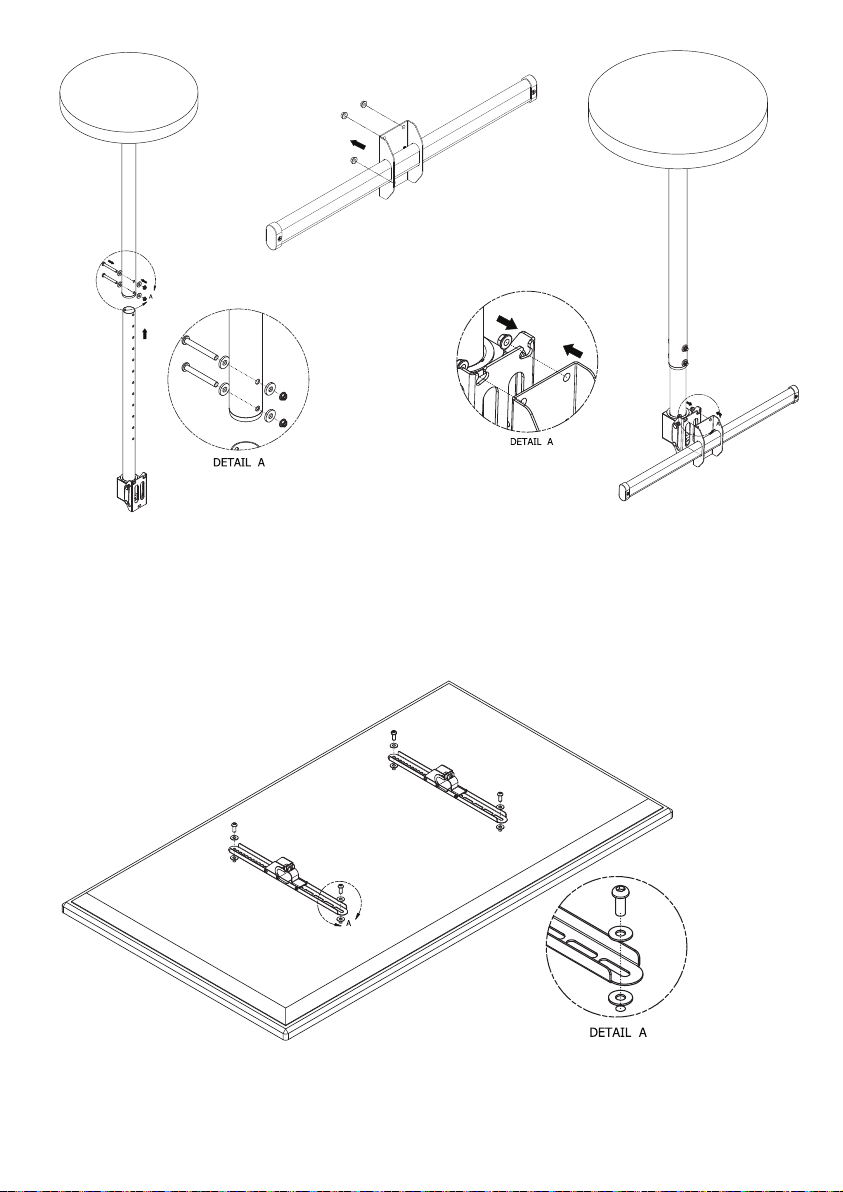

4. Place the interface bracket on the TV/ display and insert the washer and screw

(Refer the checklist for the suitable screw and washer)

3. Remove the nut from the horizontal

bracket and place on the ceiling

mount then insert the nut.

www.logicav.in

CEILING

6. Remove the clamp screw

and place the TV/display

on the ceiling mount

7. After placing the display

insert screw to the clamp

www.logicav.in

CEILING

Angle adjustment details

8. Slightly loosen the screw to adjust the angle

9. Slightly loosen the screw to adjust the angle

www.logicav.in

Angle adjustment details

10. Slightly loosen the screw to adjust the angle

www.logicav.in

CEILING

Final view after installing the mounted Projector on the Ceiling
