D-1X

GNSS/ 2.5G GSM/GPRS Vehicle Tracker

User Manual

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi District, New Taipei City 221, Taiwan

886-2-8698-3698

886-2-8698-3699

www.locosystech.com/

Document History

Version

Date

Updates

1.0

Dec 20, 2017

․Creation

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi District, New Taipei City 221, Taiwan

886-2-8698-3698

886-2-8698-3699

www.locosystech.com/

Contents

1. Installation guideline............................................................................................................................4

1.1. Pin assignments............................................................................................................................4

1.2. SIM Card installation...................................................................................................................5

1.3. Data cable connection.................................................................................................................. 6

1.4. D-1X Connection......................................................................................................................... 6

1.5. Setting cellular services provider number....................................................................................7

1.6. Logging into D-1X vehicle online admin system........................................................................ 7

2. Vehicle online admin system............................................................................................................... 8

2.1. Front-end interface.......................................................................................................................8

2.2. Management...............................................................................................................................10

2.3. Monitor...................................................................................................................................... 14

2.4. System........................................................................................................................................23

3. Troubleshooting................................................................................................................................. 25

3.1. The D-1X can’t connect to server via GPRS ?.......................................................................... 25

3.2. I can’t find the ON/OFF button, how can I turn on the D-1X ?.................................................25

3.3. I have a SIM card, but I don’t know about my APN ?...............................................................25

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi District, New Taipei City 221, Taiwan

886-2-8698-3698

886-2-8698-3699

www.locosystech.com/

Page

1. Installation guideline

You can positioning and remoting your vehicle, and assets through D-1X by connecting it with a data

cable and SIM card. You ’ll need to make sure that your vehicle has ACC, Power, Engine control

inputs, connect the cable, and configure D-1X to cellular mode.

1.1. Pin assignments

Figure 1

D-1X Pin assignment

Name

Description

Note

Power +

Power

Input voltage is VDC 9V to 40V

Engine Control

Fuel pump cutoff relay

Maximum current up to 150mA

ACC

Ignition switch input

Input voltage is VDC 7V to 60V

Power -

Ground

D-1X LED Description

Color

Name

Event

Status

Red

GPS

Indicator

GPS Off

Dark

GPS is in fixing

Solid

GPS is fixed

Every 1 seconds on and 1seconds off

Green

GSM

Indicator

Power off

Dark

Power off and SIM card has been installed

Solid

Network searching for service

2 seconds off and fast blink

Cellular service has been registered

4 seconds off and slow blink

Power -

Engine Control

Acc

Power +

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi District, New Taipei City 221, Taiwan

886-2-8698-3698

886-2-8698-3699

www.locosystech.com/

Page

Figure 2

Data cable pin assignments

Color

Name

Description

Red

Power +

Connect to VDC 9V to 40V

Green

Engine Control

Connect to fuel pump cutoff relay

Yellow

ACC

Connect to ignition switch input

Black

Power -

Connect to ground

1.2. SIM Card installation

Make sure the SIM card is the right size (Mini-SIM, 25mm x 15mm) for your device. Then, pull the

rubber cover and insert your SIM card with the gold contacts facing down into the slot and push the

cover back into the D-1X.

Figure 3

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi District, New Taipei City 221, Taiwan

886-2-8698-3698

886-2-8698-3699

www.locosystech.com/

Page

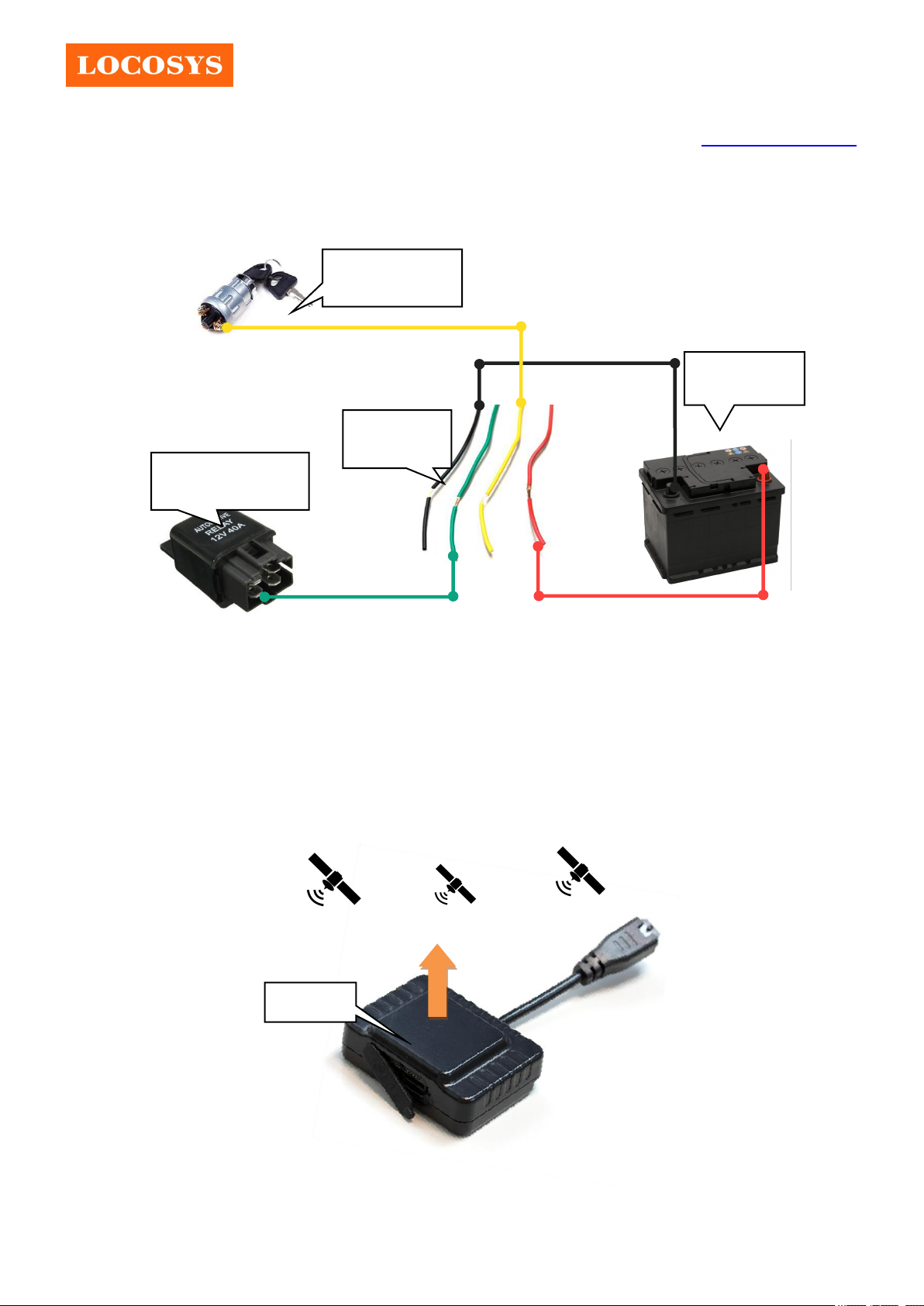

1.3. Data cable connection

The step to connect a data cable, is to find the input port (Refer to Fig. 2) on your vehicle. For the only

purpose of tracking the Power and ACC lines are required. But the engine control line is optional.

Car

Battery

D-1X

Data

Cable

Fuel pump

relay

(Engine

Ignition

Switch

(ACC)

Figure 4

1.4. D-1X Connection

The step to connect a D-1X tracker, is to find the plug on the other side of cable. Then, insert the plug

into D-1X’s jack. Once D-1X has power, the LEDs will begin to blink. It is means your components are

correctly connected.

Note. Select a location with a direct line of sight in the direction of the satellite.

Anten

Figure 5

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi District, New Taipei City 221, Taiwan

886-2-8698-3698

886-2-8698-3699

www.locosystech.com/

Page

1.5. Setting cellular services provider number

Send“*1002*30*APN,,#”SMS text message from mobile phone to D-1X tracker and receive replies

success message“*30*APN,,#OK”. APN stands for Access Point Name. It is the connection between

your cellular service provider and D-1X tracker. Activating APN settings on your device, allows data

services to work.

Figure 6

1.6. Logging into D-1X vehicle online admin system

Visit LOCOSYS cloud platform http://console.wisegps.cn/, filling the user name and password.

Note. Get the login account from your provider.

Figure 7

If there are are any problem with uploading data from your D-1X to the cloud platform. Please refer to

the troubleshooting section.

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi District, New Taipei City 221, Taiwan

886-2-8698-3698

886-2-8698-3699

www.locosystech.com/

Page

2. Vehicle online admin system

2.1. Front-end interface

Figure 8

1) Top panel

Management (Please refer to section 2.2)

Monitor (Please refer to section 2.3)

System (Please refer to section 2.4)

2) User account panel

Alert shortcut

User name

Log out

3) Customer panel

Customer list: allows to view all available customers and group objects.

Search bar: allows to find customer by name.

4) Customer object detail panel

Visibility checkbox: turns on or off vehicles visibility on map.

Vehicle name

Status (Offline/Run/Stop/Alerts)

5) Map controls

Map zoom control: changes map zoom level.

Drawing control: draw a circle or a polygon for geofence setting.

6) Maps

Allow to change currently used Google map view or satellite view.

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi District, New Taipei City 221, Taiwan

886-2-8698-3698

886-2-8698-3699

www.locosystech.com/

Page

7) Information car balloon

Map shows tracker location. To see more details about vehicle, such as address, speed, direct, time and

etc. Just click on vehicle name in group object detail panel.

Figure 9

Vehicle Name

GSM indicator

Gray icon: No GSM connection

Orange icon: GSM is connected

GPS indicator

Gray icon: GPS is fixing.

Orange icon: GPS is fixed.

Time

GPS time stamp: MM-DD hh:mm:ss (GPS)

GSM time stamp: MM-DD hh:mm:ss (SERVER)

Status: show vehicle state.

Offline

Run

Stop

Alerts (Overspeed/Cut Power/Enter Geo/Exit Geo/Vibration)

ACC: shows ignition state.

ON: Vehicle is traveling.

OFF: Vehicle may turn off now.

Locate:

BAD: GPS is fixing.

GPS: GPS is fixed.

Direct: show the direction of tracker.

Mileage: show the traveling mileage.

Speed: show the speed of tracker.

Location: show the location address of tracker.

8) Object controls

Trace: Open another map for tracking single device.(Please refer to section 2.3.1)

Playback (Please refer to section 2.3.2)

Setting (Please refer to section 2.3.6)

Fence (Please refer to section 2.3.5)

Idle: Open idle list and check idle data. (Only for D-11)

Photo: Open image manager and check image data when tracker has installed camera.

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi District, New Taipei City 221, Taiwan

886-2-8698-3698

886-2-8698-3699

www.locosystech.com/

Page

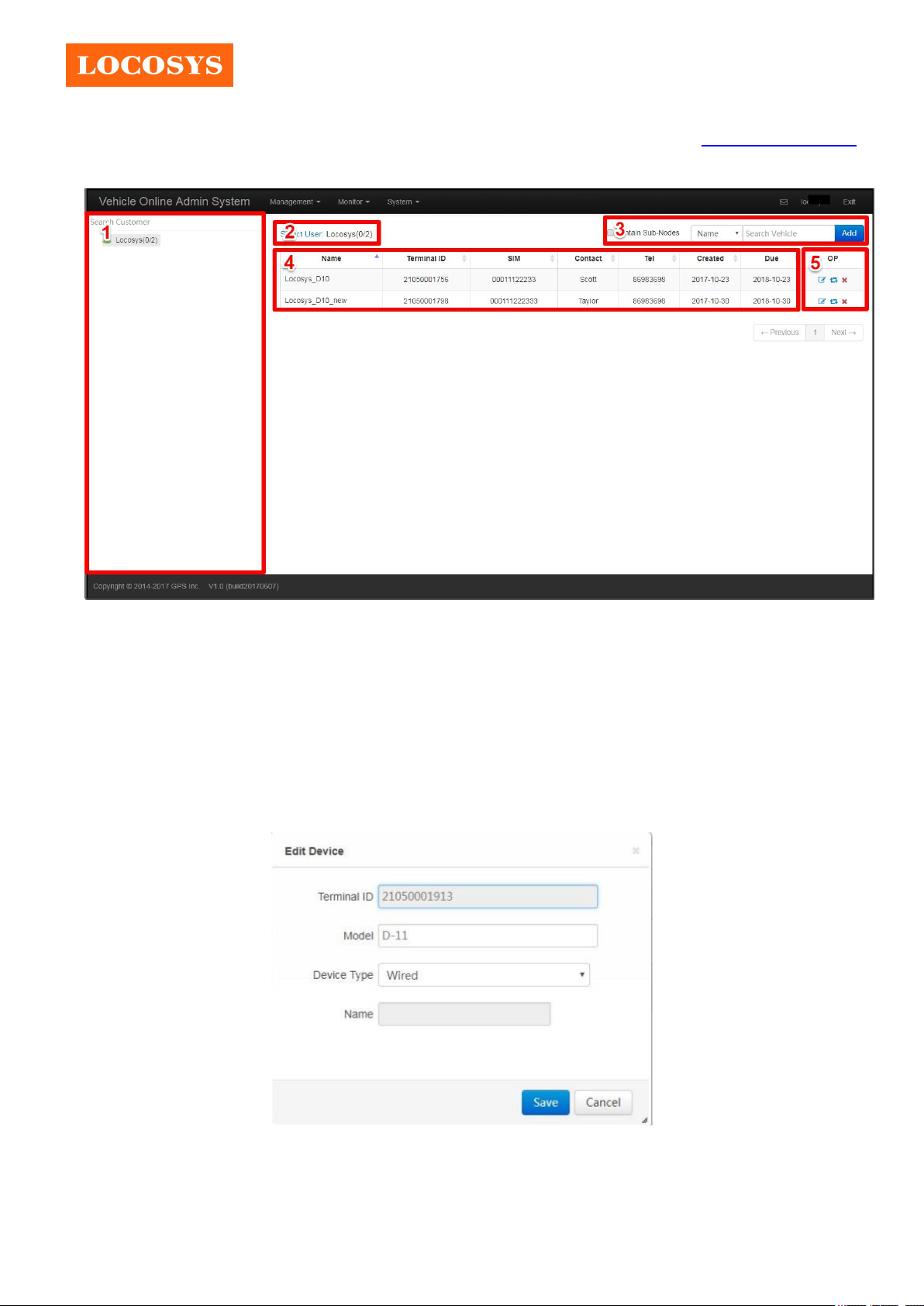

2.2. Management

Figure 10

1) Left customer panel

2) Customer name

3) Management control

Add customer (Please refer section 2.2.1)

Import device (Please refer section 2.2.2)

Add vehicle (Please refer section 2.2.3)

4) Group object detail panel

5) Object detail operation

Edit device infomation

Figure 11

Change Parent
