Installation & User Manual
PGH200
Designed：Ou Date：2019-02-27
REV: 0.1
K
2915C
YMC
445C
The Lockly™ Secure Link Wi-Fi Hub comes in two parts. Each part of
the Secure Link is crucial to enable voice assistant features and live
monitoring and control of your Lockly™ device.
The Wireless Door Sensor is optional but highly recommended as
they provide the ability to verify that your door is securely closed and
not ajar.
Secure Link Wi-Fi Hub
USB 5V 1A AC Adaptor* Wireless Door Sensor
LED Indicator
Door Sensor
PART A PART B
*You may plug the USB Secure Link Wi-Fi Hub into any UL Certified 5V 1A USB
outlet, however we recommend using ours for best performance.
Door Frame Sensor
1. Setting up the
Secure Link Wi-Fi Hub
You should install the Secure Link Wi-Fi Hub after you have
successfully finished installation and set up of your Lockly™ Smart
Lock. Refer to your appropriate Lockly™ Smart Lock Installation
Guide and User Manual that came with the lock for reference.
The Secure Link Wi-Fi Hub (Part A) can be plugged into any
standard 5V 1A USB port or use the UL certified USB AC adapter
included in this box (recommended).
For best connectivity, the Secure Link Wi-Fi Hub must be installed
within 10 feet of your Lockly™ Smart Lock. You may experience
delayed or intermittent connectivity if the Secure Link Wi-Fi Hub is
installed further than 10 feet away from the Lockly™ Smart Lock.
Lockly™ Smart Lock
PGD728 Series Shown
as reference only
Secure Link Wi-Fi Hub
Part A Shown Above
as reference only
10 Feet
Distance Between
The Secure Link requires a strong wireless signal for optimal
performance. Make sure the Secure Link will be installed in a
location with a strong 2.4 Ghz wireless signal.
Plug the Secure Link Wi-Fi Hub into the 5V 1A USB AC adapter and
plug the AC adapter to your wall socket.
USA Outlet Shown
A red LED indicator light will
flash slowly to indicate that the
Wi-Fi Hub is ready to connect.
LED Indicator is
located next to the
Setup Button
Once you have confirmed that your Secure Link Wi-Fi Hub is ready
to connect to your lock, open the Lockly™ app to get started.
In case you have not downloaded our app,
you can scan the QR code to the left or visit
https://lockly.com/app
Make sure you have already created an account and setup your
Lockly device to the Lockly app to continue.
Before you continue the Secure Link Wi-Fi Hub set up on your app,
proceed to the next page to learn more about using the Secure Link
Wi-Fi Hub and best practices for connectivity.
2. Using the
Secure Link Wi-Fi Hub
Before you set up your Wi-Fi Hub, make sure you are standing in
between your Lockly Smart Lock and Secure Link Wi-Fi Hub. For
best connection, the distance between the Wi-Fi Hub and your
smart lock should be 10 feet or less.
10 Feet
Distance Between
Lockly™ Smart Lock
PGD728 Series Shown
as reference only
Secure Link Wi-Fi Hub
Part A Shown Above
as reference only
You
Using an iOS or Android
Device with Bluetooth & Wi-Fi enabled
In order for your Secure Link Wi-Fi Hub to connect to the internet,
you must have a Wi-Fi network with a radio signal emitting 2.4 GHz.
All modern Wi-Fi devices support 2.4 GHz connections while some
equipment supports both 2.4 GHz and 5 GHz. Please check with
your network administrator or internet provider if you’re unsure what
kind of network you have.
Proceed to the next page to read how to finish set up of your Wi-Fi
Hub.
Secure Link
Installation Checklist.
You have a Lockly Smart Lock
already, and now adding the Wi-Fi Hub
The Secure Link Wi-Fi Hub is installed
within 10 feet of your Lockly Smart Lock
You have the Lockly App installed on your
iOS or Android device.
You are standing between your smart lock
and the Secure Link Wi-Fi Hub.
Your Secure Link Wi-Fi Hub is located in a
location with a strong Wi-Fi signal.
You are currently connected to a 2.4 GHz
Wi-Fi Network (802.11 B/G/N) on your iOS
or Android device.
Be sure you check off the above 6 boxes before
proceeding. If any of the boxes are not checked, you may
experience intermittent or delayed response time in
notifications.
I’m excited for my new Lockly smart lock, now
compatible with Alexa and Google Assistant.*
*Requires successful installation of the Secure Link Wi-Fi Hub
and connected to a strong internet connection
Your smartphone Bluetooth connection is
ON and connected to your Lockly device.
3. Configuring Your
Secure Link Wi-Fi Hub
First, make sure the smartphone you are using to add the Wi-Fi
Hub is connected to your 2.4 GHz Wi-Fi Network. Next, open your
Lockly App and select the main menu from the upper left corner.
(Image shown with iOS demo). Once the menu opens go ahead
select “Set up a New Device”
Select the Secure Link
Wi-Fi Hub on the bottom
NEXT >
If you have never connected the Secure Link Wi-Fi Hub to your smart
lock, the Secure Link should have a slow flashing RED LED Indicator.

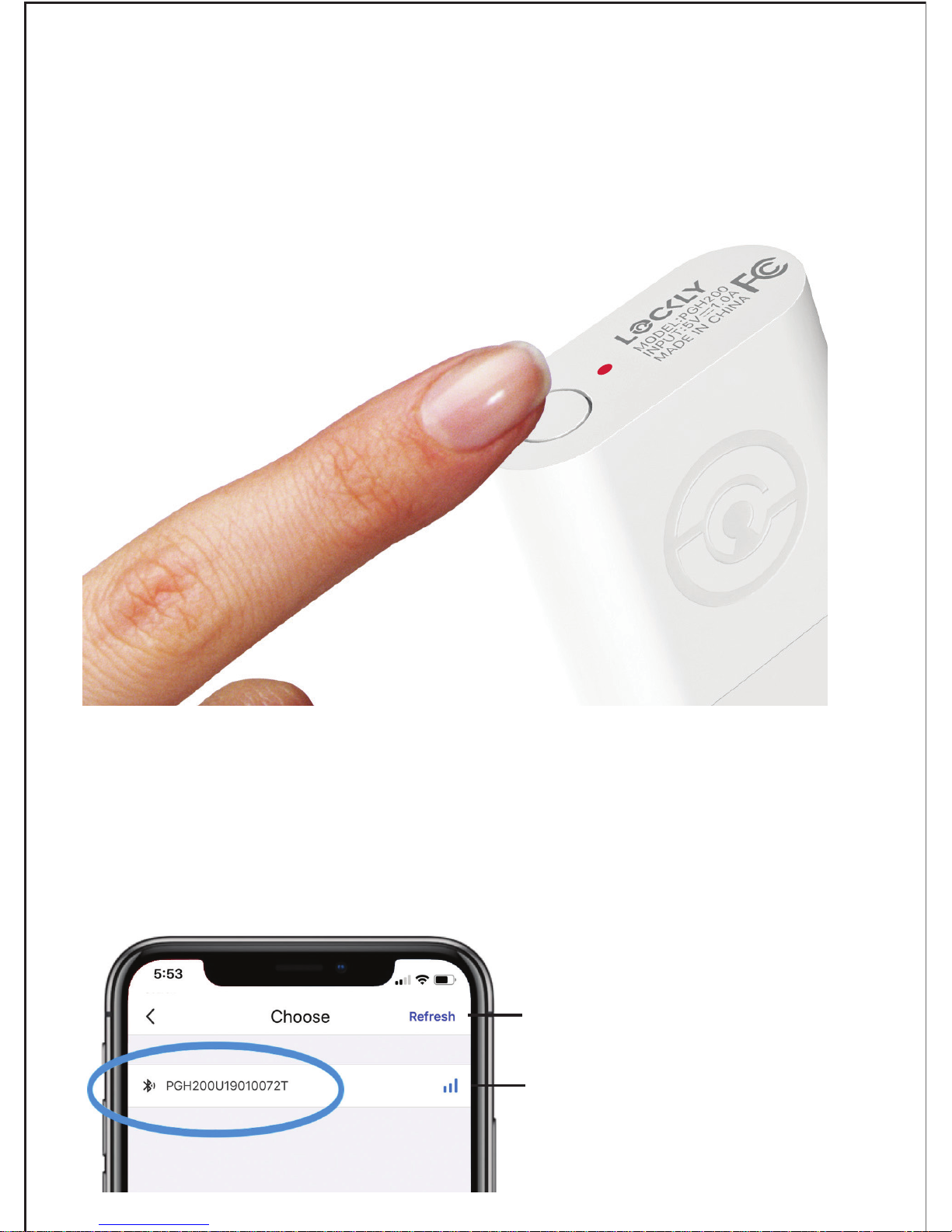

Press and hold the Setup Button located on the top of the Wi-Fi Hub
for 3 seconds until you see the RED LED Indicator start to rapidly flash.
Press and Hold
3 Seconds
If you don’t see anything appear with a Bluetooth icon and a name
starting with PGH200... simply click the Refresh button on the upper
right to rescan. Make sure your Wi-Fi Hub is showing a flashing
RED LED indicator and the Wi-Fi Hub is within the optimal distance
of 10 feet from your lock. Select the desired Wi-Fi Hub to continue.
Refresh
Minimum 2-3 Bars
Recommended
Enter your Wi-Fi password
in the next line next to the
icon, then click “Next
Step” to continue.
If you are already connected to a 2.4 Ghz compatible Wi-Fi network, it
should display the network name. (See example below)
Select if your Wi-Fi Hub LED
Indicator light is ON and solid.
Select if your Wi-Fi Hub LED
Indicator light is ON and still
flashing after 2-3 minutes.
Congratulations!
Your Secure Link Wi-Fi Hub
is now set up.
Below are some quick information for troubleshooting.
No Indicator Light
Your Wi-Fi Hub has no power.
Check your the power supply.
Slow Flashing
Indicator Light
Your Wi-Fi Hub has power.
It’s not connected to any wireless network.
Rapid Flashing
Indicator Light
Your Wi-Fi Hub is in setup mode. Setup mode can be
entered by pressing the setup button for 2 seconds.
Setup mode will last approx 2 minutes.
Solid Indicator Light
Your Wi-Fi Hub is on and connected to an active
2.4 Ghz wireless network.
