Lockly Secure LUX Manual de usuario

MORTISE EDITION

INSTALLATION MANUAL

LUX MORTISE LOCK

SECURE

INSTALLATION OVERVIEW

LocklyTM Secure can be fitted for both right swing doors and left swing doors.

Screw

Strike

Buckle Box

Exterior Panel

Lock Cylinder

Lock Cylinder Screw

Shaft

Lockset

Lockset Fixing

Screws

EVA

Escutcheon

Escutcheon Pad

Escutcheon Fixing Screw

Screw for Inner Panel

Screw Cap

Interior Panel Fixing Screw

Interior Panel

Flat Shaft

Battery Cover

PARTS LIST

Interior Panel Screw (1)

Screw for Inner Panel (2)

Positioning Sleeve (1)Lock Cylinder Screw (2)

Wrench(X1)

Cotter Pin (1)

50~60MM STANDARD DOOR THICKNESS

Screw for Lockset (4) Strike Screw (2) Screw Cap (2) Escutcheon Screw Pad (2)

Position Pad (2)

Shaft (1)

Cotter Pin hole is here

when door thickness is

larger than 70mm

Cotter Pin hole is here

when door thickness is

less than 70mm

Turnable Flat Strip (1)

Buckle Box (1)

Strike (1)

Lock Cylinder (1)

Stabilizing Screw (2) Screw for Exterior Panel (2)

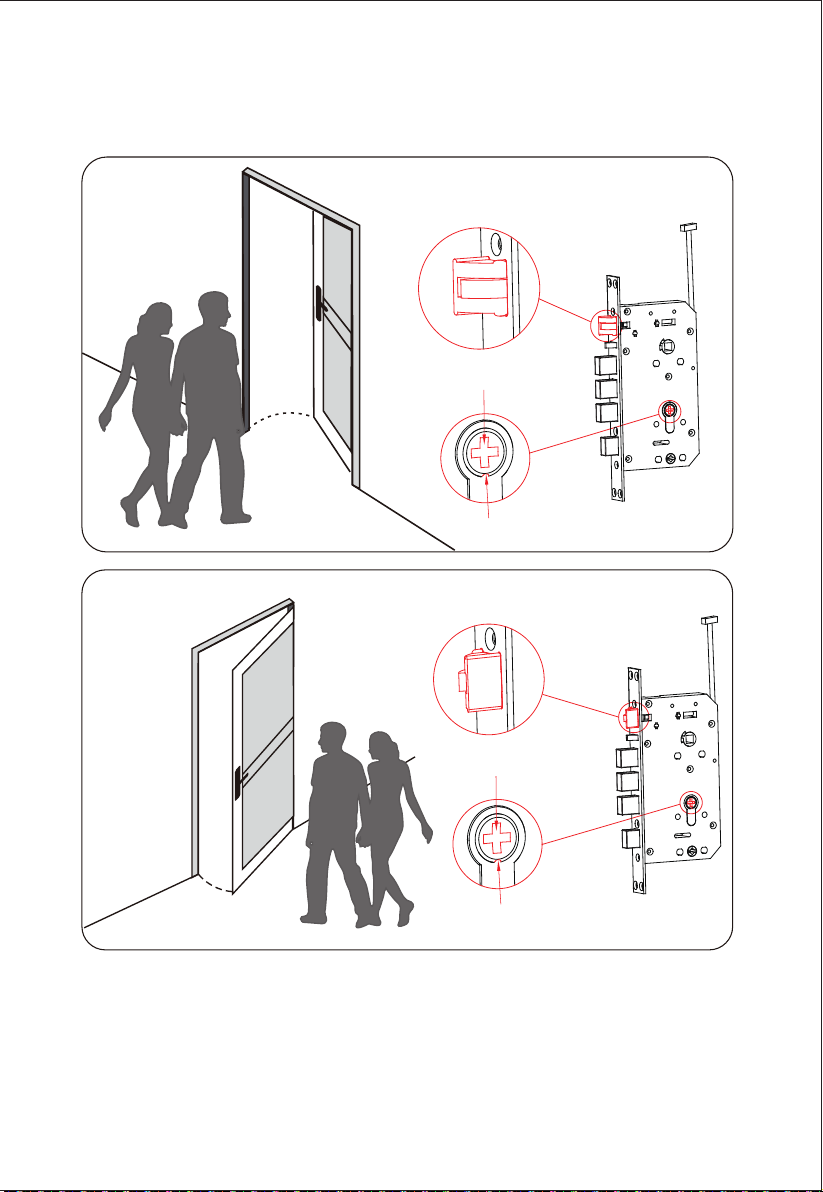

KNOW YOUR DOOR

RIGHT IN-SWING DOOR

Make sure the latch throw is

correctly oriented as shown to fit

your right in-swing door

Make sure the pit hole is

correctly oriented as shown.

There are 4 common door-opening directions, the lockset configuration as shown

on each diagram below corresponds to the respective door-opening direction.

RIGHT OUT-SWING DOOR

Make sure the latch throw is

correctly oriented as shown to fit

your right out-swing door

Make sure the pit hole is

correctly oriented as shown.

LEFT IN-SWING DOOR

Make sure the latch throw is

correctly oriented as shown to fit

your left in-swing door

Make sure the pit hole is

correctly oriented as shown.

KNOW YOUR DOOR

- This lock is suitable for wooden doors and steel doors with a thickness of 40~120mm.

- First you must identify the opening direction of your door before installation.

- Adjust the direction of the corresponding lockset to fit your door with the exterior and

interior panels.

Follow the steps on the next pages to adjust your latch throw, cylinder

and door handle.

IMPORTANT NOTICE

LEFT OUT-SWING DOOR

Make sure the latch throw is

correctly oriented as shown to fit

your left out-swing door

Make sure the pit hole is

correctly oriented as shown.

HOW TO ADJUST THE LATCH THROW

Here is how to change the latch throw direction. The factory setting of the throw is for right

in-swing door. You do not need to change direction if you have a right in-swing door.

1. You need a Phillips screwdriver.

4. Fix the strike plate with mounting

screws.

2. Unscrew the strike plate then turn the

latch throw by 180 degree.

3. Turn the latch throw by 180

degree.

HOW TO ADJUST THE CYLINDER

Here is how to change the cylinder direction. The factory setting of the cylinder is for

right in-swing door. You do not need to change direction if you have a right in-swing

door.

the spin

+ is adjusted

to the outside

of the door

The spin can only be slotted in when

the pit hole is at the downside.

3. You must have the cross slot

of the spin facing this side.

4. Fix the strike plate with mounting

screws.

1. You need a Phillips screwdriver.

the spin

current position

of the spin

The spin can only be taken out

when the pit hole is facing down

2. Unscrew the strike plate and take out the

spin as shown then turn it to the revise side

of the lockset.

HOW TO ADJUST THE DOOR HANDLE

*The diagram below shows how to shift the door handle from right to left direction. The

factory setting of the handle is for right handed door. You do not need to change

direction if you have a right handed door.

Allen Wrench

3. Lock the two screws

with an Allen key

1. Remove the two

screws with an

Allen key

2. Pull the hook backwards with

your finger to the right position.

Then rotate the handle 180°. It is

now done.

STEP 1: PREPARING YOUR DOOR

Make sure your door is prepared for installation. You may need to drill a new hole.

Please use the supplied template for drilling holes required before installation. You will

need some tools or a hole-saw.

Centerline above

1M from ground.

Hole for handle

Hole template

STEP 2: INSTALLING THE LOCKSET

Install the mortise lockset into

door pocket and tighten it with the 4 screws supplied.

Route the cable inside the door pocket and place it aside.

Fixing Screws (X4)

Lockset

Route the cable inside the door

Make sure the pit hole of this

spin is pointed downward

and facing the door outside

during installation.
