Lochinvar Knight KB 80 thru 285 Guía de aplicación

Knight

Heating Boilers

KB 80 thru 285

KBN-RP-06

Replacement Parts List

PARTS & SERVICE DEPARTMENT

Nashville, Tennessee

615-889-8900 / Fax: 615-547-1000

www.Lochinvar.com

GAS TRAIN 80-285

HEAT EXCHANGER 80-210

HEAT EXCHANGER 285

ITEM PART DESCRIPTION MODEL

NO. NO. NO.

HEAT EXCHANGER ASSY

1 HEX3076 HEAT EXCHANGER KBN080

1 HEX3077 HEAT EXCHANGER KBN105

1 HEX3078 HEAT EXCHANGER KBN150

1 HEX3079 HEAT EXCHANGER KBN210

1 HEX3080 HEAT EXCHANGER KBN285

CONTROLS

2 RLY2202 LOW VOLTAGE CONNECTION BOARD ALL

3 HLC2510 HIGH ALTITUDE INTEGRATED CONTROL ALL

4 RLY2200 INTEGRATED CONTROL KBN80-285

4 RLY3200 HIGH ALTITUDE INTEGRATED CONTROL KBN80-285

5 RLY2210 USER INTERFACE CONTROL ALL

6 TST2032 WATER TEMP SENSOR ALL

7 TST2044 BULBWELL ALL

8 RLV2023 AIR VENT VALVE ALL

9 FAN3030 FAN ASSEMBLY KBN080 & 105

9 FAN3031 FAN ASSEMBLY KBN150

9 FAN3032 FAN ASSEMBLY KBN210

9 FAN3033 FAN ASSEMBLY KBN285

10 GKT2456 GASKET/ BLOWER KBN080-105-210

10 GKT2436 GASKET/ BLOWER KBN150-285

11 SWT2006 ON/OFF SWITCH ALL

GAS VALVES

12 VAL3205 GAS VALVE ASSEMBLY KBN080

12 VAL3200 GAS VALVE ASSEMBLY KBN105

12 VAL3201 GAS VALVE ASSEMBLY KBN150

12 VAL3202 GAS VALVE ASSEMBLY KBN210

12 VAL3203 GAS VALVE ASSEMBLY KBN285

13 GKT2443 GAS VALVE GASKET KBN080-285

14 VAL2206 GAS CUT OFF VALVE KBN80-210

14 VAL2421 GAS CUT OFF VALVE KBN285

PILOT & BURNER ASSEMBLIES

15 PLT3022 FLAME SENSOR W/GASKET ALL

16 GKT2450 GASKET, FLAME SENSOR ALL

17 PLT3021 IGNITER W/GASKET ALL

18 GKT2449 GASKET, IGNITER ALL

19 BNR3424 BURNER W/ GASKET KBN080

19 BNR3425 BURNER W/ GASKET KBN105

19 BNR3426 BURNER W/ GASKET KBN150

19 BNR3427 BURNER W/ GASKET KBN210

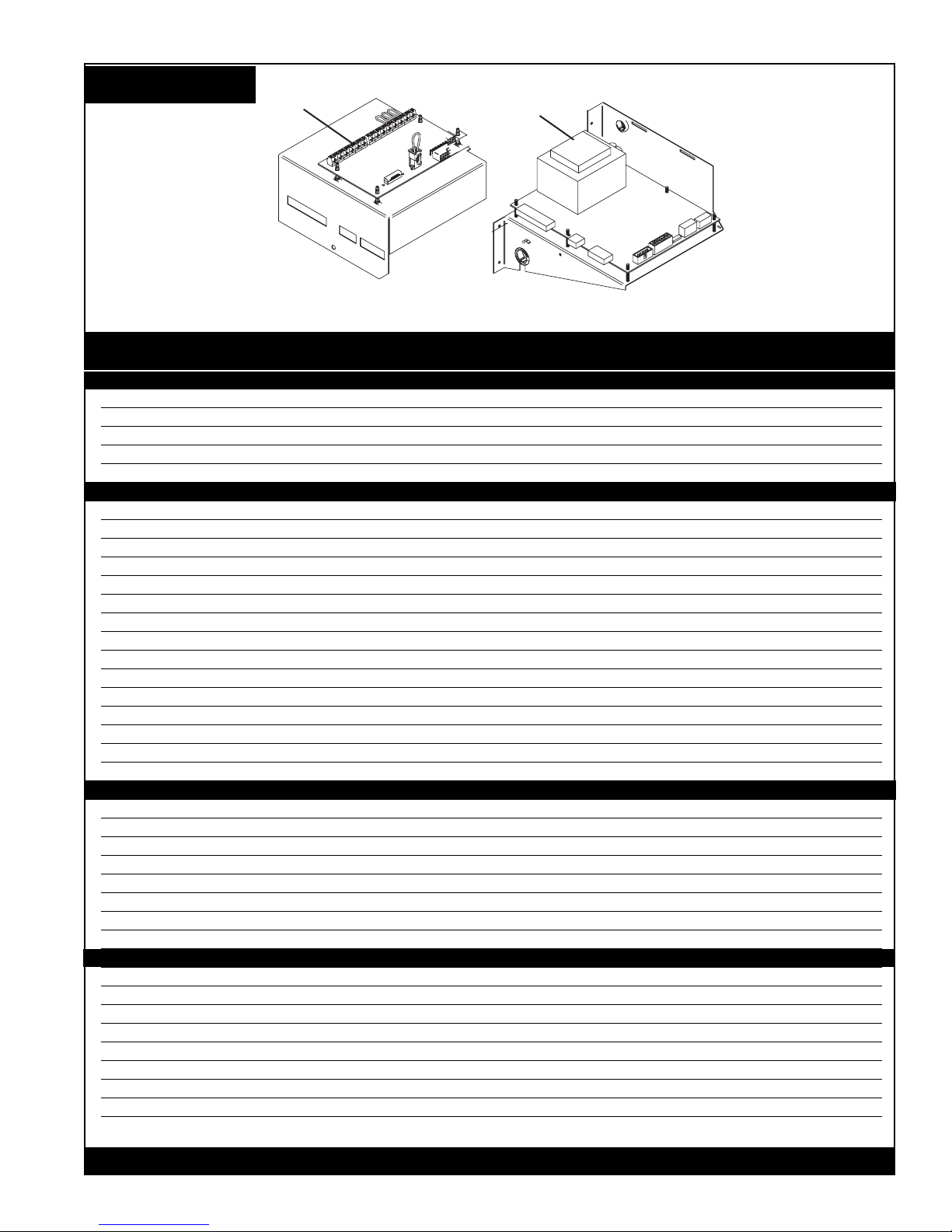

CONTROL PANEL

PLEASE HAVE SERIAL NUMBER AVAILABLE WHEN ORDERING PARTS

19 BNR3428 BURNER W/ GASKET KBN285

20 WTR3077 GAS/AIR ARM ASSEMBLY W/GASKET KB080

20 WTR3081 GAS/AIR ARM ASSEMBLY W/GASKET KBN105

20 WTR3082 GAS/AIR ARM ASSEMBLY W/GASKET KBN150

20 WTR3078 GAS/AIR ARM ASSEMBLY W/GASKET KB210/285

21 GKT2454 GASKET - GAS / AIR ARM ASSEMBLY ALL

22 GKT2451 GASKET, BURNER ALL

23 WTR3080 HEAT EXCHANGER ACCESS DOOR KIT ALL

MISCELLANEOUS

24 MSC3180 SIGHT GLASS ALL

25 GKT2453 GASKET/ SIGHT GLASS ALL

26 FIB2168 BURNER PLATE, INSULATION, DOOR ALL

27 FIB2167 DIVIDER PLATE, INSULATION BAFFLE ALL

28 GKT2455 GASKET DOOR RUBBER ALL

29 MSC3181 AIR INLET KIT KBN080-105

29 MSC3182 AIR INLET KIT KBN150

29 MSC3183 AIR INLET KIT KBN210

29 MSC3184 AIR INLET KIT KBN285

30 MSC2177 DISPLAY BEZEL ALL

31 BLT2104 LEVELING LET ALL

RLV2005 RELIEF VALVE 30 PSI ALL

FUS2000 1.25 AMP ALL

FUS2001 3.15 AMP ALL

FUS2002 5 AMP ALL

WTR2040 FLOW SWITCH ALL

MSC2514 HIGH VOLTAGE CONNECTION BOARD ALL

TST2311 OUTDOOR AIR SENSOR ALL

MSC2971 CONDENSATE TRAP KBN080-210

MSC2973 CONDENSATE TRAP KBN285

SWT2011 BLOCKED DRAIN SWITCH ALL

GTP2900 GAUGE TRIOMETER, 75# PSI ALL

TST3403 FLUE TEMP SENSOR KIT ALL

KIT3086 AMRHL ALL

KIT3057 MRLWCO WITH TEST ALL

KIT3085 ALARM BELL ALL

KIT3078 SYSTEM SENSOR ALL

KIT3087 NEUTRALIZER KIT ALL

LPK3944 LP CONVERSION KIT KBN080

LPK3945 LP CONVERSION KIT KBN105

LPK3946 LP CONVERSION KIT KBN150

LPK3947 LP CONVERSION KIT KBN210

LPK3948 LP CONVERSION KIT KBN285

PUMPS

PUM3020 PUMP KBN080-210

PUM3021 PUMP KBN285

©-3/08-Printed in U.S.A.

ITEM PART DESCRIPTION MODEL

NO. NO. NO.

PLEASE HAVE SERIAL NUMBER AVAILABLE WHEN ORDERING PARTS

PILOT & BURNER ASSEMBLIES CONTINUED
