Lochinvar CB--CW 495 -745 Guía de aplicación

Copper-Fin®

Boilers — Water Heaters

CB—CW 495 -745

Beginning Serial #G04H00166418

Replacement Parts List

CB-CW-RP-05

PARTS & SERVICE DEPARTMENT

Nashville, Tennessee

615-889-8900 • Fax: 615-547-1000

www.Lochinvar.com

2 of 4

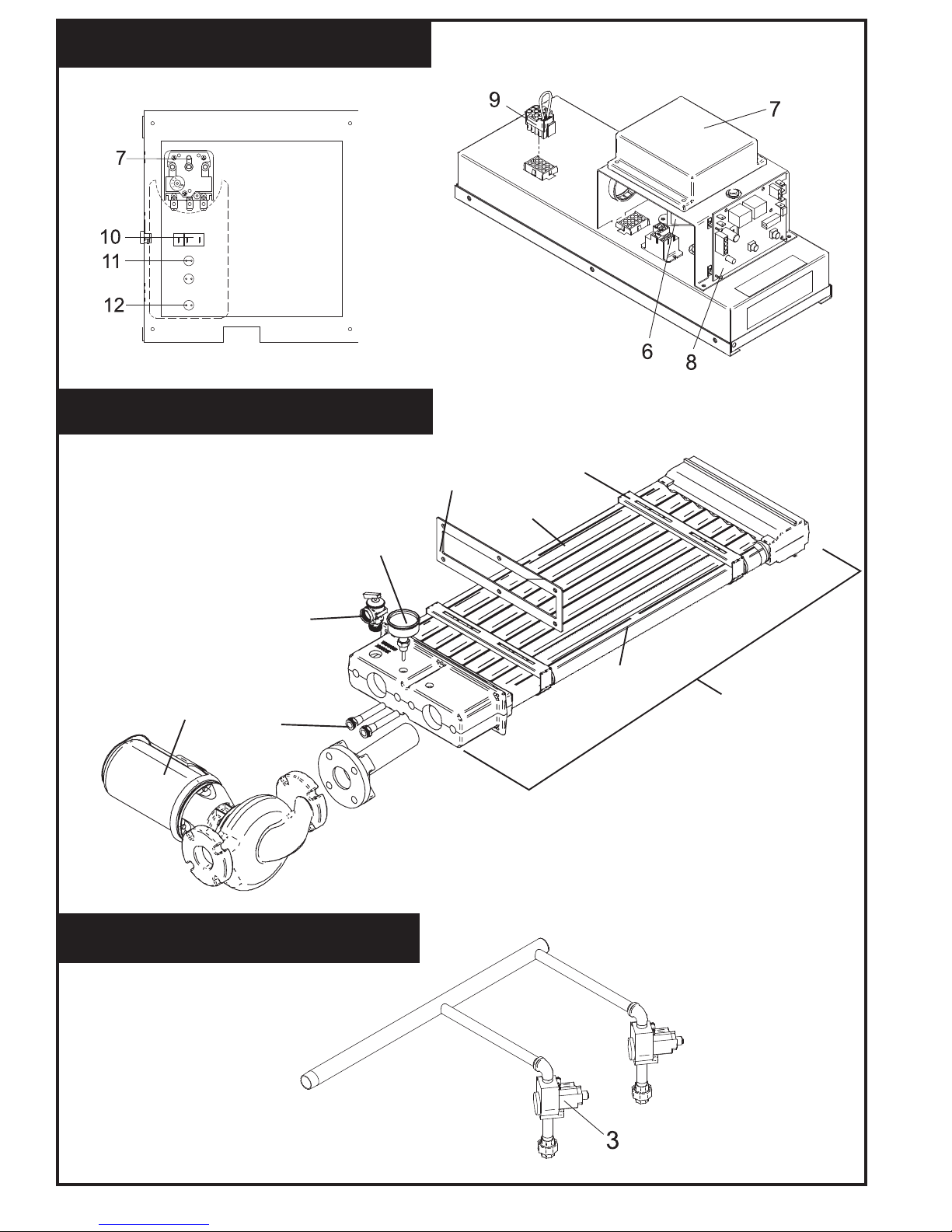

GAS TRAIN ASSEMBLY

HEAT EXCHANGER ASSEMBLY

CONTROL PANEL

CB-CW-RP-05

3 of 4

CB-CW-RP-05

ITEM NO. PART NO. DESCRIPTION MODEL NO.

BURNERS

1 Model BNR3417 BNR3416

BNR3417 Main burner 495 9 ea 1ea

BNR3416 Main Burner 645 12 ea 1ea

w/ Barb & Pressure Tap 745 14 ea 1ea

GAS TRAIN ASSEMBLIES

2 ORF2406 ORIFICE, NAT ALL

2 ORF2051 ORIFICE, LPG. ALL

3 VAL3405 GAS VALVE, NAT ALL

3 VAL3406 GAS VALVE, LPG. ALL

CONTROLS & GAUGES

4 PRS30014 LOW AIR PRESSURE SWITCH ALL

5 PLT3400 HOT SURFACE IGNITOR ALL

6 TRF2005 TRANSFORMER 75 VA ALL

7 RLY2402 IGNITION MODULE ALL

8 TST2314 THERMOSTAT OPERATOR ALL CB/CW

9 WRE2407 JUMPER PLUG ALL

10 MSC2426 ROCKER SWITCH ALL

11 MSC2023 TRIAL LIGHT, AMBER 120V ALL

12 MSC2026 FLAME FAILURE LIGHT, RED 24V ALL

13 GTP2900 TEMPERATURE AND PRESSURE GAUGE ALL CB

13 GTP3000 TEMPERATURE GAUGE 2” ALL CW

HEAT EXCHANGERS

14 GKT2400 GASKET HEAT SHIELD ALL

15 HEX3402 HEAT EXCHANGER CB 495

15 HEX3403 HEAT EXCHANGER CB 645

15 HEX3404 HEAT EXCHANGER CB 745

15 HEX3012 HEAT EXCHANGER CW 495

15 HEX3013 HEAT EXCHANGER CW 645

15 HEX3014 HEAT EXCHANGER CW 745

16 JKD2252 V-BAFFLE 495

16 JKD2253 V-BAFFLE 645

16 JKD2254 V-BAFFLE 745

17 JKD6450 FRAME RUNNER V-BAFFLE 495

17 JKD6451 FRAME RUNNER V-BAFFLE 645

17 JKD6452 FRAME RUNNER V-BAFFLE 745

18 MSC2969 FRAME END ALL

19 RLV2017 RELIEF VALVE, TEMPERATUREAND PRESSURE ALL CW

19 RLV2001 RELIEF VALVE, PRESSURE ONLY ALL CB

MISCELLANEOUS

20 ARM3044PAB PUMP ALL CW

21 TST2301 THERMOSTAT WELL ALL

22 MSC3415 SIGHT GLASS KIT ALL

23 FAN2714 FAN ALL

-- MSC2016 TERMINAL STRIP 8 POLE ALL

- MSC2424 LOW AIR LIGHT, AMBER 28V ALL

- MSC2028 HEATING LIGHT, GREEN ALL

-- RLY2052 PUMP DELAY RELAY CW

-- WRE2498 PUMP DELAY WIRE HARNESS CW

LOCH-HEAT TILE

24 FIB2421 LOCH-HEAT TILE, REAR HEAD SIDE ALL

25 FIB2407 LOCH-HEAT TILE, FRONT DOOR 495

25 FIB2408 LOCH-HEAT TILE, FRONT DOOR 645

25 FIB2409 LOCH-HEAT TILE, FRONT DOOR 745

Please have model and serial number when ordering parts.

NOTE: CB = Boiler CW = Water Heater

4 of 4

CB-CW-RP-05

LOCH-HEAT TILE CONTINUED

26 FIB2806 LOCH-HEAT TILE, DIVIDER ALL

27 FIB2142 LOCH-HEAT TILE, BOTTOM - RIGHT 745

27 FIB2143 LOCH-HEAT TILE, BOTTOM - LEFT 745

27 FIB2502 LOCH-HEAT TILE, BOTTOM LEFT & RIGHT 495

27 FIB2144 LOCH-HEAT TILE, BOTTOM - LEFT 645

27 FIB2145 LOCH-HEAT TILE, BOTTOM - RIGHT 645

28 FIB2420 LOCH-HEAT TILE, FRONT HEAD SIDE ALL

29 FIB2402 LOCH-HEAT TILE, REAR 495

29 FIB2403 LOCH-HEAT TILE, REAR 645

29 FIB2404 LOCH-HEAT TILE, REAR 745

30 FIB2510 LOCH-HEAT TILE, TOP 495

30 FIB2511 LOCH-HEAT TILE, TOP 645

30 FIB2512 LOCH-HEAT TILE, TOP 745

Optional

-- HLC2701 AUTO RESET HIGH LIMIT ALL

-- GAC2030 GAS COCK 1 1/4” ALL

-- WTR2530 LOW WATER CUT-OFF, MANUAL RESET (OPTIONAL) PRIOR TO SERIAL #H08H00211239 ALL

-- WTR30000 LOW WATER CUT-OFF, MANUAL RESET (OPTIONAL) BEGINNING W/ SERIAL

#H08H00211239 ALL

-- WTR2528 LOW WATER CUT-OFF,AUTO RESET (OPTIONAL) PRIOR TO SERIAL #H08H00211239 ALL

-- WTR30001 LOW WATER CUT-OFF, AUTO RESET (OPTIONAL) BEGINNING W/ SERIAL #H08H00211239 ALL

-- WTR2222 LOW WATER CUT-OFF PROBE (OPTIONAL) ALL

-- WTR20000 LOW WATER CUT-OFF BOOT (OPTIONAL) ALL

-- PAN3208 OPTION BOX A: LOUVER RELAY w/PUMP DELAY ALL

-- PAN3209 OPTION BOX B: MR-LWCO, LVR w/PUMP DELAY PRIOR TO SERIAL #H08H00211239 ALL

-- PAN30013 OPTION BOX B: MR-LWCO, LVR w/PUMP DELAY BEGINNING W/ SERIAL #H08H00211239 ALL

-- PAN3210 OPTION BOX C: MR-LWCO, LVR w/PUMP DELAY, ALARM ANY FAILURE PRIOR TO

SERIAL #H08H00211239 ALL

-- PAN30012 OPTION BOX C: MR-LWCO, LVR w/PUMP DELAY,ALARMANY FAILURE BEGINNING W/

SERIAL #H08H00211239 ALL

Please have model and serial number when ordering parts. NOTE: CB = Boiler CW = Water Heater
