LIVOLO VL-C302S-61 Manual de usuario
http j/ / www.livolo.(o m
WARN ING
Read the instr!ctions caref!ily before installat on
The l"4anufacturer w ll not be held respons ble for anV damage ca!sed
by your own incorrect operation. Themanufacturer
guarantee w ll onlV applV if installed by a qualified electrician
Special Notes:
1.The electric current should be off during installation.
2.Wlring should be done in strlct accordance to the wlring d agrams.
3.The size of the lnstallation screw hole ls 60mm,and the diameter of
mounting box shou d be at least 72mm,and the depth of mountinB
hor rq 65mm.
4.lf touch testing is done without the glass panel, please switch off
the power first, then fix the swilch and repTace the glass panel, sw tch
on the power lastlV.
or-l
E'
Br
C
r take
n:- -.,- ^^
lliui/lll
*"-.cl * "

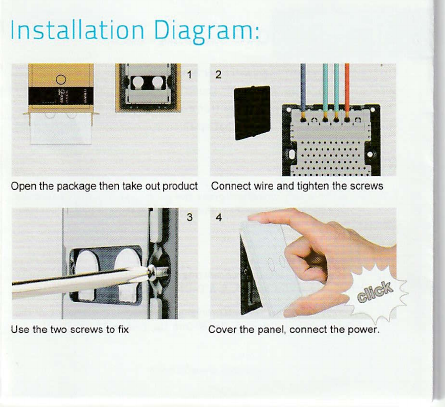

package then =! ,r1
out product Connect wire and i ghten the screws
o*,Hi '
--eH[ t t
Cover the panel, connect the power.
-- \tt, -, -,..
I luLi,l --
of One \l"ray Sw trhl
-,1 i ;-., ;t i-..
I
alaIi'tf'!
One Way Switch lnstruction:
Tou(h the switch, When lamp is on(backlight is red), when it is off
(ba.klight is blue).
N ote:
1.lf one gang of a touch swltch doesn't have any lamps connected, it
is normal for the other gangs with lamps connected to flash brieflV
2,The wiring diaBram is the same as Diagram 1
Timer Switch lnstruction:
1.Touch the gang to switch the lamp on.
2.The lamp will turn off automaticallV after 30seconds,
3.Touch it again when it is on, the back light will f ash to inform that
it is resetting for another l0 seconds.
N ote:
The wiring diagram is the same as Dlagram 1.
Dimmer Switch lnstruction:
l.Touch the gang briefly to switch the lamp on/off.
2.By holding the gang, the lamp will graduallV dim up/down.
3.With memory function, it will remember the brightness of the last
operation.
N ote:
'l.OnlV suitable for the dimmable lamp, like incandescent lamps or
dimmable spotlights.
2.The Ioad power should be less than 2A, it is normal lor the inside of
swit.h to heat up slightly while the Iamp is on.
3.The wiring diagram is the same as Diagram 1-
The Wiring Diagram
of Two Way switch (lntermediate switch):
Diagrah 2 Diagram 3
N ote:
1.When one two way switch connect with others, all switches should
connect to the live line.
2.Lamp c'an .onnect with anV wire on the switch like L1lL2
3.All B ports should be connected together with others.
Diagram 3
TWO Way SWitCh synrhronizins rnstruction:
1.Two wav switch will only work after being SVnchronized.
2.Synchronizing stepsl
First:
Hold a gang of the switch for 5 se(onds, iet go when you hear a,,Di,,
sound or if the backlight flashes.
Second:
Touch the other switch, when the ba.kliBht flashes, it means the
sVnchronization was successfully completed.
3.Steps to can.el SVnchronization:
Hold the gang of either switch for 10 seconds (switch with load)
when Vou hear two Di sounds or if the backlight flashes twice, the
sVnchronization was successlullV cancelled Should you let go after
the firsi "Di" sound or after the first flash, the synchronization wlll
not be successfullV can.elled. After cancelling the sVnchronization,
the sVnchronization with the remote will also be.ancelled.
Using the switch:
TO SWITCH ON TO SWITCH OFF
Touch the switch panel on Touch the switch panel on
the oval to switch it on the oval to switch it off
USING THE REMOTE:
Press A to switch the lrBht on,
Press A again to switch the light off.
N ote:
1.Do not Eonnect more than three two-wav switches on one circuit.
2,The total load power lor all the (onnected two wav switches should
not exceed 15OOW-
3,The distance betwaeo tEo sides of A/B should not exceed 30m.
4.lf the switch is not cmEted to a lamp, there will not be anv sound
when synchronizing-llororer,the .emote and scene function will
be disabled.
