LED solar light

Introduction

Familiarise yourself with the device be-

fore using it for the ﬁrst time. In addition,

please carefully refer to the instructions

for use and the safety instructions below. Only use

the product as described and for the indicated pur-

pose. Keep these instructions in a safe place. If you

pass the device on to anyone else, please ensure

that you also pass on all the documentation.

Intended Use

The solar light is intended as outdoor ambient/dec-

orative lighting. The integrated solar cell and the re-

chargeable battery allow usage independent from

the electricity grid. Any modiﬁcation to the product

are considered improper use and may

result in considerable hazards. The manufacturer

assumes no liability for damages due to improper

use

. This device is not intended for commercial use.

Parts Description

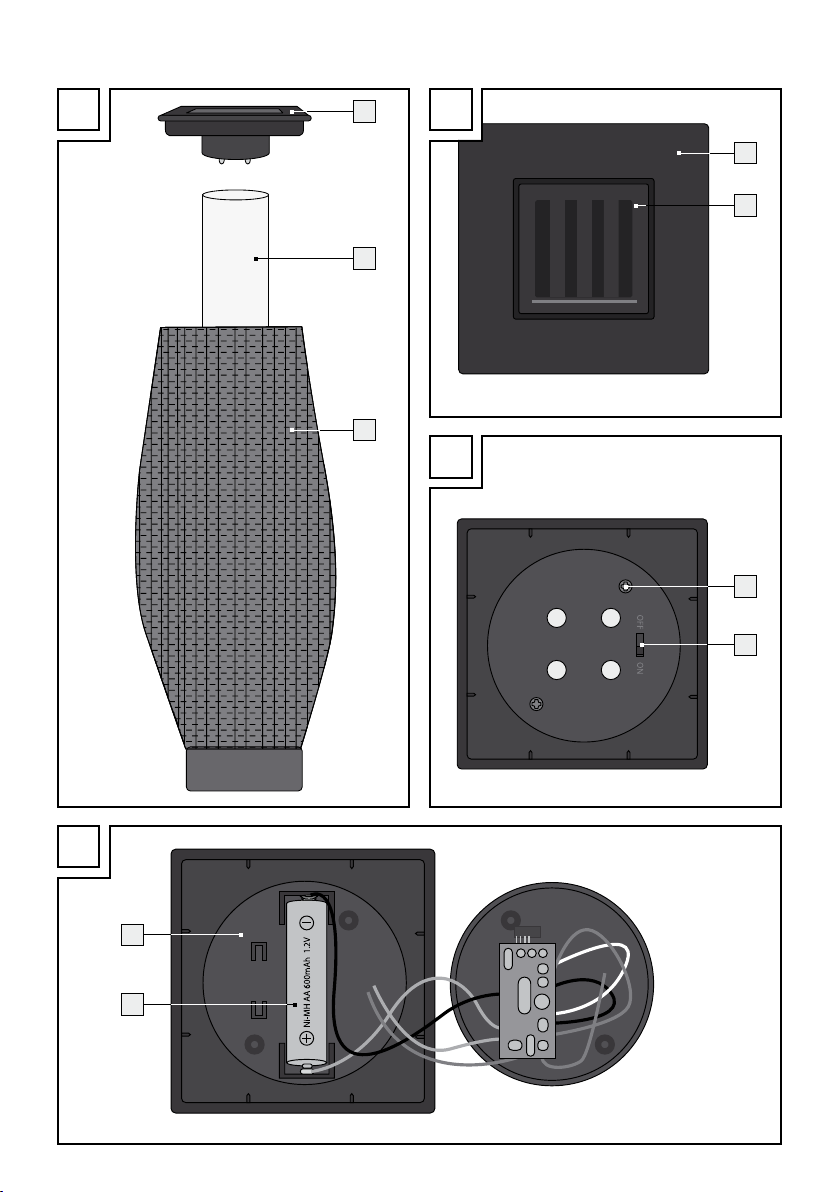

1Lamp shade

2Solar cell housing

3Lamp body

4Ground stake (model 10346A / B / C / D)

5Adapter (model 10346A/ B / C / D)

6Solar cell

7ON/OFF switch

8Fastening screw

9Battery compartment

10 Rechargeable battery

Scope of delivery

1 LED solar light

1 Rechargeable Ni-MH battery, AA, 600mAh,

1.2V

1 Set of assembly instructions and instructions for use

List of pictograms used

Read the instructions! Caution! Explosion hazard!

Volt (direct current) Caution! Fire hazard!

Watt (eﬀective power) Wear safety gloves!

Observe the warnings and

safety notices! Caution - Hot surfaces!

This product is not suitable as

residential room lighting.

Dispose of the packaging and

product in an environmentally-

friendly manner!

Accident hazard and risk of fatal

injury for infants and children!

Improper disposal of rechargea-

ble batteries may result in

environmental damage!

Severe or fatal injuries may

occur.

7GB

Technical Data

Model no.: 10346A/10346B/

10346C/10346D/

10346E/10346F

Dimensions (without

ground stake): 10346A/10346B:

approx. 50 x 10 x 10 cm

(h x w x d)

10346C/10346D:

approx. 15 x 40 cm

(Ø x h)

10346E/10346F:

approx. 39 x 13.5 x

13.5cm (h x w x d)

Rechargeable battery: 1 x Ni-MH, AA, 600mAh,

1.2V

Light bulb: 4 x LED (not replaceable)

Rated output LED: approx. 0.025 W per LED

Protection type: IP44 (splash-proof)

Safety Notices

PLEASE READ THE INSTRUCTIONS PRIOR TO

USE! PLEASE KEEP THE INSTRUCTIONS IN A

SAFE PLACE! IF PASSING THIS PRODUCT ON

TO A THIRD PARTY, INCLUDE ALL DOCUMENTS!

This product may be used by children aged

8 years and up, as well as by persons with re-

duced physical, sensory or mental capacities,

or lacking experience and/or knowledge, so

long as they are supervised or instructed in the

safe use of the product and understand the

associated risks. Do not allow children to play

with the product. Cleaning and user mainte-

nance should not be performed by children

without supervision.

Do not use the product if you detect any type

of damage.

Switch the product oﬀ whilst storing in a dark

environment to prevent draining the battery.

Product-speciﬁc safety

instructions

Make sure the solar cell is free of dirt and free

of snow and ice in winter. Otherwise the per-

formance of the solar panel will be diminished.

Cold temperatures negatively impact the bat-

tery operating time. If the solar garden light

will not be used for extended periods, e.g. in

winter, it should be cleaned and stored in a

dry, warm location.

This product is not suitable as

residential room lighting.

Safety instructions for

rechargeable batteries

RISK OF AC-

CIDENT AND DANGER TO LIFE

FOR INFANTS AND CHIL-

DREN! Rechargeable batteries are not in-

tended to be in the hands of children. Do not

leave the batteries lying around. There is a

danger that these will be swallowed by chil-

dren or pets. If they are accidentally swal-

lowed seek immediate medical attention.

CAUTION! EXPLOSION

HAZ-

ARD! Only use the recommended

type of

rechargeable batteries.

Other rechargeable or single-use batteries

could explode during charging.

FIRE HAZARD! Never short-circuit

rechargeable batteries. Otherwise

the rechargeable batteries may

overheat, become a ﬁre hazard or explode.

CAUTION! EXPLOSION HAZ-

ARD! Never throw rechargeable

batteries into ﬁre or water.

Expired or drained rechargeable batteries may

leak chemicals which will damage the product.

Remove, therefore, the rechargeable battery

when the lamp is not required for any length of

time.

8 GB

WEAR PROTECTIVE GLOVES!

Leaked or damaged rechargeable

batteries could cause chemical

burns on contact with the skin; you should

therefore wear suitable protective gloves at all

times if such an event occurs.

Only use rechargeable batteries of the correct

size and and the recommended type (see sec-

tion ”Technical Data”).

Ensure correct polarity, indicated in the battery

compartment.

Functionality

The solar cell built into the product converts sunlight

into electricity and stores it in a Ni-MH rechargea-

ble battery. The light switches on at dusk. The built-

in LED is an energy-saving light bulb with a very

long life. The light duration depends on the amount

of sunlight, the angle at which light hits the solar

panel, and the temperature (the battery capacity

varies by temperature). A vertical angle of light at

temperatures above the freezing point is ideal. The

rechargeable battery will only achieve its maximum

capacity after several charging and discharging

cycles.

Initial use

Mounting the light

10346A/B:

Pull the solar cell housing 2including

lampshade 1out of the lamp body 3.

Push the ground stake 4out of the adapter 5

and into the lamp body 3.

Push the ground stake 4into the ground in

the desired location and attach the lamp

body 3.

Set the ON/OFF switch 7to the position

marked „ON“ to allow the product to switch

on in the dark.

Reattach the solar cell housing 2with lamp

shade 1to the lamp body 3. Your solar

light is now ready to use.

10346C/D:

Pull the solar cell housing 2including lamp-

shade 1out of the lamp body 3.

Push the ground stake 4out of the adapter 5

and into the lamp body 3.

Push the ground stake 4into the ground in

the desired location and attach the lamp

body 3.

Turn the solar cell housing 2out of the lamp-

shade 1counter-clockwise.

Set the ON/OFF switch 7to the position

marked „ON“ to allow the product to switch

on in the dark.

Insert the solar cell housing 2into the lamp-

shade 1and tighten clockwise. Your solar

light is now ready to use.

10346E/F:

Pull the solar cell housing 2oﬀ the lamp

shade 1.

Set the ON/OFF switch 7to the position

marked „ON“ to allow the product to switch

on in the dark.

Reattach the solar cell housing 2to the lamp

shade 1. Your solar light is now ready to use.

Installing the light

10346A/B/C/D:

Push the ground stake 4far enough into the

ground (lawn, ﬂower bed) so it is ﬁrmly posi-

tioned upright in the ground. Then attach the

assembled solar light to the ground spike 4.

Make sure it is ﬁrmly positioned. Do not use

force when assembling or setting up the prod-

uct, e.g. hammer blows. This will damage the

product. In order to achieve the best result, set

the solar garden lamp up in a place where the

solar cell will get direct sunlight for as long as

possible.

Make sure the solar cell is not impacted by

other light sources, e.g. yard or

street lighting,

or the light will not

switch on at dusk.

The light will automatically switch on in low

light and switch oﬀ in normal daylight.

9GB

Replacing the

rechargeable battery

The batteries should be replaced every 12 months

to ensure optimum performance.

10346A/B:

Remove the lampshade 1from the lamp

body 3.

Pull the solar cell housing 2out of the

lampshade 1.

Switch oﬀ the light using the ON/OFF switch

7by setting the switch to the „OFF“ position.

Remove the fastening screws 8using a small

cross-tip screwdriver. Then open the battery

cover on the solar cell housing 2using a ﬂat-

head screwdriver.

Replace the old battery 10 with a new re-

chargeable battery, taking care not to damage

the cables. Please note the polarity when in-

serting the battery. This is shown inside the bat-

tery compartment 9. Use only rechargeable

batteries of the recommended type (see

„Technical Data“).

Close the battery cover and tighten the retain-

ing screws 8using a small cross-tip screw-

driver. Set the ON/OFF switch 7to the

„ON“ position.

Reattach the solar cell housing 2to the lamp

shade 1. Then assemble the remaining parts

of the lamp.

10346C/D:

Remove the lampshade 1from the lamp

body 3.

Turn the solar cell housing 2out of the

lampshade 1counter-clockwise.

Switch oﬀ the light using the ON/OFF switch

7by setting the switch to the „OFF“ position.

Remove the ﬁxing screws 8using a small

cross-tip screwdriver.

Replace the old battery 10 with a new re-

chargeable battery, taking care not to damage

the cables. Please note the polarity when in-

serting the battery. This is shown inside the bat-

tery compartment 9. Use only rechargeable

batteries of the recommended type (see

„Technical Data“).

Tighten the retaining screws 8with a small

cross-tip screwdriver. Set the ON/OFF switch

7to the „ON“ position.

Reattach the solar cell housing 2to the lamp

shade 1. Then assemble the remaining parts

of the lamp.

10346E/F:

Pull the solar cell housing 2oﬀ the lamp

shade 1.

Switch oﬀ the light using the ON/OFF switch

7by setting the switch to the „OFF“ position.

Use a small cross-tip screwdriver to remove the

fastening screws 8.

Replace the old battery 10 with a new re-

chargeable battery, taking care not to damage

the cables. Please note the polarity when in-

serting the battery. This is shown inside the bat-

tery compartment 9. Use only rechargeable

batteries of the recommended type (see

„Technical Data“).

Tighten the retaining screws 8with a small

cross-tip screwdriver. Set the ON/OFF switch

7to the „ON“ position.

Reattach the solar cell housing 2to the lamp

shade 1.

Charging

Please note, the solar garden light must be

switched on when the battery is charging. The

charging time via the solar cell varies by the inten-

sity of the sunlight and the incidence angle of light

onto the solar cell. Place the solar cell as perpen-

dicular as possible to incidence angle of light. This

will ensure the brightest light.

Maintenance and Cleaning

The LEDs cannot be replaced. The solar lamp is

maintenance-free, except for any necessary

change of battery.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Luz exterior de LIVARNO LUX

LIVARNO LUX

LIVARNO LUX 288412 Manual de usuario

LIVARNO LUX

LIVARNO LUX 2973-010L Manual de usuario

LIVARNO LUX

LIVARNO LUX 298692 Especificaciones técnicas

LIVARNO LUX

LIVARNO LUX 7317-012L Manual de usuario

LIVARNO LUX

LIVARNO LUX Z31908A-BS Manual de usuario

LIVARNO LUX

LIVARNO LUX Z31170A Manual de usuario

LIVARNO LUX

LIVARNO LUX HG03855A Manual de usuario

LIVARNO LUX

LIVARNO LUX LSLB 100 A1 Hoja de información del producto

LIVARNO LUX

LIVARNO LUX 273025 Manual de usuario

LIVARNO LUX

LIVARNO LUX HG02014A Especificaciones técnicas

LIVARNO LUX

LIVARNO LUX C122016-8 Especificaciones técnicas

LIVARNO LUX

LIVARNO LUX 30866 Manual de usuario

LIVARNO LUX

LIVARNO LUX 307577 1904 Especificaciones técnicas

LIVARNO LUX

LIVARNO LUX 300535 Especificaciones técnicas

LIVARNO LUX

LIVARNO LUX KH4246-01/11-V2 Manual de usuario

LIVARNO LUX

LIVARNO LUX 54515 Manual de usuario

LIVARNO LUX

LIVARNO LUX 101253 Instrucciones de instalación y funcionamiento

LIVARNO LUX

LIVARNO LUX LSL 10 A4 Manual de usuario

LIVARNO LUX

LIVARNO LUX 285629 Manual de usuario

LIVARNO LUX

LIVARNO LUX KH 4246 Manual de usuario

LIVARNO LUX

LIVARNO LUX HG00776A Especificaciones técnicas

LIVARNO LUX

LIVARNO LUX 284923 Especificaciones técnicas

LIVARNO LUX

LIVARNO LUX 14115702L Especificaciones técnicas

LIVARNO LUX

LIVARNO LUX HG05866A Especificaciones técnicas

Manuales populares de Luz exterior de otras marcas

Sealey

Sealey LED37 Manual de usuario

nordlux

nordlux VEJERS Guía del usuario

SImx

SImx ELITE LED LHTC637 Manual de usuario

GEV

GEV CAROLINE 10833 Manual de usuario

NEBO

NEBO NEB-LSP-0020 Manual de usuario

WE-EF

WE-EF PFL540 LED Manual de usuario

Lindby

Lindby 9949029 Manual de usuario

HEPER

HEPER DOGO Side LW6048.585-US Instrucciones de instalación y funcionamiento

HEPER

HEPER LW8034.003-US Instrucciones de instalación y funcionamiento

Maretti

Maretti VIBE S 14.6080.04.A Manual de usuario

BEGA

BEGA 84 253 Manual

HEPER

HEPER MINIMO Instrucciones de instalación y funcionamiento

LIGMAN

LIGMAN BAMBOO 3 Manual de usuario

Maretti

Maretti TUBE CUBE WALL 14.4998.04 Manual de usuario

Maxim Lighting

Maxim Lighting Carriage House VX 40428WGOB Manual de usuario

urban ambiance

urban ambiance UQL1273 Manual de usuario

TotalPond

TotalPond 52238 Manual de usuario

Donner & Blitzen

Donner & Blitzen 0-02661479-2 Manual de usuario
