LINK-MI LM-WX700 Manual de usuario

-1-

Table of Contents

Important Information..................................................................... - 2 -

Safety Precautions...................................................................- 2 -

Special Notice:......................................................................... - 2 -

Introduction...................................................................................... - 3 -

Product Details......................................................................... - 3 -

Specification............................................................................. - 4 -

Product Features:.................................................................... - 5 -

Packing List......................................................................- 7 -

Machine Information................................................................ - 7 -

Transmitter(TX)................................................................. - 8 -

Receiver(RX)...................................................................- 10 -

Uses your equipment................................................................... - 12 -

Channel setting............................................................................. - 12 -

TX channels changing.......................................................... - 12 -

RX channels changing..........................................................- 12 -

Trouble-shooting........................................................................... - 13 -

FCC Statement............................................................................. - 14 -

FCC Radiation Exposure Statement......................................... - 14 -

Cautions!........................................................................................ - 14 -

-2-

Important Information

Please take the time to read this user manual before use the product, it contains all notes and important

information regarding your wireless HD video transmission system.

Our limited warranty applies when the products is handled properly for intended use, in accordance with

its operating instruction.

However the warranty may be void in the following cases:

Repairs or product modification have been executed by unauthorized service personnel.

The damages are caused by accidents including but not limited to, lighting, exposed to rain or

water and moisture.

Use of a DC adapter not compatible with the product and its voltage rating range

The model number on the product has been modified or the warranty tag has been removed

Safety Precautions

Warning

This product should not be exposed to dripping or splashing.

Place receiver/transmitter on a flat, hard and stable surface

Ventilation: Do not block the ventilation slots on the receiver/transmitter or place any heavy object

on the top cover

Put the receiver/transmitter in a property ventilated area, away from direct sunlight or any source

of heat.

Water Exposure: To reduce the risk of fire or electric shock, do not expose the receiver/transmitter

to rain or moisture.

Our company has the right to modify this document without any notice.

Special Notice:

Use of this product in the following locations may result in abnormal video and audio output(noise,

blocked image… etc.)

1. Product installed in the walls made of concrete.

2. Product is situated near the refrigerator or metal fitment.

3. A cluttered room where the wireless signals may be blocked.

This product has been tested and manufactured to comply with each country’s safety rules.

However, there is no guarantee that interference will not occur in some installation scenario. If the

interference happens, increase the distance between the transmitter and receiver.

-3-

Introduction

Product Details

LINK-MI LM-WX700 is main consist of one transmitter(TX) and one

receiver (RX).

-4-

Specification

ITEM

SPECIFICATION

Frequency

5.1-5.9(GHz)*Subject to different RF

regulations in different regions.

Bandwidth

40MHz

Video Formats

Supported

1080p 23.98/24/25/30/50/60

1080psf 23.98/24/25

1080i 50/59.94/60

720p 50/59.94/60

576p 576i 480p 480i

Audio Formats

Supported

PCM, DTS-HD, Dolby TrueHD

Transmission Range

>2296FT(Line of sight)

Transmitter

Antenna

External Antenna × 2pcs

Transmission Power

18dBm

Functional Interface

HDMI Input; SDI Input; SDI Loop Output; Mini

USB; LEMO Power IN; Antenna RPSMA

Socket; Power ON/OFF

Mounting Structure

1/4” Hot-shoe connection

OLED Display

Wireless Channel Info; video status; Battery

info.

Working Voltage

9-18V by DC input, F970 battery

Power Consumption

7-8W

Net Weight(with

antenna)

400g

Dimensions

142.5×76×24.3mm

Temperature

-10-50℃(Operating); -40-80℃(Storage)

Receiver

Antenna

External Antenna × 5pcs

Receiving Sensitivity

-70dBm

-5-

Functional Interface

SDI Dual Output; HDMI Output; Mini USB;

LEMO Power IN; Antenna RPSMA Socket;

Power ON/OFF

Locating Structure

1/4” Hot-shoe connection

OLED Display

Wireless Channel Info; SDI/HDMI Input Info;

Signal Status; Power Info

Working Voltage

9-18V by DC input, SONY V-mount battery

Power Consumption

7-8W

Net Weight(with

antenna)

800g

Dimensions

169.5×122×25.2mm

Temperature

-10-50℃(Operating); -40-80℃(Storage)

*Since the product’s improving process, all the performance, design and specifications

of our products are subject to minor change without prior notice.

Product Features:

Uncompressed 3G/HD/SD-SDI and HDMI,up to 1080p 50/60

Less than 1 frame latency

There is no discernible video delay and you can use it as real time

on-location monitoring.

Operating range: 2296FT (line of sight), the transmission distance

may be different, depend on surroundings, radio wave conditions,

buildings block, etc.

Operating band: 5GHz ISM band

Multicast support

Support one transmitter to multi receivers. User can set channel to

pair both the transmitter and receivers.

AES 128 encryption

OLED shown in work status

All-Metal Shell

Simple connection

The wireless system is plug-and-play designed, without any software

configuration.

-6-

Remark:

1. Fix the two antennas to the transmitter and arrange them to be a right

angle as below figure to get better performance.

2. On transmitter side, when both SDI and HDMI source are inputted, the

transmitter will automatically select the SDI source

3. Fix the five antennas to receiver and arrange them to a right angle as

figure to get better performance.

4. Set the receiver higher will enhance the transmission distance.

-7-

Connection

Packing List:

Transmitter TX 1pcs

Receiver RX 1pcs

7” Articulating Arm 1pcs

SDI Cable 2pcs

Hot-shoe Stand 1pcs

DC Convert Cable 2pcs

5G Antenna 8pcs

Flight Case 1pcs

Outer Packing Cartons 1pcs

-8-

Machine Information

Transmitter(TX)

-9-

STRUCTURE

OLED Display

Displays information of channel, Video status and battery capacity.

UP Button

Channel +

DOWN Button

Channel -

MENU Button

Unlock the channel and Confirm the Selection

Power ON/OFF

Turn on or OFF the transmitter

SDI IN

Connect to SDI Video Source

SDI OUT(Loop Through)

Connect to the your monitor or other

HDMI IN

Connect to HDMI Video source

DC IN(Lemo)

Support 9-18V

Antenna Connector x2

Fix antennas

Battery Clip

Battery compartment, for F550/F970 battery

- 10 -

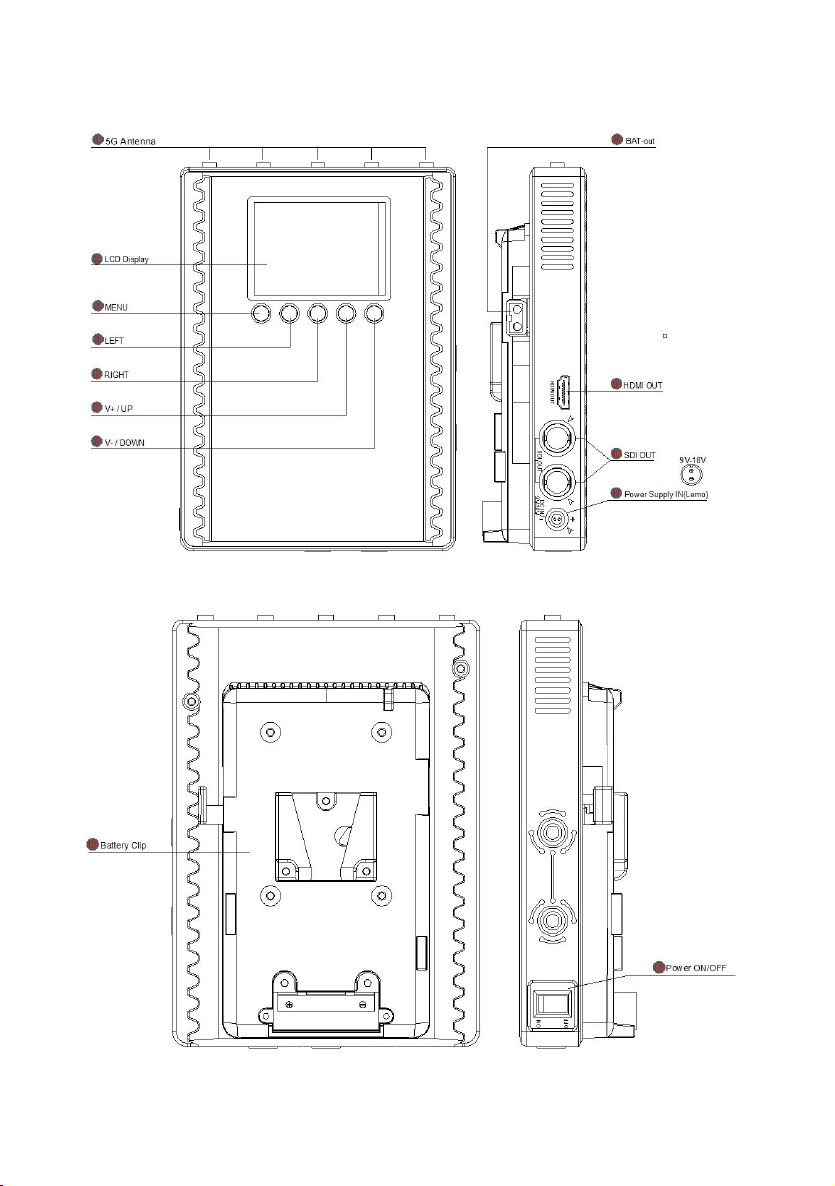

Receiver(RX)
