Link electronics PAF-826 Manual de usuario

800 SERIES

MADE IN THE USA

LINK ELECTRONICS, INC.

8 INPUT STEREO AUDIO FOLLOW, RS-232/485

MODEL PAF-826

FEATURES

16 Inputs

Digital Switching

Balanced Differential

One Rack Unit Cabinet

Output Impedance, 66Ω

RS-232, RS-422, RS-485

The PAF-826 is a professional stereo audio follow

switcher for the video companion. The high

impedance balanced input circuits reduce loading

effectsandnoiseontheincomingsignals.Thelow

output impedance of 66Ωprovides a maximum

levelof +24dBu. The input and output connections

are printed circuit spring terminal blocks. The

terminalblocksprovidereliableclampingactionfor

secure and reliable operation due to a force

amplifying hinge motion.

A nine pin female D connector provides serial

interfacetocomputerormodemforRS-232control

which is standard in all units. The switcher is

available in other models for stereo, mono or four

channel operation.

The RJ-11 telephone connector allows servral

audio follow units operate in tandem, so several

levels of audio may be achieved.

There are no push buttons on the front panel as

the PAF-826 gets its control functions from the

VSWseriesswitchersorRS-232froma computer.

Multiple switchers can be controlled by a single

remotecontrolpanel, PSRseries.ThePAF-826is

RS-232controlledandremotecontrolisRS-422or

RS-485 via an RJ11 telephone connector and

cable assembly.

The PAF-826 is a stereo audio-only switcher with

digital switching logic combined with high

performance audio circuitry to form the foundation

for the next generation of audio routing switchers.

All VSW, ASW, PAF and PSR series units

occupies on rack space. Each unit includes a

power supply for reliable operation.

The PAF-826 operates as an audio follow for the

VSW-800 series video switchers or as a stand-a-

lone audio switcher.

LINKELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668

Phone 573 334 4433 FAX 573 334 9255

PAF-826 8 X 1 STEREO FOLLOW SWITCHER

SPECIFICATIONS

INPUTS:

Number: ................................................................. 16,Stereo

Impedance: ........................................................... 20KΩ, Looping

Configuration: .....................................................BalancedDifferential

MaxLevel:.................................................................. +24dBu

OUTPUTS:

Number: ................................................................... Two(2)

Level:...................................................................... +24dBu

Impedance: ............................................................... 66Ω± 5%

Frequency Response: ............................................±0.02dB, 20Hz to 20KHz

InsertionGain:...............................................................±0.05dB

SlewRate:...........................................................>30V/µBalanced

Signal-to-Noise: ................................................... >100dB A Wtd +8dBu

THD: ............................................................. <0.004% @ 20KHz

Crosstalk: ............................................................ 95dB @ 20KHz

Output DC Offset: .............................................................<10mV

Common Mode Rejection: ............................................... >80dB @ 20KHz

OutputIsolation: ..................................................... >100dB @ 20KHz

ENVIRONMENTAL:

Temperature:.......................................................... 0to50ambient

Humidity: ................................................... 0%to90%non-condensing

POWER:

Input: .............................................................120/240 VAC ±10%

Power:......................................................................7watts

MECHANICAL:

Height:.................................................................. 1.75Inches

Width: ....................................................................19Inches

Depth: ................................................................... 8.7Inches

Weight: .................................................................... 6.5Lbs.

LINKELECTRONICS, INC.

2137 Rust Avenue

Cape Girardeau, MO 63703

Phone: 573 334 4433

FAX: 573 334 9255

PROFESSIONAL SERIES--

stand-alone system products--by LINK

Otros manuales de Cambiar de Link electronics

Link electronics

Link electronics AVS-816/VA Manual de usuario

Link electronics

Link electronics 861-XL161J Manual de usuario

Link electronics

Link electronics 861-XL1616G Manual de usuario

Link electronics

Link electronics PAF-823 Manual de usuario

Link electronics

Link electronics Vertical Blanking Insertion IEC-787 Manual de usuario

Link electronics

Link electronics 860-XL818C Manual de usuario

Link electronics

Link electronics 861-XL818G Manual de usuario

Link electronics

Link electronics AVS-816/HDD Manual de usuario

Link electronics

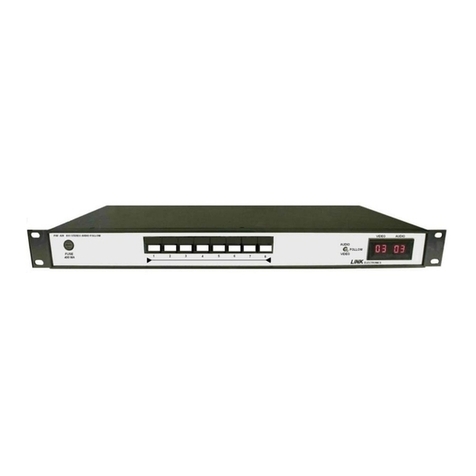

Link electronics PAF-820 Manual de usuario
