DEMO MANUAL DC2230A-B

Description

LTM4636-1

40A DC/DC µModule Regulator with

Overvoltage/Overtemperature Protection

Demonstration circuit 2230A-B features the LT M

4636-

1EY, a 40A high efficiency, switch mode step-down power

µModule

regulator withovertemperature and input/output

overvoltage protection. The input voltage range is from

4.7V to 15V. For input voltage range from 4.7V to 5.5V,

short PVCC pin to VIN pin with R8 = R21 = 0Ω and remove

R17. The output voltage range is 0.6V to 3.3V. Derating

is necessary for certain VIN, VOUT, frequency and thermal

conditions. The board operates in continuous conduc-

tion mode in heavy load conditions. For high efficiency

at low load currents, the MODE_PLLIN jumper selects

pulse-skipping mode for noise sensitive applications or

Burst Mode

operation in less noise sensitive applica-

L, LT, LTC, LTM, Linear Technology, the Linear logo, Burst Mode and μModule are registered

trademarks of Linear Technology Corporation. All other trademarks are the property of their

respective owners.

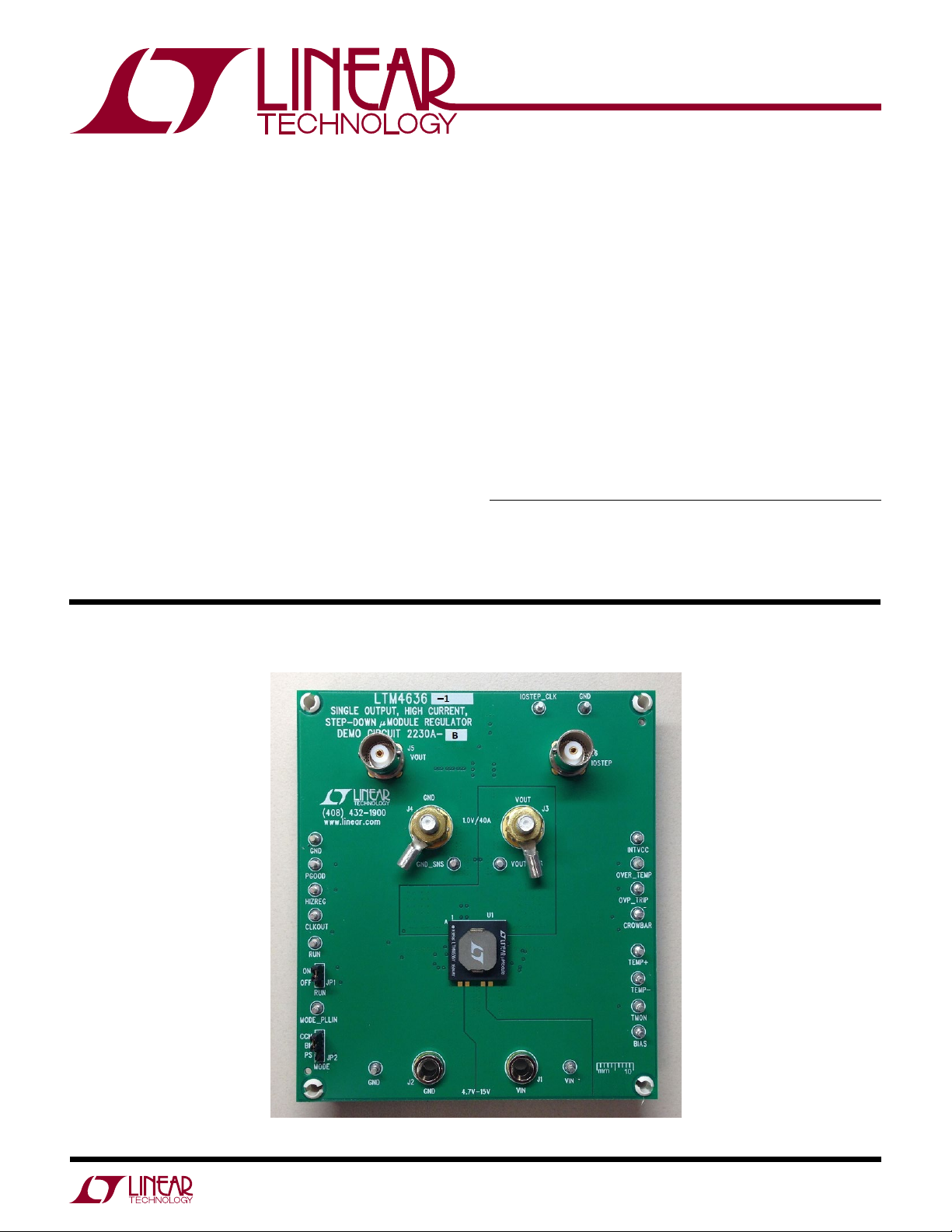

BoarD photo

tions. The MODE_PLLIN pin also allows the LTM4636

to synchronize to an external clock signal. DC2230A-B

has the option of choosing both internal and external

compensation circuit for LTM4636-1. Tying the PHASMD

pin to different voltage generates certain phase difference

between MODE_PLLIN and CLKOUT. The LTM4636-1 data

sheet must be read in conjunction with this demo manual

prior to working on or modifying demo circuit DC2230A-B.

Design files for this circuit board are available at

http://www.linear.com/demo/DC2230A-B

dc2230abf

DEMO MANUAL DC2230A-B

Quick start proceDure

performance summary

PARAMETER CONDITIONS/NOTES VALUE

Input Voltage Range 4.7V to 15V

Output Voltages 1.0V ± 1.3%

Maximum Continuous Output Current Derating is Necessary for Certain Operating Conditions. See Data Sheet for Details. 40ADC

Operating Frequency 350kHz

Efficiency VIN = 12V, VOUT = 1.0V, IOUT = 40A, Q2 Not Included 87.7% (see Figure 2)

Load Transient VIN = 12V, VOUT = 1.0V, ISTEP = 0A to 10A 81mV (see Figure 3)

Overtemperature Trip Point ROTP = R56 = 66.5kΩ 130°C

Overvoltage Trip Point ROVP = R10 = 86.6kΩ 1.18V

Demonstration circuit 2230A-B is an easy way to evalu-

ate the performance of the LTM4636-1EY. Please refer to

Figure1 for proper measurement equipment setup and

follow the procedure below.

1. Place jumpers in the following positions for a typical

application:

MODE RUN

CCM ON

2. With power off, connect the input power supply, load

and meters as shown in Figure 1. Preset the load to 0A

and VIN supply to 12V.

3. Turn on the power supply at the input. The output volt-

age should be 1.0V ± 1.3% (0.987V to 1.013V).

4. Vary the input voltage from 6V to 15V and adjust the

load current from 0A – 40A. Observe the output volt-

age regulation, ripple voltage, efficiency, and other

parameters.

5. (Optional) For optional load transient test, apply an

adjustable pulse signal between IOSTEP_CLK and GND

test points. The pulse amplitude sets the load step cur-

rent amplitude. Keep the pulse width short (<1ms) and

pulse duty cycle low (<5%) to limit the thermal stress

on the load transient circuit.

6. (Optional) LTM4636 can be synchronized to an external

clock signal. Place the JP1 jumper on EXT_CLK and

apply a clock signal (0V to 5V, square wave) on the

MODE_PLLIN test point.

dc2330abf

DEMO MANUAL DC2230A-B

Figure 1. Measurement Setup of DC2230A-A

–

LOAD

Quick start proceDure

Figure 1. Proper Measurement Equipment Setup

dc2230abf

DEMO MANUAL DC2230A-B

Quick start proceDure

Figure 2. Measured Efficiency at VIN = 5V/12V, VOUT = 1V, fSW = 350kHz, CCM, Q2 Not Included

Figure 3. Measured Load Transient, VIN = 12V, VOUT = 1.0V, ISTEP = 0A to 10A

OUT

50mV/DIV

OUT_STEP

10A/DIV

Figure 4. Thermal Image, VIN = 12V, VOUT = 1.0V, ILOAD = 40A, Ambient Temperature = 23.0°C, No Forced Airflow

OUTPUT CURRENT (A)

100

EFFICIENCY (%)

dc2230ab F02

12VIN

5VIN

dc2330abf

DEMO MANUAL DC2230A-B

parts List

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART #

Required Circuit Components

1 1 CIN1 CAP, ALUM ELECT, 150µF, 25V, CE SERIES SUN ELECT, 25CE150AX

2 6 CIN4, CIN5, CIN6, CIN7, CIN8, CIN9 CAP, 22µF, X5R, 16V, 20%,1210 MURATA, GRM32ER61C226ME20

3 8 COUT1, COUT2, COUT3, COUT4,

COUT6, COUT7, COUT11, COUT12

CAP, 100µF, X5R, 6.3V, 20%,1210 MURATA, GRM32ER60J107ME20L

4 3 COUT8, COUT13, COUT14 CAP, POSCAP, 470µF, 2.5V, 20%, D3L PANASONIC, 2R5TPE470M9

5 1 C15 CAP, 100pF, NP0, 50V, 5%, 0603 MURATA, GRM1885C1H101JA01D

6 1 C17 CAP, 0.01µF, X7R, 25V, 10%, 0603 AVX, 06033C103KAT2A

7 1 C18 CAP, 2200pF, X7R, 25V, 10%, 0603 MURATA, GRM188R71E222KA01D

8 2 C19, C25 CAP, 0.1µF, X5R, 16V, 10%, 0603 MURATA, GRM188R61C104KA01D

9 1 C22 CAP, 4.7µF, X5R, 10V, 10%, 0603 TDK, C1608X5R1A475K080AC

10 1 C23 CAP, 1µF, X5R, 25V, 10%, 0603 MURATA, GRM188R61E105KA12D

11 1 C24 CAP, 22µF, X5R, 6.3V, 20%, 0805 KEMET, C0805C226M9PACTU

12 1 C26 CAP, 1µF, X5R, 25V, 10%, 0603 MURATA, GRM188R61E105KA12D

13 1 Q1 XSTR, MOSFET, N-CH, 40V, 50A, TO-252 VISHAY, SUD50N04-8M8P-4GE3

14 1 R9 RES, 7.5k, 0.5%, 0603 VISHAY, CRCW06037K5FKEA

15 1 R10 RES, 86.6k, 1/10W, 1%, 0603 VISHAY, CRCW060386K6FKEA

16 4 R11, R12, R16, R54 RES, 10k, 1/10W, 1%, 0603 VISHAY, CRCW060310K0FKEA

17 2 R13, R14 RES, 10k, 1/10W, 1%, 0603 VISHAY, CRCW060310K0FKEA

18 1 R18 RES, 15k, 1/10W, 1%, 0603 VISHAY, CRCW060315K0FKEA

19 1 R20 RES, 100k, 1/10W, 1%, 0603 VISHAY, CRCW0603100K0FKEA

20 2 R25, R32 RES, 10Ω, 1/10W, 1%, 0603 VISHAY, CRCW060310R0FKEA

21 1 R35 RES, 2.2, 1/8W, 5%, 0805 VISHAY, CRCW08052R20JNEA

22 1 R40 RES, 34.8k, 1/10W, 1%, 0603 VISHAY, CRCW060334K8FKEA

23 1 R55 RES, SENSE, 0.01Ω, 1/2W, 1%, 2010 VISHAY, WSL2010R0100FEA

24 1 R56 RES, 66.5k, 1/10W, 1%, 0603 VISHAY, CRCW060366K5FKEA

25 1 U1 LTM4636-1EY#PBF, 16X16X5.01 BGA LINEAR TECHNOLOGY, LTM4636-1EY#PBF

Additional Demo Board Circuit Components

1 0 COUT9 (OPT) CAP, OPTION, D3L OPT

2 0 COUT10, COUT15, COUT16 (OPT) CAP, OPTION, 1210 OPT

3 0 C14, C16 (OPT) CAP, OPTION, 0603 OPT

4 0 R8, R15, R19, R21, R22, R38 (OPT) RES, OPTION, 0603 OPT

5 4 R17, R23, R24, R33 RES, 0Ω, 1/10W, 0603 VISHAY, CRCW06030000Z0EA

6 0 Q2 XSTR, OPT, TO-252 OPT

dc2230abf

DEMO MANUAL DC2230A-B

parts List

Hardware

1 20 E1 TO E20 TEST POINT, TURRET, 0.064" MTG. HOLE MILL-MAX, 2308-2-00-80-00-00-07-0

2 1 JP1 CONN, HEADER, 1 × 3, 2mm SULLINS, NRPN031PAEN-RC

3 1 JP2 CONN, HEADER, 1 × 4, 2mm SULLINS, NRPN041PAEN-RC

4 2 J1, J2 CONN, JACK, BANANA, NON-INSULATED,

0.218"

KEYSTONE, 575-4

5 2 J3, J4 STUD, TEST PIN PEM, KFH-032-10

6 4 J3, J4 × 2 NUT, BRASS 10-32 ANY, #10-32M/S BR PL

7 2 J3, J4 RING, LUG #10 KEYSTONE, 8205

8 2 J3, J4 WASHER, TIN PLATED BRASS ANY, #10 EXT BZ TN

9 2 J5, J6 CONN, BNC, 5PINS CONNEX, 112404

10 2 XJP1, XJP2 SHUNT, 2mm SAMTEC 2SN-BK-G

11 4 (STAND-OFF) STANDOFF, NYLON, SNAP-ON, 0.500" KEYSTONE, 8833 (SNAP ON)

dc2330abf

DEMO MANUAL DC2230A-B

Information furnished by Linear Technology Corporation is believed to be accurate and reliable.

However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-

tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.

schematic Diagram

D D

C C

B B

A A

NOTE: UNLESS OTHERWISE SPECIFIED

1. ALL RESISTORS AND CAPACITORS ARE 0603.

25V

4.7V - 15V

2.5V

EEFGX0E471L

OFF

WHEN VIN < 5.5V, SHORT PVCC TO VIN WITH R8 =R21= 0ohm and remove R17.

1.0V / 40A

DYNAMIC LOAD CIRCUIT

DO NOT EXCEED 5% DUTY CYCLE!

MODE

CCM

VIN

GND

‐A OPTLTM4636EY

C17 *Q2

‐B

R10

OPT

ASSY I.C.

OPT

LTM4636EY‐1 10nF

C26

1uF

OPT

86.6k

R13,R14

OPT

10k

R20

OPT

100k

R24

OPT

R56

OPT

66.5k SUD50N04

VOSNS+

VIN VOUT

VOUT

BIAS

PVCC

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

PRODUCTION

3 09-22-16

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

PRODUCTION

3 09-22-16

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

PRODUCTION

3 09-22-16

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Thursday, September 22, 2016

STEP-DOWN MODULE REGULATOR

LTM4636EY

DEMO CIRCUIT 2230

SINGLE OUTPUT, HIGH CURRENT,

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Thursday, September 22, 2016

STEP-DOWN MODULE REGULATOR

LTM4636EY

DEMO CIRCUIT 2230

SINGLE OUTPUT, HIGH CURRENT,

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Thursday, September 22, 2016

STEP-DOWN MODULE REGULATOR

LTM4636EY

DEMO CIRCUIT 2230

SINGLE OUTPUT, HIGH CURRENT,

COUT4

100uF

1210

VIN

HIZREG

COUT1

100uF

COUT7

100uF

1210

R16

10K

R21

OPT

R17

C25

0.1uF

C24

22uF

0805

R19

OPT

R10

C23

1uF

R55

0.01

2010

COUT12

100uF

1210

E20

BIAS

COUT11

100uF

1210

CIN5

22uF

1210

IOSTEP

R33

C18

2200pF

PGOOD

COUT16

OPT

1210

CIN9

22uF

1210

R54

10K

J3 VOUT

COUT10

OPT

1210

R14

E17

CLKOUT

R56

C14

OPT

R25

COUT15

OPT

1210

LTM4636EY / LTM4636EY-1

GMON H9

SNSP1 F2

TEST3 H2

HIZREG

PGOOD

SW L11

RUNP

CLKOUT G3

SNSP2 F1

TEST2 F5

RUNC

E2 TRACK/SS E3

VFB E4

TEST4 / CROWBAR E11

GND

M10

GND / OVP_SET

E12

COMPB D5

COMPA E5

NC / BIAS G9

PHASEMD

TEMP+ G12

TEMP- G11

GND

M12

VOSNS1 D4

VOSNS- D3

GND / OVP_TRIP

E10

INTVCC

MODE_PLLIN

PWM H7

PVcc

GND / OVER_TEMP

D10

TEST1 H4

GND

FREQ

GND

TMON H8

GND

M11

SGND

SW K11

VOUT A1

VOUT A2

VOUT A3

VOUT A4

VOUT A5

VOUT A6

VOUT A7

VOUT A8

VOUT A9

VOUT A10

VOUT A11

VOUT A12

VOUT B1

VOUT B2

VOUT B3

VOUT B4

VOUT B5

VOUT B6

VOUT B7

VOUT B8

VOUT B9

VOUT B10

VOUT B11

VOUT B12

VOUT C1

VOUT C2

VOUT C3

VOUT C4

VOUT C5

VOUT C6

VOUT C7

VOUT C8

VOUT C9

VOUT C10

VOUT C11

VOUT C12

VOUT D1

VOUT D2

VOUT D11

VOUT D12

GND

F10

GND / OTP_SET

F11

GND

F12

GND

G10

GND

H10

GND

H11

GND

H12

GND

J10

GND

J11

GND

J12

GND

K10

GND

K12

GND

L10

GND

L12

VIN H5

VIN H6

VIN J4

VIN J5

VIN J6

VIN J7

VIN K4

VIN

VIN M4

VIN M5

VIN M6

VIN M7

VIN M8

COUT14

470uF

C19

0.1uF

R20

R18

15k

JP2

C15

100pF

E11

IOSTEP_CLK

R11

10K

E16

TMON

C16

OPT

7.5k

E13

CROWBAR

COUT8

470uF

VOUT

R32

OPT

E14

VOUT_SNS

R24

R23

COUT9

OPT

COUT13

470uF

C26

COUT3

100uF

COUT6

100uF

1210

COUT2

100uF

GND

R35

2.2

0805

CIN8

22uF

1210

E10

RUN

MODE_PLLIN

CIN7

22uF

1210

OVER_TEMP

R40

34.8k

CIN1

150uF

R15

OPT

E12

GND

JP1

RUN

R13

INTVCC

R22

OPT

E18

TEMP+

R12

10K

CIN6

22uF

1210

E15

GND_SNS

C22

4.7uF

R38

OPT

C17

CIN4

22uF

1210

E19

TEMP-

OVP_TRIP

GND

SUD50N04-8M8P

GND

dc2230abf

DEMO MANUAL DC2230A-B

Linear Technology Corporation

1630 McCarthy Blvd., Milpitas, CA 95035-7417

(408) 432-1900 ●FAX: (408) 434-0507 ●www.linear.com

LT 0217 • PRINTED IN USA

DEMONSTRATION BOARD IMPORTANT NOTICE

Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions:

This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT

OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete

in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety

measures typically found in finished commercial goods. As a prototype, this product does not fall within the scope of the European Union

directive on electromagnetic compatibility and therefore may or may not meet the technical requirements of the directive, or other regulations.

If this evaluation kit does not meet the specifications recited in the DEMO BOARD manual the kit may be returned within 30 days from the date

of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY THE SELLER TO BUYER AND IS IN LIEU

OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS

FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THIS INDEMNITY, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR

ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user releases LTC from all claims

arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to take any and all

appropriate precautions with regard to electrostatic discharge. Also be aware that the products herein may not be regulatory compliant or

agency certified (FCC, UL, CE, etc.).

No License is granted under any patent right or other intellectual property whatsoever. LTC assumes no liability for applications assistance,

customer product design, software performance, or infringement of patents or any other intellectual property rights of any kind.

LTC currently services a variety of customers for products around the world, and therefore this transaction is not exclusive.

Please read the DEMO BOARD manual prior to handling the product. Persons handling this product must have electronics training and

observe good laboratory practice standards. Common sense is encouraged.

This notice contains important safety information about temperatures and voltages. For further safety concerns, please contact a LTC application

engineer.

Mailing Address:

Linear Technology

1630 McCarthy Blvd.

Milpitas, CA 95035

Tabla de contenidos

Otros manuales de Placa madre de Linear

Linear

Linear DC2073A Guía de configuración rápida

Linear

Linear Analog Devices DC2721A-B Guía de configuración rápida

Linear

Linear Analog Devices DC1842B Guía de configuración rápida

Linear

Linear DC1395A Manual de usuario

Linear

Linear DC2194A Guía de configuración rápida

Linear

Linear 747 Manual de usuario

Linear

Linear DC1194A Guía de configuración rápida

Linear

Linear DC2007A-B Guía de configuración rápida

Linear

Linear DC1892A Guía de configuración rápida

Linear

Linear ADI Power SCP-LT3461-EVALZ Guía de configuración rápida

Linear

Linear LT3995 Guía de configuración rápida

Linear

Linear ADI Power SCP-LT1962-EVALZ Guía de configuración rápida

Linear

Linear DC266B-A Guía de configuración rápida

Linear

Linear DC1685A Guía de configuración rápida

Linear

Linear DC1719A Guía de configuración rápida

Linear

Linear DC2048A Guía de configuración rápida

Linear

Linear DC1339 Manual de usuario

Linear

Linear DC1630A Guía de configuración rápida

Linear

Linear DC2106A-B Guía de configuración rápida

Linear

Linear ANALOG DEVICES DC2685B Guía de configuración rápida

Linear

Linear Analog Devices LTC4040 Guía de configuración rápida

Linear

Linear DC768 Manual de usuario

Linear

Linear DC2002A Guía de configuración rápida

Linear

Linear DC1198B-B Guía de configuración rápida

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
