DEMO MANUAL DC2106A-B

Description

LTM4676EY

High Efficiency, PolyPhase

, DC/DC

Step-Down μModule Regulator with

PMBus Power System Management

Demonstration circuit 2106A-B is a high efficiency, high

density, µModule regulator with 4.5V to 16V input range.

The output voltage is adjustable from 0.5V to 1.8V, and it

can supply 130A maximum load current. The demo board

has 1×LT M

4676 and 3×LTM4630 µModule regulators.

The LTM4676 is a dual 13A or single 26A step-down

regulatorwithPMBus power system management, and the

LTM4630 is a dual 18A or single 36A step-down regulator.

Please see LTM4676 and LTM4630 data sheets for more

detailed information.

DC2106A-B powers up to default settings and produces

power based on configuration resistors without the need

for any serial bus communication. This allows easy evalu-

ation of the DC/DC converter. To fully explore the extensive

power system management features of the part, download

the GUI software LTpowerPlay™ onto your PC and use

L, LT, LTC, LTM, Linear Technology, the Linear logo, Dust Networks, Dust and PolyPhase are

registered trademarks and LTpowerPlay is a trademark of Linear Technology Corporation. All

other trademarks are the property of their respective owners.

LT C ’s I2C/SMBus/PMBus dongle DC1613A to connect to

the board. LTpowerPlay allows the user to reconfigure the

part on the fly and store the configuration in EEPROM,

and view telemetry of voltage, current, temperature and

fault status.

GUI Download

The software can be downloaded from:

http://www.linear.com/ltpowerplay

For more details and instructions of LTpowerPlay, please

refer to LTpowerPlay GUI for LTM4676 Quick Start Guide.

Design files for this circuit board are available at

http://www.linear.com/demo/DC2106A-B

Figure 1. LTM4676/DC2106A-B Demo Circuit

dc2106abf

DEMO MANUAL DC2106A-B

Quick start proceDure

Demonstration circuit 2106A-B is easy to set up to evalu-

ate the performance of the LTM4676EY. Refer to Figure 2

for the proper measurement equipment setup and follow

the procedure below.

1. With power off, connect the input power supply to VIN

(4.5V to 16V) and GND (input return).

2. Connect the output load between VOUT0 and GND (Initial

load: no load).

3. Connect the DVMs to the input and outputs. Set default

switch position: SW1: ON; SW2: ON.

4. Turn on the input power supply and check for the proper

output voltages. VOUT0 should be 1V ±1%.

5. Once the proper output voltages are established, ad-

just the loads within the operating range and observe

the output voltage regulation, ripple voltage and other

parameters.

6. Connect the dongle and control the output voltages

from the GUI. See “LTpowerPlay GUI for the LTM4676

Quick Start Guide” for details.

Note: When measuring the output or input voltage ripple,

do not use the long ground lead on the oscilloscope probe.

See Figure 3 for the proper scope probe technique. Short,

stiff leads need to be soldered to the (+) and (–) terminals

of an output capacitor. The probe’s ground ring needs to

touch the (–) lead and the probe tip needs to touch the

(+) lead.

Connecting a PC to DC2106A-B

You can use a PC to reconfigure the power management

features of the LTM4676 such as: nominal VOUT, margin

setpoints, OV/UV limits, temperature fault limits, sequenc-

ing parameters, the fault log, fault responses, GPIOs and

other functionality. The DC1613A dongle may be plugged

when VIN is present.

performance summary

Specifications are at TA= 25°C

PARAMETER CONDITION VALUE

Input Voltage Range 4.5V to 16V

Output Voltage, VOUT0 VIN = 4.5V to 16V, IOUT0 = 0A to 130A 0.5V to 1.8V, Default: 1V

Maximum Output Current, IOUT0 VIN = 4.5V to 16V, VOUT = 0.5V to 1.8V 130A

Typical Efficiency VIN = 12V, VOUT = 1V, IOUT = 130A 82.9%

Default Switching Frequency 350kHz

Table 1. LTM4676 Demo Cards for Up to 130A Point-of-Load Regulation

MAXIMUM OUTPUT CURRENT NUMBER OF OUTPUT VOLTAGES

NUMBER OF LTM4676 µMODULE

REGULATORS ON THE BOARD DEMO BOARD NUMBER

13A, 13A 2 1 DC1811A

26A 1 1 DC2087A

50A 1 2 DC1989A-A

75A 1 3 DC1989A-B

100A 1 4 DC1989A-C

100A 1 1 (+ 3×LTM4620A) DC2106A-A

130A 1 1 (+ 3×LTM4630) DC2106A-B

dc2106abf

DEMO MANUAL DC2106A-B

Quick start proceDure

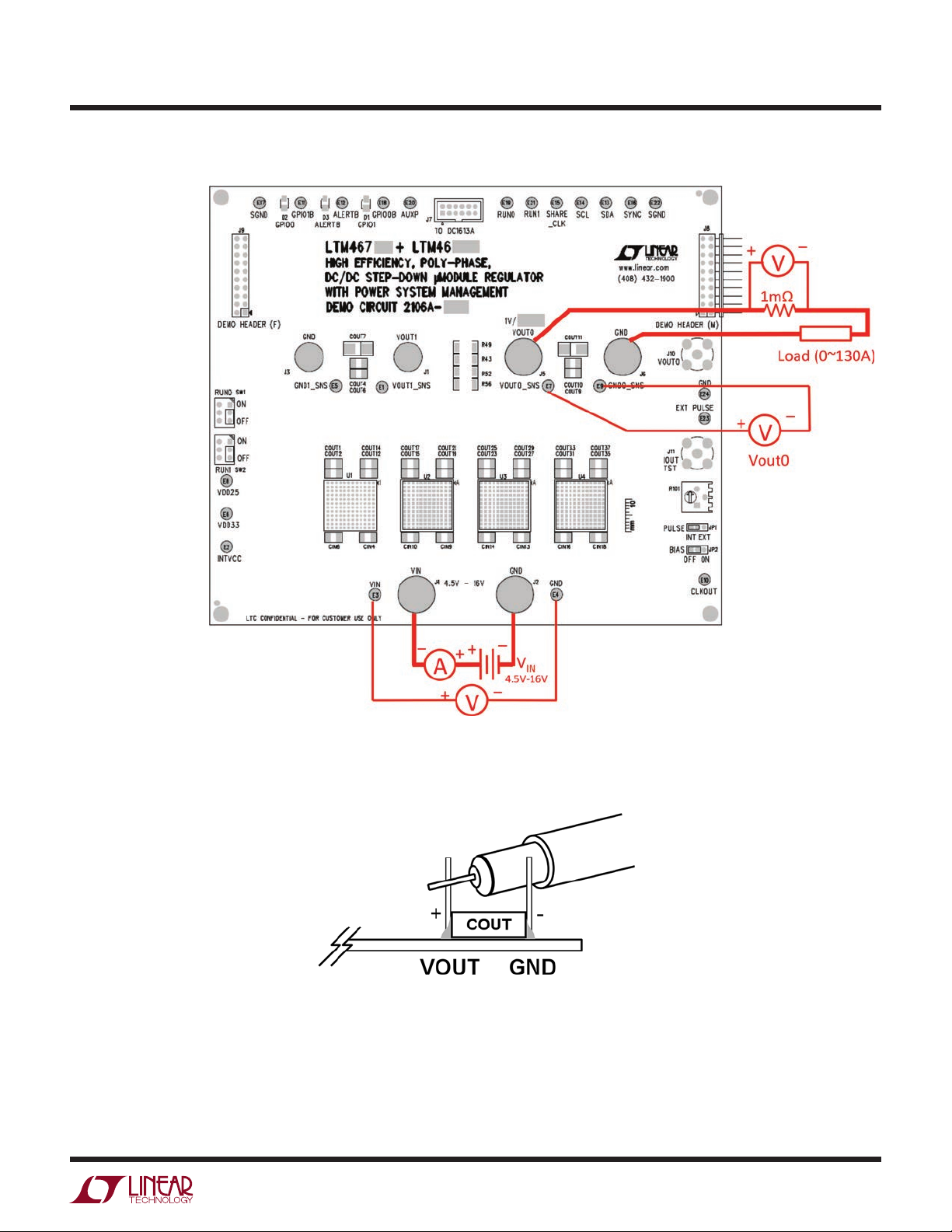

Figure 2. Proper Measurement Equipment Setup

Figure 3. Measuring Output Voltage Ripple

dc2106abf

DEMO MANUAL DC2106A-B

Quick start proceDure

Figure 4. Demo Setup with PC

Figure 5. Efficiency vs Load Current at VIN = 12V

Efficiency vs Load Current

LOAD CURRENT (A)

EFFICIENCY (%)

0 13011010 30 907050

VIN = 12V

VOUT0 = 1V

350kHz

dc2106abf

DEMO MANUAL DC2106A-B

Quick start proceDure

Figure 6. Output Voltage VOUT0 vs Load Current

(VOUT0 RANGE = 0)

Figure 9. Current Sharing Performance at VIN = 12V, VOUT0 = 1V

Figure 7. Output Voltage Ripple at VIN = 12V,

VOUT0 = 1V, IOUT0 = 130A

Figure 8. Thermal Performance at VIN = 12V, VOUT0 = 1V, IOUT0 = 130A, TA= 23.3°C, Air Flow 300LFM

VOUT0 (20MHz BW) [50mV/DIV]

97.5A TO 130A LOAD STEP

VOUT0 (20MHz BW) [10mV/DIV]

0 13011010 30 907050

TOTAL LOAD CURRENT (A)

PER PHASE LOAD CURRENT (A)

U1_PHASE#1

U1_PHASE#2

U2_PHASE#1

U2_PHASE#2

U3_PHASE#1

U3_PHASE#2

U4_PHASE#1

U4_PHASE#2

dc2106abf

DEMO MANUAL DC2106A-B

Quick start proceDure

LTpowerPlay Software GUI

LTpowerPlay is a powerful Windows based development

environment that supports Linear Technology power sys-

tem management ICs, including the LTM4676, LTC3880,

LTC3883, LTC2974 and LTC2978. The software supports

a variety of different tasks. You can use LTpowerPlay to

evaluate Linear Technology ICs by connecting to a demo

board system. LTpowerPlay can also be used in an offline

mode (with no hardware present) in order to build a mul-

tichip configuration file that can be saved and reloaded at a

latertime.LTpowerPlayprovidesunprecedenteddiagnostic

and debug features. It becomes a valuable diagnostic tool

during board bring-up to program or tweak the power

management scheme in a system, or to diagnose power

issues when bringing up rails. LTpowerPlay utilizes the

DC1613A USB-to-SMBus controller to communicate with

one of many potential targets, including the LTM4676, the

LTC3880 and the LTC3883’s demo system, or a customer

board. The software also provides an automatic update

feature to keep the software current with the latest set

of device drivers and documentation. The LTpowerPlay

software can be downloaded from:

http://linear.com/ltpowerplay

To access technical support documents for LT C Digital

Power Products visit Help. View online help on the

LTpowerPlay menu.

LTpowerPlay QUICK START PROCEDURE

Thefollowingprocedure describes how touseLTpowerPlay

to monitor and change the settings of LTM4676.

1. Download and install the LTPowerPlay GUI:

http://linear.com/ltpowerplay

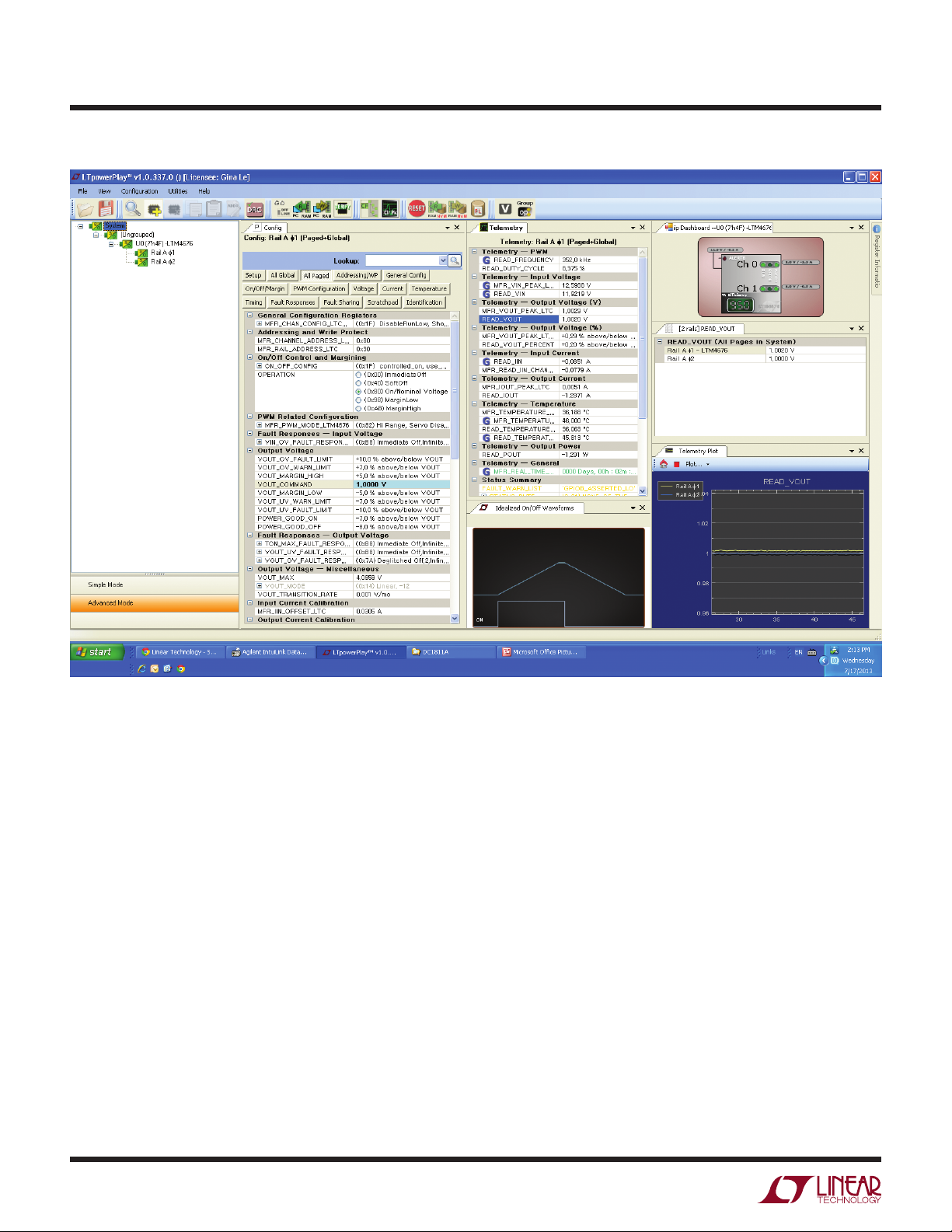

Figure 10. LTpowerPlay Main Interface

dc2106abf

DEMO MANUAL DC2106A-B

Quick start proceDure

2. Launch the LTpowerPlay GUI.

a. The GUI should automatically identify the DC2106A-B.

The system tree on the left hand side should look like this:

b. A green message box shows for a few seconds in the

lower left hand corner, confirming that LTM4676 is

communicating:

c. In the Toolbar, click the “R” (RAM to PC) icon to read the

RAM from the LTM4676. This reads the configuration

from the RAM of LTM4676 and loads it into the GUI.

d. If you want to change the output voltage to a different

value, like 1.5V. In the Config tab, type in 1.5 in the

VOUT_COMMAND box, like this:

Then, click the “W” (PC to RAM) icon to write these

you will see the output voltage will change to 1.5V.

If the write is successful, you will see the following

message:

e. You can save the changes into the NVM. In the tool bar,

click “RAM to NVM” button, as following

f. Save the demo board configuration to a (*.proj) file. Click

the Save icon and save the file. Name it whatever you want.

dc2106abf

DEMO MANUAL DC2106A-B

parts List

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 18 CIN1, CIN2, CIN4, CIN5, CIN6, CIN7, CIN8, CIN9,

CIN10, CIN11, CIN12, CIN13, CIN14, CIN15, CIN16,

CIN17, CIN18, CIN19

CAP., X5R, 10µF, 35V, 10%, 1210 AVX, 1210DD106KAT2A

2 1 CIN3 CAP., 150µF, 35V, ALUMINUM ELECTR., SUN ELECT., 35CE150AX

3 21 COUT2, COUT3, COUT4, COUT6, COUT9, COUT10,

COUT12, COUT13, COUT15, COUT16, COUT19,

COUT20, COUT23, COUT24, COUT27, COUT28,

COUT31, COUT32, COUT35, COUT36

CAP., X5R, 100µF, 6.3V, 20% 1210 AVX, 12106D107KAT2A

4 10 COUT5, COUT7, COUT18, COUT22, COUT26,

COUT30, COUT34, COUT38, COUT8, COUT11

CAP., 330µF, 6.3V, POSCAP, D4 SANYO, 6TPF330M9L

5 1 C5 CAP., X7R, 2.2nF, 16V, 10%, 0603

6 2 C7, C8 CAP., X7R, 10nF, 16V, 10%, 0603 AVX, 0603YC103KAT2A

7 3 C11, C18, C22 CAP., X5R, 2.2µF, 16V, 10%, 0603 TDK, C1608X5R1C225K

8 3 C12, C19, C23 CAP., X7R, 1µF, 16V, 10%, 0603 AVX, 0603YC105KAT2A

9 2 C31, C28 CAP., X7R, 1µF, 25V, 10%, 1206 AVX, 12063C105KAT2A

10 1 C26 CAP., X7R, 0.1µF, 25V, 10%, 1206 AVX, 12063C104KAT2A

11 1 C29 CAP., X5R, 1µF, 25V, 10%, 0805 AVX, 08053D105KAT2A

12 1 C24 CAP., X5R, 100nF, 16V, 10%, 0603 (0.1µF) AVX, 0603YD104KAT2A

13 1 C27 CAP., X7R, 150pF, 25V, 10%, 0603 AVX, 06033C151KAT2A

14 1 C30 CAP., X5R, 4.7µF, 10V, 10%, 0603 TDK C1608X5R1A475K

15 2 D1, D2 LED GREEN S-GW TYPE SMD PANASONIC LN1371SGTRP

16 1 D3 LED RED S-TYPE GULL WING SMD PANASONIC LN1271RTR

17 3 Q1, Q3, Q4 MOSFET N-CH 60V 115MA SOT-23 FAIRCHILD 2N7002K

18 1 Q2 MOSFET P-CH 20V 0.58A SOT-23 VISHAY TP0101K-T1-E3

19 2 Q5, Q6 MOSFET SPEED SRS 30V 30A LFPAK RENESAS RJK0305DPB

20 1 R25 RES., CHIP, 22.6k, 1%, 0603 VISHAY CRCW060322K6FKEA

21 25 R2, R4, R8, R23, R31, R32, R34, R37, R50, R61,

R64, R66, R38, R42, R44, R46, R47, R51, R55,

R109, R70, R71, R74, R75, R77

RES., CHIP, 0Ω, 1%, 0603 VISHAY CRCW06030000Z0EA

22 4 R43, R49, R52, R56 RES., CHIP, 0Ω, 1%, 2010 VISHAY CRCW20100000Z0EA

23 10 R10, R11, R12, R13, R16, R17, R21, R82, R83, R94 RES., CHIP, 10k, 1%, 0603 VISHAY CRCW060310K0FKEA

24 1 R9 RES., CHIP, 1k, 1%, 0603 VISHAY CRCW0603100FKEA

25 2 R22, R26 RES., CHIP, 10Ω, 1%, 0603 VISHAY CRCW060310R0FKEA

26 2 R98, R102 RES., CHIP, 300Ω, 1%, 0603 VISHAY CRCW0603300R0FKEA

27 3 R33, R60, R65 RES., CHIP, 121k, 1%, 0603 VISHAY CRCW0603121KFKEA

28 4 R40, R63, R68, R58 RES., CHIP, 80.6k, 1%, 0603 VISHAY CRCW060380K6FKEA

29 1 R35 RES., CHIP, 60.4k, 1%, 0603 VISHAY CRCW060360K4FKEA

30 1 R36 RES., CHIP, 8.25k, 1%, 0603 VISHAY CRCW06038K25FKEA

31 1 R19 RES., CHIP, 7.15k, 1%, 0603 VISHAY CRCW06037K15FKEA

32 3 R45, R84, R85 RES., CHIP, 200Ω, 1%, 0603 VISHAY CRCW0603200RFKEA

33 1 R54 RES., CHIP, 20k, 1%, 0603 VISHAY CRCW060320K0FKEA

34 2 R80, R81 RES., CHIP, 4.99k, 1%, 0603 VISHAY CRCW06034K99FKEA

35 1 R86 RES., CHIP, 127Ω, 1%, 0603 VISHAY CRCW0603127RFKEA

dc2106abf

DEMO MANUAL DC2106A-B

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

36 1 R87 RES., CHIP, 2Ω, 1%, 0603 VISHAY CRCW06032R00FKEA

37 1 R88 RES., CHIP, 1M, 1%, 0603 VISHAY CRCW06031M00FKEA

38 2 R89, R92 RES., CHIP, 20k, 1%, 0603 VISHAY CRCW060320K0FKEA

39 1 R90 RES., CHIP, 154k, 1%, 0603 VISHAY CRCW0603154KFKEA

40 1 R91 RES., CHIP, 3.3Ω, 1%, 0603 VISHAY CRCW06033R30FKEA

41 1 R93 RES., CHIP, 681k, 1%, 0603 VISHAY CRCW0603681KFKEA

42 1 R95 RES., CHIP, 82.5Ω, 1%, 0603 VISHAY CRCW060382R5FKEA

43 2 R99, R100 RES., CHIP, 0.01Ω, 1%, 2010 VISHAY, WSL2010R0100FEA

44 1 R101 TRIMMING POTENTIOMETER, 5k BOURNS, 3386P-1-502LF

45 1 R103 RES., CHIP, 100k, 1%, 0603 VISHAY CRCW0603100KFKEA

46 1 U1 IC, LTM4676EY LINEAR TECH. LTM4676EY

47 3 U2, U3, U4 IC, LTM4620AEV LINEAR TECH. LTM4630EV

48 1 U5 IC., LT1801CMS8, MSOP LINEAR TECH. LT1801CMS8

49 1 U6 IC., 24LC025T-E/OT SOT-23 6-LEAD MICROCHIP, 24LC025T-E/OT

50 1 U7 IC., LTC6992-1, S6-TSOT23 LINEAR TECH. LTC6992CS6-1

51 1 U8 IC., LT1803IS5, S5-TSOT23 LINEAR TECH. LT1803IS5

52 1 U9 IC., LT1129CS8-5, S8 LINEAR TECH. LT1129CS8-5

Additional Demo Board Circuit Components

1 0 C1, C2, C3, C4, C6, C13, COUT1, COUT14, C14,

C15, COUT17, COUT21, COUT25, COUT29, COUT33,

COUT37, C9, C10, C16, C17, C20, C21

CAP., OPTIONAL

2 0 R39, R41, R62, R64, R67, R69, R1, R3, R5-R7, R14,

R15, R18, R20, R24, R27-R30, R39, R41, R48, R59,

R62, R67, R69, R72, R73, R76, R78, R79, R96, R97,

R104-R108

RES., OPTIONAL

Hardware: For Demo Board Only

1 24 E1-E24 TESTPOINT, TURRET, 0.062" MILL-MAX, 2308-2-00-80-00-00-07-0

2 2 JP1, JP2 0.079 SINGLE ROW HEADER, 3 PIN SAMTEC, TMM-103-02-L-S

3 2 XJP1, XJP2 SHUNT SAMTEC, 2SN-BK-G

4 2 J1, J3 JACK, BANANA KEYSTONE

5 4 J2, J4, J5, J6 STUD, TEST PIN PEM KFH-032-10

6 8 J1, J2, J3, J4, J5, J6 (x2) NUT, BRASS 10-32 ANY #10-32

7 4 J1, J2, J3, J4, J5, J6 RING, LUG #10 KEYSTONE, 8205, #10

8 4 J1, J2, J3, J4, J5, J6 WASHER, TIN PLATED BRASS ANY #10, #10EXT BZ TN

9 2 SW1, SW2 CONN, SUB MINIATURE SLIDE SWITCHES C&K., JS202011CQN

10 1 J7 CONN HEADER 12 POS 2MM STR DL PCB FCI 98414-G06-12ULF

11 1 J8 PIN HEADER 20 DUAL ROW RA (M) MILL-MAX 802-40-020-20-0001

12 1 J9 CONN SOCKET 20 DUAL ROW RA (F) MILL-MAX 803-43-020-20-001

13 2 J10, J11 CONN, BNC, 5 PINS CONNEX, 112404

14 4 (STAND-OFF) STAND-OFF, NYLON 0.50" tall KEYSTONE, 8833 (SNAP ON)

15 1 FAB, PRINTED CIRCUIT BOARD DEMO CIRCUIT 2106A

parts List

dc2106abf

DEMO MANUAL DC2106A-B

schematic Diagram

D D

C C

B B

A A

NOTE: UNLESS OTHERWISE SPECIFIED

1. ALL RESISTORS ARE 0603.

ALL CAPACITORS ARE 0603.

35V

4.5V - 16V

6.3V

6TPF330M9L

OPT

6.3V

1210 1210 1210

0805

1210 1210 1210 1210

1210 1210 1210

0.035 VIA

TESTPOINTS

µMODULE REGULATOR WITH POWER SYSTEM MANAGEMENT

1210

OFF

RUN0

OFF

RUN1

1210

1V/130A

6TPF330M9L

6.3V

*WHEN VIN < 5.75V, SHORT INTVCC TO VIN WITH R7=0 0hm.

VOUT1_SNS

D4 D4

6.3V1210

VOSNS0+

VOSNS0-

VDD33

SYNC

SHARE_CLK

ALERTB

SCL

SDA

GPIO0B

GPIO1B

ASEL

FREQ_CFG

VOUT0_CFG

VTRIM0_CFG

VOUT1_CFG

VTRIM1_CFG

RUN1

VOSNS0-

VDD25

RUN0

INTVCC

VOSNS1

VIN

VOUT0

VOUT1

VIN

SYNC

SHARE_CLK

ALERTB

SCL

SDA

GPIO0B

GPIO1B

COMP0

COMP1

RUN0

RUN1

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Wednesday, August 21, 2013

HIGH EFFICIENCY, POLY-PHASE, DC/DC STEP-DOWN

JIAN L.

LTM4676EY / LTM4630EV

DEMO CIRCUIT 2106A-B

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Wednesday, August 21, 2013

HIGH EFFICIENCY, POLY-PHASE, DC/DC STEP-DOWN

JIAN L.

LTM4676EY / LTM4630EV

DEMO CIRCUIT 2106A-B

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Wednesday, August 21, 2013

HIGH EFFICIENCY, POLY-PHASE, DC/DC STEP-DOWN

JIAN L.

LTM4676EY / LTM4630EV

DEMO CIRCUIT 2106A-B

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

JIAN L.PRODUCTION1 4-22-13

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

JIAN L.PRODUCTION1 4-22-13

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

JIAN L.PRODUCTION1 4-22-13

COUT14

OPT

COUT14

OPT

10nF

P5P5

R7 OPTR7 OPT

GND

COUT9

100uF

COUT9

100uF

GND1_SNS

GND0_SNS

COUT13

100uF

COUT13

100uF

CIN1

10uF

CIN1

10uF

R12

10K

R12

10K

SW2SW2

R310 R310

R6 OPTR6 OPT

COUT11

330uF

COUT11

330uF

CIN2

10uF

CIN2

10uF

COUT5

3.3uF

COUT5

3.3uF

COUT12

100uF

COUT12

100uF

R24 OPTR24 OPT

R13

10K

R13

10K

VOUT0 J5

VOUT0

COUT6

100uF

COUT6

100uF

INTVCC

COUT4

100uF

COUT4

100uF

CIN6

10uF

CIN6

10uF

R30

OPT

R30

OPT

J1 VOUT1

R23

GND

R14

OPT

R14

OPT

R20 OPTR20 OPT

P2P2

COUT10

100uF

COUT10

100uF

R22

P4P4

R25 22.6KR25 22.6K

R29

OPT

R29

OPT

VDD25

OPT

CIN3

150uF

CIN3

150uF

LTM4676EY

VOUT0

ISNS0b-

ISNS0b+

ISNS1b- G1

ISNS1b+ H1

VOUT1 J1

VOUT1 J2

VOUT1 J3

VOUT1 K1

VOUT0

ISNS0a-

ISNS0a+

ISNS1a- G2

ISNS1a+ H2

VOUT1 K2

VOUT1 K3

VOUT1 L1

VOUT1 L2

VOUT0

GND

VOUT1 L3

VOUT1 M1

VOUT1 M2

VOUT1 M3

GND

A10

GND

ASEL G4

FSWPHCFG H4

GND

GPIO0 E4

GPIO1 F4

SNUB0

GND

TSNS0b

TSNS0a

ALERT E5

RUN0 F5

VOUT0CFG G5

VTRIM0CFG H5

TSNS1a J5

TSNS1b K5

GND

SNUB1 M5

GND

SDA D6

SCL E6

RUN1 F6

VOUT1CFG G6

VTRIM1CFG H6

VDD25 J6

WP K6

GND

F10

GND

G10

SYNC E7

GND

M10

SHARE_CLK H7

VDD33 J7

GND

G11

GND

G12

GND

L8 GND

GND

COMP0b

COMP0a

SGND

COMP1a H8

COMP1b J8

GND

H10

GND

VOSNS0+

VOSNS0-

INTVCC F9

INTVCC G9

VOSNS1 H9

VORB1 J9

GND

J10

GND

SW0

B10

DNC

E11

VORB0+

D10

VORB0-

E10

GND

DNC

C10

SW1 L10

GND

VIN0

B12 VIN0

B11 VIN0

A12 VIN0

A11

DNC

K10

SVIN

F12

GND

DNC

H11

VIN1 H12

VIN1 J11

VIN1 J12

VIN1 K11

VIN0

E12 VIN0

D12 VIN0

D11 VIN0

C12 VIN0

C11

SVIN

F11

GND

VIN1 K12

VIN1 L11

VIN1 L12

VIN1 M11

VIN1 M12

SGND

GND

COUT7

330uF

COUT7

330uF

R16

10K

R16

10K

P6P6

R18

OPT

R18

OPT

R32

R10

10K

R10

10K

10nF

R17

10K

R17

10K

VDD33

GND

R27 OPTR27 OPT

R21

10K

R21

10K

CIN4

10uF

CIN4

10uF

R15

OPT

R15

OPT

SW1SW1

COUT1

100uF

COUT1

100uF

P1P1

OPT

VOUT0_SNS E7

VOUT0_SNS

R28 OPT

P3P3

CIN7

10uF

CIN7

10uF

COUT3

100uF

COUT3

100uF

VIN

OPT

R11

10K

R11

10K

P7P7

COUT8

330uF

COUT8

330uF

R19

7.15K

R19

7.15K

GND

R8 0R8 0

OPT

VIN

2.2nF

CIN5

10uF

CIN5

10uF

COUT2

100uF

COUT2

100uF

VOUT1_SNS

OPT

R26

Tabla de contenidos

Otros manuales de Placa madre de Linear

Linear

Linear DC266B-A Guía de configuración rápida

Linear

Linear DC1339 Manual de usuario

Linear

Linear DC2033A Guía de configuración rápida

Linear

Linear DC2073A Guía de configuración rápida

Linear

Linear DC1735A Guía de configuración rápida

Linear

Linear ADI Power DC3080A-KIT Guía de configuración rápida

Linear

Linear DC1630A Guía de configuración rápida

Linear

Linear DC2230A-B Guía de configuración rápida

Linear

Linear DC1194A Guía de configuración rápida

Linear

Linear LTC6602 Manual de usuario

Linear

Linear Analog Devices DC2749A Manual de usuario

Linear

Linear DC2048A Guía de configuración rápida

Linear

Linear DC1685A Guía de configuración rápida

Linear

Linear ANALOG DEVICES DC2685B Guía de configuración rápida

Linear

Linear Analog Devices LT3960 Guía de configuración rápida

Linear

Linear DC768 Manual de usuario

Linear

Linear Analog Devices DC2732A Guía de configuración rápida

Linear

Linear DC2194A Guía de configuración rápida

Linear

Linear DC2007A-B Guía de configuración rápida

Linear

Linear LT3995 Guía de configuración rápida

Linear

Linear DC1198B-B Guía de configuración rápida

Linear

Linear DC1543A Guía de configuración rápida

Linear

Linear 747 Manual de usuario

Linear

Linear LTC1474 Guía de configuración rápida

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
