DEMO MANUAL DC2830A

Rev 0

DESCRIPTION

LTC7106 and LTM4636

7-Bit DAC with PMBus Controlled

Step-Down µModule Regulator

Demonstration circuit 2830A features the LT M

4636EY,

a 40A high efficiency, switch mode step-down µModule

regulator which is controlled by the LT C

7106EDDB, a

precision, bidirectional, 7-Bit current DAC with PMBus

interface. The LTC7106 is used to adjust the output volt-

age of the LTM4636 by way of the PMBus. The LTM4636’s

input voltage range is from 4.7V to 15V and the output

voltage range is from 0.6V to 3.3V. De-rating is necessary

for certain VIN, VOUT, frequency and thermal conditions.

The LTC7106 requires an input voltage from 2.5V to 5.5V

and on DC2830A it’s powered directly from the DC1613A

dongle. The LTC7106 provides three ranges of IDAC out-

put current:Nominal Range (–64µA to 63µA), Range High

(–256µA to 252µA) and Range Low (–16µA to 15.75µA).

The nominal range is optimized with the highest accuracy.

All registered trademarks and trademarks are the property of their respective owners.

BOARD PHOTO

It is recommended that users design the resistor divider

using the nominal range of the IDAC setting.

To explore the power system management features of

the LTC7106, download the GUI software LTpowerPlay

onto your PC and use ADI’s I2C/SMBus/PMBus Dongle

DC1613A to connect to the board. LTpowerPlay allows the

user to reconfigure the part on-the-fly, view IDAC current

value and fault status.

The LTM4636 and LTC7106 data sheets must be read in

conjunction with this demo manual prior to working on

or modifying demo circuit DC2830A.

Design files for this circuit board are available.

DEMO MANUAL DC2830A

Rev 0

Demo Board

DC2830A

USB to

I2C/PMBus Dongle

DC1613A

+12V

Power Supply

LOAD

USB CABLE

12-PIN

CONNECTOR

To J7

VOUT

QUICK START PROCEDURE

Demonstration circuit 2830A makes it easy to use the

LTC7106 to adjust the LTM4636 output voltage. This

demo manual will focus on the evaluation of LTC7106.

For the LTM4636 evaluation procedure, please refer to the

DC2230A-A demo manual on the Analog Devices website.

Please refer to Figure1 for proper demo board setup with

PC and follow the procedure below:

1. Place jumpers in the following positions for a typical

application:

MODE (JP2) RUN (JP1) EN (JP5)

CCM ON OFF

2. With power off, connect the input power supply, load

and meters as shown in Figure1. Preset the load to 0A

and VIN supply to 12V.

3. Turn on the power supply at the input. The output volt-

age should be 1.0V ±2.3% (0.977V to 1.023V).

4. Vary the input voltage from 6V to 15V and adjust the

load current from 0A to 40A. Observe the output volt-

age regulation, ripple voltage, efﬁciency, and other

parameters.

5. Once the proper output voltage is established on the

LTM4636 output, put JP5 to the ON position to enable

the LTC7106.

PERFORMANCE SUMMARY

Specifications are at TA= 25°C

IC PARAMETER CONDITIONS MIN TYP MAX UNITS

LTM4636 Input Voltage Range 4.7 15 V

Output Voltages 1.0 ±2.3% V

Maximum Continuous Output Current De-rating is necessary for certain operating conditions.

See data sheet for details.

40 ADC

Operating Frequency 350 kHz

Efficiency VIN = 12V, VOUT = 1.0V, IOUT = 40A 87.7 %

Load Transient VIN = 12V, VOUT = 1.0V, ISTEP = 0A to 20A 148 mVP-P

LTC7106 IDAC Operation Voltage 0.4 2.0 V

Output Current Range Nominal, LSB = 1µA –64 63 µA

Range High, LSB = 4µA –256 252 µA

Range Low, LSB = 0.25µA –16 15.75 µA

IDAC Accuracy Nominal Range –1.5 0.8 %

Figure1. Demo Setup with PC of DC2830A

DEMO MANUAL DC2830A

Rev 0

QUICK START PROCEDURE

LTpowerPlay SOFTWARE GUI

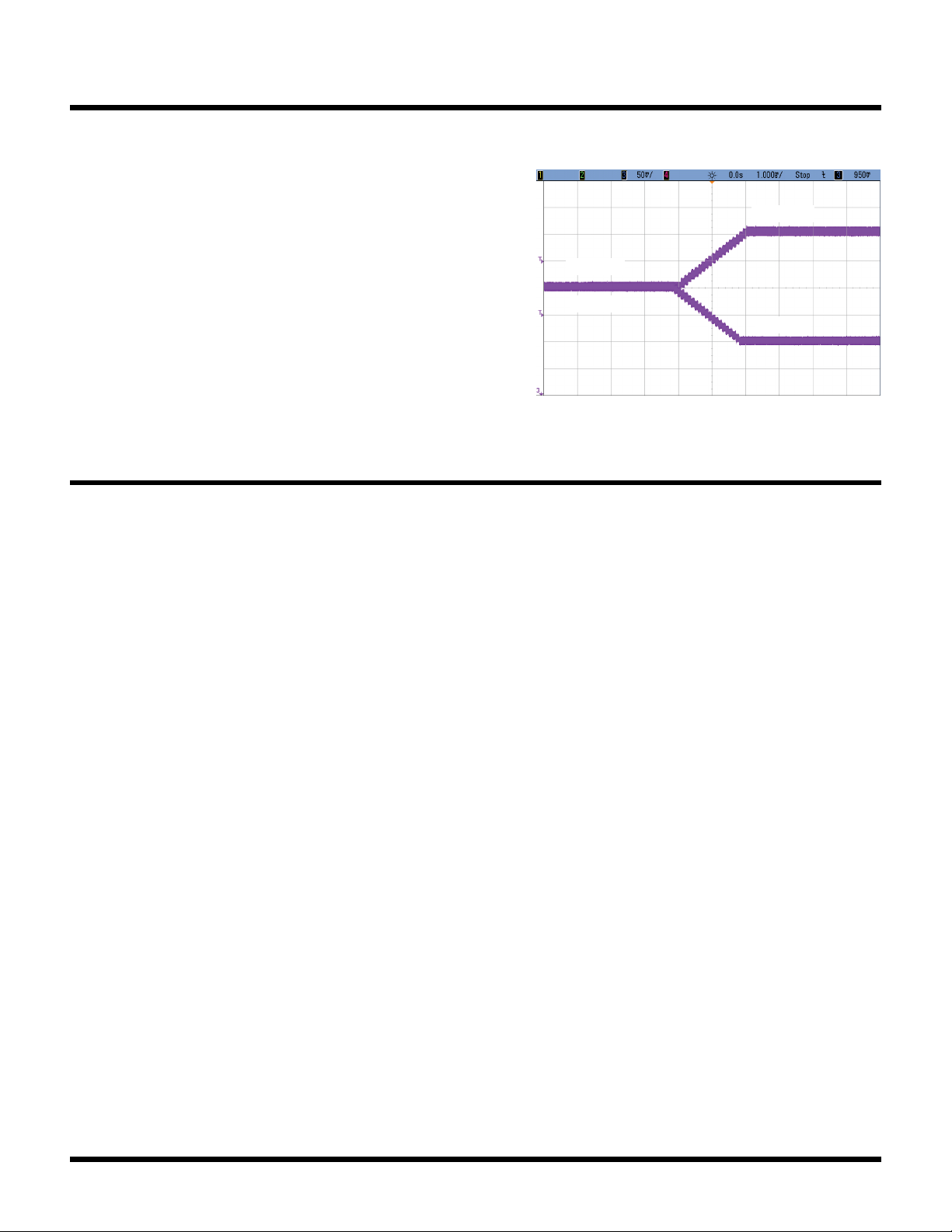

Figure2. Typical Margin High and Margin

Low Waveforms of LTM4636 by LTC7106

1ms/DIV

VOUT

50mV/DIV

IDAC = 0µA

IDAC = 20µA

IDAC = –20µA

VOUT = 1.0V

DC2830A F02

6. Open the LTpowerPlay software and adjust the IDAC

current value of the LTC7106. Monitor the regulator’s

output voltage as IDAC is changing. See LTpowerPlay

Quick Start session for details.

7. The output voltage will change by the following equa-

tion, where RFB1 is the top resistor of the voltage divider

and IDAC is the programmed bidirectional current of the

LTC7106. In the LTM4636, RFB1 is 4.99k inside the mod-

ule. Therefore, the user can simply choose IDAC value

accordingly to achieve the desired VOUT adjustment. See

Figure2 for a typical VOUT waveform with ±20µA IDAC.

ΔVOUT = –IDAC • RFB1

LTpowerPlay is a powerful Windows based development

environment that supports Linear Technology power sys-

tem management ICs, including the LTC3880, LTC3883,

LTC3882, LTC3815, LTC2974 and LTC2978. The soft-

ware supports a variety of different tasks. You can use

LTpowerPlay to evaluate Linear Technology ICs by con-

necting to a demo board system. LTpowerPlay utilizes the

DC1613A USB-to-SMBus controller to communicate with

one of many potential targets, including the LTC7106’s

DC2830A demo system, or a customer board. The soft-

ware also provides an automatic update feature to keep

the software current with the latest set of device drivers

and documentation. The LTpowerPlay software can be

downloaded from:

http://www.analog.com/en/design-center/

ltpower-play.html.

To access technical support documents for LTC Digital

Power Products visit Help. View online help on the LTpow-

erPlay menu.

DEMO MANUAL DC2830A

Rev 0

Figure3. LTpowerPlay Main Interface for LTC7106

LTpowerPlay SOFTWARE GUI

DEMO MANUAL DC2830A

Rev 0

LTpowerPlay QUICK START PROCEDURE

The following procedure describes how to use LTpowerPlay

to monitor and change the settings of LTC7106.

1. Download and install the LTPowerPlay GUI:

http://www.analog.com/en/design-center/

ltpower-play.html

2. Launch the LTpowerPlay GUI.

a. TheGUIshouldautomatically identify the DC2830A.The

system tree on the left-hand side should look like this:

b. A blue message box shows for a few seconds in the

lower left-hand corner, conﬁrming that the LTC7106

is communicating:

c. In the Toolbar, click the “R” icon (RAM to PC) to read

the RAM from the LTC7106.

This reads the conﬁguration from the RAM of LTC7106

and loads it into the GUI. When ﬁrst powering on, you

shouldreadIDAC current at zero(highimpedanceIDAC)

due to the LTC7106’s internal power-on reset circuitry

until a valid write takes place. The IDAC current value

can be plotted in real time, shown in the following

screenshot (at zero when ﬁrst powering on):

d. If you want to change the IDAC current to 10µA for

example, in the Config tab, type “10” in the MFR_IOUT_

COMMAND_LT C 7106:

Then, click the “W” icon (PC to RAM) to write these

DEMO MANUAL DC2830A

Rev 0

If the write is successful, you will see the following

message:

In the Telemetry Plot, you will see IDAC current value

change to the commanding value:

e. If you want to change the IDAC current to a negative

value (meaning sinking current), you need to change

the MFR_IOUT_MAX_LT C 7106 to a negative value ﬁrst

(see data sheet for more details).

f. You can also change IDAC range between Nominal,

Low and High Range, as well as the Time Per Step in

LTpowerPlay, as shown in the following picture.

DEMO MANUAL DC2830A

Rev 0

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 1 C1 CAP., 1µF, X5R, 10V, 10%, 0603 MURATA, GRM188R61A105KA61D

2 1 C2 CAP., 100pF, X7R, 25V, 5%, 0603 AVX, 06033C101JAT2A

3 1 C18 CAP., 2200pF, X7R, 25V, 10%, 0603 AVX, 06033C222KAT2A

4 2 C19, C25 CAP., 0.1µF, X5R, 16V, 10%, 0603 AVX, 0603YD104KAT2A

5 1 C22 CAP., 4.7µF, X5R, 10V, 10%, 0603 AVX, 0603ZD475KAT2A

6 1 C23 CAP., 1µF, X5R, 25V, 10%, 0603 AVX, 06033D105KAT2A

7 1 C24 CAP., 22µF, X5R, 6.3V, 20%, 0805 MURATA, GRM21BR60J226ME39L

8 1 CIN1 CAP., 180µF, ALUM. POLY., 25V, 20%, 8x12mm SMD, E12 PANASONIC, 25SVPF180M

9 6 CIN4, CIN5, CIN6, CIN7, CIN8, CIN9 CAP., 22µF, X5R, 16V, 20%, 1210 MURATA, GRM32ER61C226ME20L

10 8 COUT1, COUT2, COUT3, COUT4,

COUT6, COUT7, COUT11, COUT12

CAP., 100µF, X5R, 6.3V, 20%, 1210 MURATA, GRM32ER60J107ME20L

11 3 COUT8, COUT13, COUT14 CAP., 470µF, TANT. POSCAP, 4V, 20%, 7343, 12mΩ, TPE,

NO SUBS. ALLOWED

PANASONIC, 4TPE470MCL

12 1 Q1 XSTR., MOSFET, N-CH, 40V, TO-252 (DPAK) VISHAY, SUD50N04-8M8P-4GE3

13 7 R2, R3, R7, R11, R12, R16, R54 RES., AEC-Q200, 10k, 1%, 1/10W, 0603 VISHAY, CRCW060310K0FKEA

14 1 R9 RES., AEC-Q200, 7.5k, 1%, 1/10W, 0603 VISHAY, CRCW06037K50FKEA

15 4 R17, R23, R33, R57 RES., 0Ω, 1/10W, 0603 VISHAY, CRCW06030000Z0EA

16 1 R18 RES., 15k, 1%, 1/10W, 0603 NIC, NRC06F1502TRF

17 2 R25, R32 RES., 10Ω, 1%, 1/10W, 0603 VISHAY, CRCW060310R0FKEA

18 1 R35 RES., AEC-Q200, 2.2Ω, 5%, 1/8W, 0805 VISHAY, CRCW08052R20JNEA

19 1 R40 RES., 34.8k, 1%, 1/10W, 0603 VISHAY, CRCW060334K8FKEA

20 1 R55 RES., SENSE, AEC-Q200, 0.01Ω, 1%, 1/2W, 2010 VISHAY, WSL2010R0100FEA

21 1 U1 IC, HIGH EFFICIENCY 40A µMODULE, 144-pin BGA ANALOG DEVICES, LTM4636EY#PBF

22 1 U2 IC, 7-BIT CURRENT DAC WITH DIGITAL, 10-pin DFN ANALOG DEVICES, LTC7106EDDB#PBF

Additional Demo Board Circuit Components

1 0 C3, C14, C15, C16 CAP., OPTION, 0603

2 0 COUT9 CAP., OPTION, 7343

3 0 COUT10, COUT15, COUT16 CAP., OPTION, 1210

4 0 R8, R15, R19, R21, R22, R38 RES., OPTION, 0603

DEMO MANUAL DC2830A

Rev 0

PARTS LIST

Hardware: For Demo Board Only

1 25 E1, E2, E3, E4, E5, E6, E7, E8, E9,

E10, E11, E12, E13, E14, E15, E16,

E17, E18, E19, E20, E21, E22, E23,

E24, E25

TEST POINT, TURRET, 0.064", MTG. HOLE MILL-MAX, 2308-2-00-80-00-00-07-0

2 2 J1, J2 CONN., BANANA JACK, FEMALE, THT, NON-INSULATED,

SWAGE

KEYSTONE, 575-4

3 2 J3, J4 STUD, FASTENER, #10-32 PENNENGINEERING, KFH-032-10ET

4 2 J5, J6 CONN., RF, BNC, RCPT JACK, 5-PIN, STR, THT, 50Ω AMPHENOL RF, 112404

5 1 J7 CONN., SHROUDED HDR, MALE, 2x6, 2mm, VERT, STR,

THT

FCI, 98414-G06-12ULF

6 2 JP1, JP5 CONN., HDR., MALE, 1x3, 2mm, THT, STR SULLINS CONNECTOR SOLUTIONS,

NRPN031PAEN-RC

7 1 JP2 CONN., HDR., MALE, 1x4, 2mm, THT, STR SULLINS CONNECTOR SOLUTIONS,

NRPN041PAEN-RC

8 1 LB1 LABEL SPEC, DEMO BOARD SERIAL NUMBER BRADY, THT-96-717-10

9 4 MP1, MP2, MP3, MP4 STANDOFF, NYLON, SNAP-ON, 0.625" KEYSTONE, 8834

10 4 MP5, MP6, MP7, MP8 NUT, HEX, STEEL, ZINC PLATE, 10-32 KEYSTONE, 4705

11 2 MP9, MP10 WASHER, FLAT, STEEL, ZINC PLATE, OD: 0.436 [11.1] KEYSTONE, 4703

12 2 MP11, MP12 RING, LUG, CRIMP, #10, NON-INSULATED, SOLDERLESS

TERMINALS

KEYSTONE, 8205

13 3 XJP1, XJP2, XJP5 CONN., SHUNT, FEMALE, 2 POS, 2mm WURTH ELEKTRONIK, 60800213421

DEMO MANUAL DC2830A

Rev 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications

subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

SCHEMATIC DIAGRAM

D D

C C

B B

A A

NOTE: UNLESS OTHERWISE SPECIFIED

1. ALL RESISTORS AND CAPACITORS ARE 0603.

2. WHEN VIN < 5.5V, SHORT PVCC TO VIN WITH R8=R21=0ohm and REMOVE R17.

4.7V - 15V

DYNAMIC LOAD CIRCUIT

DO NOT EXCEED 5% DUTY CYCLE!

VIN

GND

REVISION HISTORY

APPROVEDECO DESCRIPTION DATEREV

1 04-18-18PRODUCTION HW

4-18-18

VIN VOUT

VOUT

PVCC

INTVCC

VDD

VDD VDD

VDD

DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

Phone: (408)432-1900

www.linear.com

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

www.analog.com

SKU NO.

IC NO.

LTC7106EDDB+LTM4636EV

7- BIT DAC CONTROLLED STEP-DOWN µMODULE REGULATOR

DC2830A

710-DC2830A_REV01

N/A DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

Phone: (408)432-1900

www.linear.com

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

www.analog.com

SKU NO.

IC NO.

LTC7106EDDB+LTM4636EV

7- BIT DAC CONTROLLED STEP-DOWN µMODULE REGULATOR

DC2830A

710-DC2830A_REV01

N/A DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

Phone: (408)432-1900

www.linear.com

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

www.analog.com

SKU NO.

IC NO.

LTC7106EDDB+LTM4636EV

7- BIT DAC CONTROLLED STEP-DOWN µMODULE REGULATOR

DC2830A

710-DC2830A_REV01

N/A

C24

22uF

0805

COUT1

100uF

1210

COUT4

100uF

1210

E12

GND

C25

0.1uF

R21

OPT

R17

10k

R16

10k

COUT9

OPT

7343

E24

VDD

E25

SGND

COUT7

100uF

R55

0.01

2010

C23

1uF

E16

TMON

C1 1uF

R19

OPT

10k

C15 OPT

COUT16

OPT

1210

E23

SCL

R33

CIN5

22uF

1210

OPT

COUT11

100uF

1210

COUT12

100uF

1210

COUT10

OPT

1210

IDAC

R54

10k

CIN9

22uF

1210

C19

0.1uF

COUT14

R25

COUT15

OPT

C14 OPT

IOSTEP

HIZREG

R18

15k

C18 2200pF

TP2

TP1

COUT8

E10

RUN

SUD50N04-8m8P

7.5k

C16

OPT

JP1

OFF

RUN

R11

10k

VOUT

CIN1

180uF

25V

10k

INTVCC

E19

TEMP-

COUT13

470uF

4TPE470MCL

R23

GND R8

OPT

R32

E20

AUX

TO DC1613A

AUXP 1

SDA 2

GND 3

SCL 4

LGKPWR 5

ALERTB 6

GPIO_1 7

OUTEN_0 8

OUTEN_1 9

GND 10

AUXSCL 11

AUXSDA 12

COUT6

100uF

1210

COUT3

100uF

E15

GND_SNS

GND

R35

2.2 0805

JP2

CCM

MODE

GPO

GND

MODE_PLLIN

COUT2

100uF

VIN

R15

OPT

R40

34.8k

100pF

PGOOD

E18

TEMP+

CIN7

22uF

1210

CIN8

22uF

1210

LTM4636-BGA

GMON H9

SNSP1 F2

TEST3 H2

HIZREG

PGOOD

SW L11

RUNP

CLKOUT G3

SNSP2 F1

TEST2 F5

RUNC

E2 TRACK/SS E3

VFB E4

TEST4 / CROWBAR E11

GND

M10

GND / OVP_SET

E12

COMPB D5

COMPA E5

NC / BIAS G9

PHASEMD

TEMP+ G12

TEMP- G11

GND

M12

VOSNS1 D4

VOSNS- D3

GND / OVP_TRIP

E10

INTVCC

MODE_PLLIN

PWM H7

PVcc

GND / OVER_TEMP

D10

TEST1 H4

GND

FREQ

GND

TMON H8

GND

M11

SGND

SW K11

VOUT A1

VOUT A2

VOUT A3

VOUT A4

VOUT A5

VOUT A6

VOUT A7

VOUT A8

VOUT A9

VOUT A10

VOUT A11

VOUT A12

VOUT B1

VOUT B2

VOUT B3

VOUT B4

VOUT B5

VOUT B6

VOUT B7

VOUT B8

VOUT B9

VOUT B10

VOUT B11

VOUT B12

VOUT C1

VOUT C2

VOUT C3

VOUT C4

VOUT C5

VOUT C6

VOUT C7

VOUT C8

VOUT C9

VOUT C10

VOUT C11

VOUT C12

VOUT D1

VOUT D2

VOUT D11

VOUT D12

GND

F10

GND / OTP_SET

F11

GND

F12

GND

G10

GND

H10

GND

H11

GND

H12

GND

J10

GND

J11

GND

J12

GND

K10

GND

K12

GND

L10

GND

L12

VIN H5

VIN H6

VIN J4

VIN J5

VIN J6

VIN J7

VIN K4

VIN

VIN M4

VIN M5

VIN M6

VIN M7

VIN M8

C22

4.7uF

VOUT

1.0V / 40A

R38

OPT

CIN6

22uF

1210

R12

10k

R22

OPT

E22

ALERTB

R57

E13

CROWBAR

E14

VOUT_SNS

CIN4

22uF

1210

E11

IOSTEP_CLK

LTC7106-DDB

SDA

SCL

VDD 3

ALERTB

GND

IDAC 6

EN 7

GPO 8

ASELO 9

ASEL1 10

GND

E21

SDA

E17

CLKOUT

JP5

OFF

VOSNS+

RUN

SDA

SCL

AUX

IDAC

ALERTB

DEMO MANUAL DC2830A

Rev 0

 ANALOG DEVICES, INC. 2018

02/19

www.analog.com

ESD Caution

ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection

circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.

Legal Terms and Conditions

By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and

conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation

Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”)

and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to

Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands and

agrees that the Evaluation Board is provided for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license granted

is expressly made subject to the following additional limitations:Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board;and (ii) permit any Third

Party to access the Evaluation Board. As used herein, the term “Third Party”includes any entity other than ADI, Customer, their employees, affiliates and in-house consultants. The Evaluation Board is

NOT sold to Customer;all rights not expressly granted herein, including ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall all

be considered the confidential and proprietary information of ADI. Customer may not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation of

use of the Evaluation Board or termination of this Agreement, Customer agrees to promptly return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble, decompile

or reverse engineer chips on the Evaluation Board. Customer shall inform ADI of any occurred damages or any modifications or alterations it makes to the Evaluation Board, including but not limited

to soldering or any other activity that affects the material content of the Evaluation Board. Modifications to the Evaluation Board must comply with applicable law, including but not limited to the RoHS

Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice to Customer. Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION OF

LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS”AND ADI MAKES NO WARRANTIES OR REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALLY

DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED TO THE EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS. IN NO EVENT WILL ADI AND ITS

LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF THE EVALUATION BOARD, INCLUDING

BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE AMOUNT OF ONE

HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable United States

federal laws and regulations relating to exports. GOVERNING LAW. This Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of Massachusetts

(excluding conflict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby submits

to the personal jurisdiction and venue of such courts. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement and is expressly disclaimed.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de Linear

Linear

Linear LTM4650 Guía de configuración rápida

Linear

Linear DC2053A Guía de configuración rápida

Linear

Linear LTM8003 Guía de configuración rápida

Linear

Linear ANALOG DEVICES DC2448A-D Guía de configuración rápida

Linear

Linear ANALOG DEVICES DC1590B Guía de configuración rápida

Linear

Linear PRO Access APeX-II v2.1 Instrucciones de funcionamiento

Linear

Linear Z-Wave Series Manual de usuario

Linear

Linear ANALOG DEVICES DC2448A-A Guía de configuración rápida

Linear

Linear LRA Manual de usuario

Linear

Linear ADI Power DC2654A Manual de usuario

Linear

Linear LTC3875 Manual de usuario

Linear

Linear LTC3300-1 Manual de usuario

Linear

Linear LT1943 Manual de usuario

Linear

Linear DC1104A Manual de usuario

Linear

Linear ANALOG DEVICES DC2448A-C Guía de configuración rápida

Linear

Linear LTM4636 Manual de usuario

Linear

Linear ANALOG DEVICES DC2448A-B Guía de configuración rápida

Linear

Linear ANALOG DEVICES EZ-PD CCG3 Guía de configuración rápida

Linear

Linear ANALOG DEVICES DC2155A-A Manual de usuario

Linear

Linear DC1772A Guía de configuración rápida

Linear

Linear LTC3828EUH Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
