DEMO MANUAL DC2455A-B

Description

LTM4650EY-1

High Efficiency, PolyPhase 150A Step-Down

Power µModule

Regulator

3× LTM4650EY-1, 150A

DemonstrationCircuit2455A-BfeaturesPolyPhase

design

using the LT M

4650EY-1 (B-grade), the high efficiency,

high density, dual 25A, switch mode step-down power

module regulator. The input voltage is from 4.5V to 15V.

The output voltage is jumper selectable from 0.9V to 1.8V.

DC2455A-B can deliver nominal 150A output current. As

explained in the data sheet, output current de-rating is

necessary for certainVIN,VOUT, and thermalconditions.The

LTM4650-1 on DC2455A-B always operate in continuous

conduction mode. The switching frequency can be pro-

grammed through a resistor or can be synchronized to an

external clock signal. The board allows the user to program

how its output voltage ramps up and down through the L, LT, LTC, LTM, Linear Technology, the Linear logo, µModule, PolyPhase and TimerBlox are

registered trademarks of Linear Technology Corporation. All other trademarks are the property

of their respective owners.

TRACK pin. The output voltage is tightly regulated between

“VO+”and “VO–”through remote output voltage sensing

which improves output voltage regulation at heavy loads.

These features and the availability of the LTM4650EY-1

in a compact 16mm × 16mm × 5.01mm BGA package

make it ideal for use in many high-density point-of-load

regulation applications. The LTM4650-1 data sheet must

be read in conjunction with this demo manual for working

on or modifying the demo circuit DC2455A-B.

Design files for this circuit board are available at

http://www.linear.com/demo/DC2455A-B

Figure 1. 3× LTM4650-1, 150A PolyPhase LTM4650-1/DC2455A-B Demo Board

dc2455abf

DEMO MANUAL DC2455A-B

Quick start proceDure

Demonstration circuit DC2455A-B is easy to set up to

evaluate the performance of PolyPhase operation of the

LTM4650EY-1. Due to the high input/output current, user

should select the proper input supply/load/cable which

can sustain the full load operation. It’s recommended to

pull load current from J2 and J4. The load current pulled

from J5 and J6 shouldn’t exceed 25A. Please refer to

Figure 2 for proper measurement setup and follow the

procedure below:

1. Place jumpers in the following positions for a typical

1.0VOUT application:

JP1 JP2 JP4~JP8

CLK RUN VOUT SELECT

INT OFF ON JP5 / 1.0V

2. With power off, connect the input power supply, load

and meters as shown in Figure 2. Preset the load to 0A

and VIN supply to 12V.

3. Turn on the power supply at the input. Place JP2 to ON

position. The output voltage between “VO+”and “VO–”

should be 1.0V ± 1.5% (0.985V~1.015V).

4. Once the proper output voltage is established, adjust the

load within the operating range and observe the output

voltage regulation, output voltage ripple, efficiency

and other parameters. Output voltage ripple should be

measured at J11 with BNC cables. 50Ω termination

should be set on the oscilloscope or BNC cables.

5. (Optional) For optional load transient test, apply an

adjustable pulse signal between “IOSTEP CLK”and

“GND” test point. Pulse amplitude (3V~3.5V) sets the

load step currentamplitude. Theoutput transientcurrent

can be monitored at the BNC connector J12 (5mV/A).

The pulse signal should be very small duty cycle (<

10%) to limit the thermal stress on the transient load

circuit.

6. (Optional) LTM4650-1 can be synchronized to an exter-

nal clock signal. Place the JP1 jumper on EXT and apply

a clock signal (0~5V, square wave) on the “EXT_CLK”

test point.

7. (Optional) The outputs of LTM4650-1 can track another

supply. The output voltage tracks the voltage on TRACK

when a valid signal is applied on the test point.

8. (Optional) DC2455A-B can be configured to a dual

outputs configuration with VOat 125A load current

and VO2 at 25A load current. Stuff 0Ω resistor on R61

and 0.1µF on C14. Remove R22, R23, R24, R26, R27,

R28, R32, R33, R35. Output voltage VO2 is set by R37

based on the equation VO2 = 0.6V(1 + 60.4k/R37).

performance summary

Specifications are at TA= 25°C

PARAMETER CONDITIONS / NOTES VALUE

Input Voltage Range 4.5V ~ 15V

Output Voltage VOUT VIN = 4.5V to 15V, IOUT = 0A to 150A, JP5: 1.0V 1.0V ± 1.5% (0.985V ~ 1.015V)

Maximum Continuous Output Current De-rating is necessary for certain VIN, VOUT and thermal

conditions, see data sheet for detail.

150A

Default Operating Frequency 500kHz

Resistor Programmable Frequency Range 400kHz – 780kHz

External Clock Sync. Frequency Range 400kHz – 780kHz

Efficiency VIN = 12V, VOUT = 1.0V, IOUT = 150A, fSW = 500kHz 86.1% See Figure 3

Load Transient VIN = 12V, VOUT = 1.0V, ISTEP = 72A to 112.5A < 53mV, See Figure 4

dc2455abf

DEMO MANUAL DC2455A-B

Quick start proceDure

+–

1mΩ

VOUT0

LOAD

0A~150A

+–

VIN

4.5V TO 16V

––

Figure 2. Test Setup of DC2455A-B

Figure 3. Measured Efficiency VIN = 12V, fSW = 500kHz

LOAD CURRENT (A)

EFFICIENCY (%)

100

4020 60

DC2455AB F03

14080 120100

VO= 1V

VO= 1.5V

dc2455abf

DEMO MANUAL DC2455A-B

Quick start proceDure

X-AXIS (?)

DC2455AB F04

1V VO(20MHz BW)

20mV/DIV

AC-COUPLED

75A TO 112.5A

LOAD

X-AXIS (?)

DC2455AB F05

VOUT (20MHz BW)

5mV/DIV

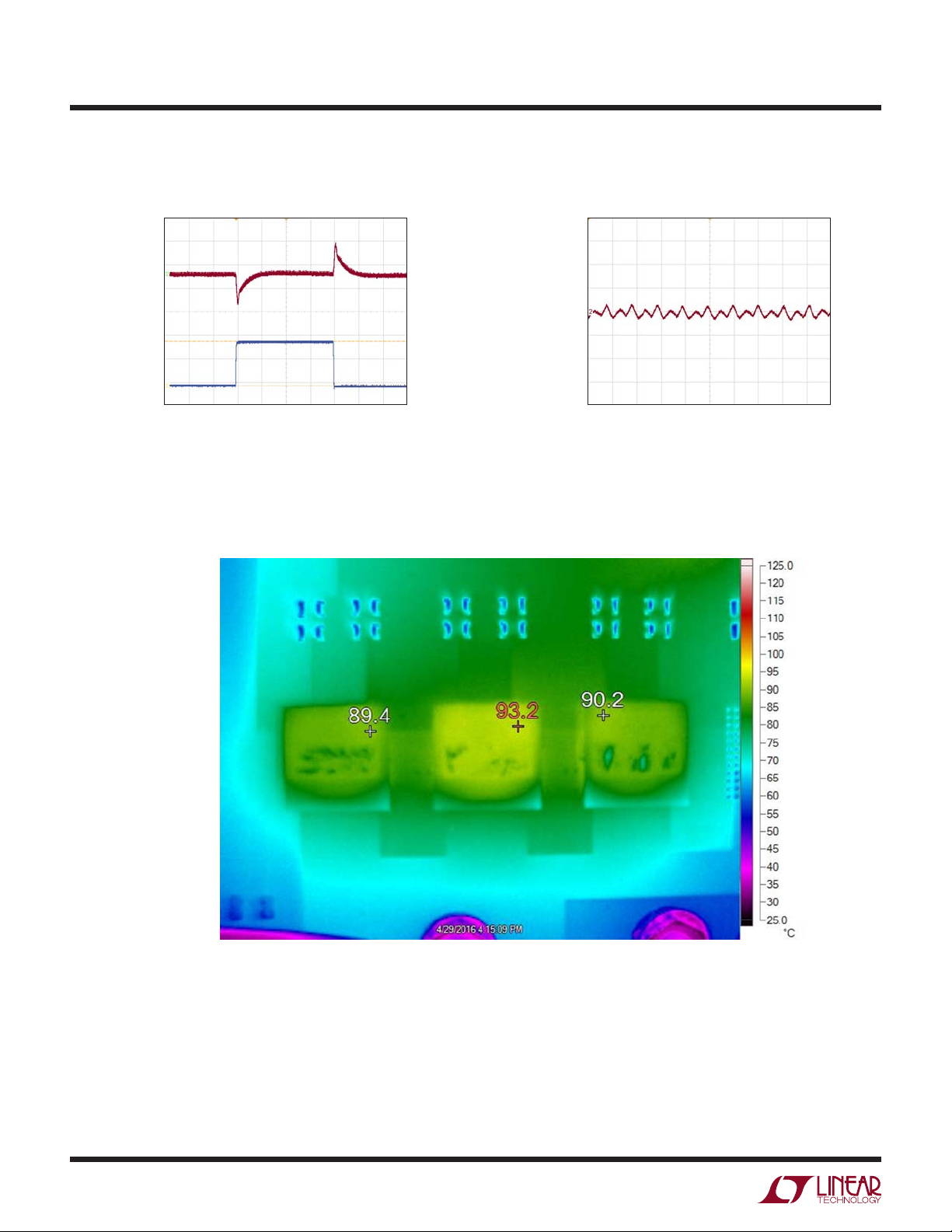

Figure 4. Load Transient 75A to 112.5A

(VIN = 12V, VOUT1 = 1V, fSW = 500kHz)

Figure 5. Output Voltage Ripple (VIN = 12V,

VOUT1 = 1V, IOUT = 150A, fSW = 500kHz)

Figure 6. Thermal Performance at VIN = 12V, VOUT = 1V, IOUT = 150A, TA= 23.8°C, 200LFM Air Flow

dc2455abf

DEMO MANUAL DC2455A-B

parts List

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 1 CIN1 CAP, 150µF 25% 25V ALUM SUN ELECT., 25HVH150M

2 2 CIN2, CIN11 CAP, 1206 1µF 10% 25V X5R TAIYO YUDEN, TMK316BJ105KD-T

3 8 CIN3-CIN10 CAP, 1210 22µF 10% 25V X5R AVX, 12103D226KAT2A

4 4 CIN12-CIN15 CAP, 1210 22µF 10% 25V X5R AVX, 12103D226KAT2A

5 16 CO1, CO2, CO5, CO6, CO7, CO8, CO11, CO13,

CO15, CO16, CO24, CO55, CO56, CO57,

CO58, CO59

CAP, 1206 220µF 20% 4V X5R MURATA, GRM31CR60G227ME11L

6 8 CO20, CO21, CO26, CO27, CO33, CO36,

CO52, CO54

CAP, 1206 220µF 20% 4V X5R MURATA, GRM31CR60G227ME11L

7 1 C1 CAP, 0603 330pF 10% 50V X7R AVX, 06035C331KAT2A-CT

8 4 C4, C10, C18, C22 CAP, 0603 4.7µF 20% 10V X5R TAIYO YUDEN, LMK107BJ475MA-T

9 7 C6, C11, C19, C23, COUT26, C42, C43 CAP, 0603 1µF 10% 10V X7R TAIYO YUDEN, LMK107BJ105KA-T

10 1 C7 CAP, 0603 0.1µF 10% 25V X7R AVX, 06033C104KAT2A

11 1 C31 CAP, 0603 15nF 10% 50V X7R AVX, 06035C153KAZ2A

12 1 C39 CAP, 0603 100nF 10% 100V X7R MURATA, GRM188R72A104KA35D

13 1 C40 CAP, 0603 150pF 5% 50V C0G AVX, 06035A151JAT2A

14 2 C41, C48 CAP, 1210 100µF 10V X5R MURATA, GRM32ER61A107ME20L

15 8 C41, C44, C45, C48, C52, C53, C54, C55 CAP, 1210 100µF 10% 6.3V X5R MURATA, GRM32ER60J107ME20L

16 1 C46 CAP, 1210 10µF 16V X5R MURATA, GRM32DR61C106KA01L

17 1 C47 CAP, 0603 220pF 10% 50V X7R AVX, 06035C221KAT2A

18 1 C49 CAP, 0603 47nF 10% 50V X7R AVX, 06035C473KAZ2A

19 1 L1 IND, 68µH, CDRH105 SUMIDA CDRH105RNP-680N

20 2 Q1, Q2 MOSFET, N-CH D-S 40V TO252 VISHAY, SUD50N04-8M8P-4GE3

21 4 R1, R3, R25, R29 RES, 0603 10Ω 5% 1/10W VISHAY, CRCW060310R0JNEA

22 9 R2, R9, R14, R21, R31, R39, R43, R47, R51 RES, 0603 121kΩ 1% 1/10W VISHAY, CRCW0603121KFKEA

23 4 R4, R36, R41, R98 RES, 0603 10kΩ 5% 1/10W VISHAY, CRCW060310K0JNEA

24 1 R11 RES, 0603 1.74kΩ 1% 1/10W VISHAY, CRCW06031K74FKEA

25 1 R15 RES, 0603 90.9kΩ 1% 1/10W VISHAY, CRCW060390K9FKEA

26 1 R16 RES, 0603 60.4kΩ 1% 1/10W VISHAY, CRCW060360K4FKEA

27 1 R17 RES, 0603 40.2kΩ 1% 1/10W VISHAY, CRCW060340K2FKEA

28 1 R18 RES, 0603 30.1kΩ 1% 1/10W VISHAY, CRCW060330K1FKEA

29 1 R89 RES, 0603 2Ω 1% 1/10W VISHAY CRCW06032R00FNEA

30 1 R92 RES, 0603 3.3Ω 1% 1/10W VISHAY, CRCW06033R3FKEA

31 1 R93 RES, 0603 154kΩ 1% 1/10W VISHAY, CRCW0603154KFKEA

32 1 R94 RES, 0603 1MΩ 5% 1/10W VISHAY CRCW06031M00JNEA

33 3 R95, R96, R107 RES, 0603 20kΩ 5% 1/10W VISHAY, CRCW060320K0JNTA

34 1 R97 RES, 0603 681kΩ 1% 1/10W VISHAY, CRCW0603681KFKEA

35 1 R99 RES, 0603 301Ω 1% 1/10W VISHAY, CRCW0603301RFKEA

36 1 R100 RES, 0603 82.5Ω 1% 1/10W VISHAY, CRCW060382R5FKEA

37 2 R101, R102 RES, 2512 0.010Ω 1% 1W VISHAY, WSL2512R01000FEA

38 1 R103 RES POT, 5k BOURNS 3386P-1-502-LF

39 1 R104 RES, 0603 1kΩ 1% 1/10W VISHAY, CRCW06031K00FKEA
