DC1123 QUICK START GUIDE

DESCRIPTION

Demonstration circuit 1123 is a Linear USB Battery

Charger w ith Dual Buck Regulators featuring the

LTC35 2. The LTC35 2 is a quad high efficiency mono-

lithic synchronous step-dow n regulator w ith an I

C inter-

face. Tw o regulators are externally adjustable and can

have their feedback voltages programmed betw een

425mV and 800mV in 25mV (Type A). The other tw o

regulators are fixed output regulators w hose output volt-

ages can be programmed betw een 00mV and 3.775V in

25mV steps (Type B). All four regulators operate inde-

pendently and can be put into pulse skip, LDO, Burst

M ode operation or forced Burst M ode operation through

C control. The Type A regulators have separate RUN

pins that can be enabled if I

C control is unavailable.

The 2.85V to 5.5V input range makes the LTC-35 2 ide-

ally suited for single Li-ion battery pow ered applications.

At low output load conditions, the regulators can be

sw itched into LDO, Burst M ode operation or forced Burst

M ode operation, extending battery life in portable sys-

tems. The quiescent current drops to under 100µA w ith

all regulators in LDO mode and under 0.1µA w hen all

regulators are shut dow n

Sw itching frequency is internally set to 2.25M Hz, allow -

ing the use of small surface mount inductors and capaci-

tors. All regulators are internally compensated.

The LTC35 2 is offered in a low profile 3mm



3mm

QFN package.

Design files for this circuit board are available. Call

the LTC factory.

, LTC, LTM , LT, Burst M ode, are registered trademarks of Linear Technology Corporation.

All other trademarks are the property of their respective ow ners.

TABLE 1. Typical Specifications (25°C)

Input Voltage Range: V

2.85V to 5.5V (Subject to dropout)

P 00A 0.9 V to 1.82V, 00mA (M ax)

P 00B 1.20V to 3.775V, 00mA (M ax)

P400A 0.80V to 1.51V, 400mA (M ax)

P400B 0. 0V to 3.775V, 400mA (M ax)

OPERA TING PRINCIPL ES

The LTC35 2 is a highly integrated pow er management

IC that contains four I

C controllable, monolithic, high

efficiency step-dow n regulators. Tw o regulators pro-

vide up to 00ma of output current and the other tw o

regulators produce up to 400ma. All four regulators

are 2.25M Hz, constant-frequency, current mode

sw itching regulators that can be independently con-

trolled through I

C. All regulators are internally com-

pensated eliminating the need for external compensa-

tion components.

The LTC35 2 offers tw o different types of adjustable

step-dow n regulators. The tw o Type A regulators

(R 00A, R400A) can have the feedback voltage ad-

justed from 425mv to 800mv in 25mv increments. The

tw o Type B regulators (R 00B, R400B) can have the

1 1 2 3

Q U ICK S TA R T G U IDE

L T C3 5 6 2

L in e a r U S B B a tte ry Ch a rg e r w ith Du a B u c k R e g u a to rs

DC1123 QUICK START GUIDE

output voltages adjusted through I

C control from

00mv to 3.775V in 25mv increments.

Q U ICK STA RT PROCEDU RE

Using short tw isted pair leads for any pow er connec-

tions and w ith all loads and pow er supplies off, refer

to Figure 1 for the proper measurement and equip-

ment setup.

NOTE.

W hen measuring the input or output voltage ripple, care must be

taken to avoid a long ground lead on the oscilloscope probe. M easure the

input or output voltage ripple by touching the probe tip directly across the

VCC or VOUT and GND terminals. See Figure 2 for proper scope probe

technique.

Place jumpers and load settings in the follow ing posi-

tions:

JP1 ( UN600A)

= ON

JP2 ( UN400A)

= ON

Load 1

= Consant Current 50mA

Load 2

= Constant Current 50mA

Load 3

= Constant Current 50mA

Load 4

= Constant Current 50mA

Connect Pow er Supply PS1 to VIN terminals and ad-

just to 4.5 Volts to the demo board, as show n in Fig-

ure 1.

Verify that OUT 00A (1.8V) and O UT400A (1.5V) are

operational w ith proper output voltages.

Once the proper output voltages are established, ad-

just the loads w ithin the operating range and observe

the output voltage regulation, ripple voltage, and effi-

ciency.

Open the Quickstart Softw are as discribed in the

DC590 Quick Start Guide

Set Jumpers JP1 (RUN400A) and JP2 (RU N 00A) to

Off Position. Connect Ribbon cable from DC590 demo

circuit to J2. The LTC 35 2 demonstation softw are

should pop-up automatically w hen the cable is in-

stalled.

Using the LTC35 2 softw are GUI. See Figure 3. Set all

modes to Burst mode, VOUT 00A to 1.82V, VOUT

00B to 3.3V, VO UT 400A to 1.51V and VO UT 400B to

1.2V. Set all loads to 50mA. Check Auto Update but-

tons. Click on Enable All button.

Once the proper output voltages are established, ad-

just the loads w ithin the operating range and observe

the output voltage regulation, ripple voltage, and effi-

ciency.

Using the LTC35 2 softw are GUI. Set all modes to

Pulse Skip mode, VOUT 00A to 1.82V, VOUT 00B to

3.3V, VOUT 400A to 1.51V and VO UT 400B to 1.2V.

Set all loads to 50mA.

10.

Once the proper output voltages are established, ad-

just the loads w ithin the operating range and observe

the output voltage regulation, ripple voltage, and effi-

ciency.

11.

Using the LTC35 2 softw are GUI. Set all modes to

Forced Burst mode, VOU T 00A to 1.82V, VOUT 00B

to 3.3V, VOUT 400A to 1.51V and VOUT 400B to 1.2V.

Set all loads to 50mA.

12.

Once the proper output voltages are established, ad-

just the loads w ithin the operating range and observe

the output voltage regulation, ripple voltage, and effi-

ciency

13.

Using the LTC35 2 softw are GUI. Set all modes to

LDO mode, VO UT 00A to 1.82V, VOUT 00B to 3.3V,

VOUT 400A to 1.51V and VOUT 400B to 1.2V. Set all

loads to 50mA.

14.

Once the proper output voltages are established, ad-

just the loads w ithin the operating range and observe

the output voltage regulation, ripple voltage, and effi-

ciency

15.

Using the LTC35 2 softw are GUI. Set all modes to

Burst mode, VOUT 00A to 1.82V, VOU T 00B to

3.3V, VOUT 400A to 1.51V and VO UT 400B to 1.2V.

Set all loads to 50mA.

16.

M onitor POR 00A pin w hile increasing Load1 until

the signal on POR 00A goes low . The voltage on

P 00A w ill be less than 92% of voltage setting.

DC1123 QUICK START GUIDE

17.

Set Load1 and Load2 to 450mA. Set Load3 and

Load4 to 300mA. Adjust PS1 over the operating range

and observe line regulation.

A PPL ICA TION INF ORM A TION

This demo circuit is designed to demonstrate the full

capability of the LTC35 2 I

C Quad Synchronous

Step-Dow n DC-DC Regulator. Not all components are

required in all applications. The critical circuit com-

ponents are on the top of the board near the IC and

listed in the R equired Circuit Components section of

the Bill of M aterials, in Figure 5.

The input capacitor netw ork of C1 and R1 is used to

dampen source lead inductances that commonly oc-

cur in laboratory setups w ith tw isted leads and a

bench pow er supply. W hen using a USB cable this

input damping netw ork w ill likely not be required.

Please note that the in-circuit capacitance of the

specified 10uF, 0805 ceramic capacitor for C1 and C2

is less than 5uF each w ith VIN greater than 4.25 Volts.

For good transient response and stability the output

capacitor each buck regulator should retain at least

4uF of capacitance over the operating temperature

and voltage range.

The output inductors for the OUT 00A and OUT 00B

are the recommended values of 3.3uH w hile the

OUT400A and OUT400B are 4.7uH.

Resistors R4 and R are to adjust the output voltage

seen on the OUT 00A output w hile R3 and R4 w ill set

the voltage on the OUT400A output.

DC1123 QUICK START GUIDE

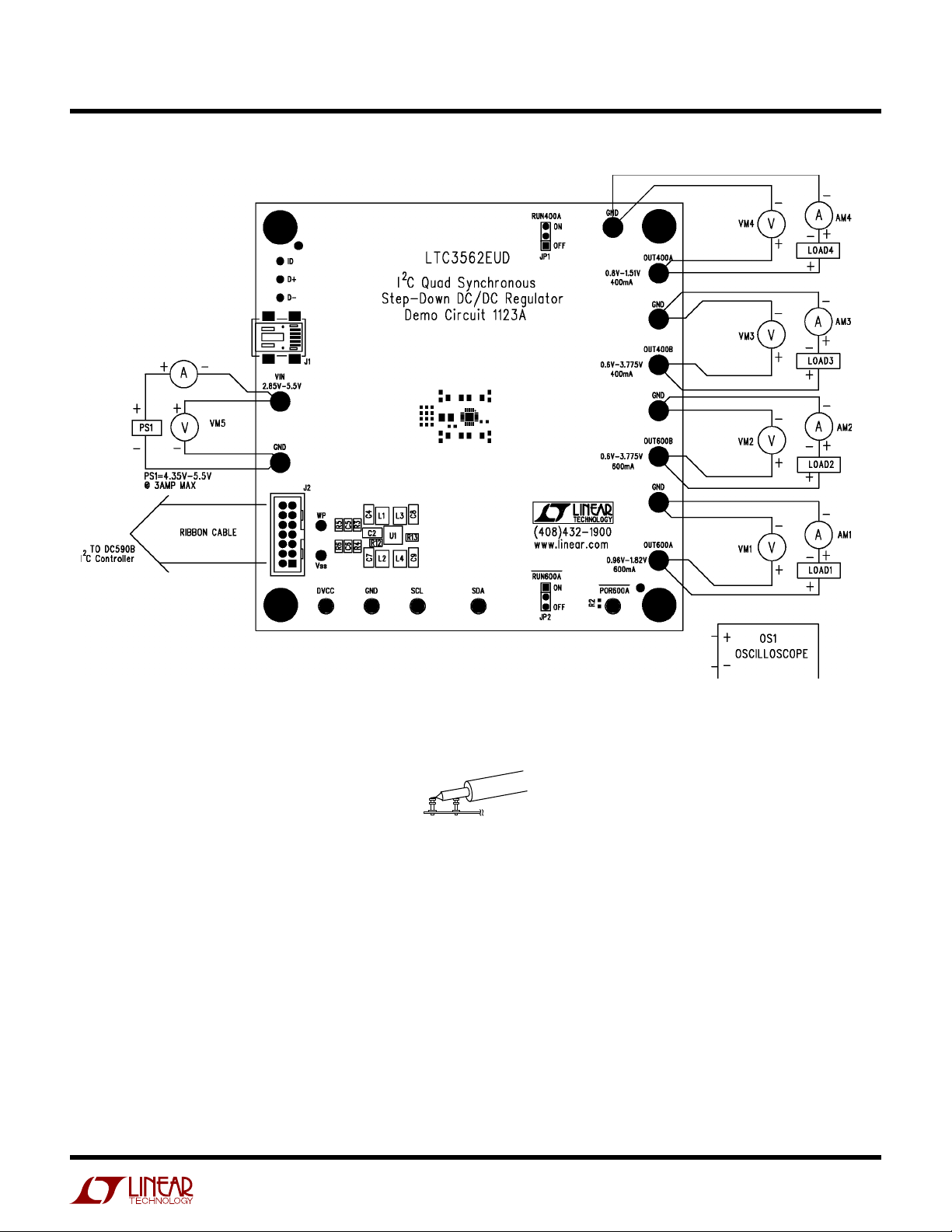

Figure 1.

Proper M easurem ent Equipm ent Setup

VIN

GND

Figure 2.

M easuring Input or Output ipple

DC1123 QUICK START GUIDE

Figure 3.

Graphical User Interface

DC1123 QUICK START GUIDE

Figure 4.

Circuit Schem atic

DC1123 QUICK START GUIDE

Item Qty

Reference - Des Part Description Manufacturer, Part #

REQUIRED CIRCUIT COMPONENTS:

1 1 C2 CAP, CHIP X5R, 10uF, 10V, 0805 Murata, GRM21BR61A106KE19

2 4 C4,C7,C8,C9 CAP, CHIP,X5R, 10uF, 6.3V, 0603 TDK, C1608X5R0J106M

3 2 C5,C6 CAP, CHIP, COG, 10pF, 50v, 0402 Murata, GRM1557U1H100JZ01D

4 2 L2,L4 INDUCTOR, 3.3uH, 0.120 Ohms, 1.0A TOKO, 1098AS-3R3M

5 2 L1,L3 INDUCTOR, 4.7uH, 0.155 Ohms, 0.88A TOKO, 1098AS-4R7M

6 1 R3 RES, 0402, 475K OHMS, 1%, 1/16w VISHAY, CRCW0402475KFKED

7 1 R4 RES, 0402, 634K OHMS, 1%, 1/16w VISHAY, CRCW402634KFKED

8 1 R5 RES, 0402, 536K OHMS, 1%, 1/16w VISHAY, CRCW402536KFKED

9 1 R6 RES, 0402, 499K OHMS, 1%, 1/16w VISHAY, CRCW0402499KFKED

10 2 R12,R13 RES, 0402, 3.3M OHMS, 5%, 1/16w VISHAY, CRCW04023M30JNED

11 1 U1 I

C QUAD SYNCHRONOUS STEP-DOWN

DC/DC REGULATOR LINEAR TECH, LTC3562EUD

ADDITIONAL DEMO BOARD CIRCUIT COMPONENTS:

1 2 C10,C11 CAP, CHIP, X5R, 0.1uF, 10V TDK, C1005X5R1A104K

2 1 C1 CAP, CHIP,X5R, 10uF, 10V TDK, C2012X5R0J106M

3 1 R7 RES, 0402, 0.0 Ohms, 1/16w VISHAY, CRCW04020000Z0ED

4 1 R2 RES, 0402, 100K Ohms, 5%, 1/16w VISHAY, CRCW0402100KJNED

5 4 R8,R9,R10,R11 RES, 0402, 5.1K OHMS, 5%, 1/16w VISHAY, CRCW04025K1JNED

6 1 R1 RES, 0402, 1 OHM, 5%, 1/16w VISHAY, CRCW04021R00JNED

7 1 U2 SERIAL EEPROM MICROCHIP, 24LC025-I/ST

HARDWARE FOR DEMO BOARD ONLY:

1 2 JP1,JP2 HEADER,3 PINS, 2mm SAMTEC, TMM-103-02-L-S

2 2 JP1,JP2 SHUNT, 2mm SAMTEC, 2SN-BK-G

3 1 J1 CONN, USB MINI-B TYCO, 1734035-2

4 1 J2 HEADER, 2X7 PIN, 0.079CC MOLEX/WALDEN, 87831-1420

5 10

E1,E5,E6,E7,E8,

E9,E15,E16,E17,

E18

TURRET, 0.09 DIA MILL-MAX, 2501-2

6 8 E2,E3,E4,E10,E11,

E12,E13,E14 TURRET, 0.061 DIA MILL-MAX, 2308-2

7 4 STAND-OFF, NYLON 0.25" tall (SNAP ON) KEYSTONE, 8831 (SNAP ON)

Figure 5.

Bill of M aterials

Tabla de contenidos

Otros manuales de Placa madre de Linear Technology

Linear Technology

Linear Technology DC1784A Guía de configuración rápida

Linear Technology

Linear Technology LTC6905 Series Guía de configuración rápida

Linear Technology

Linear Technology DC752A Guía de configuración rápida

Linear Technology

Linear Technology DC1880A Guía de configuración rápida

Linear Technology

Linear Technology DC861A-A Manual de usuario

Linear Technology

Linear Technology DC2565A Guía de configuración rápida

Linear Technology

Linear Technology DC1626A Guía de configuración rápida

Linear Technology

Linear Technology DC1513B Guía de configuración rápida

Linear Technology

Linear Technology LT4363 Manual de usuario

Linear Technology

Linear Technology DC1719A Guía de configuración rápida

Linear Technology

Linear Technology DC1794A Guía de configuración rápida

Linear Technology

Linear Technology DC826C-A Guía de configuración rápida

Linear Technology

Linear Technology LT3437IFE Manual de usuario

Linear Technology

Linear Technology DC2270A Guía de configuración rápida

Linear Technology

Linear Technology DC1763A Guía de configuración rápida

Linear Technology

Linear Technology DC1925A Series Guía de configuración rápida

Linear Technology

Linear Technology DC1533A Guía de configuración rápida

Linear Technology

Linear Technology DC2016A Guía de configuración rápida

Linear Technology

Linear Technology DC1317A-B Manual de usuario

Linear Technology

Linear Technology DC2077A Guía de configuración rápida

Linear Technology

Linear Technology DC651A Manual de usuario

Linear Technology

Linear Technology DC1977A-A Guía de configuración rápida

Linear Technology

Linear Technology DC1605B Guía de configuración rápida

Linear Technology

Linear Technology DC2522A Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
