QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 498

3 AND 4 CELL LI-ION BATTERY CHARGER BOARD WITH BUILT IN CHARGE TERMINATION

LTC4007

DESCRIPTION

Demonstration circuit 498 is a single battery stand-

alone battery charge controller with built in charge

termination featuring the LTC®4007. The input voltage

is 13 to 20V. The charger output voltage is pro-

grammed by jumpers to support 3- and 4-Cell Li-ion

batteries with a cell voltage of 4.1V or 4.2V/Cell. The

maximum charge current is 4A. The demo board is

initially configured for 12.6V Li-ion batteries. The

board will automatically charge a battery to termina-

tion as soon as input power is applied with a battery

connected prior to power up. Status LEDs are pro-

vided for CHG, ACP, FAULT, FLAG, ICL and LOBAT.

An onboard NTC thermistor is provided. Although this

charger is not a smart battery charger, a popular

smart battery connector is provided that can be used

for data logging with the optional DC1223A-B demo

board and software. To be clear, you do NOT need a

smart battery to use this board. The optional

DC1223A-B SMBUS to USB Port Adapter and asso-

ciated software to monitor a smart battery are for

demonstration purposes only. Contact your LT repre-

sentative for ordering a DC1223A-B.

Design files for this circuit board are available. Call

the LTC factory.

LTC is a registered trademark of Linear Technology Corporation.

Table 1. Performance Summary

PARAMETER CONDITION VALUE

Maximum Input Voltage Limited by input Capacitor Volt Ratings. 20V +/- 10 %

Recommended Minimum Input Voltage Vin > Vbat Termination voltage. 13V when using a 12.6V Li-ion battery.

Input Current Limit 3.5A

Maximum Charge Current Vin > Vbatmax > 6V 4A +/- 5%

QUICK START PROCEDURE

Demonstration circuit 498 is easy to set up to eva-

luate the performance of the LTC4007. Refer to Figure

1 for proper measurement equipment setup and fol-

low the procedure below:

NOTE: When measuring the input or output voltage

ripple, care must be taken to avoid a long ground lead

on the oscilloscope probe. Measure the input or out-

put voltage ripple by touching the probe tip directly

across the VIN or VOUT and GND terminals. See Figure

2 for proper scope probe technique.

1. Connect the input power source to DCIN termin-

als J1 or DCIN and GND using a power supply ca-

pable of handling 4A of current within an 11 to 20V

range. The input supply MUST be greater than the

full voltage value of the battery to allow a full

charge to take place.

2. Connect the load to VOUT and GND terminals.

3. Configure the jumpers for your specific battery.

4. Plug in the battery. The industry standard 5 Pin

AMP Smart Battery connector is provided as well

as generic soldering Test Points for hardwire con-

nections.

5. Turn on the input power supply.

6. Optionally use the provided DC1223A-B demon-

stration software to control and configure the

DC498A.

Downloaded from Arrow.com.

QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 498

3 AND 4 CELL LI-ION BATTERY CHARGER BOARD WITH BUILT IN CHARGE TERMINATION

7. NOTE: If the board is allowed to get warm, the

onboard NTC thermistor may trip and momentarily

suspend the charge process. This can be con-

firmed by the fault LED turning on. When the board

cools down, charging will resume.

Figure 1: Proper Measurement Equipment Setup

Figure 2: Scope Probe Placement for Measuring Input or Output Ripple

OPTIONAL DC1223A-B SMBUS

TO USB ADAPTER

PROVIDES DATA LOGGING AND

BATTERY CONTROL

Downloaded from Arrow.com.Downloaded from Arrow.com.

QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 498

3 AND 4 CELL LI-ION BATTERY CHARGER BOARD WITH BUILT IN CHARGE TERMINATION

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Tabla de contenidos

Otros manuales de Controladores de Linear Technology

Linear Technology

Linear Technology DC1477B Guía de configuración rápida

Linear Technology

Linear Technology LTC7103 Guía de configuración rápida

Linear Technology

Linear Technology DC1989A-A Guía de configuración rápida

Linear Technology

Linear Technology DC1936A Guía de configuración rápida

Linear Technology

Linear Technology LTC3729 Manual de usuario

Linear Technology

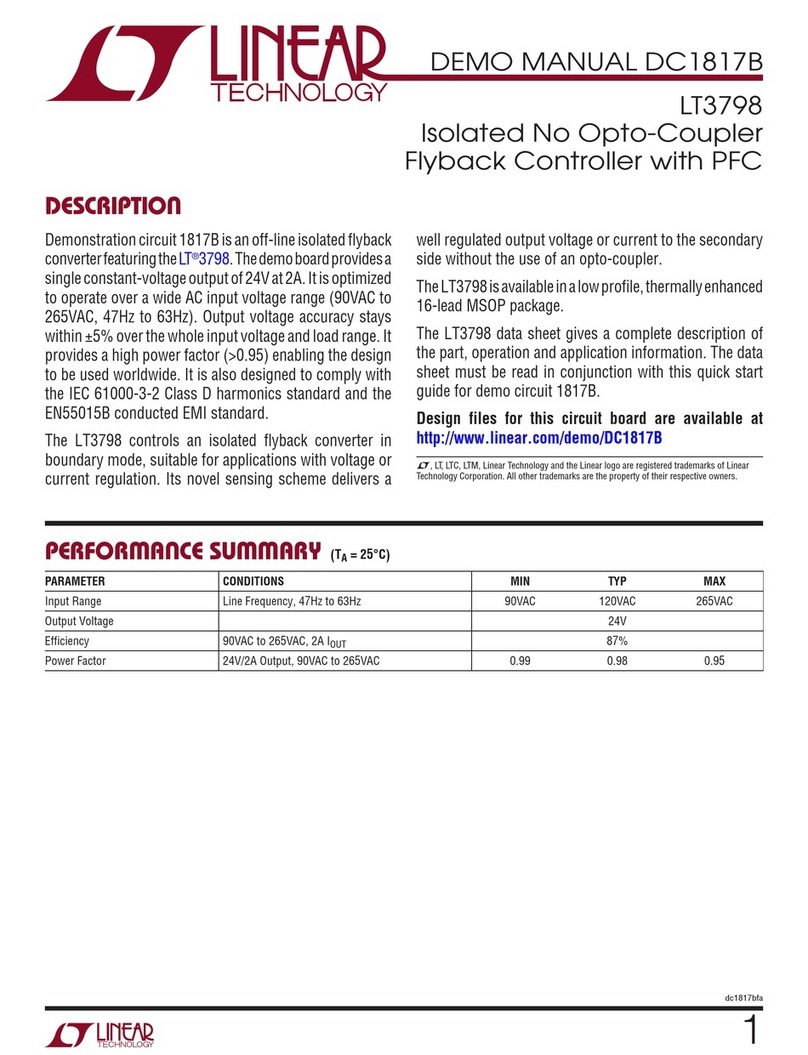

Linear Technology DC1817B Guía de configuración rápida
