Lindy 42928 Manual de usuario
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (March 2005)
USB Chipcard Reader
with SIM Card Adapter
User Manual English
LINDY No. 42928
www.lindy.com
Introduction
Thank you for purchasing the LINDY Card Reader. This product allows you to read the contents
or your mobile phone’s SIM card and use the supplied software to edit text messages and
phone book entries.
Package Contents
LINDY USB Chipcard Reader
SIM Card Adapter
USB Extension Cable
Installation CD
This manual
Product Information
Power LED: Glows green
when the reader is plugged in
Card Access LED: Glows
red when the SIM card is
being accessed
SIM Card Adapter
Card Reader
Installation
Step 1 - Slide your SIM card into the Adapter
Step 2 - Insert the SIM Card Adapter into the Reader
Step 3 - Plug the Reader into an available USB
port on your computer.
Driver Installation
The following illustration shows the installation process under Windows XP. The procedure is
similar for Windows 98SE, ME and 2000.
1. After you have plugged the Card
Reader into your computer Windows will
detect it and the following screen will be
displayed. Click Cancel and insert the
installation CD into your CD drive:
2. The CD will ‘auto-run’ and the
installation screen will appear. Click on
Install Driver:
3. At the EZMini Driver Setup window
click Yes to continue the installation:
4. Depending on your operating system
you may need to install the Microsoft
Smart Card Base Components. Click
Accept to continue the installation:
5. You will be prompted to restart your
computer, click Yes:
Diagnostics
Once the computer has restarted you can verify correct installation by launching the diagnostics
application – EZ100PU Diagnostics. Select:
Start > All Programs > EZ100PU Utility > EZ100PU Diagnostics
The window below will appear. Click the Diagnostic button at the top of the window to run
diagnostics. Ensure all the checked items have passed.
SIM Card Editor Software Installation
1. Insert the software CD into your CD-
ROM drive. When the menu screen
appears select Install SimEditor:
2. When the InstallShield Wizard screen
appears click Next:
3. At the next screen enter your details
and click Next:
4. Click Next to install the program to the
default folder or Change to install to a
different folder:

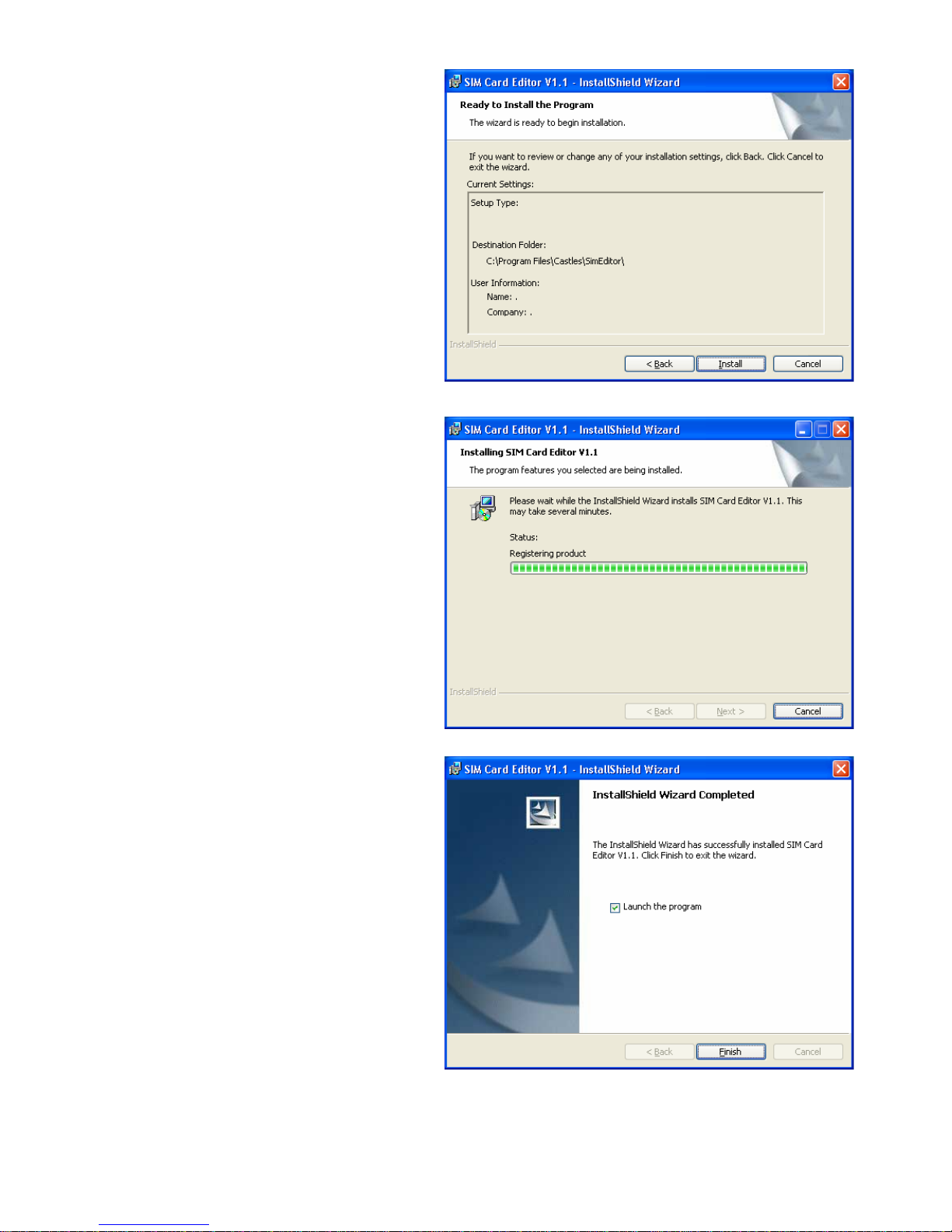

5. Review the installation settings and
click Install to proceed:
6. The files will be installed:
7. The installation process is complete.
Click Finish:
SIM Card Editor
Launch the SIM Card Editor software by double-clicking the icon on the desktop
You will see the following screen:
To learn how to use the SIM Card
Editor software, select the Help
option on the menu bar. Here you
will find a comprehensive instruction
guide. Use >> and << to navigate
through the different pages:
Troubleshooting
The Card Reader’s Power LED is not illuminated
Run the diagnostics program to verify correct installation
Check that the PC is correctly powered on and has booted up into Windows
If connecting via a USB hub ensure the hub is correctly installed and powered
Try plugging the Card Reader into another USB port
If using a USB extension cable, try plugging the Card Reader directly into a USB port
The Card Access Power LED does not illuminate when the card is being accessed
Run the diagnostics program to verify correct installation
Check the SIM card is correctly installed in the SIM Card Adapter
Ensure the SIM Card Adapter is fully inserted into the Card Reader
Try using a different SIM Card
If you encounter any other problems or need assistance please contact LINDY technical
support. See our website for details: www.lindy.com
