FXLD154WAI LED FIXTURE

Version0.1 OWNERSMANUAL 02/14/2012

www.lightronic.com

Lightronics Inc. 509 Central Drive Virginia Beach, Va 234354 757 486 3588

FEATURES AND SPECIFICATIONS

LEDS: 54 1 Watt LEDs ( 36 white, 18 amber)

Beam angle: 25 º

Control system: DMX-512

DMX channels: 4

DMX connectors: 3 pin XLR

LED lifetime: 60,000 hours

Voltage: 90 - 259 VAC / 24 VDC

Max power consumption: 56 Watts

Size: 9.1/4"D x 8 3/8"W x 8 3/8"H

Body material: Cast Aluminim

Body color: black

Weight: 8.8 lbs

DESCRIPTION

The FXLD154WAI is a PAR style WHITER/AMBER

LED lighting fixture. It is suitable for stage, disco,

night club, and other artistic applications. It has

several stand alone control modes, a master/slave

mode, and can operate via a DMX-512 external signal.

A double yoke enables it to be operated in several

positions.

INSTALLATION

LOCATION

The FXLD154WAI is intended for

INDOOR USE

ONLY.

Locate the unit in a well ventilated area away from

moisture and heat. Holes are provided on the yokes to

install a lighting bar pipe clamp. A safety cable should

also be used. Do not block any vent holes.

POWER CONNECTIONS

The FXLD154WAI has a line cord for connection to a

120 VAC, 15 Amp, 60Hz, grounded service.

The safety ground pin on the power cord must be used.

DMX CONNECTIONS

A system using DMX control should be connected as a

chain of devices. In other words the control signal

cable should proceed from the controller to the first

receiving device and then to others in a continuous

"daisy chain" fashion.

The fixture has a DMX IN and a DMX OUT connector

to be used to connect the chain. The control cable

should NOT be split into a multiple run star

arrangement with a cable running from the controller

directly to each receiving device pack.

DMX CONNECTOR PIN ASSIGNMENTS

There are two different connectors which can be used

for DMX control. They are both XLR type connectors.

Some units use 3 pin connectors. Others use 5 pin

connectors. The FXLD154WAI receives a DMX signal

on the 3 pin MALE connector on the back of the unit.

The 3 pin FEMALE connector is used to connect the

next DMX device on the control chain. If your console

uses a 5 pin connector you can make up an adapter

cable to accommodate this. The table below shows the

pin assignments for BOTH the 3 pin and 5 pin

connectors.

IN # SIGNAL NAME

1 DMX COMMON

2 DMX DATA -

3 DMX DATA +

4 NOT USED

5 NOT USED

CAUTION

RISK OF ELECTRIC SHOCK

Page 2 of 5

FXLD154WAI LED FIXTURE

Version0.1 OWNERSMANUAL 02/14/2012

www.lightronic.com

Lightronics Inc. 509 Central Drive Virginia Beach, Va 234354 757 486 3588

DMX TERMINATION

A DMX chain should be terminated at the last

receiving device on the chain. This is done by

installing a commonly available 1/4 Watt, 120 Ohm

resistor across the DATA - and DATA + wires at the

last device. If you have only a few fixtures very close

together and a very short run to the controller then you

may be able to operate without the terminator.

OPERATION

The fixture has 36 white LEDs which can be controlled

in 2 groups of 18 each (white 1 and white 2). The 18

remaining are amber and are controlled as a single

group.

Operating options are set using the LED display and 4

buttons

(MENU, ENTER, UP, DOWN)

on the rear of

the fixture.

Push

to access the operating options. Then use

and

DOWN

to scroll through the available choices.

When you reach the option you want to set or change -

push

ENTER

.Now you can view the current setting

for the option and or change it. Push

ENTER

to save

your changes. Push

to return to the current

option display. See the "MENU NAVIGATION"

diagram for additional details.

There are 5 main operation modes: DMX, Manual,

Auto, Sound, Master/Slave

DMX OPERATION

Use the ADDR menu to set the starting address of the

unit. You can set the starting address of the unit with

the UP and DOWN buttons.

The fixture uses four channels with allocations as

follows:

CHANNEL 1: 000 - 127 Master for CH 2 - 4.

128 - 249 Strobe speed for CH 2 - 4

250 - 255 Ch 2 - 4 full range

CHANNEL 2: 0 - 255 Amber Level (255 max.)

CHANNEL 3: 0 - 255 White 1 Level (255 max)

CHANNEL 4: 0 - 255 White 2 level (255 max.)

MANUAL OPERATION

For manual operation the amber, white 1, and white 2

LEDs may be independently controlled. Use the AL-

3L--, and 3L--, menus to set the levels. The range is

from 00 (OFF) to 12 (Full On).

AUTO OPERATION

Auto operation includes 3 sub modes: Flash (strobe),

Auto Fade, and Auto Sequence.

AUTO FLASH

The Auto Flash mode flashes all LEDs. Use the FLAS

menu to set the flash speed and activate the option. The

range is from 00 to 12. 12 is fastest.

AUTO FADE

The Auto Fade mode cycles smoothly through a

sequence of colors. Use the FADE menu to set the

speed and activate the option. The range is from 00 to

12. 12 is fastest.

AUTO SEQUENCE

The AUTO SEQUENCE mode switches through a

sequence of colors. Use the ASC- menu to set the

sequence speed and activate the option. The range is

from 00 to 12. 12 is fastest.

SOUND OPERATION

Sound operation has a Color and a Flash submode.

Use the SOUA menu to invoke the Sound Color

option. The unit will sequence through a series of

FXLD154WAI REAR VIEW

Page 3 of 5

FXLD154WAI LED FIXTURE

Version0.1 OWNERSMANUAL 02/14/2012

www.lightronic.com

Lightronics Inc. 509 Central Drive Virginia Beach, Va 234354 757 486 3588

colors in sync with music base notes.

Use the SOUF menu to invoke the Sound Flash

option. The unit unit will flash through a series of

colors in sync with music base notes.

MASTER/SLAVE OPERATION

Connect the units together using DMX cables. Set all

the units to be slaved to ADDR 001. Set the master

unit to any auto operation option. The slave units will

sync to the master sequence.

MAINTENANCE AND REPAIR

TROUBLESHOOTING

Check that you have power applied to the unit.

Check the fuse.

Check the DMX control cable.

Check the address settings of the unit and the

controller.

REPAIR

The only FXLD154WAI user serviceable part is a

5mm x 20mm externally accessible fuse.

DISCONNECT THE UNIT FROM POWER BEFORE

CHECKING OR REPLACING THE FUSE

Replace fuse ONLY with 3.15 Amp, 250VAC, fast

blow fuse.

Internal service on the unit by other than Lightronics

authorized agents will void the warranty. If service is

required, contact the dealer from whom you purchased

the item, or contact the Lightronics, Service

Department, 509 Central Drive, Virginia Beach, VA

23454. Tel: 757 486 3588.

PHOTOMETRIC DATA

Distance Illuminance Beam Diam.

(ft) (Lux) (ft)

-------------- ------------------ -------------------

10 1600 4

20 418 6

30 186 10

CAUTION DO NOT OPEN UNIT

RISK OF ELECTRIC SHOCK

RISK OF FIRE

Page 4 of 5

FXLD154WAI LED FIXTURE

Version0.1 OWNERSMANUAL 02/14/2012

www.lightronic.com

Lightronics Inc. 509 Central Drive Virginia Beach, Va 234354 757 486 3588

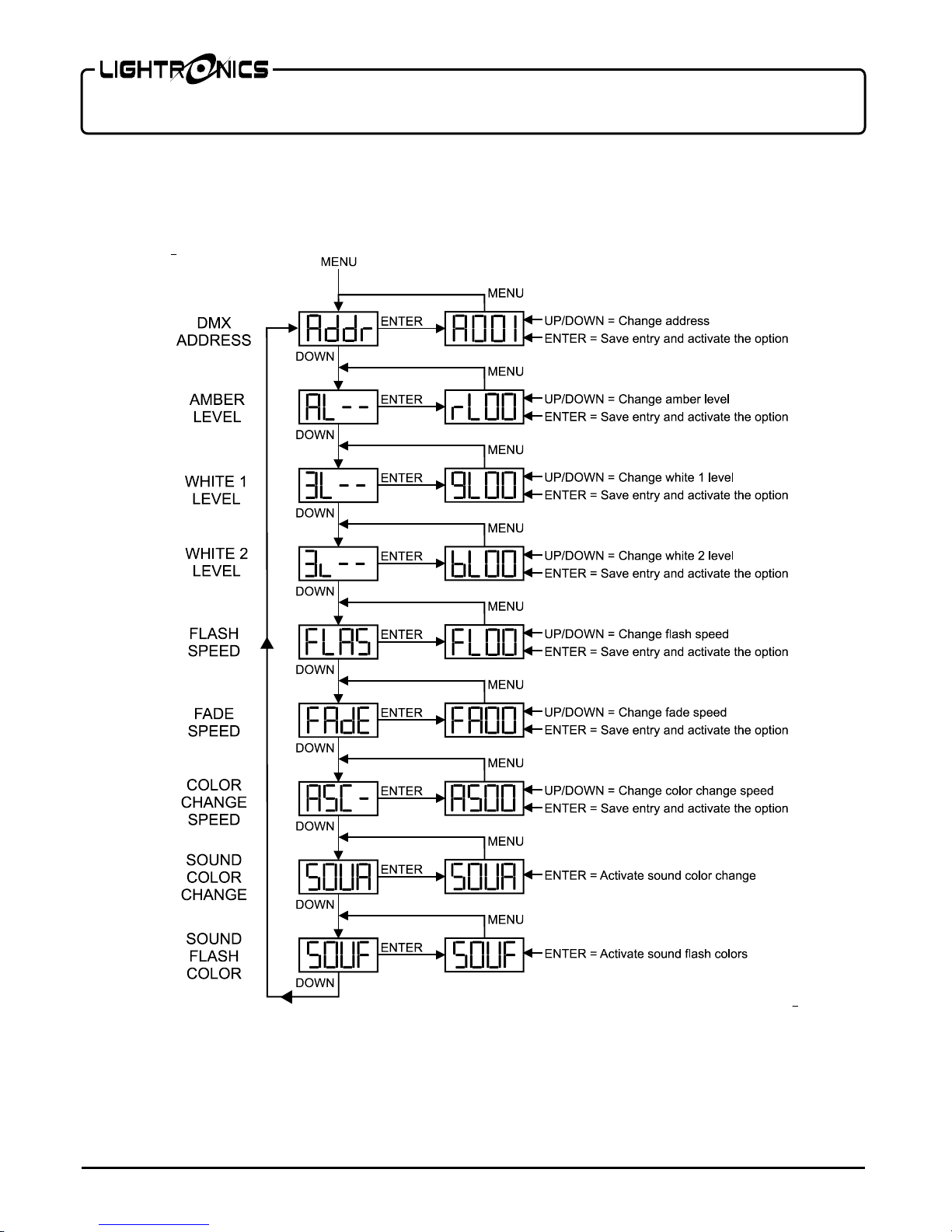

MENU NAVIGATION

This product is warranted for a period of TWO YEARS from the date of purchase against defects in

materials and workmanship.

This warranty is subject to the following restrictions and conditions:

A) If service is required, you may be asked to provide proof of purchase from an authorized

Lightronics dealer.

B) This warranty is valid only for the original purchaser of the unit.

C) This warranty does not apply to damage resulting from abuse, misuse, accidents, shipping,

and repairs or modifications by anyone other than an authorized Lightronics service

representative.

D) This warranty is void if the serial number is removed, altered or defaced.

E) This warranty does not cover loss or damage, direct or indirect arising from the use or

inability to use this product.

F) Lightronics reserves the right to make any changes, modifications, or updates as deemed

appropriate by Lightronics to products returned for service. Such changes may be made

without prior notification to the user and without incurring any responsibility or liability for

modifications or changes to equipment previously supplied. Lightronics is not responsible

for supplying new equipment in accordance with any earlier specifications.

G)This warranty is the only warranty either expressed, implied, or statutory, upon which the

equipment is purchased. No representatives, dealers or any of their agents are authorized

to make any warranties, guarantees, or representations other than expressly stated herein.

H) This warranty does not cover the cost of shipping products to or from Lightronics for

service.

I) Lightronics Inc. reserves the right to make changes as deemed necessary to this warranty

without prior notification.

WARRANT

Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 20100211

www.lightronic.com

Lightronics Inc. 509 Central Drive Virginia Beach, Va 234354 757 486 3588
