Lightolier ProSpec 37122 Manual de usuario

37122

ProSpec™277V Mini HID, Cylinder, 70W T6 CMH

Page 1 of 3

Job Information Type:

Job Name:

Cat. No.:

Notes:

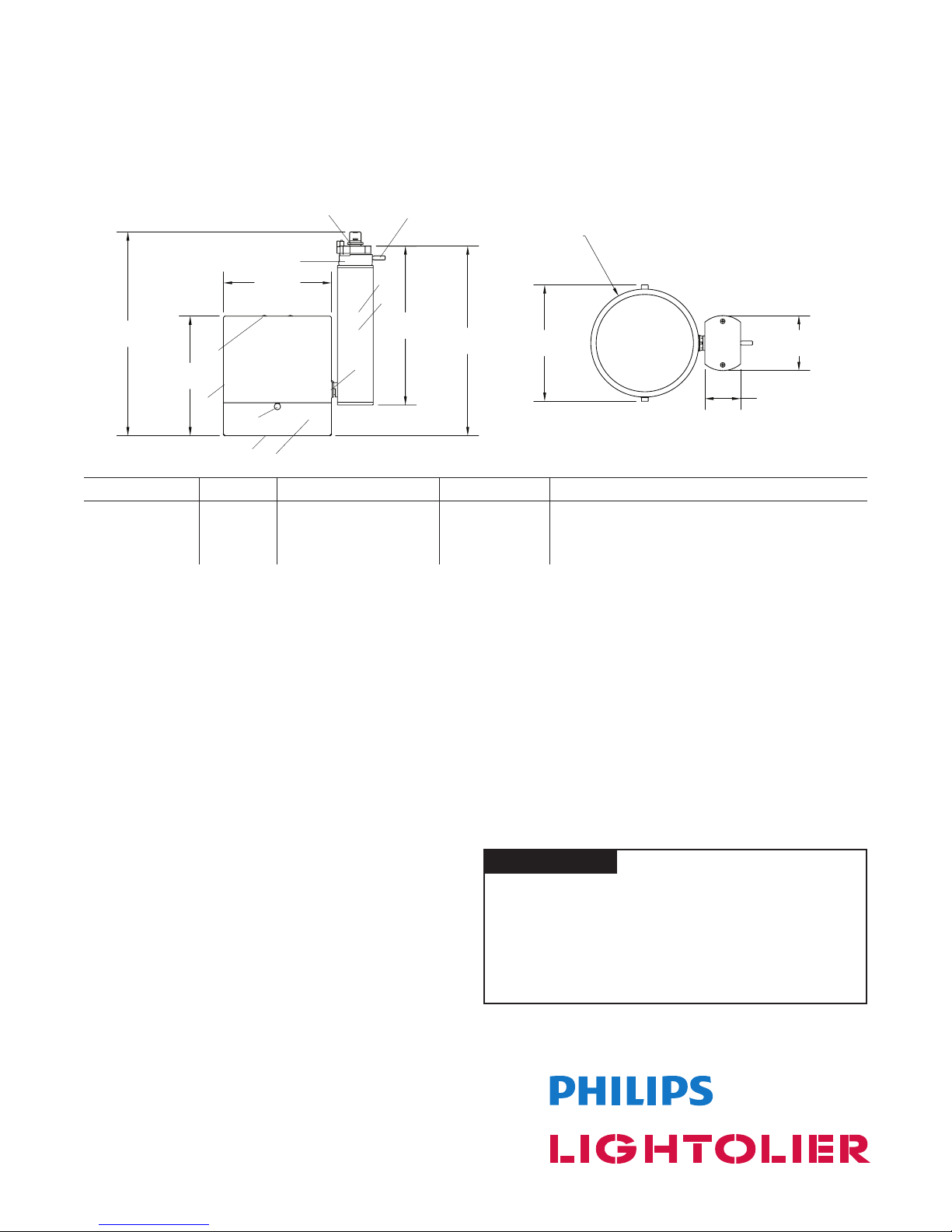

7 7/32 "

[184 mm] 8 5/8 "

[219 mm]

[127 mm]

5 1/2 "

[140 mm]

9 9/32 "

[235 mm]

1 5/8 "

[41 mm]

2 1/2 "

[63 mm]

5 9/32 "

[134 mm]

Ø5"

[127 mm]

Catalog No. Finish Mounting Lamp Reflectors (Sold Separately)

37122WH

37122BK

White

Black

ProSpec®120V/277V

track systems only.

70W T6 CMH

(M98) G12 base

Not Included

Spot Reflector: MHT6RS, MHT6RSCCZ

Narrow Flood Reflector: MHT6RNF, MHT6RNFCZ

Flood Reflector: MHT6RF, MHT6RFCCZ

Features

1. Track Attachment Fitting: Molded polycarbonate,

rotates into track.

2. Locking Lever: Steel pin locks and detaches unit.

3. Track Adaptor Housing: Die-cast aluminum.

4. Ballast Housing: Extruded aluminum housing with

die-cast aluminum covers.

5. Ballast: Electronic HID.

6. Pivot Mounts: Allows for 350° horizontal and 180°

vertical rotation with tensioned mounts for controlled aim.

7. Housing: 0.04" (1.02mm) aluminum.

8. Lampholder: Bi-pin G12 single-ended base. 5kV pulse rated

porcelain body socket with nickel-plated contacts. 18 AWG

silicone leads with fiberglass outer sleeve hidden inside of

housing.

9. Protective Glass: 0.13" (3.18mm) tempered glass.

10. Housing Cover: 0.04" (1.02mm) aluminum.

11. Knobs: Steel painted knurled knob.

Accessories (Holds one accessory only)

Diffusion/ Special Filters: AF4 series

Color Filters: ADF4 series

Louver (Hex Cell): AL4HC

Electrical

Electronic Ballast (Thermally Protected)

Input Voltage: 120V/277V Total Harmonic Distortion: <10%

Power Factor: >0.99 ANSI Code: M85, M98, M139, M143

Input Power: 77W Do not use on dimming circuit

Max Input Current: 0.65A@120V/0.28A@277V

Finish

All painted finishes are baked powder or enamel.

Markings

UL, cUL

Job Information Type:

37122

ProSpec™277V Mini HID, Cylinder, 70W T6 CMH

Page 2 of 3

6' 3.5' 126 6.1' 5.0'

8' 4.6' 71 8.1' 6.7'

10' 5.8' 45 10.2' 8.4'

12' 6.9' 32 12.2' 10.1'

2' 3.5' 219 9.7' 2.9'

3' 5.2' 97 14.5' 4.4'

4' 6.9' 55 19.3' 5.8'

5' 8.7' 35 24.2' 7.3'

3' 3.0' 275 5.0' 3.1'

4' 4.0' 155 6.7' 4.1'

5' 5.0' 99 8.4' 5.1'

6' 6.0' 69 10.1' 6.2'

6' 194 4.4' 4.4'

8' 109 5.8' 5.8'

10' 70 7.3' 7.3'

12' 49 8.7' 8.7'

LBeam Length DDistance

W Beam Width AAiming Angle

CDistance to FC Footcandles

center beam

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are

the initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp

manufacturers for availability and performance.

CBCP = Center Beam Candle Power

Flood Reflector

with 39W T-6 Master Color

Ceramic Metal Halide Philips (Clear) Lamp

Lamp

Beam Spread

(To 50% CBCP) CBCP Rated

Life (Hrs.)

10,932 12,000

21°

LBeam Length DDistance

W Beam Width AAiming Angle

CDistance to FC Footcandles

center beam

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp

manufacturers for availability and performance.

CBCP = Center Beam Candle Power

Flood Reflector

with 70W T-6 Master Color

Ceramic Metal Halide Philips (Clear) Lamp

Lamp

Beam Spread

(To 50% CBCP) CBCP Rated

Life (Hrs.)

6,994 9000

70W T-6 to

40° 15,000

Aiming Angle:

0° 30° Horizontal 30° Vertical 45°Vertical

Aiming Angle:

0° 30° Horizontal 30° Vertical 45°Vertical

D C FC L W D C FC L W D C FC L WD FC L W

MHT6RS Metal Halide T-6 Reflector Spot

MHT6RF Metal Halide T-6 Reflector Flood

6' 4.6' 202 4.0' 3.4'

8' 5.8' 129 5.0' 4.3'

10' 6.9' 90 6.0' 5.1'

12' 8.1' 66 7.0' 6.1'

2' 5.2' 277 5.0' 2.2'

3' 6.9' 156 6.6' 3.0'

4' 8.7' 100 8.3' 3.7'

5' 10.4' 69 9.9' 4.4'

5' 5.0' 282 3.8' 2.6'

6' 6.0' 196 4.6' 3.1'

7' 7.0' 144 5.4' 3.7'

8' 8.0' 110 6.1' 4.2'

6' 311 3.0' 3.0'

8' 199 3.7' 3.7'

10' 138 4.4' 4.4'

12' 102 5.2' 5.2'

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

37122 October 11, 2011

Specifications are subject to change without notice.

Job Information Type:

37122

ProSpec™277V Mini HID, Cylinder, 70W T6 CMH

Page 3 of 3

8' 8.0' 288 2.8' 2.0'

12' 12.0' 128 4.2' 3.0'

14' 14.0' 94 4.9' 3.5'

16' 16.0' 72 5.6' 4.0'

Aiming Angle:

0° 30° Horizontal 30° Vertical 45°Vertical

D C FC L W

10' 5.8' 339 2.3' 2.0'

15' 8.7' 151 3.5' 3.0'

20' 11.5' 85 4.7' 4.0'

25' 14.4' 54 5.8' 5.1''

D C FC L W

6' 10.4' 181 4.3' 2.1'

8' 13.9' 102 5.7' 2.8'

10' 17.3' 65 7.2' 3.5'

12' 20.6' 45 8.6' 4.2'

D C FC L WD FC L W

15' 232 2.6' 2.6'

20' 130 3.5' 3.5'

25' 83 4.4' 4.4'

30' 56 5.2' 5.2''

LBeam Length DDistance

W Beam Width AAiming Angle

CDistance to FC Footcandles

center beam

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp

manufacturers for availability and performance.

CBCP = Center Beam Candle Power

Flood Reflector

with 39W T-6 Master Color

Ceramic Metal Halide Philips (Clear) Lamp

Lamp

Beam Spread

(To 50% CBCP) CBCP Rated

Life (Hrs.)

52,142

9,000

70W T6 CMH

10° 12,000

MHT6RF Metal Halide T-6 Reflector Flood
