Lightolier SS T5 Strip Manual de usuario

Staggered T5 Strip SS T5 Strip

Page 1 of 2 3 1/8” Wide 1 7/16” Deep Channel, 26 1/2”, 38 1/4” or 50” Lengths, 2 Lamp, T5

Features

• Only 1 7/16" deep.

• Utilizes compact, high efcency, T5 or T5HO lamps.

• Fully enclosed wiring.

• Push through rotary lock lamp holders for secure lamp retention.

• 4” lamp overlap when installed in row

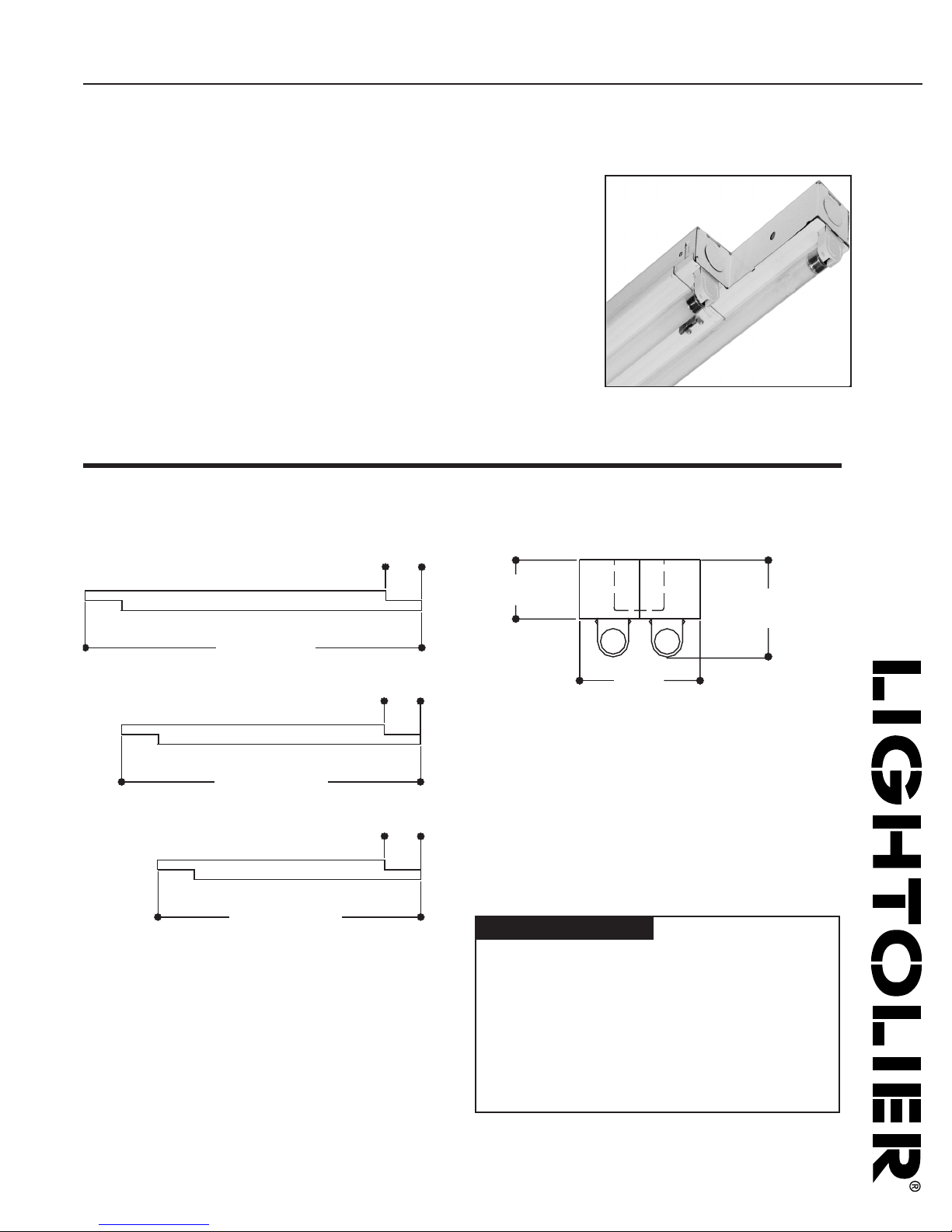

Dimensions

10/03

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and nish.

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Job Information Type:

23/8 "

60mm

17/16 "

37mm

31/8"

79mm

50" (1270mm)

4.0"

381/4" (972mm)

261/2" (673mm)

4.0"

Ordering Information

Explanation of Catalog Number. Example: SS4S228120PG

Options & Accessories

Radio Interference Filter: 120, 277 or UNV volt, 50 or 60 Hz. Sufx: R

Ballast Options: For other ballast options, consult factory.

Specications

Materials: Chassis parts are die-formed heavy gauge cold rolled steel,1-3/8”

deep x 3 1/8” channel width.

Finish: Chassis exterior - phosphate undercoating, baked white acrylic

matte high reectance paint nish.

Specications (continued)

Electrical: Rapid start HPF, thermally protected class “P” ballast. (Bi-tube type)

If K.O.s are within 3” of ballast use wire suitable for at least 90˚.

Labels: Listed by

Voltage

UNV = 120/277V

120 = 120V

277 = 277V

Options:

Sidemount Strip

Staggered Strip T5

2” wide x 1 3/8” deep

channel

Lamp Conguration:

S = Single Fixture

Ballast Type

PG = Electronic T5 Program Start, Less than 10 THD

PI = Electronic T5 Instant Start, <10 THD

(14W, 21W or 28W only, no UNV voltage)

PF = LOLT5 Power Spec Dimming (1-Lamp 54 watt only)

Lamp Type:

( Nominal 22” )

14 = 14W T5

24 = 24W T5 HO

( Nominal 34” )

21= 21W T5

39 = 39W T5 HO

( Nominal 46” )

28 = 28W T5

54 = 54W T5 HO

Lamp Quantity:

Nominal

Fixture

Length:

2 = Nominal 22 1/2”

3 = Nominal 38 1/4”

4 = Nominal 50 1/4”

Staggered T5 Strip SS T5 Strip

Page 2 of 2 3 1/8” Wide 1 7/16” Deep Channel, 26 1/2”, 38 1/4” or 50” Lengths, 2 Lamp, T5

Photometry

Model No. SS4S228120PG

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and nish.

Job Information Type:

9/16"

2 3/8

1 9/16"

3 1/4"
