Lightolier Lytecaster 1101H Manual de usuario

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

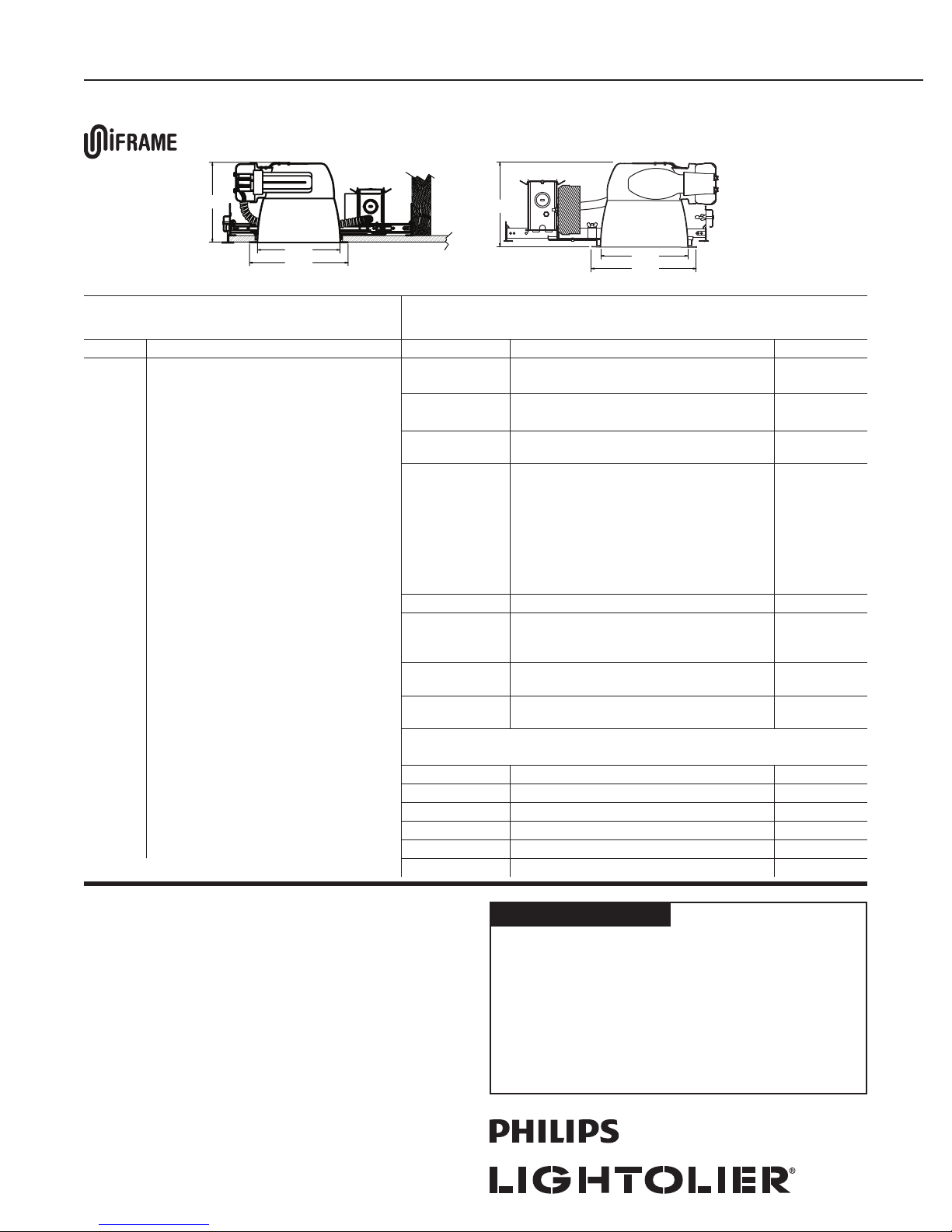

Lytecaster Performance Recessed Downlighting 1101H

Page 1 of 2 6 ¾" Aperture Horizontal Open, Performance Series, Reflector Trim

7 7/8"

6 1/2"

6 3/8"

7 7/8"

6 1/2"

6 3/8"

Features

1. Reflector: Formed aluminum. Matte White flange.

2. Finishes: CL = Specular Clear (Iridescent Free coating)

CD = Clear Diffuse

WH = Matte White Paint

3. Performance Data: 60° Cutoff angle.

See attached photometric reports for distribution and efficiency data.

Go to www.lightolier.com for .IES files.

Labels

cULus Listed. Suitable for Damp Locations. I.B.E.W.

1101HCL/1101F Series

Uniframe CFL

1101HCL/1101HIDED Series

Uniframe HID

Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.

Uniframe Performance Series

Reﬂector Trims

Compatible Compact Fluorescent Frame-In Kits

(See Individual Frame-In Kit Specication Sheets)

Catalog No. Description Catalog No. Installation Type Lamping

1101HCL

1101HCD

1101HWH*

6-3/4” Horizontal Open Downlight – Specular Clear

6-3/4” Horizontal Open Downlight – Clear Diffuse

6-3/4” Horizontal Open Downlight – Matte White

1101F18U

1101FR18U

Uniframe Non-IC 120/277v

Uniframe Non-IC Remodeler 120/277v

18w Quad/Triple

1101FD26L1

1101FD26L2

Uniframe Non-IC Lutron Dimming 120v

Uniframe Non-IC Lutron Dimming 277v

26w Quad/Triple

1101FD32L1

1101FD32L2

Uniframe Non-IC Lutron Dimming 120v

Uniframe Non-IC Lutron Dimming 277v

32w Triple

1101F2642U

1101FR2642U

1101F2642UEM

1101FD2642MX1

1101FD2642MX2

1101FD2642M7U

1101FR264MX1

1101FR264MX2

Uniframe Non-IC 120/277v

Uniframe Non-IC Remodeler 120/277v

Uniframe Non-IC Emergency 120/277v

Uniframe Non-IC Advance Mark10 Dimming 120v

Uniframe Non-IC Advance Mark10 Dimming 277v

Uniframe Non-IC Advance Mark7 Dimming 120/277v

Uniframe Non-IC Advance Mark10 Dimming 120v Rem.

Uniframe Non-IC Advance Mark10 Dimming 277v Rem.

26w Quad/Triple

32w Triple

42w Triple

1101F18ICU/N Performance IC 120/277v 18w Quad/Triple

1101F2642ICU

1101F2642IUN

Performance IC 120/277v 26w Quad/Triple

32w Triple

42w Triple

1101FDICMX1/N Performance IC Advance Mark10 Dimming 120v 26w Quad/Triple

32w Triple

1101FDICMX2/N Performance IC Advance Mark10 Dimming 277v 26w Quad/Triple

32w Triple

Compatible HID Uniframe Frame-In Kits

(See Individual Frame-In Kit Specication Sheets)

1101HIDED50U Non-IC 50W ED17 open

1001HIDED70 Non-IC 70W ED17 open

1101HIDED100U Non-IC 100W ED17 Open

1101HIDED50ULC Non-IC Chicago Plenum 50W ED17 Open

1101HIDED70ULC Non-IC Chicago Plenum 70W ED17 Open

* Not listed for HID 1101HIDED100ULC Non-IC Chicago Plenum 100W ED17 Open

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

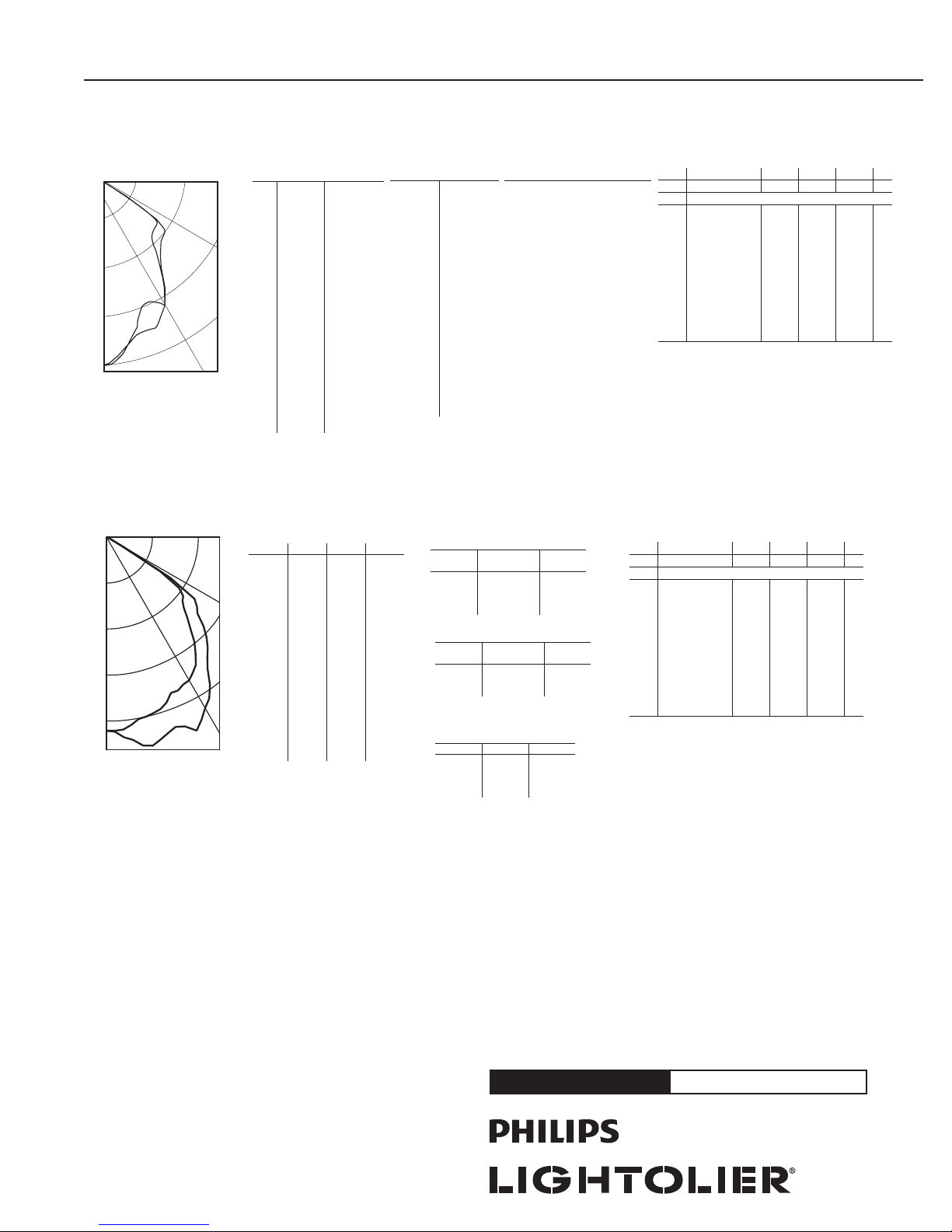

Lytecaster Performance Recessed Downlighting 1101H

Page 2 of 2 6 ¾" Aperture Horizontal Open, Performance Series, Reflector Trim

Job Information Type:

32W TRIPLE TUBE LAMP, LUMEN RATING = 2200 LMS, ELECTRONIC BALLAST, CL FINISH TRIM

181

363

544

725

181

363

544

725

60˚

30˚

ZONAL LUMENS AND PERCENTAGES

Zone Lumens %Lamp %Fixt

** Efficiency = 61.7% **

0-30 516.68 23.5 38

0-40 827.14 37.6 60.9

0-60 1337.28 60.8 98.5

0-90 1357.97 61.7 100

90-120 0 0 0

90-150 0 0 0

90-180 0 0 0

0-180 1357.97 61.7 100

COEFFICIENTS OF UTILIZATION

Ceiling 80% 70% 50% 30%

Wall 70 50 30 10 50 10 50 10 50 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

0 73 73 73 73 72 72 69 69 66 66 62

169 67 65 63 65 62 63 60 61 58 55

264 60 57 54 59 54 57 5 2 55 5 1 49

359 54 50 47 53 47 52 4 6 50 4 5 43

4 55 49 44 41 48 41 47 40 45 40 38

5 51 44 40 36 44 36 42 36 41 35 34

648 40 36 32 40 32 39 32 38 34 31

744 37 32 2 9 36 29 35 28 35 31 28

8 41 34 29 26 33 26 33 26 32 28 26

9 39 31 27 23 31 23 30 23 30 26 23

10 36 29 24 21 29 21 28 21 27 24 21

Determined In Accordance With Current IES Published Procedures

Luminaire Input Watts = 33.0

CANDLEPOWER SUMMARY

Angle 0˚ CP 90˚ CP

0 720 720

5 722 725

10 689 697

15 641 633

20 626 558

25 621 535

30 573 569

35 492 483

40 416 399

45 383 336

50 366 321

55 318 306

60 42 44

65 9 9

70 5 6

75 4 4

80 3 3

85 2 3

90 2 3

ZONAL LUMEN SUMMARY

Zone Lumens

0-10 68.47

10-20 181.71

20-30 266.5

30-40 310.46

40-50 281.1

50-60 229.04

60-70 13.53

70-80 4.17

80-90 2.98

90-100 0

100-110 0

110-120 0

120-130 0

130-140 0

140-150 0

150-160 0

160-170 0

170-180 0

SC = 1.1 1 = 90˚

2 = 0˚

CERTIFIED TEST REPORT NO. 3166FR

COMPUTED BY LSI PROGRAM

**TEST-LITE**

100W ED-17 COATED METAL HALIDE, LUMEN RATING = 7900 LMS, CL FINISH TRIM

CERTIFIED TEST REPORT NO. 4056FR

60˚

30˚

Coefficients Of Utilization

Ceiling 80% 70% 50% 30% 0

Wall 70 50 30 10 50 10 50 10 50 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

0 66 66 66 66 64 64 62 62 59 5 9 55

1 62 60 58 56 59 56 56 54 54 52 50

257 54 51 48 53 48 51 47 49 46 44

353 48 45 42 48 41 46 41 45 40 38

4 49 44 39 36 43 36 42 36 40 35 34

5 46 39 35 32 39 32 38 31 37 31 30

642 36 31 28 35 28 34 28 33 28 26

739 33 28 25 32 25 31 25 31 25 24

837 30 26 23 29 22 29 22 28 22 21

9 34 27 23 20 27 20 26 20 26 20 19

10 32 25 21 19 25 18 25 18 24 18 17

Determined In Accordance With Current IES Published Procedures

Luminaire Input Watts = 33.0

Candlepower Distribution

045 90

01959 1959 1959

52033 1948 1955

10 2142 1913 1870

15 2120 1880 1842

20 2044 1835 1780

25 2160 1732 1713

30 1997 1687 1673

35 1826 1587 1577

40 1588 1403 1386

45 1432 1206 115 9

50 1203 1027 1005

55 1087 944 896

60 215 178 167

65 41 37 46

70 30 24 13

75 10 31 12

80 12 21 24

85 10 12 9

90 16 13 7

Trim/Frame: 1101HCLHID

Lamp lumens: 7900 lm

Input Watts: 119W

Efﬁciency: 56.00 %

Spacing Criterion (0-180): 1.42

Spacing Criterion (90-270): 1.28

Multiple Unit Data - RCR 2

Spacing Avg.Initial Watts/

On Ctr. Footcandles Sq. Ft.

6' 106 2.97

8' 74 2.06

10' 47 1.32

38'x38'x10' Room, Workplane 2 1/2'

above oor, 80/50/20% Reectances

Zonal Lumens And Percentages

Zone Lumens %Luminaire

0-30 1571 36.0%

0-40 2593 59.0%

0-60 4289 98.0%

0-90 4382 100.0%

500

1000

1500

2000

500

1000

1500

2000

Single Unit Data 100W 1101HCLHID

Height to Initial Beam

Lighted Plane Footcandles Diameter

8' 30 11'

10' 20 14'

12' 14 17'

14' 10 20'
