Lightolier Calculite 8081 Manual de usuario

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

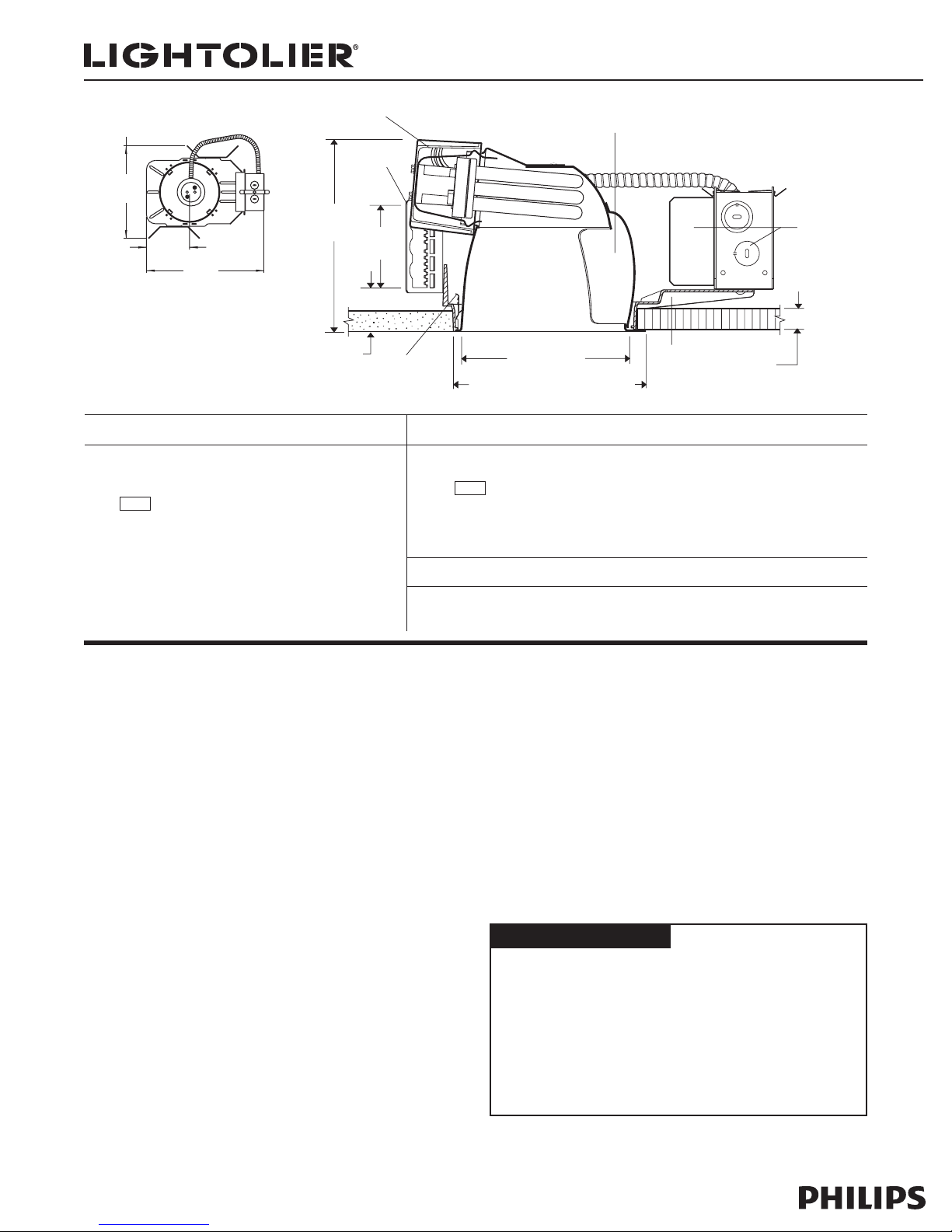

Calculite® CFL Open Wall Washer 8081

Page 1 of 2 6" Aperture Triple Tube Horizontal Lamp

Reflector Trim Frame-In Kit

8081CLW Clear Iridescence Free, White Flange

8081CLP Clear Iridescence Free, Polished Flange

8081CL Clear Iridescence Free, Molded Trim Ring

8081 Add suffix. See options for other finishes

S6132BU 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Dimming Options:

S6132B

CU3 Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)

J2LD3 Lutron 5% Dimming (277V) JUM7 Mark 7 Dimming (120/277V)

J1MX Mark 10 Dimming (120V) J2MX Mark 10 Dimming (277V)

Other dimming product available, please consult factory

Remodeler Frame-In Kits

6126BURM 6" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

6132BURM 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Features

1. Downlight Wall Washer Reflector: 16 ga. Alzak® aluminum, 55° lamp

cutoff to lamp and lamp image. Provides vertical surface wall wash and

downlighting. Iridescence Free finish. Self-flanged or flangeless with molded

white trim ring (field paintable).

2. Socket Cup: Effectively dissipates heat and positions lamp holder.

Snaps onto reflector neck to assure consistently correct optical alignment

without tools.

3. Mounting Frame: Galvanized steel for dry or plaster ceilings. Accepts other

6" Triple Tube reflectors (see S6132BU Spec Sheet).

4. Retaining Springs: Precision-tooled steel friction springs secure reflector

to mounting frame for quick, tool-less installation.

5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4"

or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.

6. Ballast/J-Box: Electronic 120V-277V. UL listed for through branch circuit

wiring with max of (8) No. 12AWG, 90°c supply conductors. Outboard

mounted to reduce heat transfer and maintain lamp efficacy and life.

Service from below without tools.

Electrical

Note: For ballast electrical data and latest lamp/ballast compatibility refer to

“Ballast" specification sheet for complete electrical data.

UL Listed for through branch circuit wiring with max of (8) No. 12 AWG, 90°C

supply conductors.

Options and Accessories

Comfort Clear™Finishes1Other Finishes

Clear CCL White WH

Diffuse CCD

Champagne Bronze CCZ

1Specify desired flange. WWhite, P Polished, Blank - Molded Ring

Options and Accessories (continued)

Emergency Add suffix EM*

Chicago Plenum Use 6132BULC

Existing/Thk. Ceiling FA EC6*

Emergency Ltg. Kit FA EM3E*

FA EM4E*

Fuse (Slow Blow) Add suffix F

*See Spec. Sheets: FAEC, FAEM

Mounting Bars & Accessories; see Specification Sheet MBA.

Sloped Ceiling Adapters; see Specification Sheet SCA.

Labels

UL listed for damp locations.

Top View

13-5/8"

(346 mm)

11-1/8"

(283 mm)

10"

(254 mm)

6-1/2" Trimless

(165 mm)

6 5/8"

(179 mm)

6" (152 mm) Dia.

7-1/4" Self-Flanged

Trim (184 mm)

1" (25 mm) min.-

2-1/8" (54 mm) max. 1-1/8" (29 mm) max.

Ceiling Thickness

(76 mm)

4 5/8"

(117mm)

10"

(254mm)

12 3/4"

(324mm)

Alzak® is a registered trademark of ALCOA.

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

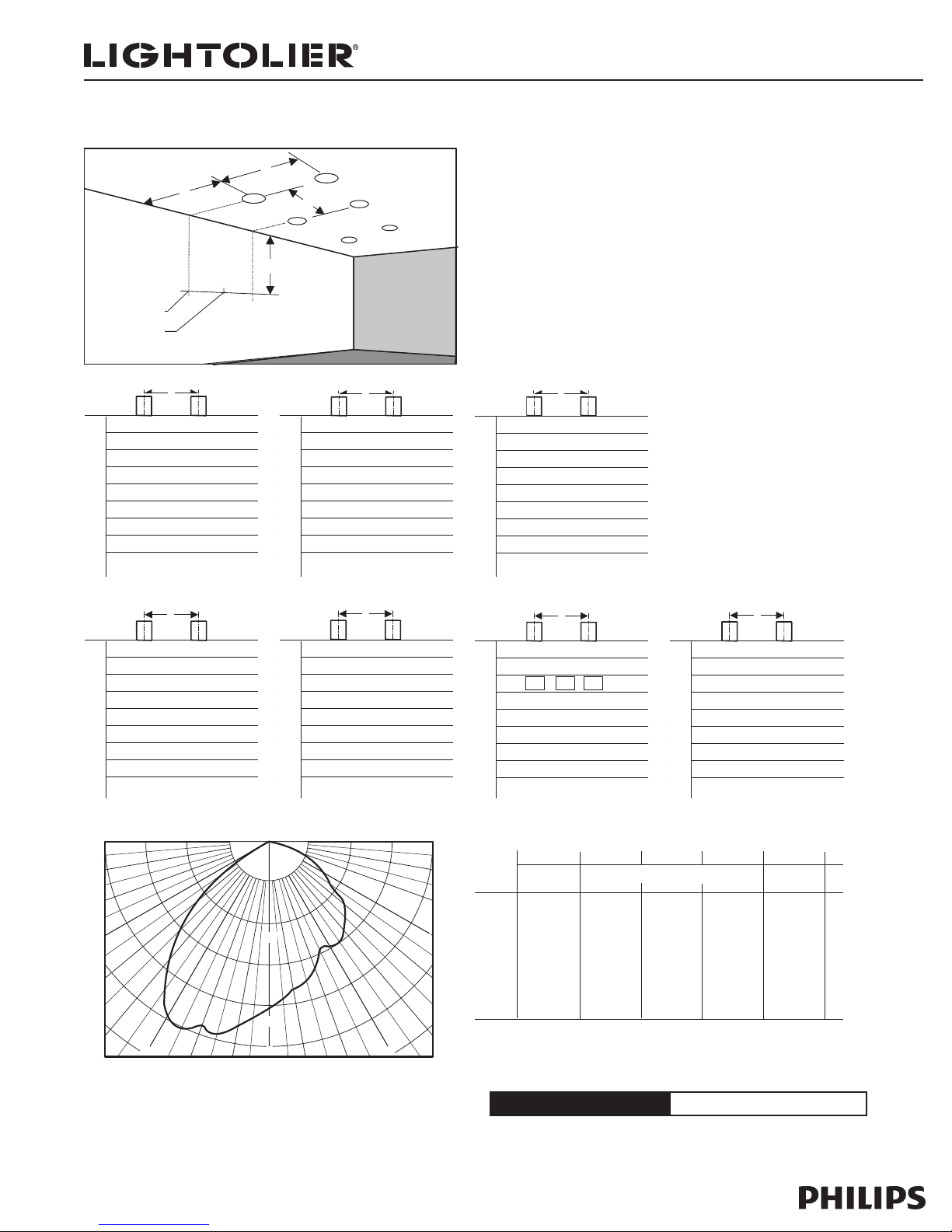

Calculite® CFL Open Wall Washer 8081

Page 2 of 2 6" Aperture Triple Tube Horizontal Lamp

2' from Wall-2' On Center 2' from Wall-3' On Center 2' from Wall-4' On Center

Footcandles On Wall: Multiple 32W Units

18 f.c.

16 f.c.

EXAMPLE: With multiple clear reflector units located 3' from wall and

spaced 5' on center (matching downlights 5' on center), the illumina-

tion on the wall 3' down from ceiling will be 18 f.c. beneath units and

16 f.c. between units.

Footcandle values are averaged and rounded off and are based on a

minimum of five units.

Conversion Factor: 26W: (Clear), f.c. x 0.8.

1484648

2686268

3505150

4373737

5272827

6212121

7161616

8131313

9111111

1382638

2424242

3343534

4252625

5202020

6151615

7131313

8111110

99 99

Coefficients Of Utilization

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

% WALL REFLECTANCE

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1.69 .68 .66 .68 .66 .65 .65 .64 .63 .63 .62 .61 .61 .60 .59 .58

2.63 .60 .58 .62 .59 .57 .60 .58 .56 .58 .56 .54 .56 .55 .53 .52

3.58 .54 .51 .57 .53 .50 .55 .52 .49 .53 .51 .49 .52 .50 .48 .47

4.53 .48 .45 .52 .48 .45 .50 .47 .44 .49 .46 .44 .48 .45 .43 .42

5.48 .43 .40 .47 .43 .40 .46 .42 .39 .45 .42 .39 .44 .41 .39 .38

6.44 .39 .36 .43 .39 .35 .42 .38 .35 .41 .38 .35 .40 .37 .35 .34

7.40 .35 .32 .39 .35 .31 .38 .34 .31 .37 .34 .31 .37 .33 .31 .30

8.36 .31 .28 .35 .31 .28 .35 .31 .28 .34 .30 .28 .33 .30 .27 .26

9 .33 .28 .25 .32 .28 .25 .32 .27 .25 .31 .27 .24 .30 .27 .24 .23

10 .30 .25 .22 .29 .25 .22 .29 .25 .22 .28 .24 .22 .28 .24 .21 .20

20% FLOOR CAVITY REFLECTANCE

For 26W units multiply C.U. by 1.0.

135 14 35

2372437

3242724

4192019

5151515

6121212

7101010

88 88

98 88

Candlepower Distribution Down Light Spacing Ration 1.0

Downlight Side Wall Washer Side

3' from Wall-4' On Center

1131013

2201720

3212221

4192019

5161716

6131413

7121212

8101010

99 99

3' from Wall-3' On Center

1161516

2252425

3272917

4252625

5212221

6181818

7151515

8131313

9111111

3' from Wall-5' On Center

112712

2101210

3181618

4151615

5131413

6111111

79 10 9

88 88

97 77

3' from Wall-6' On Center

112512

210910

3171117

4131413

5101210

69 10 9

78 88

87 77

96 66

ROOM CAVITY RATIO

Distance From Ceiling in FeetDistance From Ceiling in Feet

Distance From Ceiling in Feet

90ϒ

60ϒ

90ϒ

60ϒ

30ϒ30ϒ

300

600

0ϒ
