Lightolier 40828U Manual de usuario

Job Information Type:

Job Name:

Cat. No.:

Notes:

40828U

Decorative, Bowshield, Wall Mounted INC

Page 1 of 2

Features

1. Diffuser Holder: Die-cast zinc alloy. Satin brass or satin nickel

finish with clear lacquer.

2. Diffuser Support Peg: Turned brass. Satin brass or satin nickel

finish with clear lacquer.

3. Backplate: 20 ga. (.036”) Die-formed steel, gloss white finish.

4. Socket: Medium Base, Porcelain, Nickel Plate Screw Shell.

5. Lamps: T-10, Medium Base, by others.

6. Diffuser: 6mm thick (Max.) Glass. See chart above for options.

7. Screw: Nylon. 8-32. To secure Diffuser.

Labels

cUL listed suitable for damp locations.

Complete Fixture consists of Lightshield and Backplate Assembly. Order each separately.

Lightshield Ordering Information

Catalog No. Pattern/Description/Color

40871 Rolled “rain” pattern texture, silk-screened white/clear

40865 Three dimensional “squares” white/clear silk-screened pattern

40862 “Ceramic white” silk-screened and sandblasted

Backplate Assembly Ordering Information

Catalog No. Finish Catalog No. Finish Lamps Ballast Type Input Wattage

40828HI Satin Brass 40829H1 Satin Nickel 2x18W Quad 1-2 Lt. HPF Magnetic 120V

40828H2 Satin Brass 40829H2 Satin Nickel 2-Pin G24d-2 base 1-2 Lt. HPF Magnetic 277V

40828U Satin Brass 40829U Satin Nickel 2x18W Quad 1-2 Lt. HPF Electronic 120/277V

40828D1 Satin Brass 40829D1 Satin Nickel 4-Pin G24q-2 base 1-2 Lt. HPF Electronic Dimmable 120V

13 ⅛"

(333mm)

Total

Fixture

Height

(Ar t Glass)

13 ⅝"

(346mm)

Total

Fixture

Height

(Screen &

Textured Glass)

7 316"

(183mm)

To Outlet

Box Center

13 132"

(331mm)

(102mm)

ADA Compliant

40828U

Decorative, Bowshield, Wall Mounted INC

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

40828U May 9, 2011

Specifications are subject to change without notice.

Job Information Type:

109

5'6"

12'

5' 5'6"

5’

8'6"

21'

14'

7' 7' 14'

10'

5'6"

13 13

712

10 10

1212

109

5'6"

12'

5' 5'6"

5’

8'6"

21'

14'

7' 7' 14'

10'

5'6"

13 13

712

10 10

1212

109

5'6"

12'

5' 5'6"

5’

8'6"

21'

14'

7' 7' 14'

10'

5'6"

13 13

712

10 10

1212

Reflectances

80% ceiling / 50% wall / 20% floor

Footcandles are on floor.

Multiplier Factors

Data shown is based on an “All White” lightshield. For colors use 0.8 multiplier

Vestibule / Conference Room / Footcandles

Hallway / Footcandles

Tabla de contenidos

Otros manuales de Mobiliario de interior de Lightolier

Lightolier

Lightolier 83ED17R SERIES Manual de usuario

Lightolier

Lightolier CWL Manual de usuario

Lightolier

Lightolier Luminaire Guía

Lightolier

Lightolier Lytecaster 1171 Manual de usuario

Lightolier

Lightolier Lytespan 8216WH Manual de usuario

Lightolier

Lightolier Lytecaster 373X Manual de usuario

Lightolier

Lightolier 6700MS22UNY Manual de usuario

Lightolier

Lightolier Lytecaster 1128T Manual de usuario

Lightolier

Lightolier Lighting Systems A-14 Manual de usuario

Lightolier

Lightolier Uniframe Lytecaster 2001F Manual de usuario

Lightolier

Lightolier Calculite C4AD Manual de usuario

Lightolier

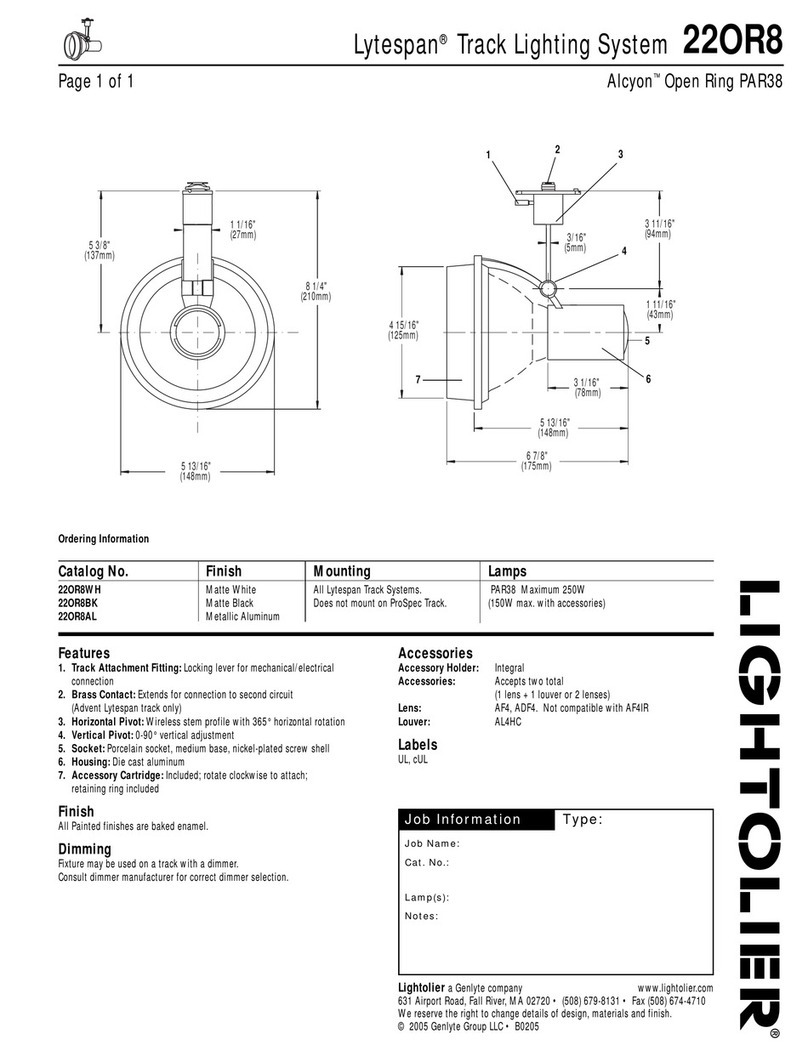

Lightolier Lytespan 22OR8 Manual de usuario
