30” Shed Extension Kit for Existing

11’ Sheds

MODEL #0125

ASSEMBLY

INSTRUCTIONS AND

OWNER’S MANUAL

Save this instruction in the event you must contact the manufacturer for replacement parts.

For Assistance, including missing or broken parts,

Call Customer Service at:

1 (800) 225-3865

** Do Not Contact the Store **

INSTRUCTION #1026972

Copy

BEFORE BEGINNING ASSEMBLY

Identify and inventory all parts using the checklist boxes on the Parts List. Keep the

hardware bags and their contents separate. If any parts are missing, call our Customer

Service Department.

**A MINIMUM OF TWO ADULTS ARE REQUIRED FOR ASSEMBLY**

SAFETY INSTRUCTIONS

Failure to follow these safety instructions may result in serious injury or property damage. Proper and complete

assembly, use and supervision is essential for proper operation and to reduce the risk of accident or injury. A high probability

of serious injury exists if this display is not installed, maintained, or operated properly. • If using a ladder during assembly,

use extreme caution. Follow all warnings and cautions on the ladder carefully. • 2 people are required for assembly. •

Misuse could result in system failure. • If technical assistance is required, contact the manufacturer.

Most injuries are caused by misuse and/or failure to follow instructions.

PARTS LIST

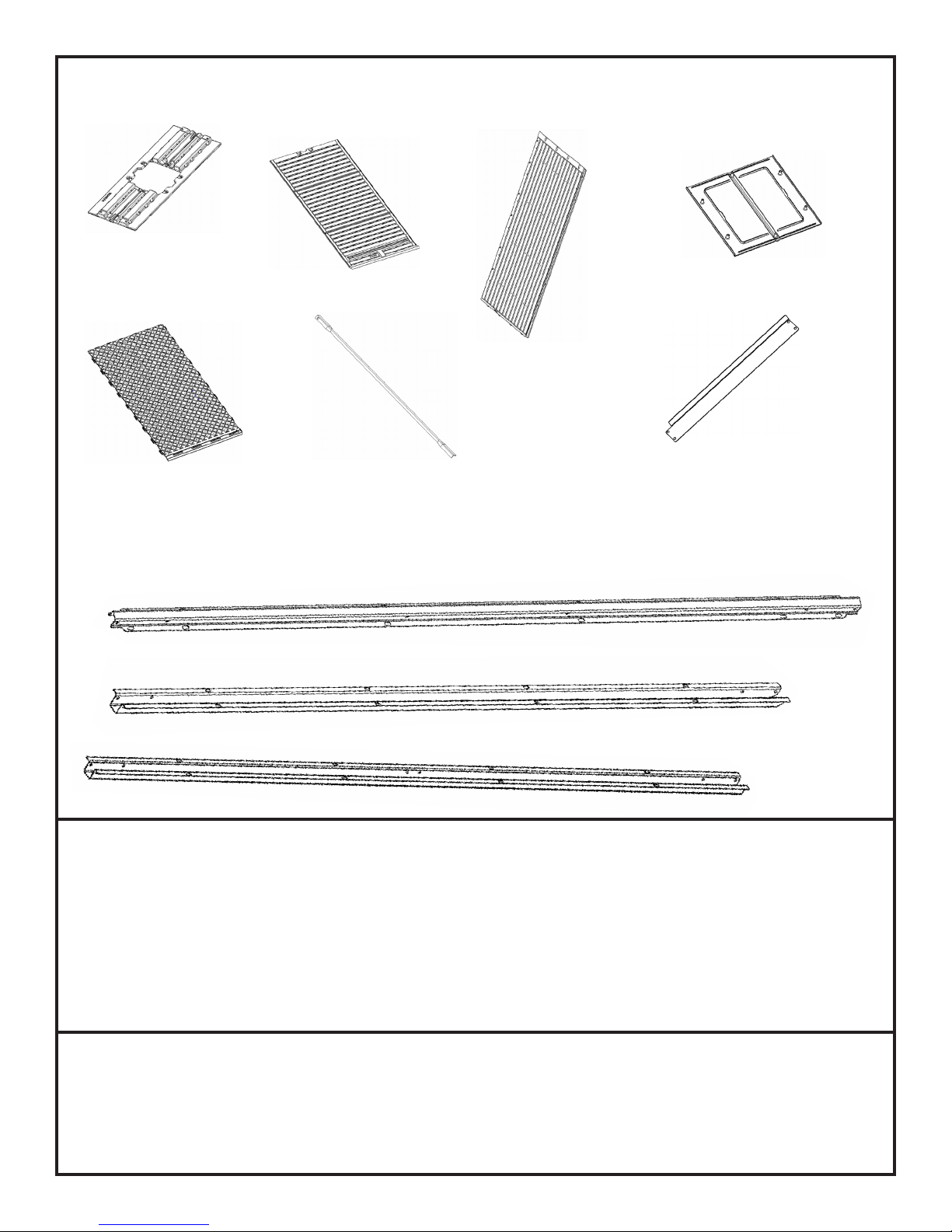

AA 1020443 Center Roof Cap 1

AB 1019503 Gutter Channel 2

AC 1007977 Wall Support Channel 2

AD 1007988 Truss Channel 1

AE 1007996 Inner Roof Panel 2

AF 1007997 Wall Panel 2

AG 1009232 Skylight 1

AJ 1008000 Inner Floor Panel 2

AK 1008001 Roof Support Strip 4

AM 1020423 Truss Support Strip 2

Shed Parts Box [1019238]

Skylight Hardware Bag [1011616] 1

LA BW01200 #10-1” Fender Washer 7

LB 1010132 #10 x 5/8” Pan Head Screw 7

Truss Extension Hardware Bag [1016014] 1

FA 1009117 Floor Bracket 2

FB 300072 1/4” x 1 1/2” Hex Bolt 11

FC BN00300 1/4” Cap Nut 11

FD 1012933 Center Gutter Connector 1

Shed Screw Hardware Bag [1011615] 1

SS BS07500 1/4” x 5/8” Screw 60

1. 7/16” Wrenches (2)

2. 3/8” Wrenches (2)

3. #2 Phillips screwdriver or

Electric drill with phillips head

Tools and Materials Required for

Assembly

(Not Included)

AA AE AF AG

HARDWARE IS NOT ACTUAL SIZE

(unless otherwise indicated)

If you are Extending an New Shed

1. To obtain instructions for extending a new shed, contact our Customer Service Department.

AJ AK

1 (800) 225-3865

To extend a never assembled shed,

Call Customer Service for Instructions:

a. This extension kit adds another 30” to the length of your shed. Before beginning expansion of your shed be

sure that your site can accomodate the new size.

Site Selection

Opt. 2.1: Remove the four Lower Roof Panels and two Center Roof Caps

(leave Skylights in place) that are highlighted below.

Opt. 2.2: Remove all screws from the highlighted Wall Panel that connect it to adjoing Wall Panels

and to the Wall Support.

**Save all hardware for re-assembly!**

ATTENTION: If your existing shed is anchored to the ground, remove all

anchoring hardware before following these steps.

Option 2: Add Extension Kit to an Existing Shed

Note: Your shed may be shorter than shown above. Skip the very back Roof Panels (slightly more nar-

row than the middle Roof Panels) and then remove the next two Roof Panels from each side of the shed

(along with the connected Roof Caps).

Repeat Steps 2.2 through 2.4 for both sides of the shed.

Remove

this panel.

Remove

this panel.

Opt. 2.3: Tip the Wall Panel inward.

Opt. 2.4: Use a long at screwdriver to gently pry the bottom corner of the Wall Panel so that it has room to slide

on the inside of other Wall Panels. Slide the Wall Panel to the left, and then remove the panel.

Note: To remove a Wall Panel, slide it to the left (when looking at it from inside the

shed) until it lifts out.

Note: As you remove the Wall Panels, have one person support the Truss assembly so that it does not

fall over.

Opt. 2.5: Remove the Truss assembly and set it aside for later.

Opt. 2.6: With at least on person on each side of the shed, tip the back section of the shed forward to about a 45

degree angle and slide the back section away from the shed..

Opt. 2.7: Fit together the two Inner Floor Panel extensions (AJ).

Opt. 2.8: Connect the Inner Floor Panel extensions (AJ) to the other Inner Floor Panels on the main section

of the shed.

Opt. 2.9: With at least on person on each side of the shed, tip the back section of the shed forward to about a 45

degree angle and slide it forward to re-connect it to the rest of the shed.

Finger Tighten Hardware

AM AM

WARNING

Do not overtighten the Cap Nut. If the end of

the Bolt breaks through the plastic cap, call our

Customer Service Department at the number

on Page One. Exposed threads on the end of

the Bolt may cause serious injuries.

Opt. 2.11: Attach a Gutter Channel (AB) (Truss Support Strips (AM) t inside Gutter Channel (AB)). Attach

Truss Channel (AD) to Gutter Channel (AB) at each end.

AM (x2)

Tighten All Hardware

Opt. 2.12: Attach Truss Assembly to two Wall Support Channels (AC). Do not completely tighten the Cap Nut

(FC) until after truss is secured to the wall.

FC Use Second

Holes from

the end.

Opt. 2.10: Fit two Truss Support Strips (AM) together. Bolt Truss Support Strips (AM), Center Gutter

Connector (FD) and two Gutter Channels (AB). Refer to the Owner’s Manual that came with your shed when

assembling other truss frames.

Note: As new panel slides into place be sure that screw bosses along the sides interlock

properly with the adjoining Wall Panels.

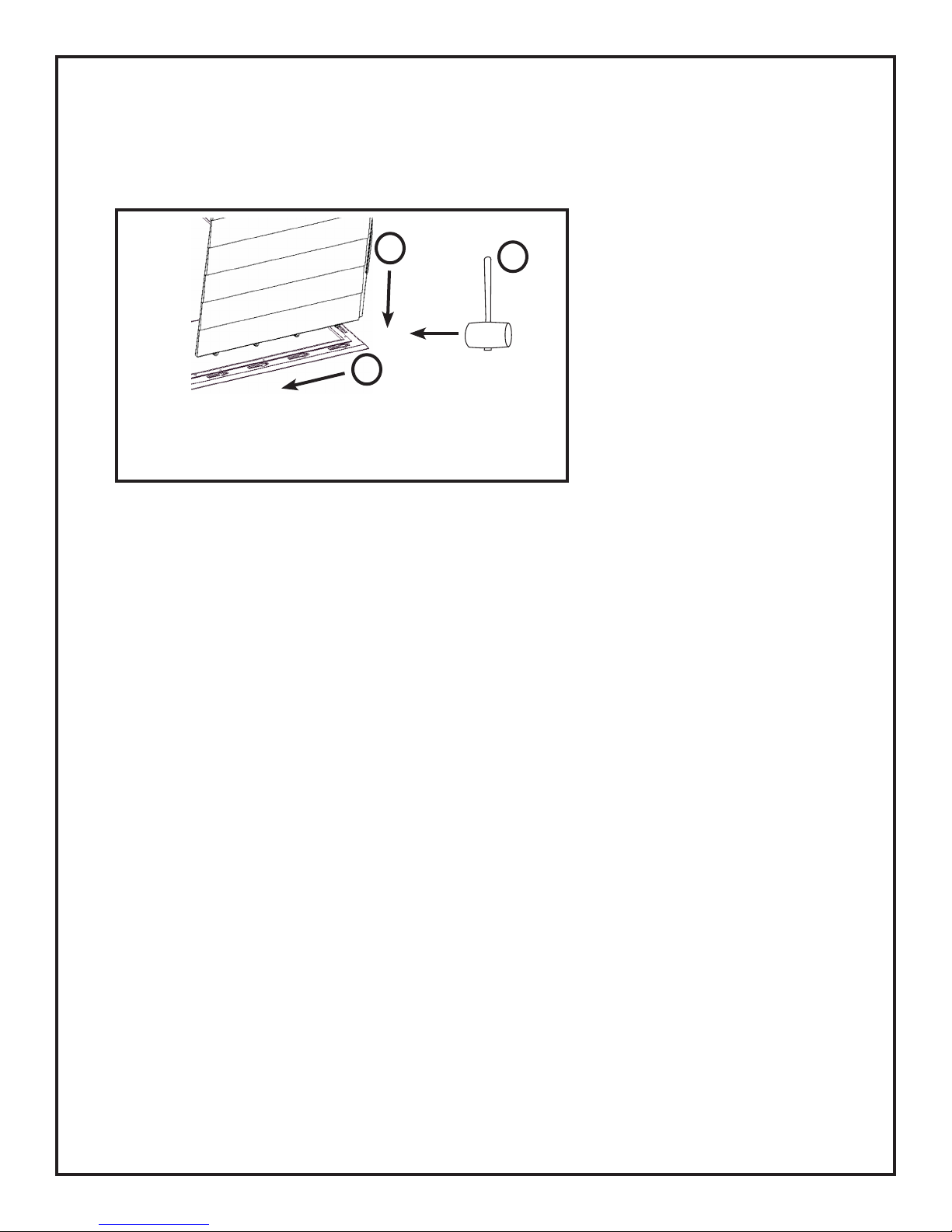

1. Set Wall Panel Tabs into Floor Panel Slots.

2. Slide Wall Panel to the left until the Wall Panel locks into place.

3. Use a Rubber Mallet to nudge the panel into position. Be careful

not to damage the edge of the wall panel.

Opt. 2.13: Replace the two Wall Panels that were previously removed. Add the two new Wall Panels that came

with this kit.

Opt. 2.14: Replace the Truss assembly that was previously removed. Add the new Truss assembly from steps

2.9 to 2.11.

Opt. 2.15: Replace the four Lower Roof Panels that were previously removed. Add the two new Lower Roof

Panels that came with this kit.

Opt. 2.16: Install the Skylight (AG) into the Center Roof Cap (AA) that came with this Kit.

Opt. 2.17: Install both Center Roof Caps (with Skylights) onto the shed.

Attach Roof Cap (AA) to Truss on both

sides with 1/4” x 5/8” Screws (SS).

Attach Skylight with #10 Washers

(LA) and #10 x 5/8” Screws (LB).

Only use a hand

screwdriver for the

Skylights
