Lifetime 125 Guía de inicio rápido

04/21/2008

VISIT THE LIFETIME WEB SITE:

WWW.LIFETIME.COM

30” Shed Extension Kit 11’ Sheds

MODEL #0125

ASSEMBLY

INSTRUCTIONS AND

OWNER’S MANUAL

Save this instruction in the event you must contact the manufacturer for replacement parts.

For Assistance, including missing or broken parts,

Call Customer Service at:

1 (800) 225-3865

** Do Not Contact the Store **

INSTRUCTION #1036820

Copy

BEFORE BEGINNING ASSEMBLY

Identify and inventory all parts using the checklist boxes on the Parts List. Keep the

hardware bags and their contents separate. If any parts are missing, call our Customer

Service Department.

**A MINIMUM OF TWO ADULTS ARE REQUIRED FOR ASSEMBLY**

SAFETY INSTRUCTIONS

Failure to follow these safety instructions may result in serious injury or property damage. Proper and complete

assembly, use and supervision is essential for proper operation and to reduce the risk of accident or injury. A high probability

of serious injury exists if this display is not installed, maintained, or operated properly. • If using a ladder during assembly,

use extreme caution. Follow all warnings and cautions on the ladder carefully. • 2 people are required for assembly. •

Misuse could result in system failure. • If technical assistance is required, contact the manufacturer.

Most injuries are caused by misuse and/or failure to follow instructions.

PARTS LIST

AA 1028035 Center Roof Cap (1021070)* 1

AB 1019503 Gutter Channel 2

AC 1007977 Wall Support Channel 2

AD 1007988 Truss Channel 1

AE 1007996 Inner Roof Panel (1000496)* 2

AF 1007997 Wall Panel (1000272)* 2

AJ 1008000 Inner Floor Panel (1000463)* 2

AK 1008001 Roof Support Strip 4

AM 1020423 Truss Support Strip 2

Shed Parts Box [1019238]

GA 1010271 1/2” Foam Cube 4

Skylight Hardware Bag [1011616] 1

LA BW01200 #10-1” Fender Washer 7

LB 1010132 #10 x 5/8” Pan Head Screw 7

Truss Extension Hardware Bag [1016014] 1

FA 1009117 Floor Bracket 2

FB 300072 1/4” x 1 1/2” Hex Bolt 11

FC BN00300 1/4” Cap Nut 11

FD 1012933 Center Gutter Connector 1

Shed Screw Hardware Bag [1011615] 1

SS BS07500 1/4” x 5/8” Screw 60

1. 7/16” Wrenches (2)

2. 3/8” Wrenches (2)

3. #2 Phillips screwdriver or

Electric drill with phillips head

Tools and Materials Required for

Assembly

(Not Included)

* The number in Parentheses

indicates the number molded into the

plastic part.

AA AE AF

HARDWARE IS NOT ACTUAL SIZE

(unless otherwise indicated)

AJ AK AM

a. This extension kit adds another 30” to the length of your shed. Before beginning expansion of your shed be

sure that your site can accommodate the new size.

Site Selection

If you are Extending an Existing Shed

1. See “Option 2” instructions on page 11. If you have not yet assembled your shed, use the

“Option 1” instructions on the next page.

1. Check contents of boxes and compare to parts listed on the Parts List.

2. Follow instructions that came with your shed, but when you come to the following sections of

your Owner’s Manual assemble the additional ﬂoor, wall, window and truss parts that are included

in this kit.

Opt. 1.1: Add 30” to the length of your site’s wooden platform (shown) or cement platform; the width will remain

the same. This may require the use of additional lumber or other materials.

Site Selection

16” 14”

Note: Floor studs are all 16” on center with one at 14” on center. Refer to Site Selection & Platform Instructions

in Owner’s Manual.

Option 1: Add Extension Kit During Shed Assembly

Assemble Floor

Opt. 1.2: Fit together the two Inner Floor Panel extensions (AJ).

Opt. 1.3: Connect the Inner Floor Panel extensions (AJ) to the other Inner Floor Panels and ﬁnish off by

connecting the last two Outer Floor Panels that came with your shed.

Note: Refer to the corresponding section in your Owner’s Manual for more speciﬁc instructions.

Opt. 1.4: Add the two Wall Panel (AF) extensions as you attach the other Wall Panels around the shed.

Assemble Wall (Right or Left)

Assemble Truss Frames

Finger Tighten Hardware

Opt. 1.5: Fit two Truss Support Strips (AM) together. Bolt Truss Support Strips, Center Gutter Connector

(FD) and two Gutter Channels (AB). Refer to the Owner’s Manual that came with your shed when assembling

other truss frames.

AM AM

WARNING

Do not overtighten the Cap Nut. If the end of

the Bolt breaks through the plastic cap, call our

Customer Service Department.

Note: Refer to the corresponding section in your Owner’s Manual for more speciﬁc instructions.

Opt. 1.6: Attach a Gutter Channel (AB) (Truss Support Strips ﬁt inside Gutter Channel). Attach Truss

Channel (AD) to Gutter Channel at each end.

AM (x2)

Tighten All Hardware

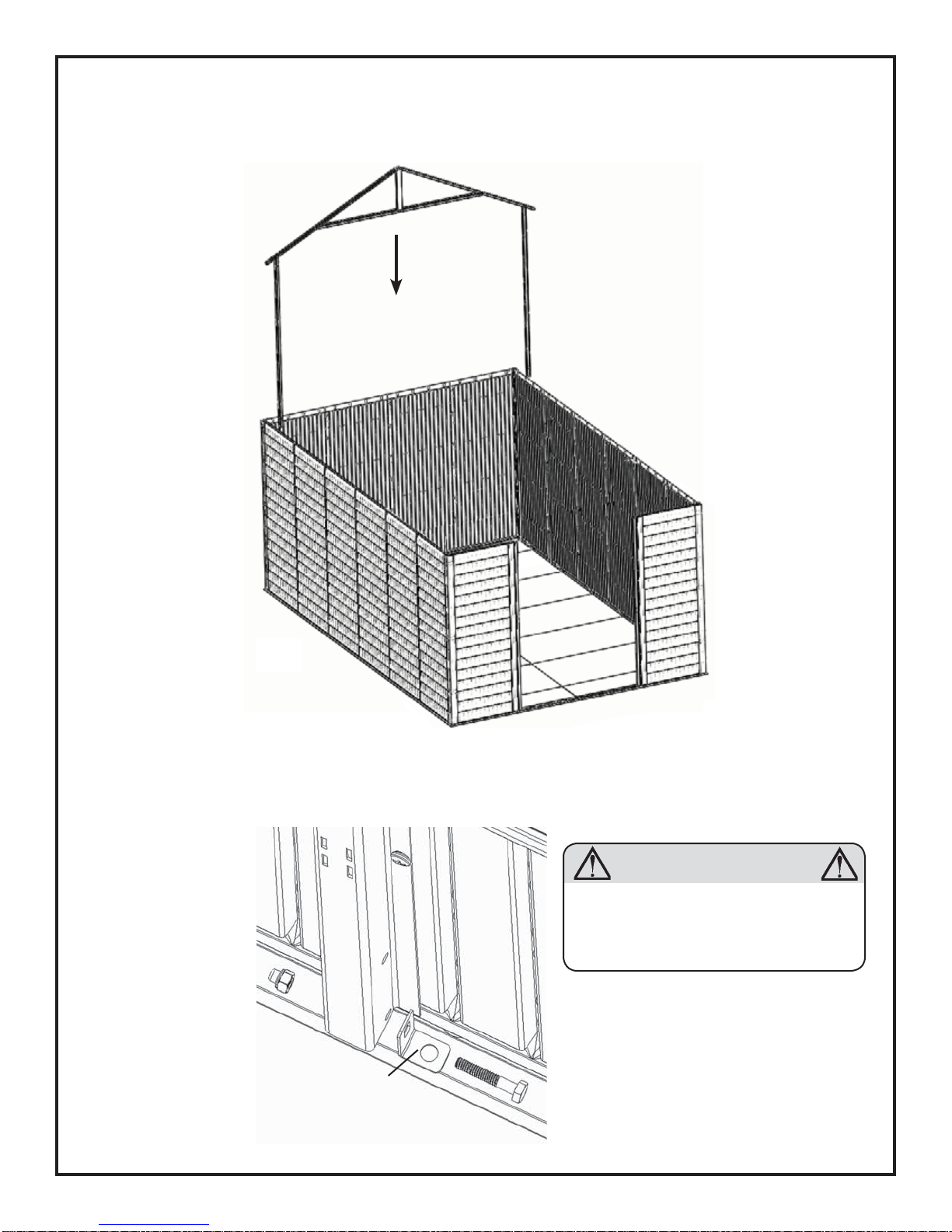

Opt. 1.7: Attach Truss Assembly to two Wall Support Channels (AC). Do not completely tighten the Cap Nut

(FC) until after truss is secured to the wall.

FC Use Second

Holes from

the end.

Opt. 1.8: Continue attaching other Truss Assemblies to Wall Support Channels (AC) according to your original

Shed Instructions.

WARNING

Do not overtighten the Cap Nut. If the end of

the Bolt breaks through the plastic cap, call our

Customer Service Department.

Opt. 1.10: Attach one Floor Bracket (FA) to each Wall Support Channel (AC) and fasten the Floor Bracket

to the ﬂoor. You only need to do this step if you plan to anchor your shed. See the “Anchoring the Shed” step

at the end of your Owner’s Manual.

FC AC

Tighten all Hardware.

WARNING

Do not overtighten the Cap Nut. If the end of

the Bolt breaks through the plastic cap, call our

Customer Service Department.

Install Truss Assemblies

Opt. 1.9: Follow Owner’s Manual instructions to assemble the connect Truss Frames included in this kit to your

shed, along with those that came with your shed.

Install Roof Sections

Opt. 1.11: Attach Inner Roof Panels (AE) using Screws (SS) Always start inserting screws at the top of the

Inner Roof Panel. Refer to the Owner’s Manual that came with your original shed.

Repeat Step 23 for all four

center roof sections.

Opt. 1.12: Install a Center Roof Cap (AA) with 1/4” x 5/8” Screws (SS) to the Roof Panels.

Attach Roof Cap (AA) to Truss on

both sides with 1/4” x 5/8” Screws

(SS).

Only use a hand

screwdriver for the

Skylights

Note: This is an interior upward

view.

Note: This is an

exterior view.

Only use a hand

screwdriver on this step

Opt. 1.13: Fold End Roof Cap along its hinge. Install it at the front of the shed.
