LG VC4916NRT Manual de usuario

Model

Language English+Arabic

Page

Material Size(W*H)

Designer

Designer Confirm

Color(cover/body)

Part No. Description

Date

No. Date

Chage Record

Change content ECO No.

Weight 100g

2010.01.15

VC49**AKD

MFL62558826

2/2

190×260(mm)

QIAOLIANG

Owner’s Manual

VC4916**

OWNER'S MANUAL

New Ty e Cyclone Vacuum Cleaner

This information contains im ortant instructions for the safe use and maintenance of the vacuum cleaner.

Es ecially, lease read all of the information on age 4,5 for your safety.

Please kee this manual in an easily accessible lace and refer to it anytime.

VC4918**

VC4920**

Table of contents

Important safety instructions ................................................................................. 4~5

How to use ................................................................................................................ 6

Assembling vacuum cleaner ................................................................................................................. 6~8

.................................................................................................................... 10~11

Operating vacuum cleaner

Using carpet and floor nozzle ................................................................................................................ 12~13

Using accessory nozzles ....................................................................................................................... 15~16

Emptying dust tank ................................................................................................................................ 17

Cleaning dust tank ................................................................................................................................. 18

Cleaning air filter and motor safety filter ................................................................................................ 19

Cleaning exhaust filter ........................................................................................................................... 20

............................................. 21

What to do if your vacuum cleaner does not work?

What to do when suction performance decreases?

Using All Floor nozzle and mini turbine nozzle ...................................................................................... 14

Specifications ........................................................................................................... 3

Dimension: 402(mm) x 259(mm) x 275(mm)=L x W x H

Specifications

402

275

259

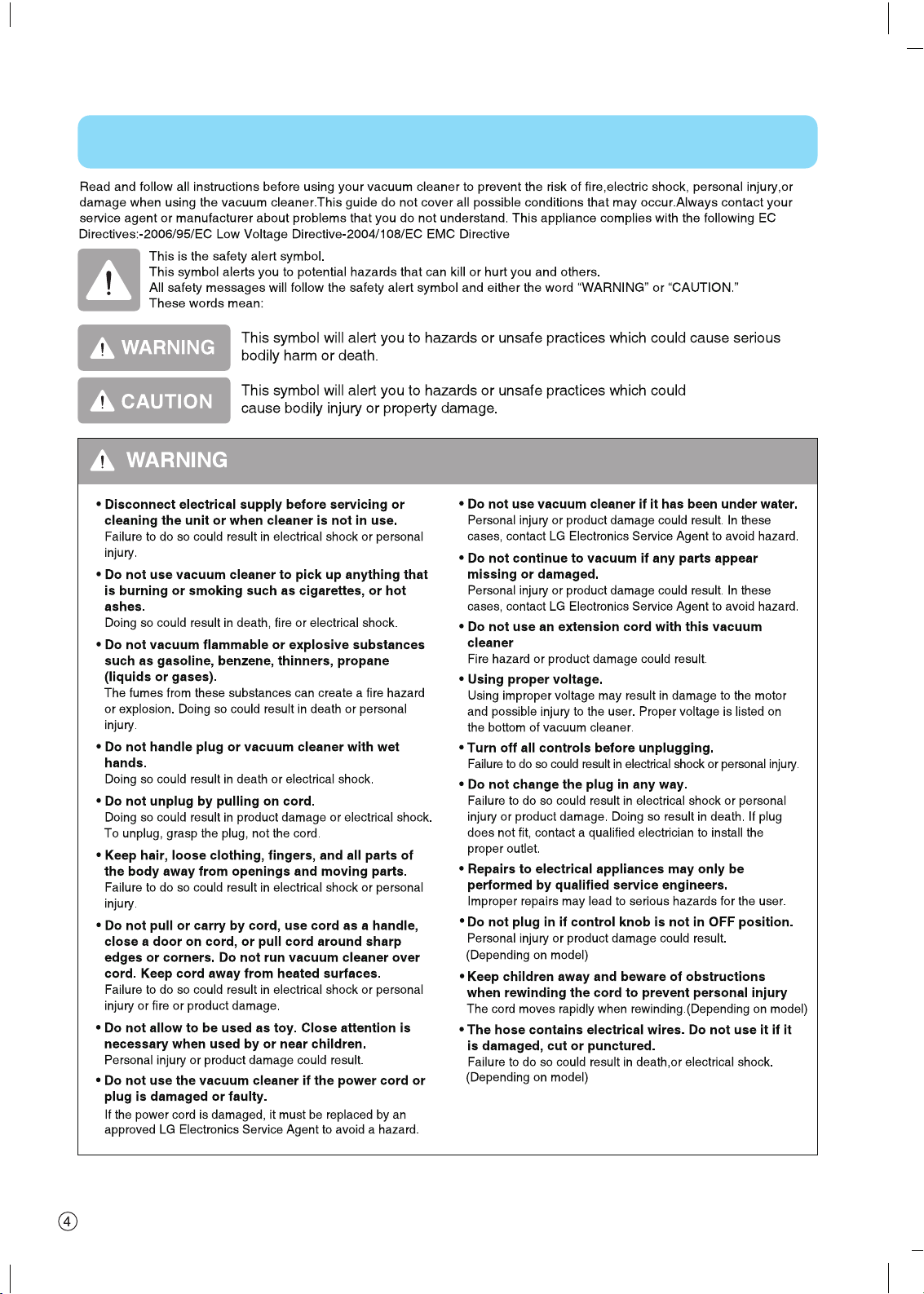

IMPORTANT SAFETY INSTRUCTIONS

Carpet and Floor nozzle

(depending on model)

Push telescopic pipe or dual

pipe into the nozzle outlet.

• Push the spring latch to release.

• Pull out the pipe to the desired length.

• Release spring latch to lock the pipe

in position.

Dual pipe

(depending on model)

Fit together the two pipes by

twisting slightly when choose

dual pipe.

Hose Handle

Dual pipe

Spring latch

Telescopic pipe

(depending on model)

Telescopic pipe

(depending on model)

2 3

ON/OFF type with dual pipe or common telescopic pipe (depending on the model)

How to use Assembling vacuum cleaner

ON/OFF type and Rotary type with advanced telescopic pipe (depending on the model)

Hose Handle

(depending on model)

Telescopic pipe

Carpet and floor nozzle

(Depending on model)

Telescopic pipe

(Depending on model)

Push the nozzle into the telescopic pipe. • Push telescopic pipe firmly into hose handle.

• Grasp the spring latch to expand.

• Pull out the pipe to desired length.

(depending on model)(depending on model)

How to use Assembling vacuum cleaner

Spring latchSpring latch

Spring latch

Carpet and floor nozzle

(depending on model)

Push the nozzle into the telescopic pipe.

Telescopic pipe

(depending on model)

(depending on model) (depending on model)

Hose slide Type (depending on the model)

Hose Handle

Telescopic pipe

• Push telescopic pipe firmly into hose handle.

• Grasp the spring latch to expand.

• Pull out the pipe to desired length.

(depending on model)

How to use Assembling vacuum cleaner

Spring latchSpring latch

Spring latch

Attachment Point

Connecting the hose to the vacuum cleaner

Push the fitting pipe on the flexible hose into the attachment point

on the vacuum cleaner.

To remove the flexible hose from the vacuum cleaner, press the

button situated on the fitting pipe, then pull the fitting pipe out of the

vacuum cleaner.

Button
