OWNER'S MANUAL

DLP Projector

www.lg.com

OWNER'S MANUAL

P/NO : SAC38518903 (2211-REV01)

ENGLISH

CONTENTS

PREPARATION

INSTALLATION

11 Ceiling-Type Installation

12 How to Install the Projector On a Tripod

13 Projection Distance per Screen Size

15 Adjusting the Focus of the Projection Screen

16 Kensington Security System

USING REMOTE CONTROL

17 Inserting Batteries in the Remote Control

18 Viewing the Remote Control Features

CONNECTING DEVICES

21 Connecting with a HDMI Cable

22 Connecting a Digital Amp

23 Connecting Headphones

24 Connecting a smart device (smartphone, tablet, etc.)

SAFETY PRECAUTIONS

CHECKING BEFORE REPORTING MALFUNCTION

36 Projector Safety Check

37 Troubleshooting

CHECKING INFORMATION

39 Specifications

40 HDMI Supported mode

42 Licenses

42 Open Source Software Notice Information

43 Other specifications

44 Symbols

This manual is produced for public use and may contain images or contents

different from the product you purchased.

This manual is subject to change depending on the company’s circumstances.

ENGLISH

PREPARATION

The pictures may differ slightly from the actual product.

Accessories

Accessories included with the projector are shown below.

Accessories are subject to change without prior notice.

New accessories may be added or old ones removed.

Remote Control

Two AAA Batteries Owner's Manual

AC-DC Adaptor Power cord

• When connecting an HDMI or USB cable, or

connecting a USB flash drive to the HDMI

or USB port, use a product that has a width

of 18mm or less and a height of 10mm or

less. If the USB cable or USB flash drive does

not fit the USB ports of the projector, use an

extension cable that supports USB 2.0.

A ≤ 10mm

B ≤ 18mm

• When connecting two USB devices at the same time, each one should have

bezels less than 8.5mm thick.

• Use a certified cable with the HDMI logo attached.

• If you do not use a certified HDMI cable, the screen may not display or a

connection error may occur. (Recommended HDMI cable types)

— Ultra High Speed HDMI®/™ Cable (3m or less)

ENGLISH

Optional Extras

To purchase optional accessories, visit an electronics store or online shopping site or

contact the retail store where you purchased the product. Optional accessories are

subject to change without prior notice.

Projection Screen Tripod LG Audio Device

HDMI Cable Optical Cable

ENGLISH

Parts and Components

Lens1)

Inlet Vent

Joystick Button

Focus Knob

1) Do not touch the lens when using the projector. The lens may be damaged. (Keep

lens away from sharp objects.)

ENGLISH

Outlet Vent1)

Bottom of the Projector

Adjustable leg2)

Speaker

1) Due to the high temperature of vent area, do not get close to the vent area.

2) Turn the adjustable leg left or right to adjust the angle.

ENGLISH

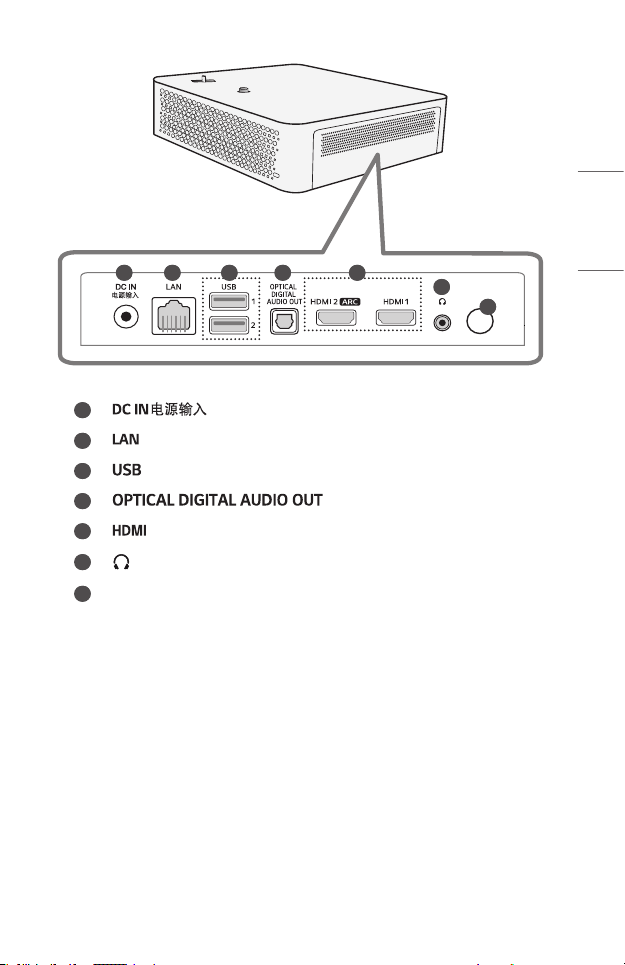

1 2 3 4 5 6

(DC IN Port)

Port

(Headphone Port)

IR Receiver

ENGLISH

Using the Joystick Button

You can operate the projector by pressing the button or moving the joystick left, right,

up, or down.

Basic functions

Power On

When the projector is turned off, place your

nger on the joystick button, press it once, and

release it.

Power Off

(Press and

Hold)

Press and hold the joystick button for more than

3 seconds while the projector is on.

Volume

Control

Place your nger over the joystick button and

move it left or right, you can adjust the volume

level.

Up/Down/

Left/Right

If you move the joystick up, down, left, or right,

you can move the cursor to select the menu

items.

NOTE

• When moving the joystick button up, down, left or right, be careful not to move

the button while it is being pressed. The volume may not be adjusted and the

cursor may not move when the joystick button is pressed and moved.

ENGLISH

Adjusting the menu

When the projector is turned on, press the joystick button one time.

You can adjust the menu items moving the joystick button left, right, up, or down. Move

to the desired menu item, and then press the joystick button once to select it.

Turns the power off.

Changes the input source.

Clears on-screen displays and returns to projector viewing.

Displays the Settings menu.

ENGLISH

Projector Status Indicators

LED Power Indicator

Red

Power standby state

Off

The projector is operating with the power on.
