LG M3201CE Manual de usuario

Test Report No.: GETEC-E3-06-016

FCC Class B Certification

EUT Type: 32” LCD Monitor

FCC ID: BEJM3201CE

APPENDIX H

: USER’S MANUAL

ENGLISH

Accessories

Speaker kit / Screws

(Applicable only for models

that support the speakers)

Remote Control/

Batteries

Power Cord Audio Cable (PC)

Product

Desktop Stand Type Free Mount Type

Please check the accessories in the product package.

* The product and the accessories can be different from the figures shown here.

15-pin D-Sub Signal

Cable

DVI Signal Cable

Wall-mount Rack

(This has to be purchased separately if required.)

Please refer to the enclosed "Installation Guide" when installing the wall-mount rack.

User's Guide/

Driver CD/Cards

1. Take out the battery cap.

2. Insert batteries with correct polarity (+/-).

3. Close the battery cap.

• You can use a remote Control 7 meter distance

and 30 degree (left/right) within the receiving unit

scope.

• Dispose of used batteries in the recycle bin to

prevent environmental pollution.

Inserting batteries into remote Control.

RCA-PC

Audio Cable

HDMI to DVI Signal Cable

Using the Remote Control

Power On/Off Button

•

AV Button

•

Input Select Button

(See next page)

Sleep Button

When watching AV/S-Video/

Component1/ Component2

The product will be automatically turned off

after a certain period of time.

Press this button repetitively to select an

appropriate time duration

•

Menu Button

•

Exit Button

Auto Button

•

PC: Automatic adjustment function

(Operational for the analog signal only)

Check Button

Video Operation Button

Applicable for LG products only

Volume Button

Mute button

Name of the Remote Control Buttons

There is not a function

which is supported

PSM Button

- Automatically adjusts the image.

Press this button repetitively to set

the intended screen. (See A23)

•

PC :

Bring up and down direction

adjustment.

To select the image

size of the screen.

ENGLISH

If you press the button once,

the following Input Signal

Window will appear. Select

the signal type you want

using the button.

•

Input Select Button

INPUT

HDMI/DVI

This button will be enabled

only when you selected the AV

signal. The signal type will be

changed with the following

order. Set the signal type you

want.

•

AV Button

HDMI/DVI RG B

Component 2

Component1

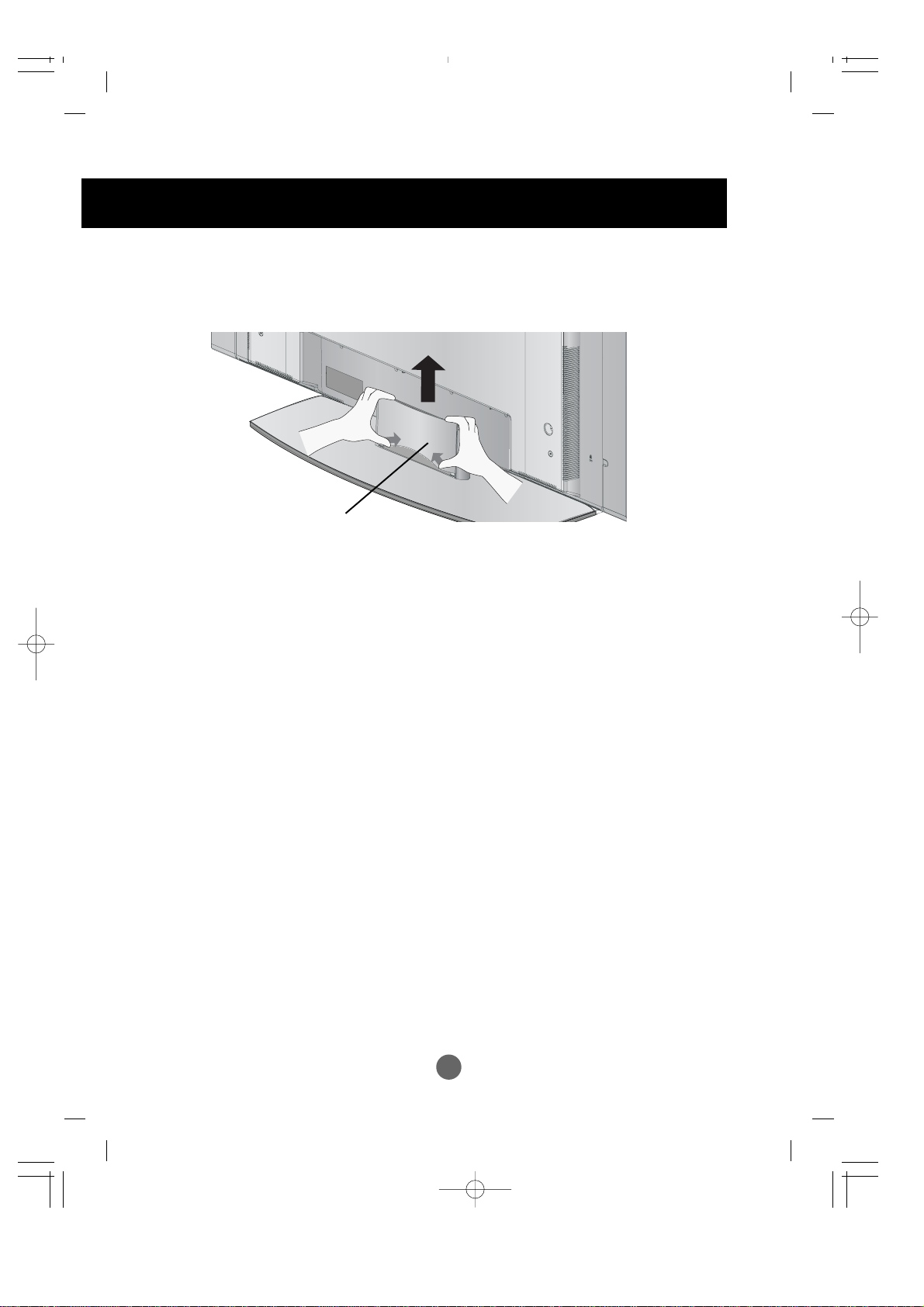

To arrange cables in order

1. Disassemble the stand cover. The cover may be easily disassembled by pressing

down on the base as shown in the figure.

2. After connecting the cables, correctly position the stand cover into the holes on the

stand. If securely connected, you will hear the latch click into place.

Stand cover

* Applicable only for models that support the stand

ENGLISH

Connecting the Speakers

Use the screws to secure the speakers on the rear side of the product as shown

in the below figure.

* Applicable only for models that support the speakers

When the speaker is installed.

Name and Function of the Parts

Rear View

Power Connector : Connect the power cord

Power connector and image are different by product size.

Wired Remote Control Port

RS-232C Serial Ports

PC Signal Inputs

PC Sound Jack

: Connect the audio cable to the *LINE OUT jack of the PC sound card.

AV Ports

*LINE OUT

A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that

the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of

PC sound card has only Speaker Out, reduce the PC volume.

If the Audio Out of the PC sound card supports both Speaker Out and Line Out, convert to Line Out

using the card jumper of the program (Refer to the Sound Card Manual).

* The product image in the user’s guide could be different from the actual image.

A10

ENGLISH

First of all, see if the computer, product and the peripherals are turned off.

Then, connect the signal input cable.

When connecting with the D-Sub signal input cable.

When connecting with the HDMI to DVI signal input cable.

MAC

Macintosh Adapter (not included)

Use the standard Macintosh adapter since an incompatible

adaptor is available in the market. (Different signaling system)

Rear side of the product.

* When connecting to a wall outlet.

Connecting to External Devices

Connect the power cord.

When Connecting to your PC

PC/

MAC

Rear side of the product.

connect the Audio cable.

A11

Select an input signal.

Press the INPUT button on the remote control to select the input signal.

Or, press the INPUT button at the front side of the product.

INPUT SET

•

How to connect to two computers.

Connect the signal cables (HDMI to DVI and D-Sub) to each computer.

Press the INPUT button in a remote control to select the computer to use.

•

Directly connect to a grounded power outlet on the wall or a power bar with a ground

wire.

Note

Turn on power by pressing the power button on the product.

Turn on the PC.

Power button

INPUT

HDMI/DVI

INPUT AUTO/SET

When connecting with a D-Sub signal input cable.

• Select RGB : 15-pin

D-Sub

analog signal.

When connecting with a HDMI to DVI signal input cable.

• Select HDMI/DVI :

HDMI to DVI

Digital signal.

Connecting to External Devices

A12

ENGLISH

Use this function when displaying ANALOG RGB inputs of a PC to the other product.

Product 1

•

To use different products connected to each other

Connect one end of the signal input cable(15-pin D-Sub Signal Cable) to the RGB OUT

connector of product 1 and connect the other end to the RGB INPUT connector of other

products.

Watching RGB Outputs

Product 2 Product 3 Product 4

15-pin D-Sub Signal Cable
