LG Flatron L1510BF Manual de usuario
EUT Type: 15” LCD Monitor
FCC ID: BEJL1510BFN
Test Report No.: GETEC-E3-05-055
FCC Class B Certification
APPENDIX H
: USER’S MANUAL
Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for furture reference.
See the label attached on the product and give the information to your
dealer when you ask for service.
L1510BF
User’s Guide
A1
This unit has been engineered and manufactured to ensure your personal
safety, however improper use may result in potential eletrical shock or fire
hazards. In order to allow the proper operation of all safeguards
incorporated in this display, observe the following basic rules for its
installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Do not Open the Display.
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
During a lightning storm or when the display is to be left unattended for an
extended period of time, unplug it from the wall outlet.
Important Precautions
A2
Important Precautions
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the display where the power cord is subject to damage.
Do not use this display near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of
your local authority.
A3
Connecting the Display
Before setting up the product, please make sure the power to the product,
PC, and other attached devices is turned off.
Positioning your display
1. Remove the tape.
Ergonomic
It is recommended that in order to maintain an ergonomic and comfortable viewing
position, the forward tilt angle of the product should not exceed 5 degrees.
Height Range : maximun 3.39inch (86.1mm)
Landscape & Portrait : You can rotate the panel 90o clockwise.
(* For detailed information, please refer to the Pivot Sofeware CD provided.)
2. Adjust the position of the panel in various ways for maximum comfort.
Tilt Range : -24˚~145˚
145˚-24˚
* Make sure not to
touch the floor
when the head
rotates to use the
Pivot function.
<Image 1>
Put the set as the
picture below
<Image 1> to
remove the tape.
Do not remove the tape
with the set up side
down as the <Image 2>
The base part may
spring up to injure your
hand.
<Image 2>
A4
Connecting the Display
Using the Computer
1. Connect the signal cable. When attached, tighten the thumbscrews to secure
the connection.
2. Connect the power cord into a proper power outlet that is easily accessible and
close to the display.
3. Press button on the front switch panel to turn the
power on. When product power is turned on, the 'Self
Image Setting Function' is executed automatically.
'Self Image Setting Function'?
Self Image Setting function provides the user with optimal display settings.When the user connects the monitor
for the first time, this function automatically adjusts the display to optimal settings for individual input signals. If you
want to adjust the monitor while in use, or wish to manually run this function once again, push the ‘AUTO’ button
on the front panel of the monitor. Otherwise, you may execute the ‘ Factory reset’ option on the OSD adjustment
menu. However, be aware that this option initializes all the menu items except ‘Language’.
Wall-outlet type*
PC-outlet type*
PC
MAC
Power Cord Signal Cable
Analog signal
D-sub
*
Varies according to model.
1
2
Mac adapter
For Apple Macintosh use, a
separate plug adapter is
needed to change the 15 pin
high density (3 row) D-sub
VGA connector on
thesupplied cable to a 15 pin
2 row connector.
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.
A5
Connecting the Display
3. Use 'Calibration' within the program to adjust the touch screen area. Refer to
the Touch Screen manual for detailed descriptions on touch screen adjustment
and other functions.
NOTE
If the USB cable was already connected when you install the program for the first
time, driver may not automatically be found.
To Use Touch Screen
1. Install the 'Touch Screen Install Driver' on your PC. Refer to the Touch Screen
manual provided separately for installation details.
2. After installing the program, connect a USB cable between the screen and your
PC. Touch screen will be automatically enabled after connecting the cable.
A6
Control Panel Functions
LightView
Front Panel Controls
Buttons
Use these buttons to choose or adjust items in
the On Screen Display.
MENU Button
Use this button to enter or exit the On Screen
Display.
Use this button to turn the display on or off.
This Indicator lights up green when the display
operates normally(On Mode). If the display is in Sleep
Mode (Energy Saving) mode, this indicator color
changes to amber.
Power Button
Power Indicator
Use this button to enter a selection in the On Screen
Display.
AUTO/SELECT
Button
Control Function

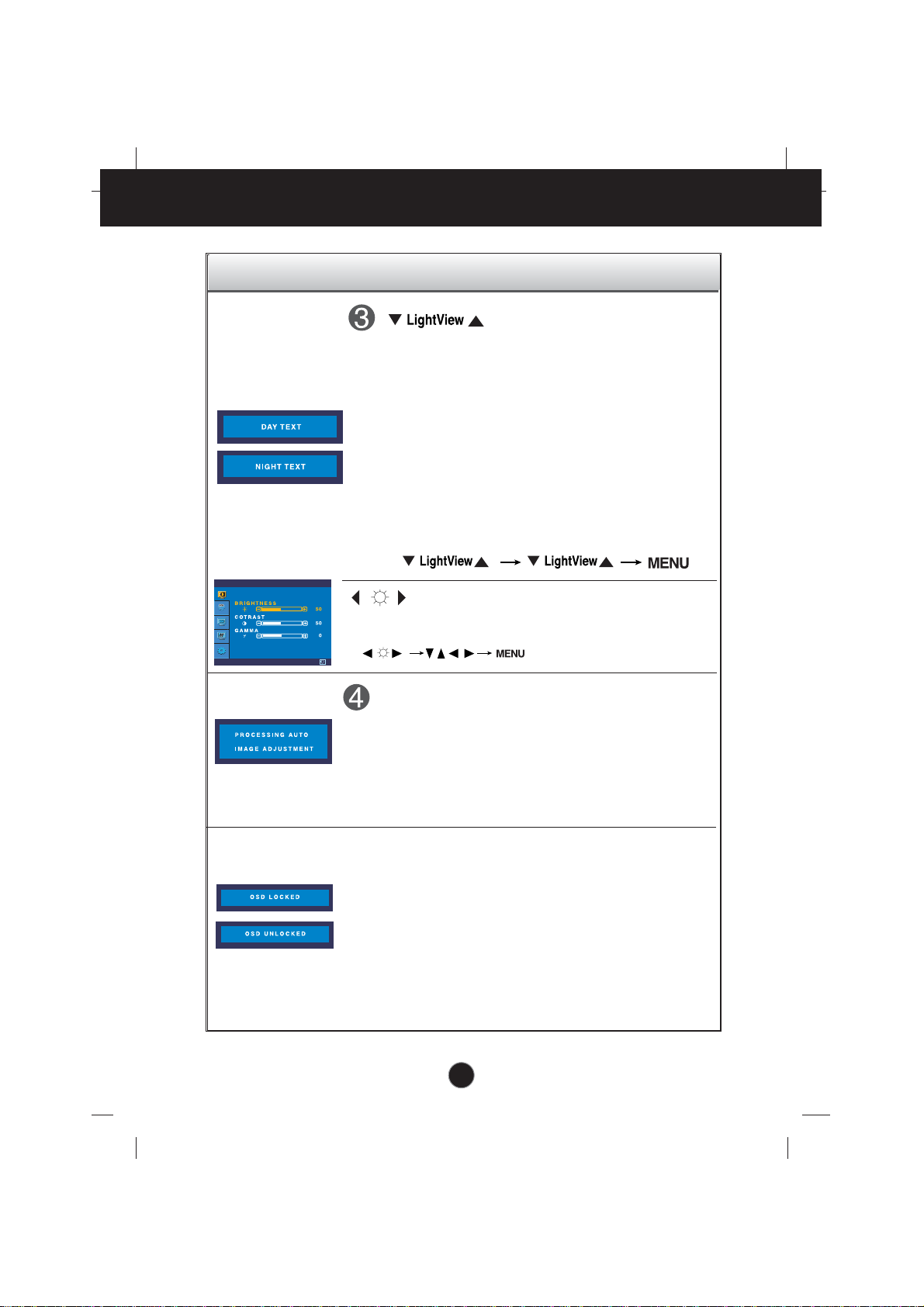

A7
Control Panel Functions
Control Direct Access Function
When adjusting your display settings, always press the
AUTO/SELECT button before entering the On Screen
Display(OSD). This will automatically adjust your display image
to the ideal settings for the current screen resolution size
(display mode).
The best display mode is 1024x768.
AUTO IMAGE ADJUSTMENT
Bring up Contrast and Brightness adjustment.
:
MENU
This function allows you to secure the current control settings,
so that they cannot be inadvertently changed. Press and hold
the MENU button for several seconds: the message
“OSD LOCKED” appears.
You can unlock the OSD controls at any time by pushing the
MENU button for several seconds:
the message “OSD UNLOCKED” will appear.
OSD LOCKED/UNLOCKED
:
MENU
This feature lets you easily select the best desired
image condition optimized to the environment
(ambient illumination, image types etc).
• DAY : Bright ambient illumination
• NIGHT : Dark ambient illumination
• TEXT : For text images (Word processing etc.)
• MOVIE : For animation images in videos
or movies
• PHOTO : For pictures or drawings
•
NORMAL
: This is under normal operating
conditions
DAY
NIGHT
A8
On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating parameters of
the display is quick and easy with the On Screen Display Control system.
A short example is given below to familiarize you with the use of the controls.
The following section is an outline of the available adjustments and selections
you can make using the OSD.
To make adjustments in the On Screen Display, follow these steps:
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the or Buttons. When the icon you want
becomes highlighted, press the AUTO/ SELECT Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the MENU Button.
Exit the OSD by pressing the MENU Button.
NOTE
Allow the display to stabilize for at least 30 minutes before making image adjustments.
AUTO/SELECT
MENU
MENU MENU
